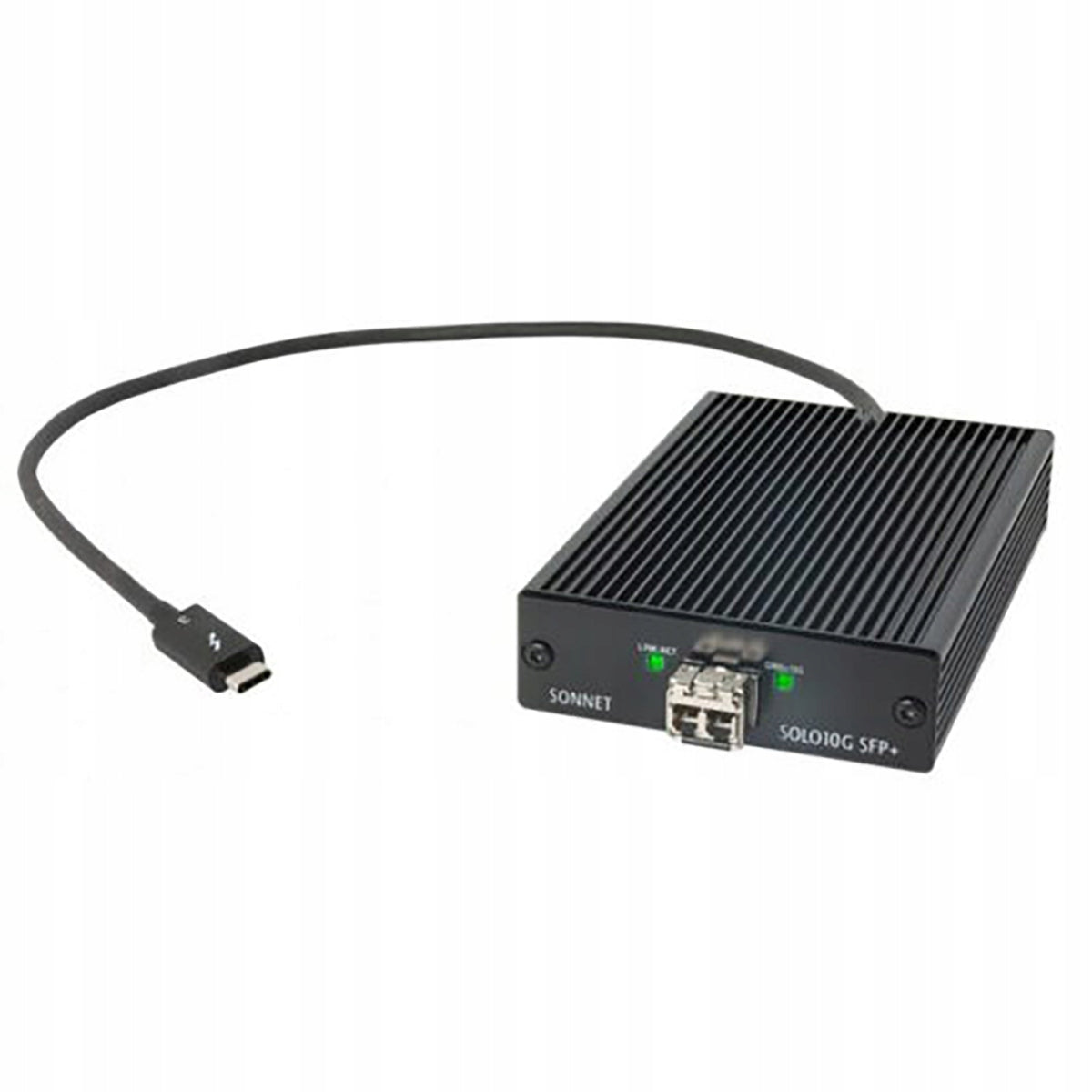

Tinklo adapteris Sonnet Solo 10G Thunderbolt SFP+ 10 Gb Ethernet, skirtas macOS/Windows

Trumpai apie prekę

Prekė: Tinklo adapteris Sonnet Solo 10G Thunderbolt SFP+ 10 Gb Ethernet, skirtas macOS/Windows. Kategorija: Tinklo plokštės.

• Gamintojas: Sonnet
• Modelis: SOLO10G-SFP-T3

The Sonnet Solo 10G SFP+ Thunderbolt network card is 100% compatible with mac M1/M2 and PCs with Thunderbolt port. Compatible with AVB.

A significant proportion of teams using high-speed, shared storage in post-production and other high-bandwidth processes use 10 Gb of Ethernet as the new standard for data transfer.

For a large proportion of 10Gb users, fiber optic is the preferred infrastructure.

For these workgroups, there is now an affordable 10GbE interface for Mac, Windows or Linux® with Thunderbolt™ 4 or Thunderbolt 3 ports — the Sonnet Solo10G™ SFP+ adapter. This is an extremely simple solution for instantly adding connectivity to your 10GbE fiber network.

Sonnet Solo 10G SFP+ is equipped with a replaceable 10GBASE-SR cartridge (short range), which allows connection directly to the 10GbE infrastructure using optical fiber at a distance of up to 300m

Support AVB

Support for audio-video bridging (IEEE 802.1Qav, AVB) makes the adapter ideal for use in professional audio and video applications where synchronization of data streams is crucial.

Key Features:

• Adds 10GBASE-T SFP+ 10 Gigabit Ethernet connectivity to your computer with Thunderbolt 3 or 4 ports

• SFP+-SR cartridge included (short range)

• Thunderbolt 3 40 Gbps interface – connects to any Thunderbolt 3 computer port or at the end of the Thunderbolt 3 device chain

• Compliant with IEEE 802.3az

• Advanced features – Supports audio-video bridging (IEEE 802.1Qav, AVB) and energy-saving Ethernet (IEEE 802.3az)

• Easy setup – configured via the macOS Network Control Panel or Windows Device Manager

• Small and quiet – the adapter can be stowed in your pocket and does not use a fan, ideal for use in noise-sensitive environments

• Bus powered, energy efficient – powered by Thunderbolt, Solo 10GbE SFP+ does not require a power supply

• Durable construction - aluminum housing withstands heavy use

• Thunderbolt certified for Mac and Windows

Technical specification

• Product code Sonnet: SOLO10G-SFP-TB3

• Connector standard for computer: Thunderbolt 3 or 4

• External network connectors: 10GBASE-SR cartridge (short range)

• 10GbE Controller: Marvell AQC100S

• Packages: Maximum packet size: 16352 bytes (large frames), 9000 bytes in macOS®

• Supported data speeds: 10 Gbps, 1 Gbps

• Advanced features

– Support flow control

MSI (interrupts signaled by message)

– RSS (scaling on the receiving side)

– Possibility of interrupting the connection

– Multicast filtering

Energy-efficient Ethernet (IEEE 802.3az)

AVB (IEEE 802.1Qav, audio-video bridging)

Support for 64-bit addresses for systems that use more than 4 GB of physical memory

• Stateless relief

– Offloading the TCP, UDP and IPv4 checksum

– TSP (TCP segmentation offload, AKA high sending offload)

– LRO (Large Receive Offload)

– RSS (receiver side scaling)

• Operating temperature: 0ºC to 35ºC (32ºF to 95ºF)

• Dimensions (W) X D. X H ): 79,5 x 124.5 x 27,2 mm

• Weight: 0.25kg

• RoHS Compliant: Yes
