Tinklo adapteris AXAGON ADE-TXPD, Gigabit Ethernet, USB-C 3.2 Gen 1

Trumpai apie prekę

Prekė: Tinklo adapteris AXAGON ADE-TXPD, Gigabit Ethernet, USB-C 3.2 Gen 1. Kategorija: Tinklo plokštės.

• Gamintojas: Axagon
• Modelis: ADE-TXPD

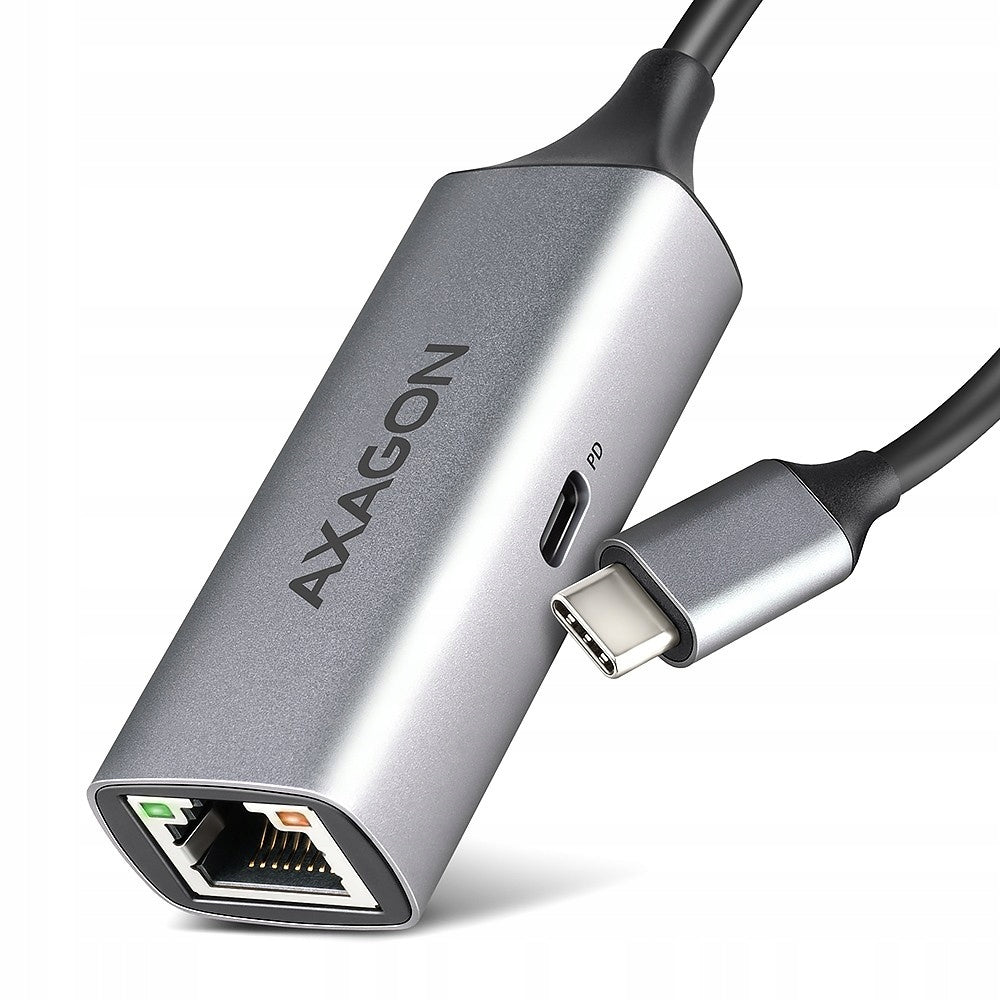

AXAGON ADE-TXPD external network card with USB-C PD 100W connector will easily change your USB-C port to a Gigabit Ethernet port . The adapter can complement a missing RJ-45 network connector , add another network card, or replace an original, non-functional network connection. A big advantage is the integrated Power Delivery connector, which allows you to connect a charger and thus provide power to your laptop. Thanks to the 15 cm cable with a USB-C tip, you can connect the Ethernet adapter to any computer, tablet or phone.

This USB network card is compatible with 10/100/1000 Mbit/s speeds and will expand your computer with a fast and stable network connection . In addition to gigabit bandwidth, the LAN adapter offers a wide range of features , such as: IPv4/IPv6 checksum to reduce CPU load on checksums, crossover detection and auto-correction, offloading of large TCP sends, support for various Wake-on-LAN modes, virtual VLAN support, and advanced power management features.

The PD USB-C input is intended for connecting a suitable Power Delivery charger. Thanks to this, your mobile device is powered directly from the PD charger using Power Delivery 3.0 technology with a power of up to 100 W.

The metal cover of the adapter is made of aluminum and provides excellent mechanical protection and excellent heat dissipation. Its minimal size and weight make it an ideal accessory for laptops and other mobile devices.

Support for current versions of Windows, macOS, Linux or Chrome OS operating systems allows it to be used with any desktop computer, laptop or ultrabook equipped with a modern, double-sided USB-C connector.

For Windows 8.1 and later, the adapter enables easy automatic installation without the need for an Internet connection. The Ethernet adapter will also be useful for users of tablets or mobile phones with iPad OS, iOS or Android that support a wired Ethernet connection. Additionally, thanks to the chip used, the adapter also works with the operating system of Nintendo Switch game consoles.

Input (connection to laptop):

USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C female connector.

Compatible with USB 3.2 Gen 2, USB4 and Thunderbolt 3/4.

Input (power):

USB Power Delivery 3.0 100W port (power only), USB-C female connector.

Powering a mobile device from a PD charger via a USB-C network.

PD power must be supported by both the mobile device and the charger.

Exit:

Gigabit Ethernet interface with RJ-45 connector for connection via UTP or STP cable.

Supports Ethernet interface transmission speeds of 10/100/1000 Mb/s.

Support IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.

Autodetect 10/100/1000 Mbps.

Support IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU load of combined IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum and checksum generation.

TCP Large Send Offload V1 and V2 support.

Support IEEE 802.1P Layer 2 priority encoding & decoding.

Support IEEE 802.1Q VLAN tagging.

Support IEEE 802.3az EEE (Energy Efficient Ethernet) - reduce power consumption in idle state.

Jumbo frame support.

Auto MDI/MDIX support - crossover detection and auto-correction eliminates the need for crossover cables.

Further properties:

Full Plug and Play and Hot Plug support.

CDC-ECM support - automatic driver installation on various operating systems.

CDC-NCM Support native support without driver installation on iOS/iPadOS/macOS/Linux.

Powered by USB bus (bus power), no additional power supply is needed.

Two LEDs to indicate network activity and whether the adapter is connected to the network.

Dimensions 76 x 24 x 16 mm.

Weight 28 g (including cable).

USB cable length 15 cm.

ASIX AX88179A chipset used.

Wake-on-LAN support in various modes:

Support for sleep and remote wake-up modes using Magic Packet, Microsoft Wakeup Frame and Link Change wake-up.

Bonjour wake-on-demand support.

Wakeup Packet Indication support.

Microsoft Modern Standby support.

Advanced Power Management Features:

The adapter supports advanced power management to reduce losses in idle or low network traffic conditions. It also supports advanced power saving when the Ethernet cable is unplugged.

Power Management offload support (ARP & NS).

Support for the ECMA-393 proxZzzy for sleeping hosts standard to manage network connections of sleeping hosts using proxy servers.

Supported operating systems:

Windows, macOS, iPad OS, iOS, Linux, Chrome OS, Nintendo Switch system software and Android (NOTE - you need to check with the Android device manufacturer whether Ethernet connection is supported).

• Type: LAN
• Chipset: ASIX AX88179A
• Interface: USB-C
• I/O Ports: 1 x 10/100/1000Base-T RJ-45 port, 1 x USB 3.0 Type C
• Standards: 802.11a, 802.3, 802.3ab, 802.3az, 802.3u
• Supported Operating Systems: Android, Chrome OS, iOS, Linux, Windows, Mac OS, Windows 10, Windows 10 Home, Windows 10 Pro, Windows Server 2016, Windows Server 2022, Windows Server 2019, Windows 11 Pro, Windows 11, Windows 11 Home
• Included Accessories: USB to Gigabit Ethernet Adapter with permanently attached 15 cm USB-C cable, Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA, Packaged in a cardboard box with a hanging hole.
• Dimensions: 76 x 24 x 16 mm
• Weight: 28 g
