Suvirinimo aparatas TIG 200A Magnum THF 220 PULS SOFT AC/DC aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas TIG 200A Magnum THF 220 PULS SOFT AC/DC aliuminiui. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: TIG AC/DC MAGNUM THF 220 RSW5

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

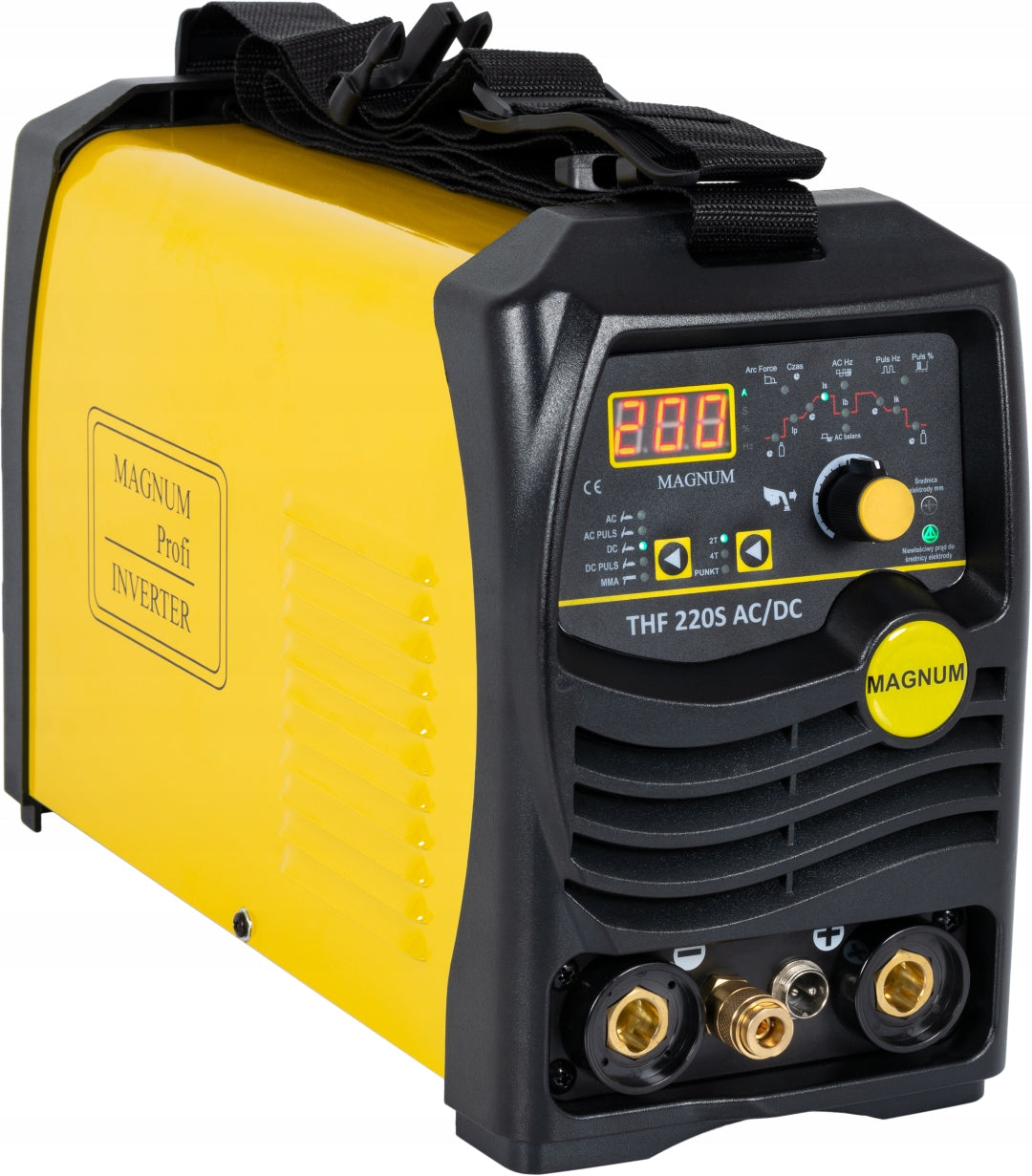

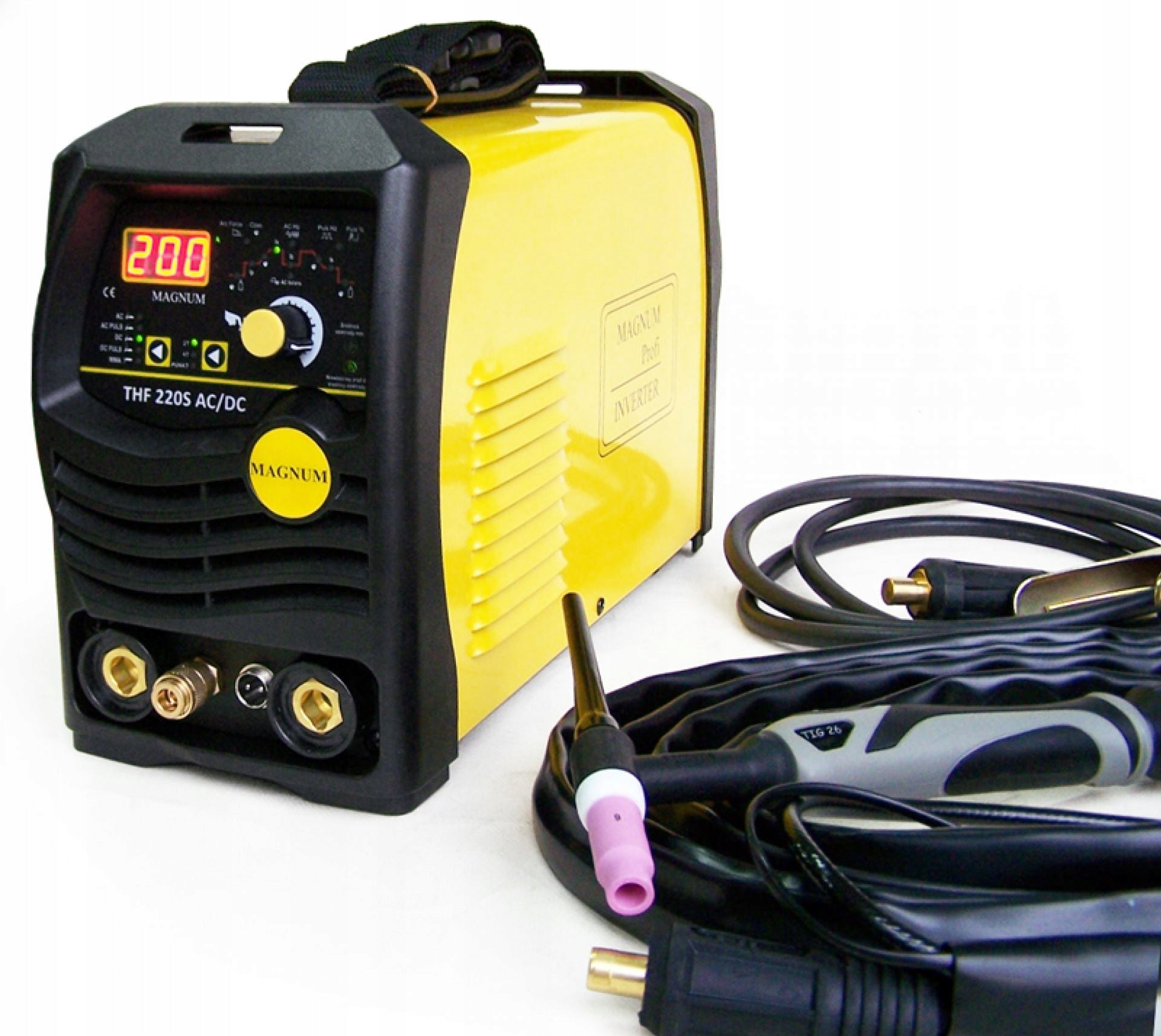

TIG 200A Magnum THF 220 AC/DC Soft welding machine

MAGNUM THF 220 AC/DC Pulse inverter welder is a professional inverter welding device designed for welding: aluminum and its alloys, carbon steels, stainless steels, acid-resistant steels, copper and brass and other weldable metals and alloys, made in IGBT technology.

The device welds using the following methods:

• TIG AC/DC
• TIG AC/DC (PULSE)
• MMA

For all TIG methods, the following welding modes can be used:

- Two-bar with arc glow through lift-arc (2T)

- Four bars with arc ignition via lift-arc (4T)

- Two-bar with contactless HF (2T HF)

- Four-bar with contactless HF (4T HF)

The advantages of the device are small dimensions, making the device compact and easy to transport, and the high quality of workmanship ensures that the device will serve for a long time.

• In the TIG function, it is possible to weld using Pulse, which limits the introduction of heat into the material, and thus improves the quality of the weld, reduces deformation of the welded material associated with overheating, and reduces the risk of burnout of the welded material.

• In the MMA function there are options:

- Hot Start - facilitating arcing by temporarily increasing the welding current.

- Arc Force - allows you to control the dynamics of the welding arc, which transfers to the depth of melting and soft arc

- Anti Stick - makes it easier to detach the electrode if it is glued to the welded material by reducing tension

- VRD - During a break in the welding process, it reduces the voltage to a level safe for the welder.

The entire touch panel of the device is described in Polish

TECHNICAL DATA:

Power supply 230V/50Hz

Idle voltage 66 V

Security 25 A

Power consumption 6,4 kVA

MMA welding current 10 - 170 A / 40%

TIG DC 10 welding current - 170 A / 40%

TIG AC 10 welding current - 200 A / 35%

Current drop time adjustment range 0 - 10 s

Gas outflow adjustment before welding 0 - 2 s

Gas flow regulation after welding 0 - 10 s

Air cooling

Net weight 10,5 kg

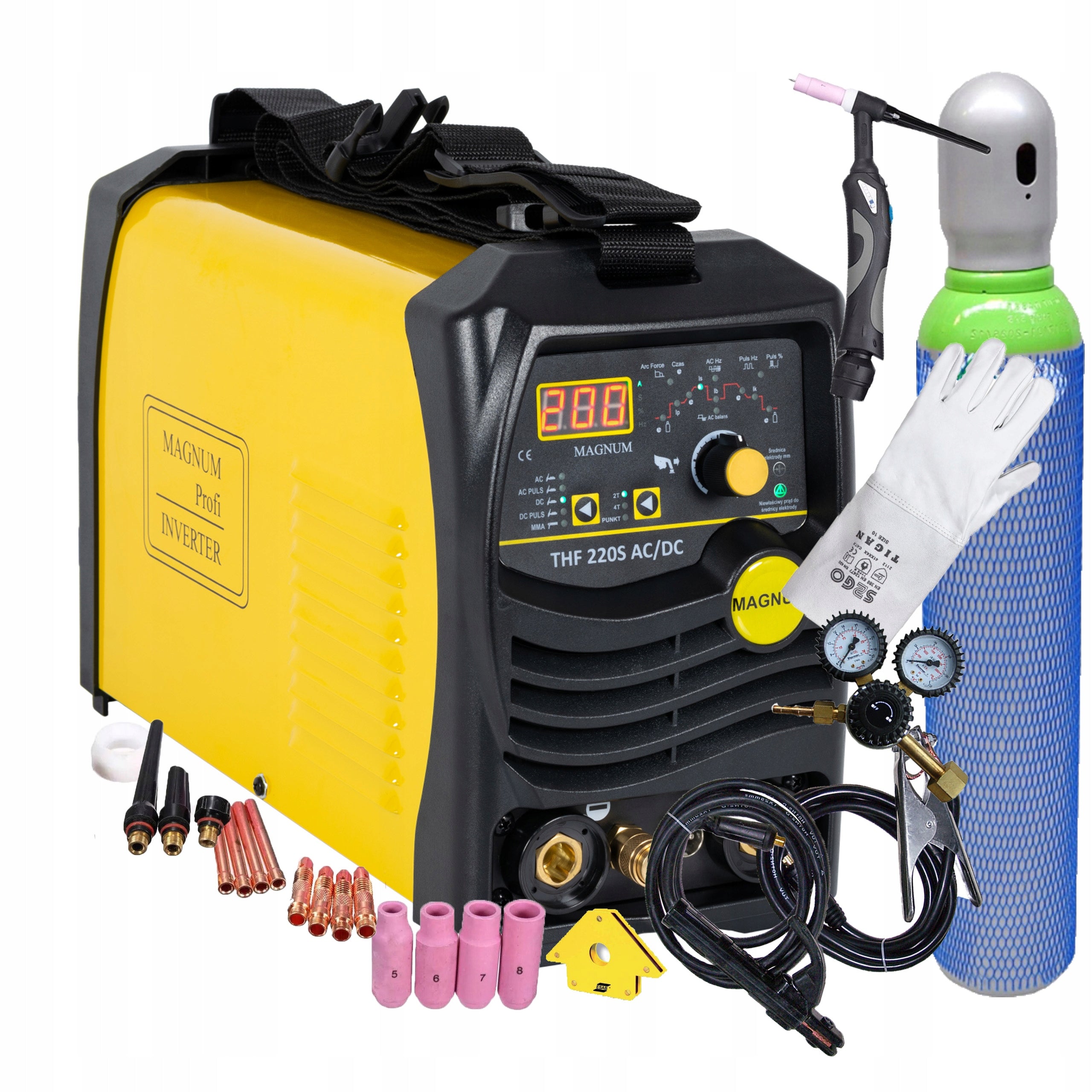

• Magnum TIG THF 220S AC/DC welding machine
• TIG SR-26/4m welding torch
• Bulk cable
• User manual

+ Ar 8l WELDING KIT

• Ar 8l cylinder (argon) - certified, has all the approvals required by the filling points of the cylinder,
• Ar/CO2 gas reducer with two clocks,
• Magnetic angle
• Welding gloves
• gas line,
• welding gloves.

+ STARTER SET OF BURNER PARTS - TIG AC/DC

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	8.65 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	9 kg
Parametry	Welding range	5–200 A
Parametry	Product weight with unit packaging	18 kg
Parametry	Manufacturer code	TIG AC/DC MAGNUM THF 220 RSW5
Parametry	EAN (GTIN)	5904624028578
Parametry	Welding methods	MMA,TIG
