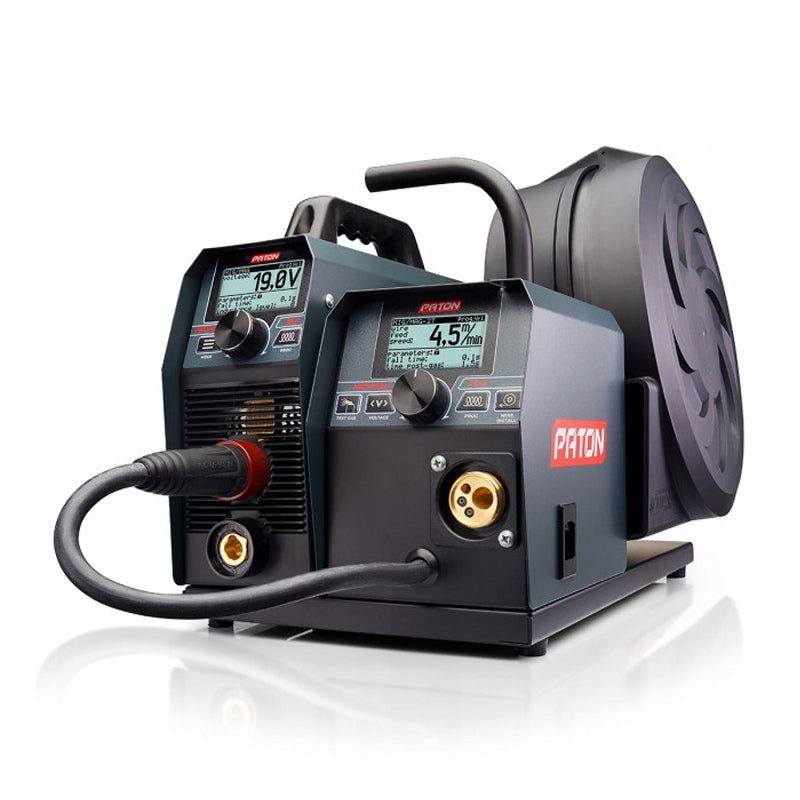

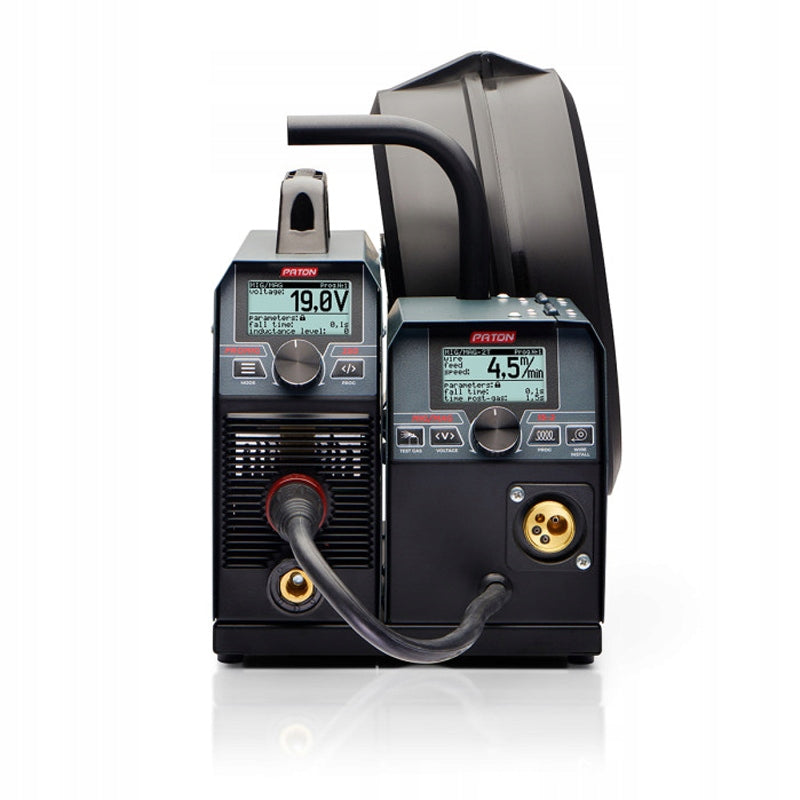

Suvirinimo aparatas PATON ProMIG 250A 15-2, MIG/MAG, MMA, TIG Lift, 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas PATON ProMIG 250A 15-2, MIG/MAG, MMA, TIG Lift, 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: ProMIG-250-15-2
• Ilgis: 360 mm
• Plotis: 260 mm
• Aukštis: 270 mm

⭐ Paton brand equipment is the No. 1 for customers who are not professionals, but want to weld like the best welders.

⭐The Paton plant has its own production of welding machines, which, unlike most welding equipment on the Polish market, does not take place in China, but in its own factory, which is located in Ukraine in Kiev.

⭐5 years of DOOR-to-DOOR service period, also for companies.

⭐You don’t have to be a professional to weld like a professional!

PATON - the highest reliability on the Polish market

⭐⭐⭐⭐⭐

Are you still using your welding machine and worried about its durability? With PATON you do not have to worry about anything - whether you buy a device for yourself or for the needs of the company, PATON gives you 5 years of free DOOR-to-DOOR service period.

What does this mean?

After buying a welding machine, you can be sure for 60 months that no matter what happens to the device - we will pick up the welding machine from you and repair it within 5 years from the date of purchase.

The Paton ProMIG-250 15-2 device was made on the basis of the latest inverter technology, from components made in Europe. The device uses general protections such as protection against excessive voltage, excessive current, overheating of the device, etc.

The welding machine can be successfully used for welding carbon steel, stainless, alloy, iron, black steel and aluminium using the following methods:

• MIG/MAG in protective gas shielding
• MIG/MAG without gas shield (self-shielded wire)
• MMA wrapped electrode
• TIG DC

✅ highest reliability confirmed by the longest service period DOOR-to-DOOR

✅ easy settings of the welding machine

✅ digital setting method

✅ application from amateur to professional

✅ Electronic thermal protection system to protect all heat generating components from overheating

✅ Reliability with IGBT technology

✅ European production

✅ Ability to work on long extension cords as well as with a generator

✅ The devices have protection against voltage spikes and a stabilization system, enabling proper operation for the voltage range from 160V to 260V

✅ Twice the electricity requirement compared to traditional sources

✅ welding without gas with self-shielding wire

✅ equipment of the highest quality - handles included are German manufacturer ABICOR BINZEL

⭐ Convenience for all

Do you use MMA or TIG? Separate the source from the feeder and take it with you wherever you want. Additional safety will provide you with one of the highest possible degrees of protection of the interior of the IP33 welding machine - that is:

✅ protection against access to hazardous parts with a tool

✅ protection against foreign solids with a diameter of 2,5mm and more

✅ protection against spraying water at any angle up to 60 degrees from the vertical on each side

⭐ Professional wire feeder

The feeder has its own control system. Its characteristic feature is a very powerful and high-quality additionally sealed metal wire feeding mechanism, as well as an integrated EURO connector, which has become a standard around the world.

Few novice welders are aware of the fact that the right power and speed of wire feeding is one of the factors determining the quality of our welding in the MIG MAG method. With the highest quality Paton feeder, the wire will be fed perfectly, exactly as you set it.

⭐ Features that will make you do everything

Paton MIGOMATES have the possibility of soldering, thanks to the function of changing the inductance in three degrees. Inductance control allows you to optimize the characteristics of the arc depending on the thickness of the welded element.

PULSE FUNCTION IN ALL METHODS

✔ PULS in TIG method – gives the welder full control of the heat introduced into the material – a great function for welding stainless steel and acid-resistant steel,

✔ PULS in MMA method – thanks to this it is easier to transfer the material from the electrode to the welding lake, better quality of the welded joint,

✔ PULS in MIG/MAG method – easier detachment of metal droplets from the end of the electrode wire, the ability to adjust pulsating current parameters. MIG welding with pulsation is useful for welding stainless steels, acid-resistant steels and aluminum alloys. In addition, pulse welding provides better parameters when soldering CuSi3. The device is equipped with the synergic control function in pulse mode, which automatically selects the optimal welding parameters. Thanks to this, it ensures a stable arc and high quality and repeatability of welds, facilitating the work of both less experienced and advanced users.

Detailed technical data:

• Power supply: 50/60 Hz, 230 V
• Nominal mains current required: 32 -36A
• Nominal welding current: 250A
• Maximum welding current: 335A
• Work Cycle: 60% at 250А, 100% at 193A
• Power supply voltage change intervals: 160 – 260 V
• Welding current adjustment intervals: 12 – 250 A
• Welding voltage adjustment intervals: 12 - 28V
• Diameter of wrapped electrode: 1,6 – 6,0 mm
• Diameter of solid wire: 0,6 – 1,2 mm
• Number of pressure rollers: 2
• Hot-Start function: Adjustable
• Arc-Force function: Adjustable
• Anti-Stick function: Automatic
• Pulsing current welding methods: MMA: 0,2 – 500 Hz (adjustable), TIG: 0,2 – 500 Hz (adjustable), MIG/MAG: synergistic
• Idle voltage reduction system: On/Off
• Idle current voltage: 12 / 75 V
• Arc current voltage: 110 V
• Nominal power consumption: 6,9 – 7,7 kVA
• Maximum power consumption: 8,5 – 11,0 kVA
• Energy efficiencý: 90%
• Cooling: Automatic
• Working temperature range: –25 ... +45 ºС
• Compliant standards: EN 60204 – 1:2006 EN 60974 – 1:2012 EN 60974 – 10:2014
• Dimensions (length, width, height): 450 х 275 х 290
• Weight: 11,7
• Degree of protection: IP 33

❓ FAQ - Frequently Asked Questions

❓ What welding methods does this migomat support?

The PATON ProMIG-250 welding machine is a semi-automatic welding machine that supports several methods:

• MIG/MAG – welding with gas shielded wire (steel, stainless steel, aluminium),
• MIG/MAG without gas (FCAW) – self-shielding wire welding, ideal for field work,
• MMA – classic welding with a wrapped electrode,
• TIG Lift – TIG welding with ignition by rubbing (after connecting the TIG handle).

It is a universal device for workshop, garage, construction and assembly work.

❓ What is the maximum welding current and what materials can be welded?

The ProMIG-250 offers welding currents of up to 250 A and smooth adjustment between 12 and 250 A.

Allows welding:

• structural steel up to 10 mm,
• stainless steel up to 8 mm,
• aluminium up to approx. 6 mm (after using the appropriate wire and gas).

The welder has a duty cycle of 60% at 250 A, which ensures the possibility of long-term operation without overheating. It is an ideal choice for workshop work, repairs, steel and bodywork structures.

❓ What wires can be used in this migraine?

The welder supports wires:

• steel, stainless and aluminium,
• with a diameter of 0,6 to 1,2 mm,
• for 5 kg (⌀ 200 mm) and 15 kg (⌀ 300 mm) spools.

If necessary, self-shielding wire (FCAW) can be used without the use of gas – just change the polarity in the device.

❓ Does the welding machine have a pulse function?

Yes — PATON ProMIG-250 has a pulse welding function.

Pulse mode works in all methods:

• MMA: 0,2...500 Hz – adjustable
• TIG: 0,2...500 Hz – adjustable
• MIG/MAG: synergistic

The pulse function allows for cleaner, more precise and aesthetic welds, especially when welding thin materials, aluminum and stainless steel. In addition, it reduces the amount of chipping and reduces the heating of the material, which protects the elements from deformation.

❓ What is the service and warranty?

PATON welding machines are manufactured in Europe and not in China, which guarantees high quality, durability and reliability. The ProMIG-250 model is covered by 5-year service care, implemented in Poland – in an authorized service center in Rzeszów. This is a guarantee of fast and professional technical support.

❓ What power will the unit power the migomat? How long can the extension cord be used?

The ProMIG-250 welder can be powered from a power generator, provided that:

• the unit has voltage stabilization (AVR),
• its continuous power is a minimum of 7,5 to 8 kW,
• The recommended power is 8 kW with AVR if you plan to weld at full power (250 A).

The 6 – 6,5 kW unit with AVR is sufficient for typical workshop work with currents up to 200 A.

The welder can work with longer extension cords:

• up to 60 meters with a cross-section of 2,5 mm²,
• up to 150 metres with a cross-section of 4 to 6 mm².

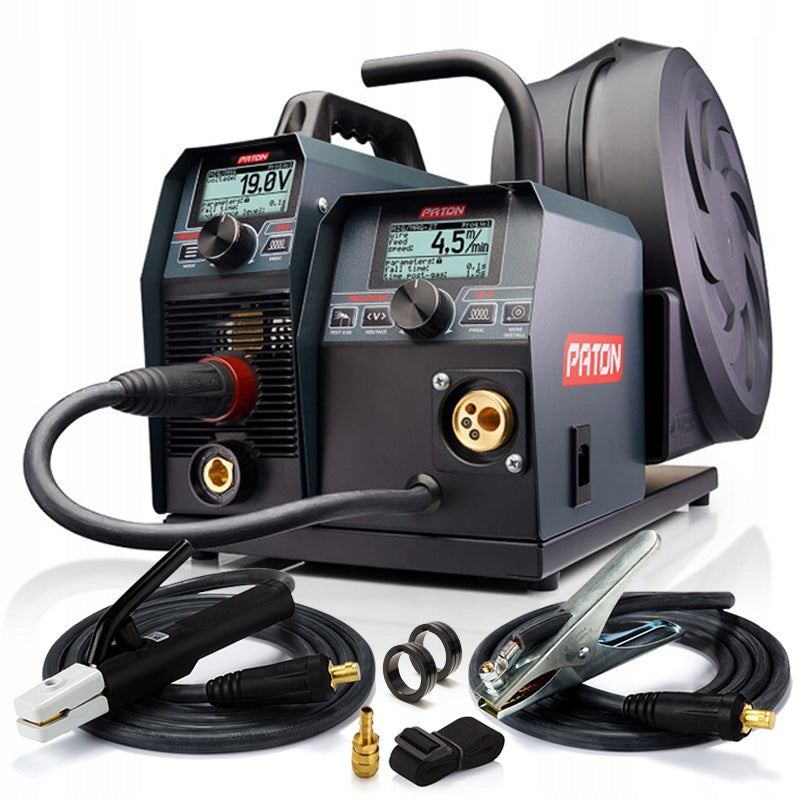

⭐ The purchased set includes:

• Welding machine PATON ProMIG 250
• Feeder PATON 15-2 (15 kg spool, also supporting 5 kg spool - 2 roller feeder)
• Electrode holder ABICOR BINZEL DE2200 3m
• Mass holder ABICOR BINZEL MK300 3m
• Wire feeder rollers 1x (0,6 – 0,8), 1x (1,0 – 1,2) V
• Quick coupler for gas
• Cardboard packaging

________________________________________________________________________________________________________

➡ The PATON brand also offers welding wire, various types of electrodes and many other models of reliable MMA, MIG/MAG and TIG welding machines.
