Suvirinimo aparatas MAGNUM MIG 270, 400V, 270A, TIG/MMA, plienui ir aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 270, 400V, 270A, TIG/MMA, plienui ir aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 270 MMA
• Ilgis: 861 mm
• Plotis: 300 mm
• Aukštis: 560 mm

• Welding methods: MIG/MAG, TIG DC, SYNERGY, MMA, SOLDERING
• Power supply: 400V
• Operating cycle 60% at maximum welding current 270A
• For welding: low carbon, low alloy, alloy and aluminium steels and their alloys
• SYNERGY - automatic selection of parameters with the possibility of manual correction
• Smooth adjustment of welding parameters, inductance
• Handle welding length 5m
• Professional, Metal, 4-Roll Wire Feeder
• Euroconnector
• Overload switch
• Cooling with fan
• Clean, aesthetic welds
• Made in IGBT technology

FOR OPTIMAL OPERATION

The device is equipped with the functions of gas test and wire test, which allow you to check the correctness of its operation before starting work. The gas test allows you to control the flow of shielding gas, ensuring optimal welding conditions, while the wire test allows you to quickly and easily check the wire feed. With these features, welding preparation is more precise and convenient.

✔ FEATURES AND ADVANTAGES:

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various types of joints,

• EUROCONNECTOR - allows the interchangeable use of various types of handles,

• OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power Supply: 400V 50Hz (3ph)
• Network security: 20A “C”
• Welding current: MIG/MAG: 40 - 270A | MMA: 60 - 270A
• MIG/MAG welding voltage: 12 - 29V
• Idle voltage: 69V
• Spool with wire: up to 300mm; up to 15kg
• Wire diameter: 0.8 / 1.0 / 1.2 mm
• Degree of protection: IP21S
• Dimensions: 56 x 30 x 86 cm
• Weight: 35kg

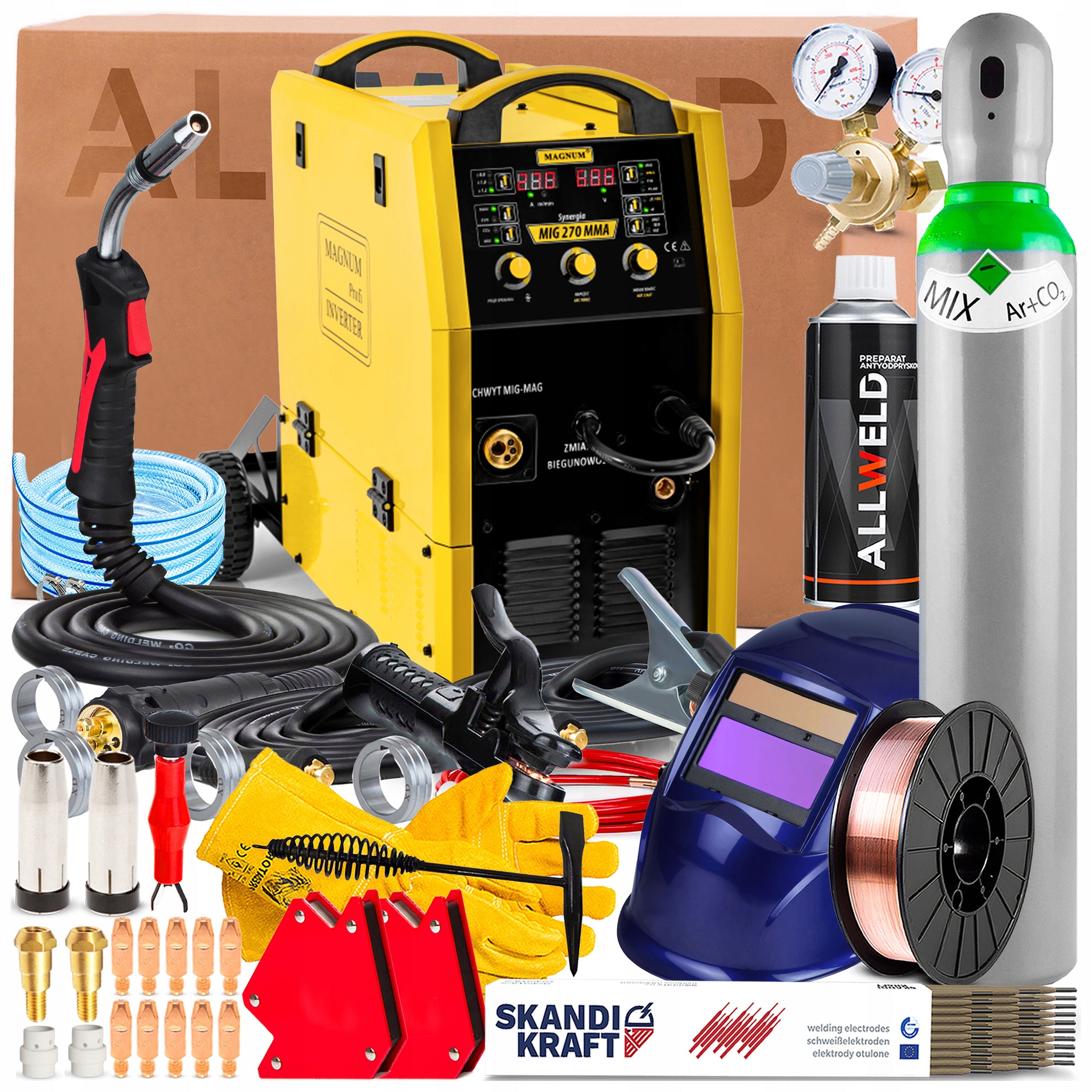

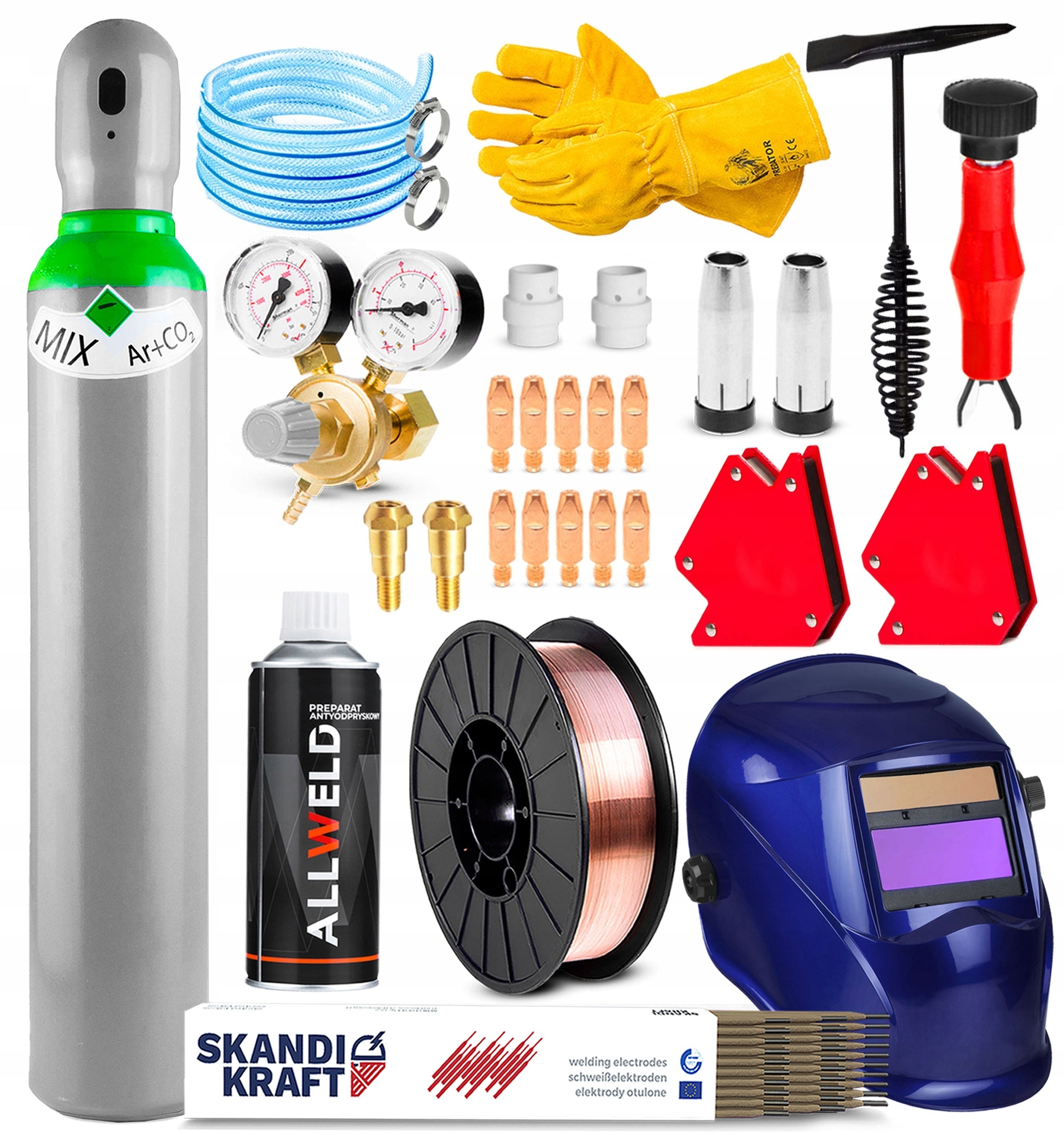

INCLUDED IN THE SET:

• Self-tinting visor MAGNUM NOVA - safe mask with 96 x 39mm field of view, 2 sensors, reaction time 1/30000 s,
• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Welding hammer for cleaning welds,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

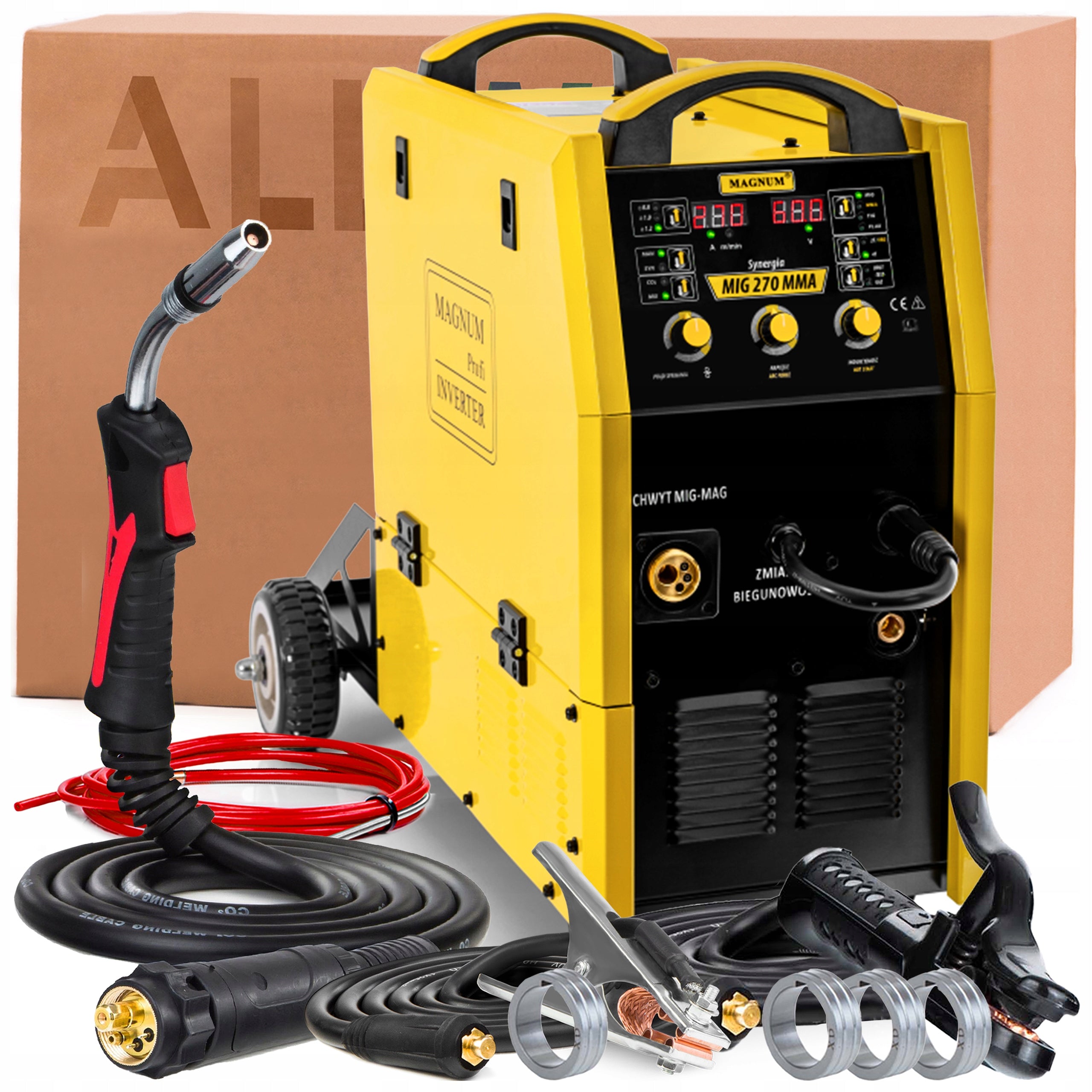

THE SET INCLUDES:

• Welding machine MAGNUM MIG 270 SYNERGY,
• Welding torch MIG/MAG type MB 24 - 3m,
• mass handle - 2m,
• electrode handle - 2m,
• Roll for wire 0,8/1,0mm - 2 pcs.,
• Roll for wire 1,0/1,2mm - 2 pcs.,
• User manual in Polish.

ADDITIONAL ACCESSORIES:

• Self-tinting visor Magnum NOVA,
• Botla with Argon/CO2 gas mixture,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles,
• Hammer welding spring.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.

Specifications
