Trumpai apie prekę

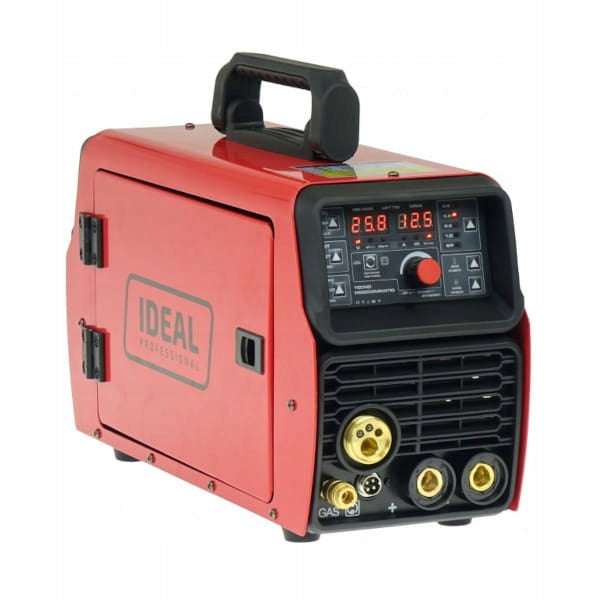

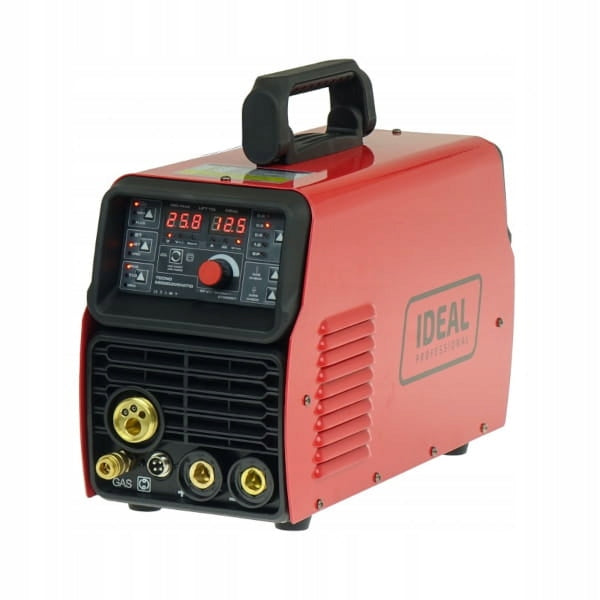

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 203 SYNERGIC MIG/TIG/MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: TECNO MIG203MMATIG
- Ilgis: 440 mm
- Plotis: 170 mm
- Aukštis: 290 mm
Microprocessor-controlled semi-automatic welding machine for MIG-MAG welding, soldering, FLUX, TIG Lift and MMA welding. Welding current 200A (TIG/MIG), 160A (MMA). Power supply 230V. Welding wire diameter. 0,6-1,0mm. 2-roll wire feeder. Synergy
MIGOMAT WELDING MACHINE IDEAL TECNO MIG 203 LED TIG MMA SYNERGIC TIG ACX SYNERGY
TECNOMIG 203 LED is an inverter synergistic semi-automatic welding machine designed for MIG/MAG, TIG LIFT, MMA and FLUX arc welding. The device has been designed for a wide range of applications: from maintenance work to car body repairs.
TECNOMIG 203 is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.
With the MIG/MAG method, we can choose the button function in the handle between working in 2T mode (without button lock)/4T mode (button lock for long welds). The easy-to-read LED display allows you to adjust the device accurately, even in very strong lighting.
With the MMA method, we have the ability to enable the VRD (VOLTAGE REDUCTION Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides over-the-counter safety when working in humid environments.
Physical parameters:
- The device has a fan cooling system which definitely increases its efficiency.
- The device is equipped with overload protection, which increases its reliability.
TECHNICAL DATA:
- protection of the power supply network: 25 A immediate (type C),
- rated supply voltage: 230 V; 50Hz (1ph),
- power: 5,9 kW,
- idle voltage: 50 V,
- current at 100% operation: 155 A,
- current at 60% operation: 200 A,
- diameter of aluminium wire: 0,8 - 1,0 mm,
- diameter of wire for soldering: 0,8 mm,
- diameter of self-shielding wire: 0,8 - 1,0 mm,
- diameter of steel wire: 0,6 - 1,0 mm,
- diameter of stainless steel wire: 0,6 - 1,0 mm,
- diameter of welding electrode: 1,6 - 4,0 mm,
- welding current adjustment range: 50 - 200 A (MIG) / 10 - 160 A (MMA) / 10 - 200 A (TIG),
- wire spool size: 5 kg,
- degree of protection: IP21,
- weight of the device / set: 12 / 14 kg,
- dimensions L x W x H: 440x170x290 mm,
- package dimensions L x W x H: 505x340x335 mm.
PROPERTIES:

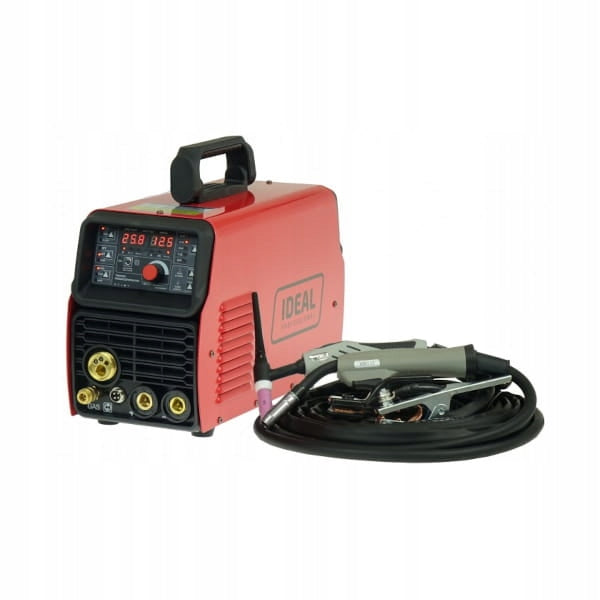

- TECNO MIG 203 LED MIG/TIG/MMA SYNERGIC + TIG ACX welding machine,
- MIG welding torch 15 3m,
- TIG handle 17 4m,
- mass cable 2m,
- electrode cable 3m,
- power plug.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 7.2 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 12 kg |
| Parametry | Welding range | 50–200 A |
| Parametry | Height | 290 mm |
| Parametry | Length | 440 mm |
| Parametry | Width | 170 mm |
| Parametry | Length of ground cable | 2 cm |
| Parametry | Welding cable length | 3 cm |
| Parametry | Product weight with unit packaging | 20 kg |
| Parametry | Manufacturer code | IDEAL TECNOMIG 203 |
| Parametry | EAN (GTIN) | 5903991109002 |
| Parametry | Packaging status | original |
| Parametry | Model | TECNO MIG203MMATIG |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
