Suvirinimo aparatas IDEAL TECNO MIG 202 3in1, TIG Lift, 230V, 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 202 3in1, TIG Lift, 230V, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG 202
• Ilgis: 455 mm
• Plotis: 171 mm
• Aukštis: 300 mm

• Welding methods: MIG/MAG, MMA, TIG LIFT, SYNERGY, SOLDERING, FLUX
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• SYNERGY - automatic selection of parameters
• For welding: stainless steel, carbon, low alloy and aluminium
• Regulation of inductance
• Professional, 2-roll wire feeder
• Modes and functions: 2T/4T, VRD
• Euroconnector
• Overload switch
• Cooling with fan
• Clean, aesthetic welds
• Made in IGBT technology

WELDING WITHOUT INTERFERENCE AND ELECTRODE DAMAGE

The TIG LIFT method is an innovative solution that allows the arc to glow by rubbing the non-melting electrode against the material. Prevents the electrode from sticking and protects its tip from damage. In particular, it works in places where high-frequency current could disrupt electronics. It offers high-quality welds, making it an ideal choice for demanding applications.

✔ FEATURES AND ADVANTAGES:

• INDUCTION REGULATION - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various types of joints,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,

• FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Network security: 25A "C"
• Power: 6.5 kW
• Current taken from the network: 34A
• Power at work 100%: 150A
• Welding current: MIG/MAG: 50 - 200A | MMA: 10 - 160A | TIG: 10 - 200A
• Power consumption in idle state: 14W
• Idle voltage: 50V
• Diameter of aluminium/self-shielded wire/soldering wire: 0.8 - 1.0 mm
• Diameter of steel/stainless steel wire: 0.6 - 1.0 mm
• Diameter of welding electrode: 1.6 - 4.0 mm
• Protection rating: IP21S H
• Dimensions: 45.5 x 17 x 30 cm
• Weight: 12kg

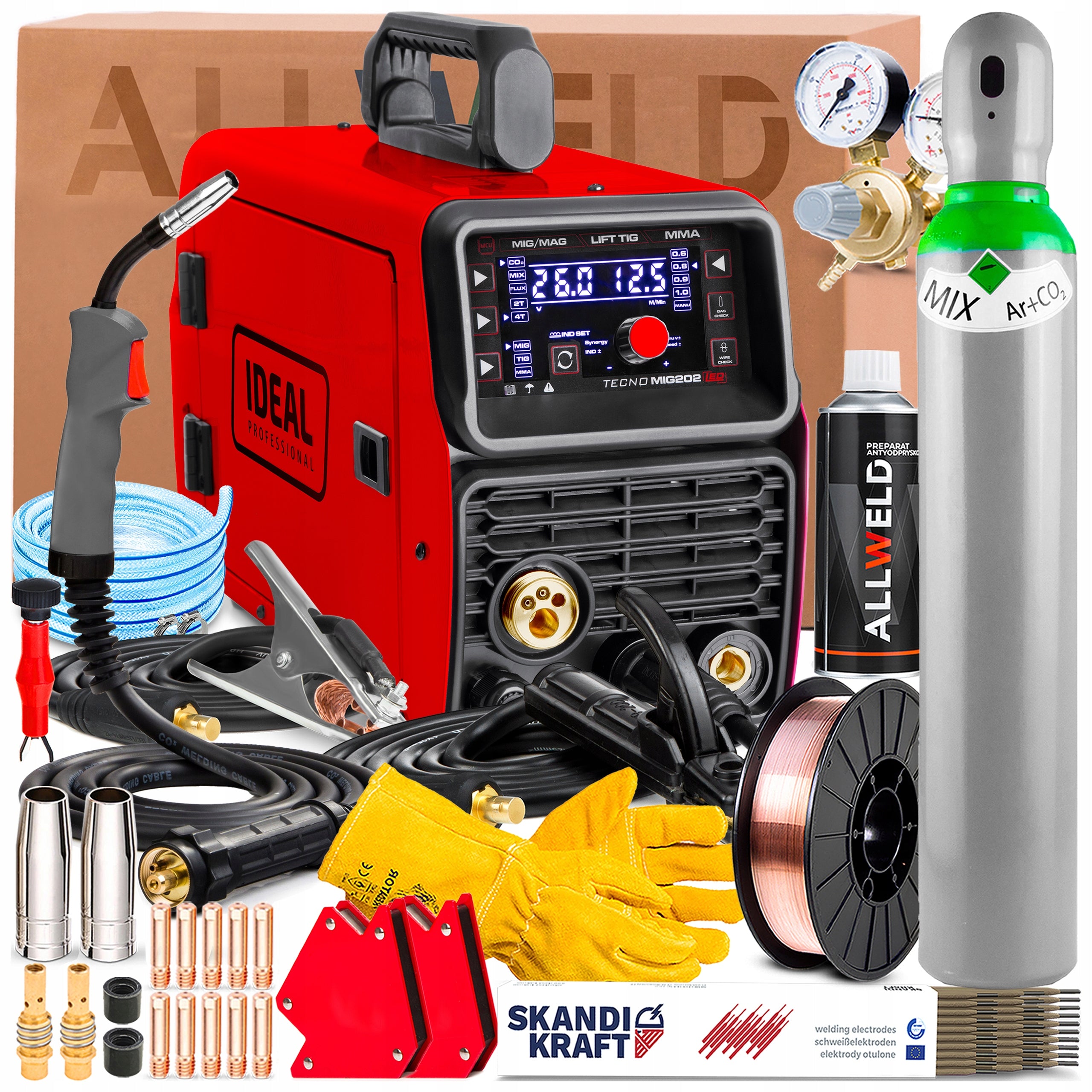

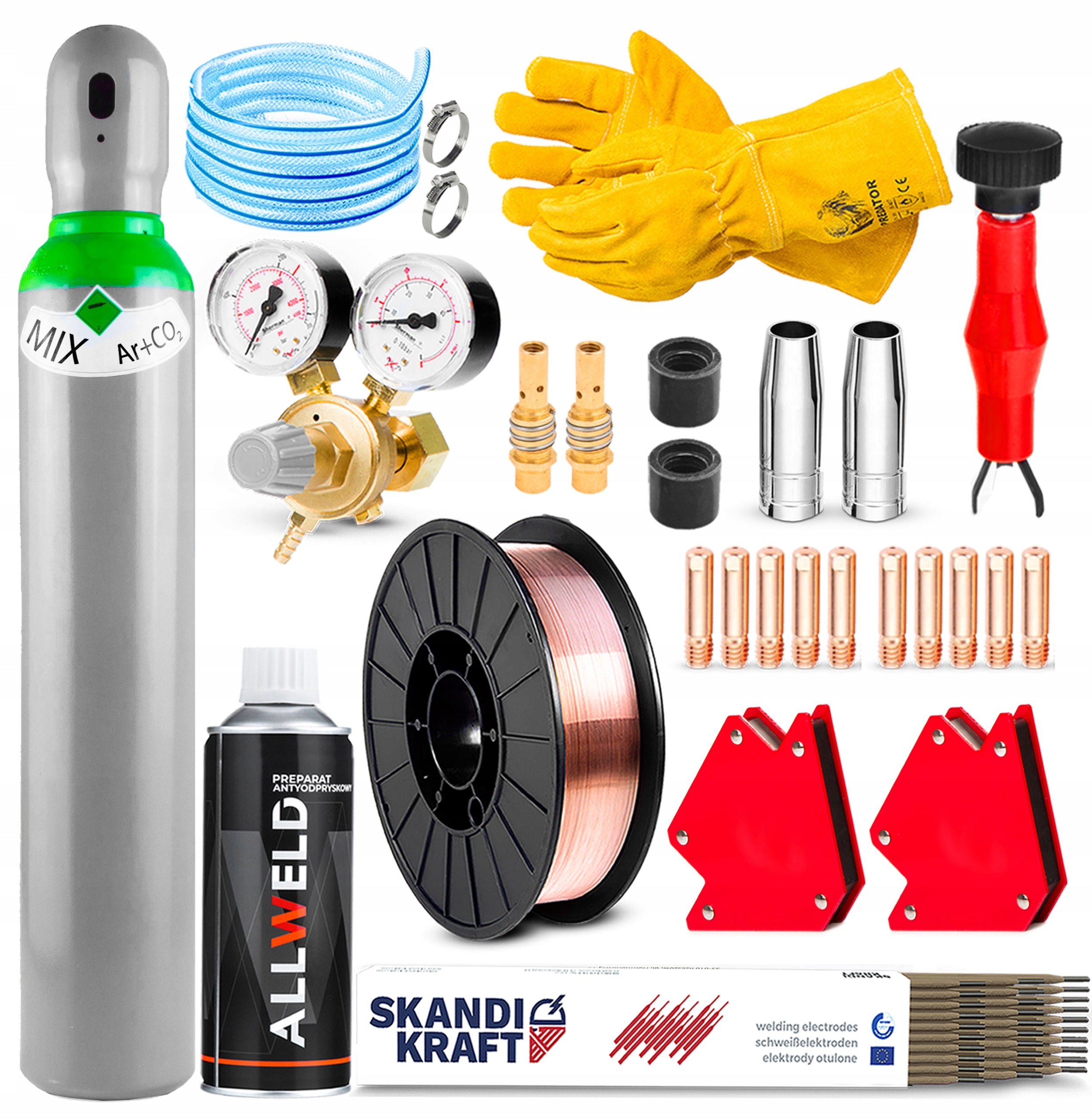

INCLUDED IN THE SET:

• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

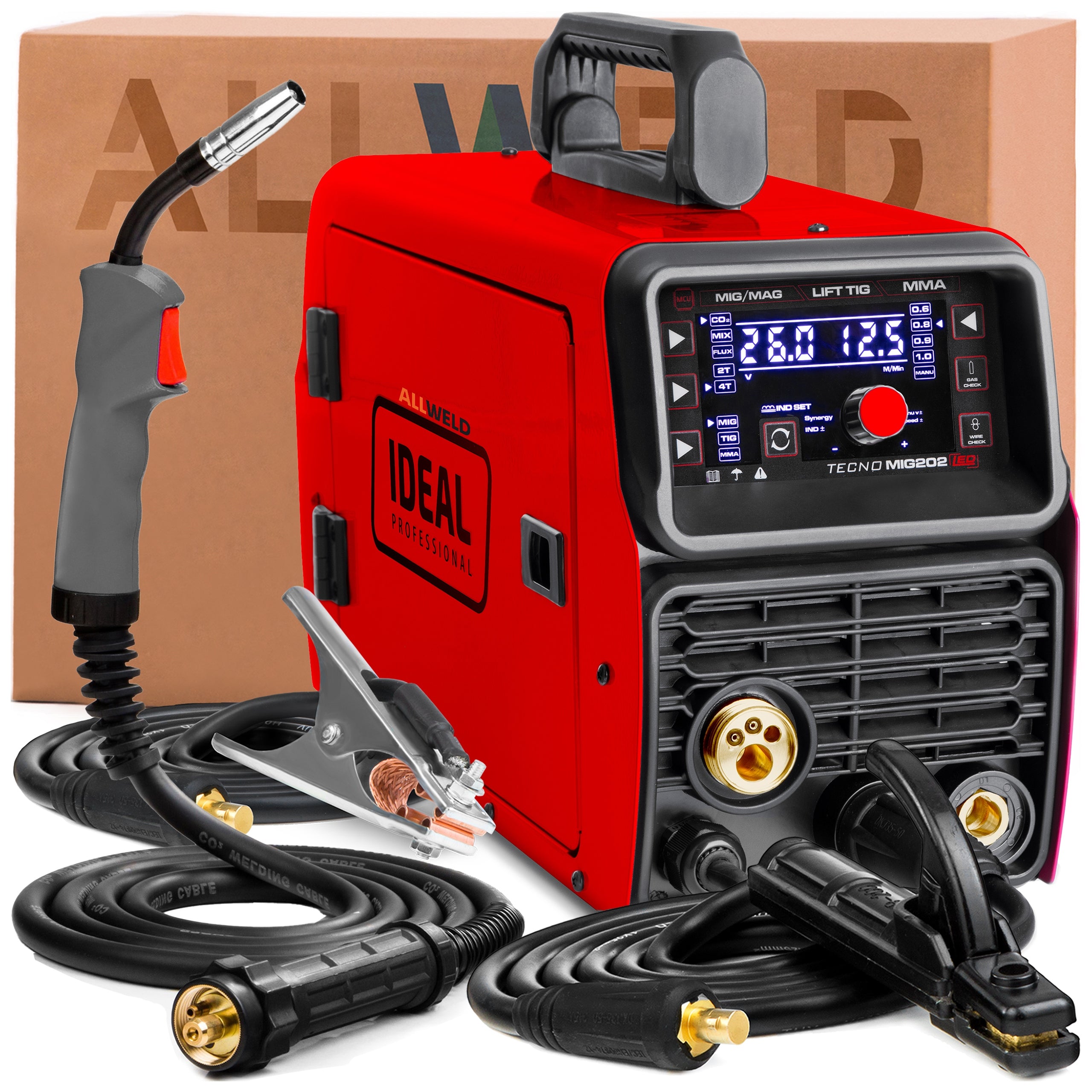

THE SET INCLUDES:

• IDEAL TECNOMIG 202 SYNERGIC welding machine,
• Welding torch MIG/MAG type MB 15 - 3m,
• mass handle - 2,5m.
• electrode holder - 2,5m,
• User manual in Polish.

ADDITIONAL ACCESSORIES:

• Bottle with gas mixture Argon/CO2,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.

Specifications
