Suvirinimo aparatas IDEAL EXPERT MIG 201, MMA, TIG, 200A, 2T/4T, sinerginis

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL EXPERT MIG 201, MMA, TIG, 200A, 2T/4T, sinerginis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka Ideal Expert MIG 201 LCD RSW2
• Ilgis: 465 mm
• Plotis: 190 mm
• Aukštis: 360 mm

Manufacturer: IDEAL ||| Welding methods: MIG/MAG, MMA, TIG Lift, FLUX ||| Maximum welding current: 200A ||| Power supply: 230V 1ph

MAG welding kit with cylinder Ar/CO2 8l

EXPERT MIG 201 LCD is the perfect solution for a wide range of applications: from maintenance work to car body repairs. Thanks to its flexibility, it can weld various types of materials: steel, stainless steel, aluminum or solder galvanized and constantly high-strength bodies.

Quick synergistic adjustment of welding parameters via LCD display, makes the device very easy to use. All you need to do is set basic parameters such as the type of material or wire diameter so that the device selects the optimal values before welding. The user can also manually set the length of the welding arc and adjust the appearance of the weld to suit their needs.

In addition to the synergistic mode, the source also has a manual mode. In it, you can set the wire feed speed and arc voltage in full range.

With the MIG/MAG method, we can choose the button function in the handle, between 2T mode (without button lock), 4T (button lock for long welds), S2T (2T mode with current rise/fall setting and time), S4T (4T mode with current rise/fall setting) and SPOT (point welding).

➡ ADVANTAGES OF THE DEVICE:

• smooth adjustment of all welding parameters,
• synergy - the device has synergistic programs,
• Euro socket- the possibility of using any MIG holder equipped with a EURO plug,
• operating modes 2T/4T - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• accurate adjustment of the length of the welding arc,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,

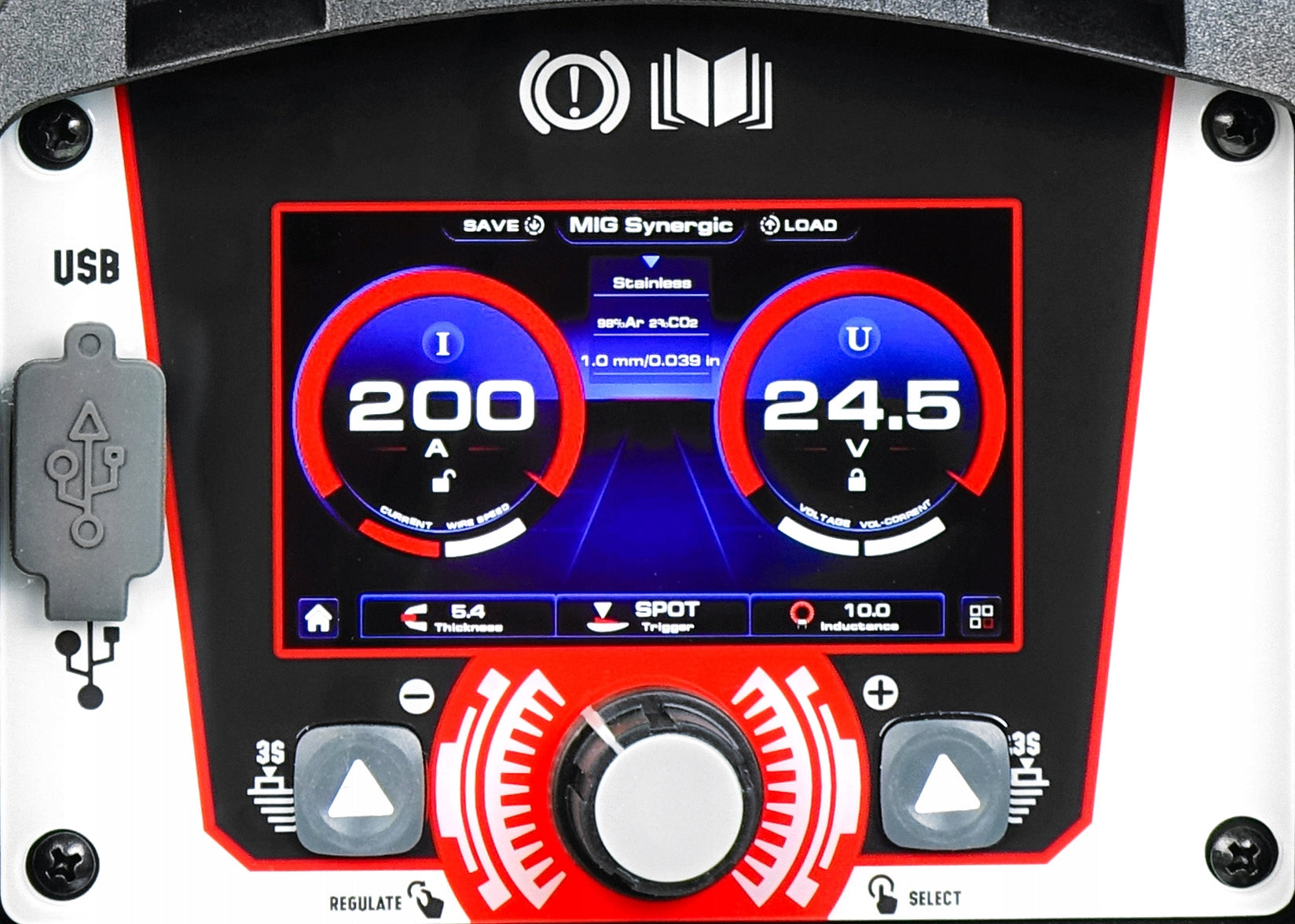

• readable LCD display, showing all parameters,
• the possibility of TIG DC Lift welding with a dedicated handle,
• point welding MIG,
• solid, durable housing.

Professional wire feeder 2R

Professional feeder 2R - reliable wire feeding, thanks to the use of a professional feeder. Built-in drive transmission system - protects the feeder from contamination.

IDEAL - A GOOD CHOICE FOR TODAY AND TOMORROW

The IDEAL brand is the result of many years of activity of specialists in the welding industry. IDEAL devices are distinguished by attention to quality and diligence. Representatives of the IDEAL brand are constantly looking for inspiration, among others, through regular participation in national and international welding fairs. More than 30 years experience in the design and manufacture of devices is noticeable in IDEAL products.

Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Current taken from the mains: 25A
• Power: 7,5kW
• Degree of protection: IP 21S
• Dimensions: 465x190x360 mm
• Weight: 11kg

MIG/MAG welding parameters:

• MIG/MAG welding current: 25 - 200A
• MIG/MAG duty cycle: 60% 200A, 100% 127A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)

• Diameter of aluminum wire: 0,8 - 1,2 mm
• Wire diameter for soldering: 0,8 - 1,0 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm

• MIG/MAG welding polarity change: YES
• Welding Inductance Adjustment: YES

TIG welding parameters:

• TIG welding current: 10 - 200A
• Output Current: DC Constant
• Arch ignition: contact - Lift
• TIG duty cycle: 60% 200A
• TIG welding current regulation: smooth
• Two operating modes: 2T/4T
• Gas after (post gas): YES from 0,1 to 5,0s

MMA welding parameters:

• MMA welding current: 10 - 200A
• Electrode diameter: 1,6 - 5,0 mm
• MMA Welding Current Adjustment: Smooth

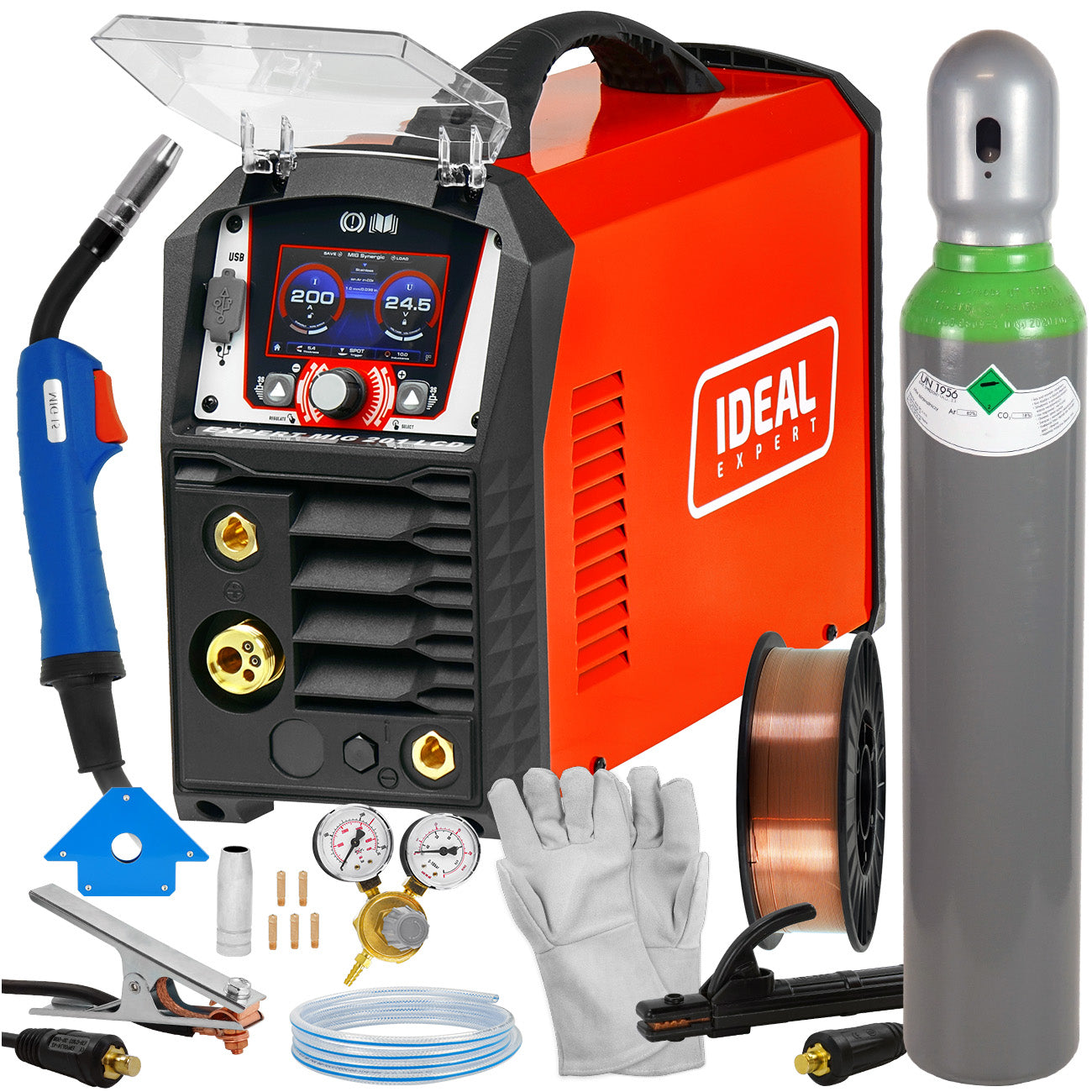

• IDEAL EXPERT MIG 201 LCD
• MIG MB-15/3m welding torch
• MMA Electrode Cable
• Bulk cable
• Gas hose 3m with quick coupler
• User manual PL

+ MAG WELDING KIT WITH CYLINDER Ar/CO2

• factory new Ar/CO2 cylinder with a capacity of 8l - certified, has all the approvals required by gas sales points,
• cylinder reducer Ar/CO2 with two clocks,
• gas line,
• steel welding wire SG2 0,8mm x 5kg,

+ ADDITIONAL WELDING ACCESSORIES

• welding gloves,
• set of spare parts for the burner,
• magnetic angle midi.

PHOTO GALLERY:

Specifications
