ArduCAM Pivariety 16MP IMX298 Color Camera
ArduCAM Pivariety 16MP IMX298 Color Camera Batteries included no
ArduCAM Pivariety 16MP IMX298 Color Camera
ArduCAM Pivariety 16MP IMX298 Color Camera Batteries included no
Novietojiet kursoru virs attēla, lai to tuvinātu Noklikšķiniet uz attēla, lai to tuvinātu
ArduCAM Pivariety 16MP IMX298 Color CameraArduCAM Pivariety 16MP IMX298 Color Camera Batteries included noArduCAM Pivariety 16MP IMX298 Color CameraArduCAM Pivariety 16MP IMX298 Color Camera Batteries included no

Spalvota kamera ArduCAM Pivariety 16MP IMX298

Cena:
€96,07
Noliktava:
Ir noliktavā

Trumpai apie prekę

Prekė: Spalvota kamera ArduCAM Pivariety 16MP IMX298. Kategorija: Priedai.

  • Gamintojas: ArduCam
  • Modelis: B0323

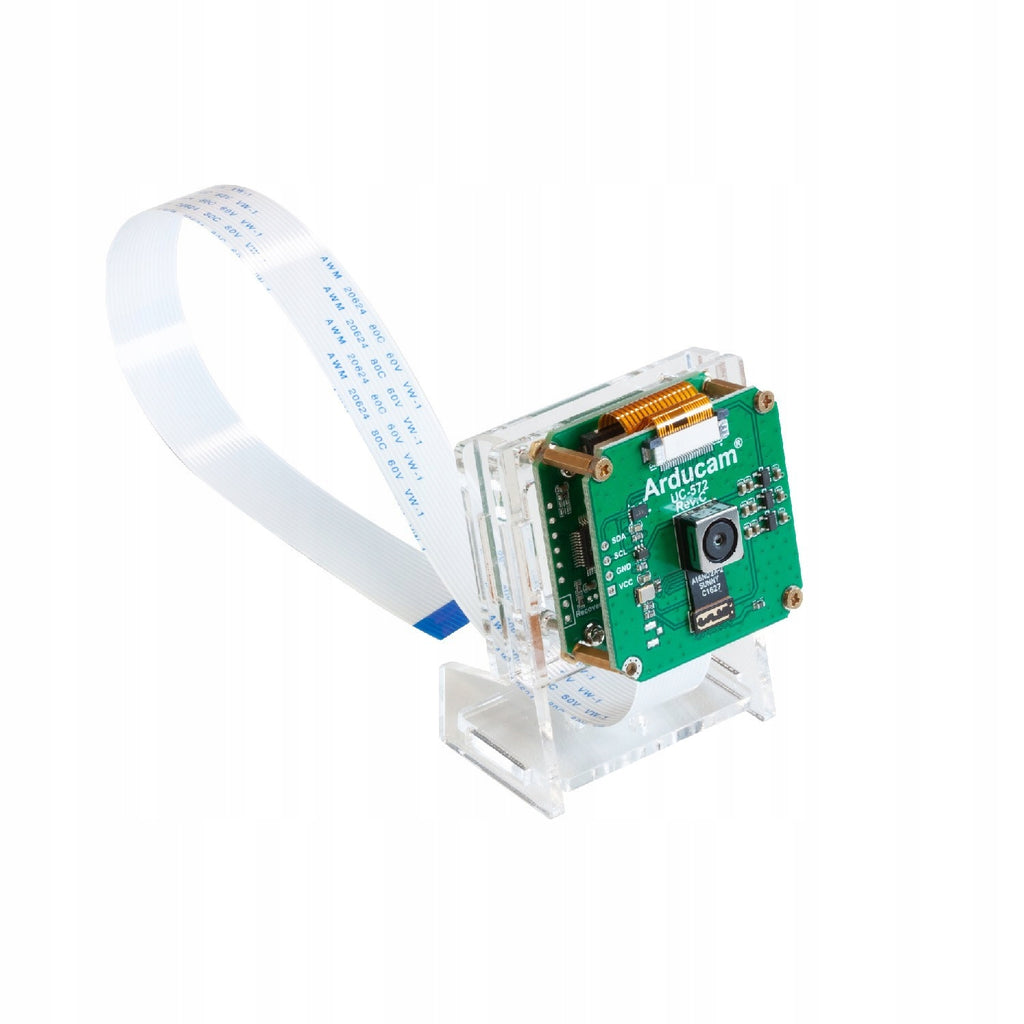

ArduCAM Pivariety 16MP IMX298 Color Camera - 16MP IMX298 Camera Module for Raspberry Pi

Description

Module with IMX298 sensor that works with all versions of Raspberry Pi. The sensor used has a 16 MP sensor and allows video recording in 4640×3472/10fps resolutions. The camera module uses ISP hardware functions, which allows for better performance and functions of automatic exposure, automatic white balance and shading correction. It is perfect for applications such as UAVs, drones, robotics, IoT and facial recognition applications. Documentation with examples of configurations are available on the product page. Included with the camera is a 15-pin tape for connecting the camera to the Raspberry Pi model B and A and a 22-pin tape for the Raspberry Pi Zero 2W and Compute module.

Properties

  • Sensor Type: 16MP IMX298
  • Pixel Size: 1,12um x 1,12um
  • Optical Size: 1/2,8”
  • Active pixels: 4656 H × 3496 V
  • Lens specification: focal length: 4,04 mm, F.NO: 2,0 ± 5%, FOV: horizontal 62 degrees
  • IR sensitivity: integrated IR filter, visible light only
  • Focus Type: autofocus, programmable focus control
  • Frame rate: 4640×3472@10 fps, 2320×1732@20 fps, 3264×2464@15 fps, 3840×2160@15 fps, 2592×1944@20 fps, 1920×1080@30 fps, 1280×800 @45 fps, 1280×720@50 fps
  • Sensor output format: RAW10
  • ISP Output Format: JPG Output Image Format, YUV420, RAW, DNG; MJPEG Output Video Format, H.264
  • Interface Type: 2-line MIPI
  • Dimensions: 40 x 40 mm

Comes with

  • Arducam 16MP IMX298 ISP Camera Module
  • Adapter Board

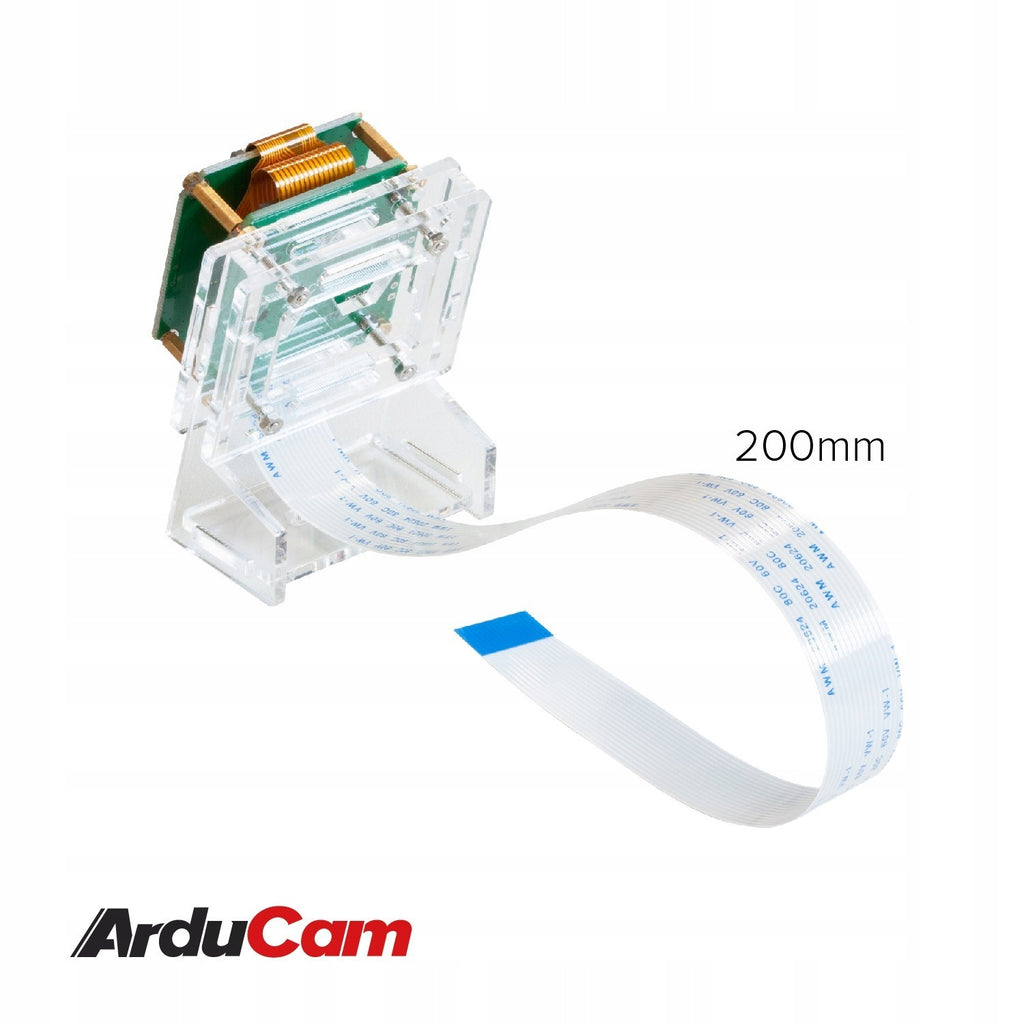

  • Tape FPC 15-pin 1.0 mm 200 mm
  • FPC Adapter 15-pin 1.0 mm to 22-pin 0.5 mm 73mm
  • Acrylic Housing

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer code B0323
Parametry Manufacturer ArduCam
Parametry Kind Camera
Parametry EAN (GTIN) 5904422350390
Parametry Batteries included no
