Smėliavimo įrenginys su dulkių siurbliu DUST-FREE SIPHON 106L

Trumpai apie prekę

Prekė: Smėliavimo įrenginys su dulkių siurbliu DUST-FREE SIPHON 106L. Kategorija: Smėliasrovės.

• Gamintojas: Baug
• Modelis: B3404 + V81090
• Talpa: 106 l

► Capacity 106 L

► Dust-free system with vacuum cleaner

► Mobile design

► Pressure 5,5 – 8,3 bar

► Power 1200 W

► Air intake 300 – 700 l/min

► 2 nozzles included

Dust-free siphon sandblaster with tank with a capacity of 106 l. The siphon sandblaster enables fast and precise cleaning of metal elements. The mobile sandblaster allows for sanding and cleaning in a semi-open circuit. The device is equipped with a dust extraction with a vacuum cleaner, which collects reflecting abrasive and transfers it back to the tank, limiting its losses.

The sandblasting gun has been enclosed with a nozzle of a vacuum cleaner with a brush, which seals the connection and prevents abrasive from escaping outside. Abrasive suction provides a clean workstation and greater comfort of use.

Solid tank design guarantees long service life and failure-free operation of the device. Drive wheels and ergonomic handle make it easy to transport and use every day.

The most important features of the sandblaster are high work efficiency, high sandblasting dynamics and dust-free work system. The set also includes 2 sandblasting nozzles.

TECHNICAL DATA

• Operating pressure: 5,5-8,3 bar
• Voltage: compressor 230 V / 50 Hz
• Power: 1200 W
• Weight: 43kg
• Capacity: 106 L
• Air consumption: 300-700 l/min
• 3/4 tank (approx. 50 kg of sand) is enough for approx. 1 hour work
• The tank is enough for approx. 5-6 m2 of medium rusted sheet metal
• 2 nozzles 7,5 mm for sandblasting included

✅ Dust-free working system

The sandblaster is equipped with a vacuum cleaner and a sealing brush, which limit the escape of abrasive to the outside. Thanks to this, the workstation remains cleaner and the operator has better visibility of the treated surface.

✅ Large tank of 106 litres

The spacious tank allows for long work without frequent replenishment of abrasive, which significantly increases efficiency and saves time.

✅ Quick and precise cleaning

The device effectively removes rust, corrosion, old paint coatings and industrial dirt, preparing the surface for further processing.

✅ Mobile design

The large rubber wheels and ergonomic handle allow you to easily move the sandblaster even with a full tank.

• Reduce dusting with the abrasive suction system.
• Possibility of reusing abrasive, which reduces operating costs.
• High work efficiency – up to about 30% higher than in classic siphon sandblasters.
• Simple and durable design, resistant to heavy use.
• Complete set ready to work immediately after unpacking.

• silicon sand

• sea sand

• reef sand

• aluminium

• silicon carbides

• car and body shops,
• locksmiths,
• renovation of cars and motorcycles,
• cleaning of alloy wheels,
• removing rust from steel structures,
• surface preparation before painting,
• agricultural holdings and production facilities.

✔ Complete fully ready to work set.

✔ Simplicity of operation will make it possible for everyone to cope with the sandblaster, and eliminating unnecessary elements makes it trouble-free.

✔ BET ON HIGH QUALITY OF WORKMANSHIP ❗

Siphon sandblaster is a mobile device for external sandblasting and cleaning large structures.

The sandblaster enables fast, precise cleaning of metal elements.

Application will find in cleaning aluminum rims, body elements, removing rust, corrosion, residues of various types of paints and varnishes.

In order to increase the comfort associated with the use of the sandblaster, it has been equipped with large, solid rubber wheels and comfortable handles - thanks to this it is very easy to carry, and its compact dimensions make does not take up much space.

The sturdy construction of the sandblaster guarantees long, trouble-free use of the device.

The sandblaster is fully mobile thanks to the mounted wheels.

The sandblaster is equipped with rubber wheels and comfortable handles to facilitate its movement and increase the comfort of the device operator.

Thanks to the large rubber wheels and ergonomic handles, moving the sandblaster from place to place is very simple and not tiring.

The set includes a solid, appropriately thick and long blasting hose, which guarantees proper working pressure, as well as an intuitive gun

The hose guarantees freedom of movement during sandblasting and provides the necessary pressure to perform the work.

The device has a huge many uses. It can be used for renovation, maintenance, work in flashing services of mechanical production plants, etc. The whole set guarantees you SAFETY use, thanks to the protective mask (built-in plastic plate does not limit visibility and protects the face). The device is equipped with rubberized wheels, a dehydrator and a pressure gauge. The technology increases the efficiency of the model by about 30% compared to traditional siphon sandblasters.

✔ Siphon sandblaster 106L BAUG®

✔ Sandblasting hose

✔ Gun

✔ 2 sandblasting nozzles

✔ User Manual

✔ Original packaging

🔴 106 L CAPACITY – LARGE ABRASIVE TANK

The BAUG B3404 sandblaster has a tank with a capacity of up to 106 liters, thanks to which the device is adapted to perform larger work related to surface cleaning. Such a large capacity allows you to accumulate the right amount of abrasive without having to refill it often.

According to the data included in the offer, 3/4 of the tank, i.e. about 50 kg of sand, is enough for about 1 hour of operation. In turn, a full tank allows for processing of about 5 to 6 m² medium rusted sheet metal.

Such parameters are particularly useful when cleaning larger components, when frequent interruption of work to replenish abrasive would be impractical.

🔴 ABRASIVE RECOVERY – SEMI-OPEN CIRCUIT WITH SUCTION

BAUG B3404 uses a system in which the abrasive, when ejected from the nozzle and reflected from the cleaned surface, is sucked by the extraction system and then directed back to the tank.

This means that the abrasive material does not remain exclusively on the treated surface and in its immediate surroundings. A properly functioning suction system allows to recover abrasive and direct it back to the tank, which reduces its losses during operation.

This is particularly important for longer sandblasting, as the recovered material can go back into circulation.

🔴 DUST EXTRACTION AND BRUSH AT THE GUN – LIMITING ABRASIVE EXTRACTION

The sandblasting gun is equipped with a vacuum cleaner element terminated with a sealing brush. The brush adheres to the treated surface at the place of the gun.

Its task is to limit the release of abrasive outside during operation. At the same time, the suction system collects abrasive and dust reflecting off the surface.

This solution allows you to conduct sandblasting in a more orderly manner, and the recovered material can be directed back to the tank.

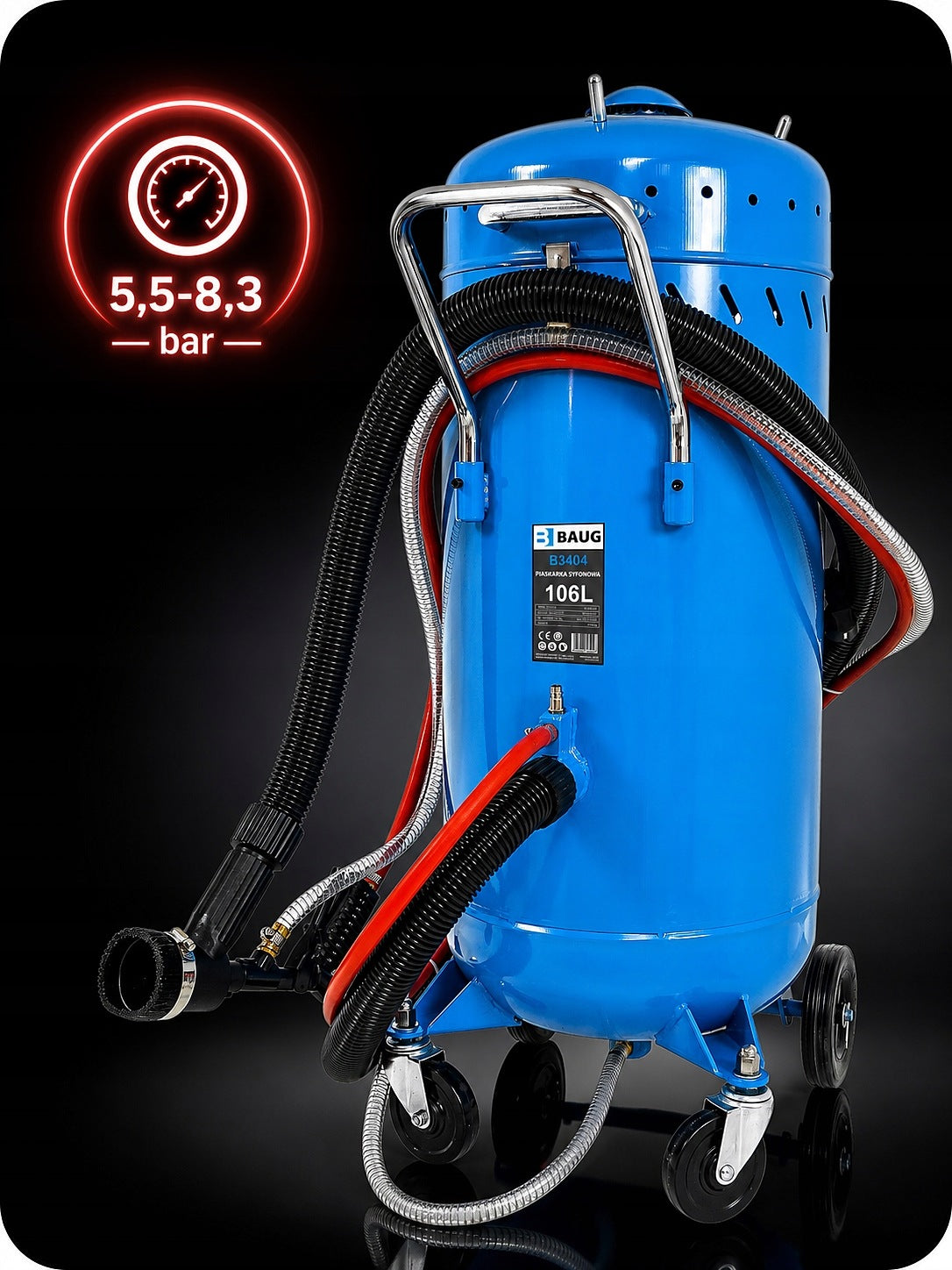

🔴 PRESSURE 5,5 – 8,3 BAR – SANDBLASTER OPERATING PARAMETER

The sandblaster operates in the pressure range 5,5 – 8,3 bar. This is one of the key parameters affecting the way of performing jet-abrasive machining.

The right pressure allows you to use the flow of compressed air to transport the abrasive through the system and eject it through the nozzle towards the cleaned surface.

It is worth remembering that the sandblaster requires cooperation with the compressor, so before starting work, it is necessary to choose a source of compressed air according to the requirements of the device.

🔴 AIR INTAKE 300 – 700 L/MIN – REQUIREMENTS FOR THE COMPRESSOR

The offer includes the demand of a sandblaster for compressed air at the level of 300 – 700 l/min. This is important information when preparing a job.

Before starting sandblasting, it is necessary to take into account not only the working pressure, but also the amount of air supplied by the compressor. The range of 300 to 700 l/min allows to determine the performance requirements of the compressed air source.

Thanks to this, you can properly prepare a set of sandbox + compressor, instead of choosing a compressor solely based on its maximum pressure.
