Skaitmeninis multimetras XL830L

Trumpai apie prekę

Prekė: Skaitmeninis multimetras XL830L. Kategorija: Multimetrai.

• Gamintojas: Aptel
• Modelis: ag102e

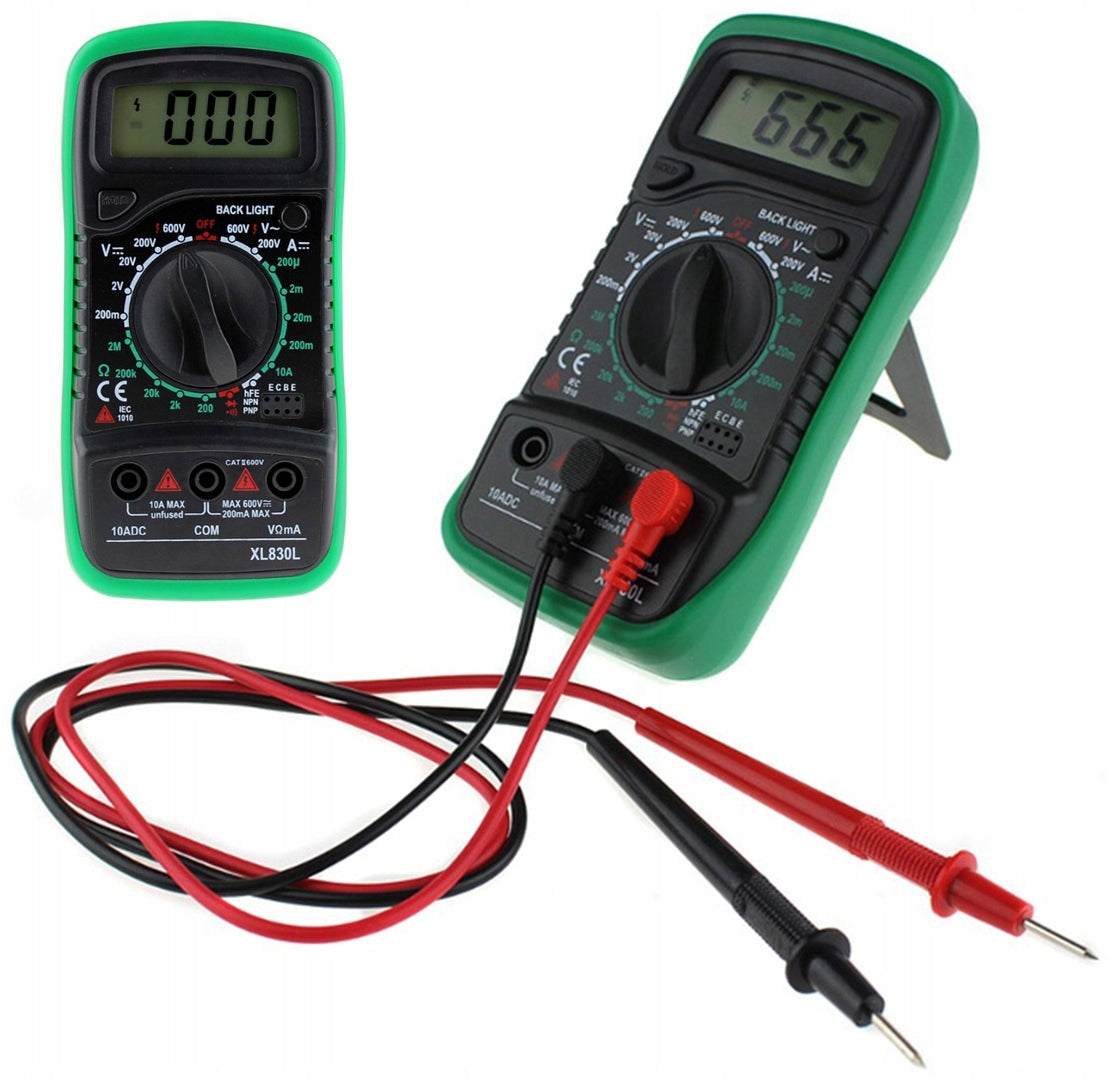

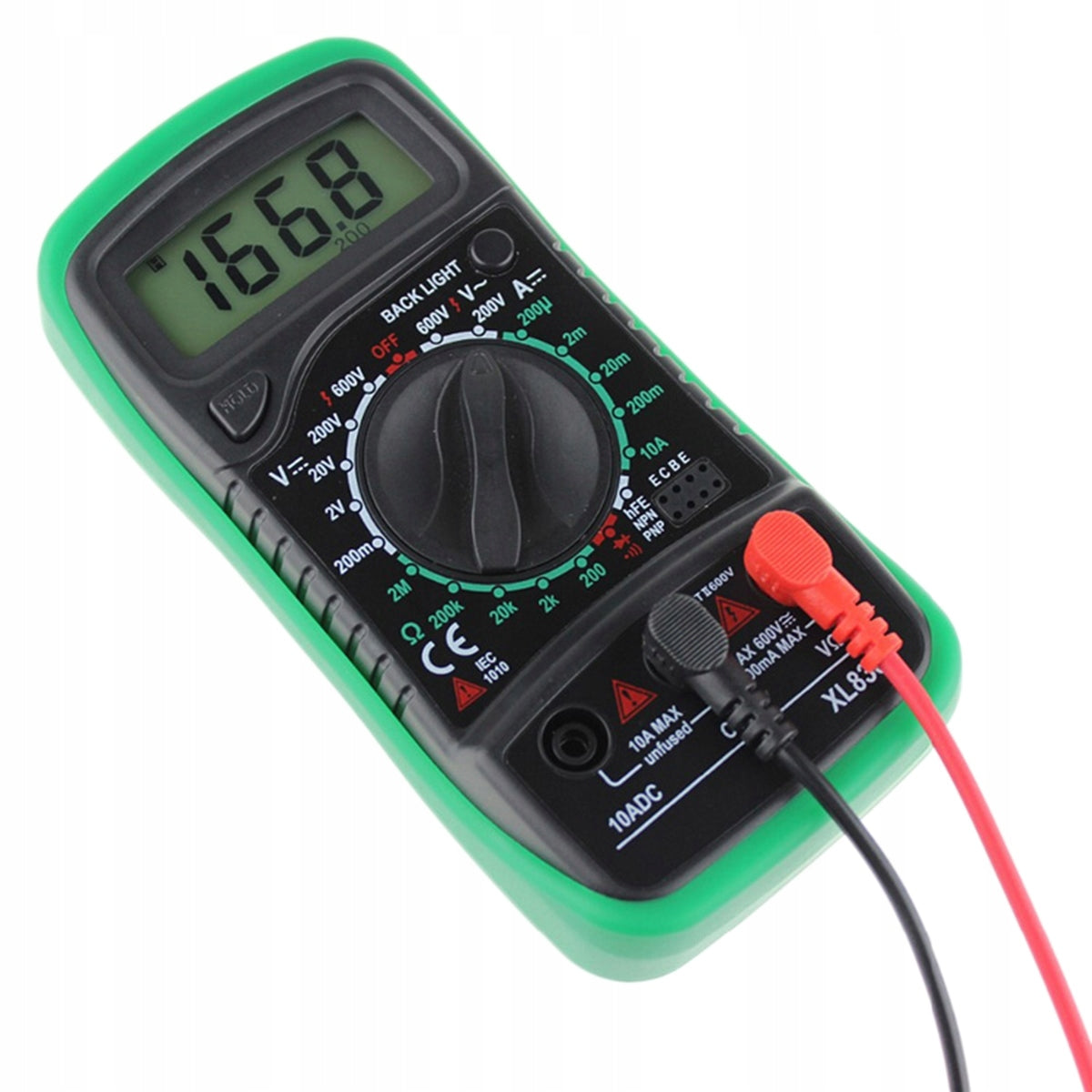

🔧 DIGITAL MULTIMETER XL830L + 2 PROBES

Universal voltage, current and resistance meter with backlit LCD

Looking for a simple and reliable multimeter for your workshop, home, or field work? The XL830L is a proven digital meter that can handle both basic measurements and more advanced tasks.

The easy-to-read LCD display with blue backlight makes it easy to work even in low light conditions, while the rubber cover protects your device from damage.

⚙ Key features

✔ Clear LCD display with backlight

✔ 20-position rotary switch

✔ Circuit continuity signaling (sound)

✔ Diode test

✔ NPN/PNP transistor test (hFE)

✔ Indication of polarity

✔ Overload protection

✔ Low battery indicator

✔ Rubber, removable protective cover

✔ Built-in kickstand for easy reading

📏 Measuring ranges

DC voltage:

• 200 mV / 2 V / 20 V / 200 V / 600 V

AC voltage:

• 200 V / 600 V

DC constant current:

• 200 µA / 2 mA / 20 mA / 200 mA / 10 A

Resistance:

• 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ

In addition:

✔ Diode test

✔ Transistor hFE test (0 – 1000)

✔ Circuit continuity signaling

🧰 Application

It is suitable for both amateurs and people working professionally with electrics.

• Electrical installations
• Electronics service
• Diagnostics of home appliances
• Car workshop
• DIY and hobby

📦 Included

✔ Multimeter XL830L

✔ 2 measuring wires

✔ Rubber protective cover

✔ User Manual

✔ Aesthetic box

📐 Technical data

• Power Supply: 9V 6F22 battery (not included)
• Material: ABS
• Dimensions: 6,9 × 13,8 × 3,1 cm
• Color: Black and Green

❓ Frequently Asked Questions

Does the multimeter have a backlight?

Yes, the LCD display has a blue backlight.

Is the battery included?

No, you need to buy a 9V 6F22 battery.

Is it suitable for checking 230 V sockets?

Yes, it supports AC voltage measurement up to 600V.

Does it have a circuit continuity beep?

Yes, the multimeter informs you with a closed circuit sound.

Does it measure current up to 10A?

Yes, the maximum measurement range of direct current is 10 A.

680603

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Aptel
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5907621819019
Parametry	Manufacturer code	ag102e
Parametry	Batteries included	yes
