Skaitmeninis multimetras ANENG M118A

Trumpai apie prekę

Prekė: Skaitmeninis multimetras ANENG M118A. Kategorija: Multimetrai.

• Gamintojas: Reball
• Modelis: MIERNIK RĘCZNY MULTIMETR AUTOMATYCZNY M118A

XAPP0000122

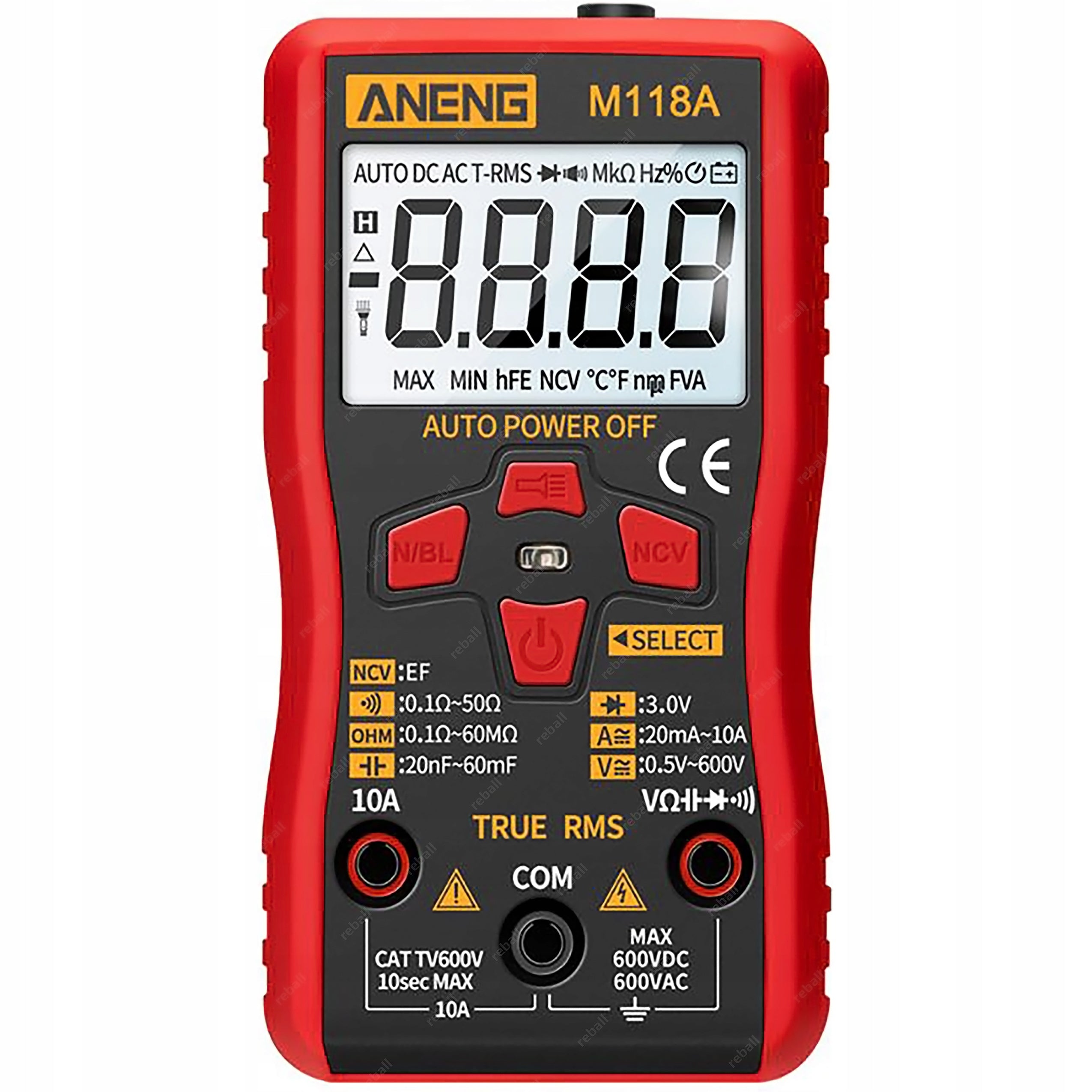

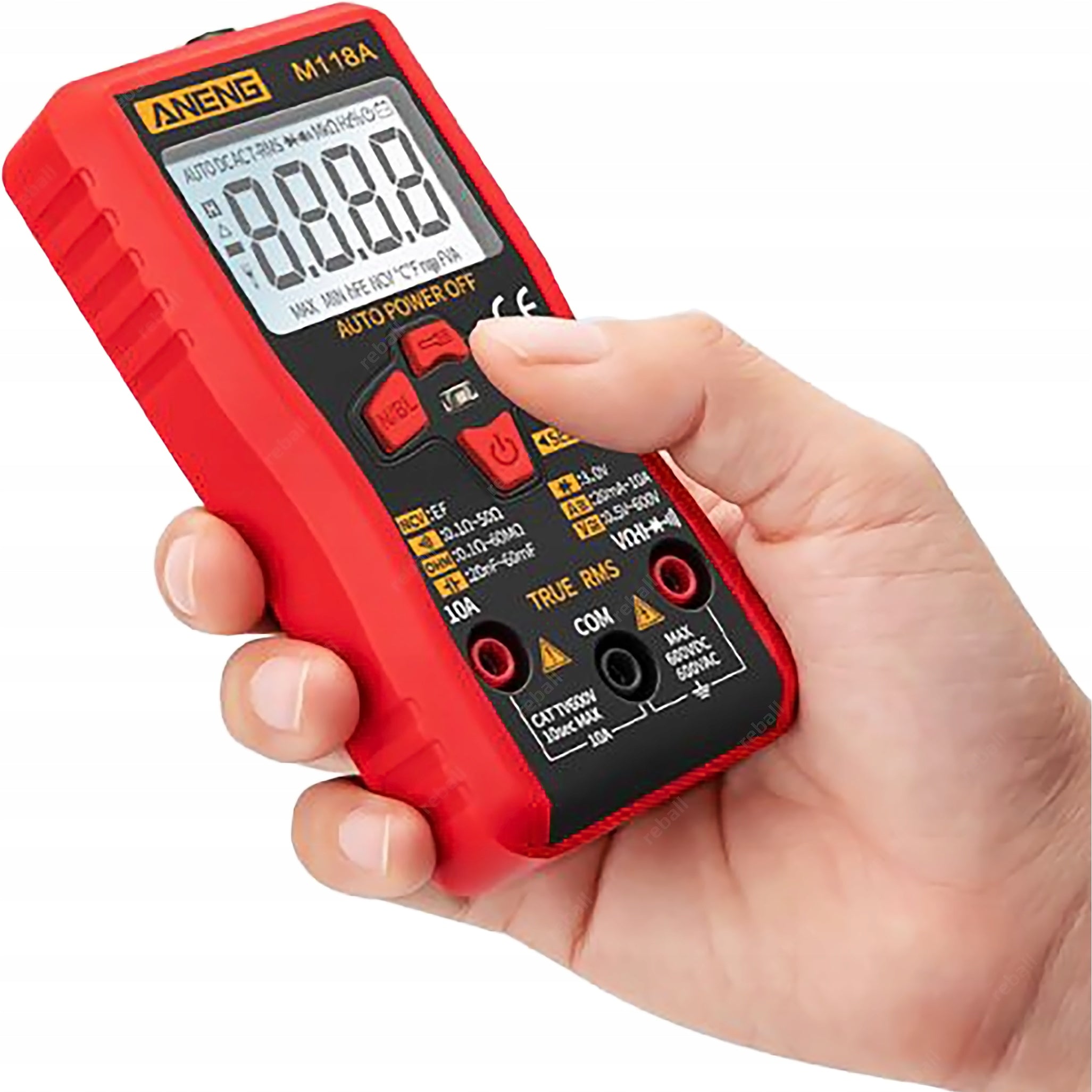

Universal measuring multimeter Aneng M118A indispensable in every electrical, electronic workshop as well as at home. Easy to use. The compact structure is equipped with a tilting stand for easy observation of measurements and a protective flexible housing to protect against mechanical damage.

Large display, additionally illuminated (button-activated backlight) allows for comfortable work in all lighting conditions.

In addition to the basic measurement functions offered by digital multimeters such as: measurement of voltage, current, resistance, stop of indications also has measurement functions of semiconductor diodes and sound resistance signaling less than 30 ohms (short circuit test, connection continuity).

Below is a full list of functions.

The set includes

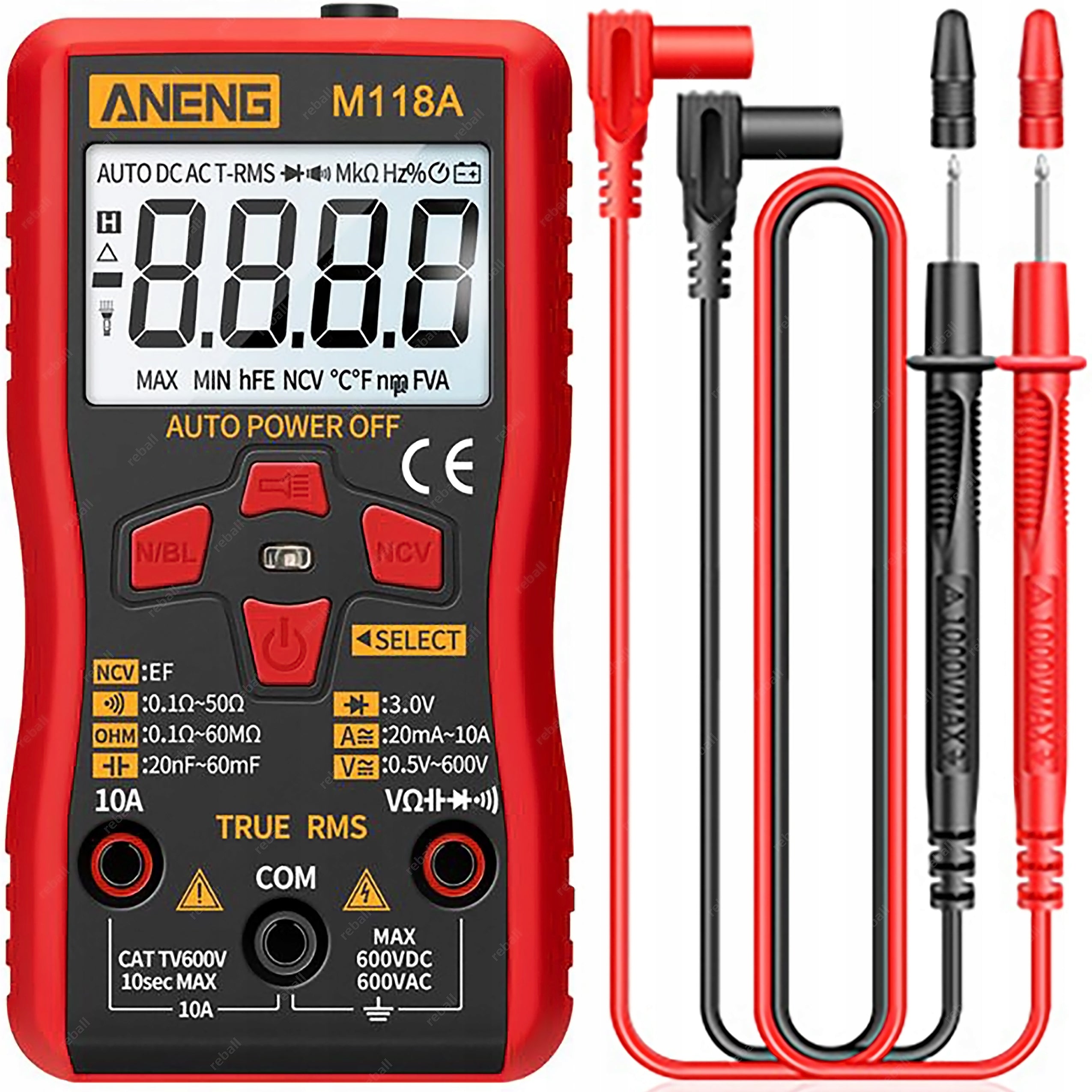

• multimeter Aneng M118A - 1 piece
• standard measuring cables 75cm - 1 pair
• polish manual - 1 piece
• The set does not include batteries
• polish manual

Technical data

• Power supply: 2x AAA battery (not included),
• Weight: 100.5g,
• Dimensions: 115x60x25mm,
• Working temperature: 0°C ~ 40°C,
• Polarization: automatic,
• Sampling: 2x sec.
• Display: LCD 1,12 in.

Application

Due to its wide range of applications, the Aneng M118A multimeter is used in:

• car diagnostics: battery, alternator, fuses, switch, relays, ignition system, battery current consumption with engine off,
• home electronics: wires, sockets, electronic equipment,
• service: electric and electronic,
• education: education and didactics.

Measuring ranges

The Aneng M118A meter is characterized by the following measuring ranges:

• solid voltage: DC 6V/ 60V/ 600V ±(0.5% + 3),
• alternating voltage: AC 6V/ 60V/ 600V ±(0.5% + 3),
• direct and alternating current: 6A/10A ±(2% + 30),
• resistance: 600Ohm ±(0.8% + 5), 6kOhm/60kOhm/600kOhm/6MOhm ±(0.8% + 3) 60MOhm ± (2.5% + 3),
• capacity: 20nF - 60mF
• sound signaling: < 50Ohm,
• detection of wires under plaster: alternating voltage,
• flashlight mode,
• measurement of the effective value of True RMS,
• relative measurement of voltage, current and REL capacities,
• stop measurements (HOLD),
• automatic switch in case of inactivity,
• low drink indicator

You need other soldering or service accessories - check out our other listings.
