Skaitmeninis dujų slėgio matuoklis BAR kPa

Trumpai apie prekę

Prekė: Skaitmeninis dujų slėgio matuoklis BAR kPa. Kategorija: Slėgio jutikliai.

• Gamintojas: Benetech
• Modelis: GM521

⭐⭐⭐⭐⭐

The BENETECH GM521 digital pressure gauge for measuring gas pressure concentration in closed gas systems is a versatile pressure and vacuum measuring device ideal for gas installation applications, e.g. gas installation for connecting cookers and gas pecy. It allows you to monitor the pressure of fans, air, furnaces, filters and exhaust gas analysis.

Key Features:

• Suitable for measuring pressure in closed gas systems.
• Wide measuring range: 0 - 0.350 bar and the possibility to choose from 11 measuring units (bar, mbar, kPa, kgf/cm², mmHg, cmH2O, Ozf/in², psi, inHg, inH2O, ftH2O).
• Additional functions: data recording, calibration, automatic shutdown, USB interface for connection to a computer.
• Software: dedicated software for Windows to read and export data.
• Comprehensive application: pressure measurements in ventilation, air conditioning, industry, laboratories, exhaust gas analysis.

Advantages:

• Precise and stable measurement.
• Easy-to-read digital display.
• Easy operation.
• Ability to save and analyze data on a computer.
• Long battery life thanks to the automatic shutdown function.

The BENETECH GM521 differential pressure gauge is a reliable tool for professionals who need accurate and versatile pressure measurements.

⭐⭐⭐⭐⭐

Dedicated Manometer application allows you to read data from the device directly in the program. After connecting the device via a USB cable to the computer, the data is recorded directly in the program.

The Benetech pressure gauge program enables m.in.:

• A: Export data to spreadsheet: create datasets in Excel spreadsheet, save files in xls format. Thanks to this, you can easily analyze data, create data charts, read the entire data history.
• B: Read data in the program in real time.
• C: Create image files containing data graphs. A clear graphic file in PNG format will facilitate the creation of technical documentation.

⭐⭐⭐⭐⭐

• Accuracy: ±0.3% FSO (25℃ )
• Repeatability: ±0.2% (Maksimum＋/－0.5%FSO)
• Linearity/hysteresis: ±0.29%FSO
• Response time: Usually 0.5 s
• Low Battery Indicator: Yes
• Upper Overload: Err1
• Lower overload: Err2
• Temp. Usage: 0~50℃
• Temp. Storage: -10~60℃
• Power supply: 4 x 1.5 AAA battery,
• Automatic shutdown: Yes, after 5 minutes of inactivity
• USB communication with computer via software: Yes

Range/Resolution:

• 0,35/0.001 (bar),
• 350/0.1 (mbar),
• 35.0 /0.01 (kPa),
• 0.356 /0.001 (kgf/cm²),
• 262.5/0.1 (mmHg),
• 356.6 /0.1 (cmH2O),
• 81.20/0.01 (Ozf/in²),
• 5.076/0.001 (psi)
• 10.33/0.01 (inHg)
• 140.3/0.1 (inH2O),
• 11.69 /0.01 (ftH2O),

⭐⭐⭐⭐⭐

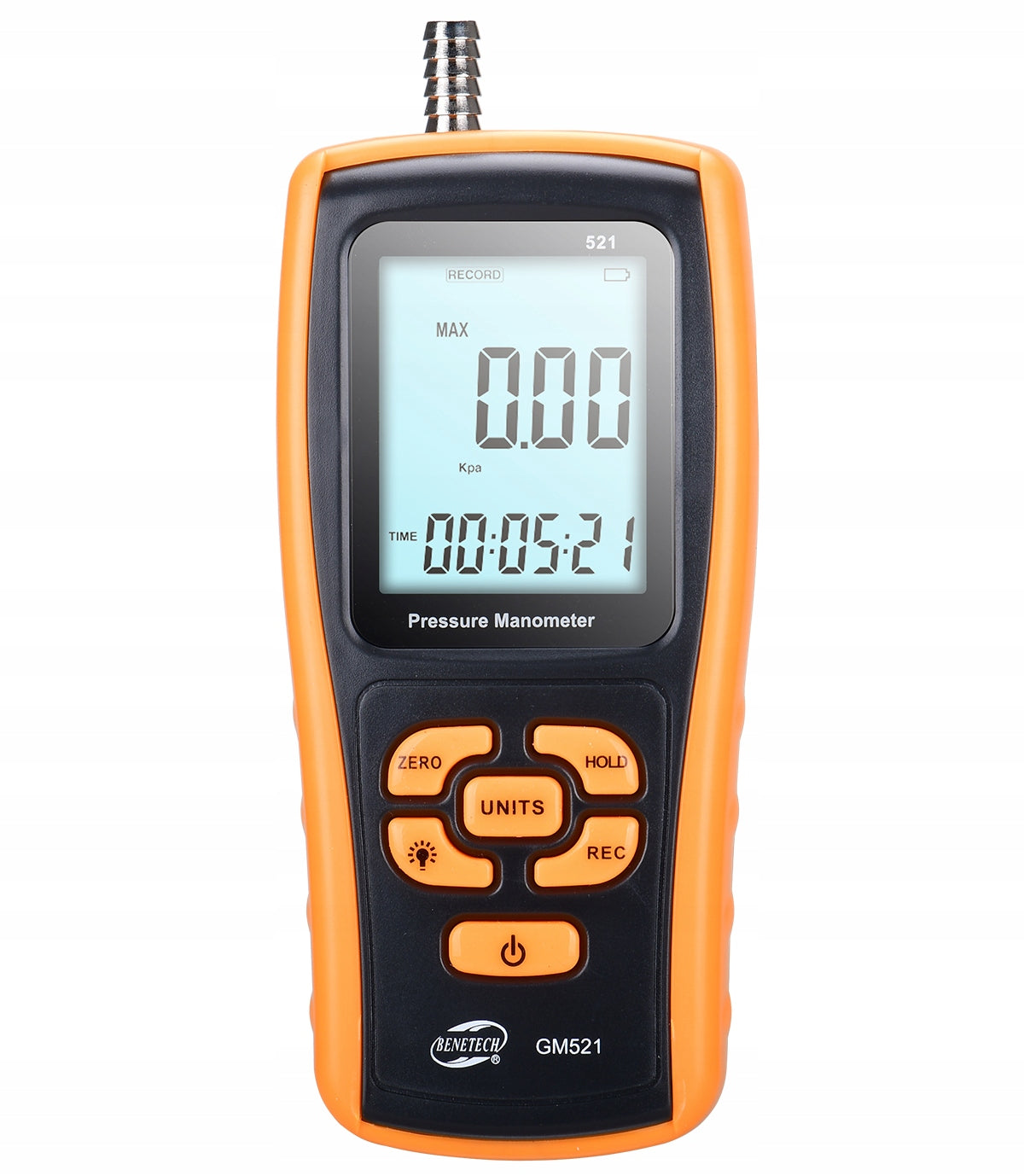

1. Pressure inputs.
2. LCD display.
3. ZERO mode button
4. Unit change button
5. Backlight button.
6. HOLD function button.
7. Data save button.
8. Power button.

⭐⭐⭐⭐⭐

1. The function of withholding the result
2. Data recording mode
3. USB connection
4. Low battery indicator
5. Maximum/minimum/average
6. Measurement value
7. Pressure unit
8. Duration of data recording

⭐⭐⭐⭐⭐

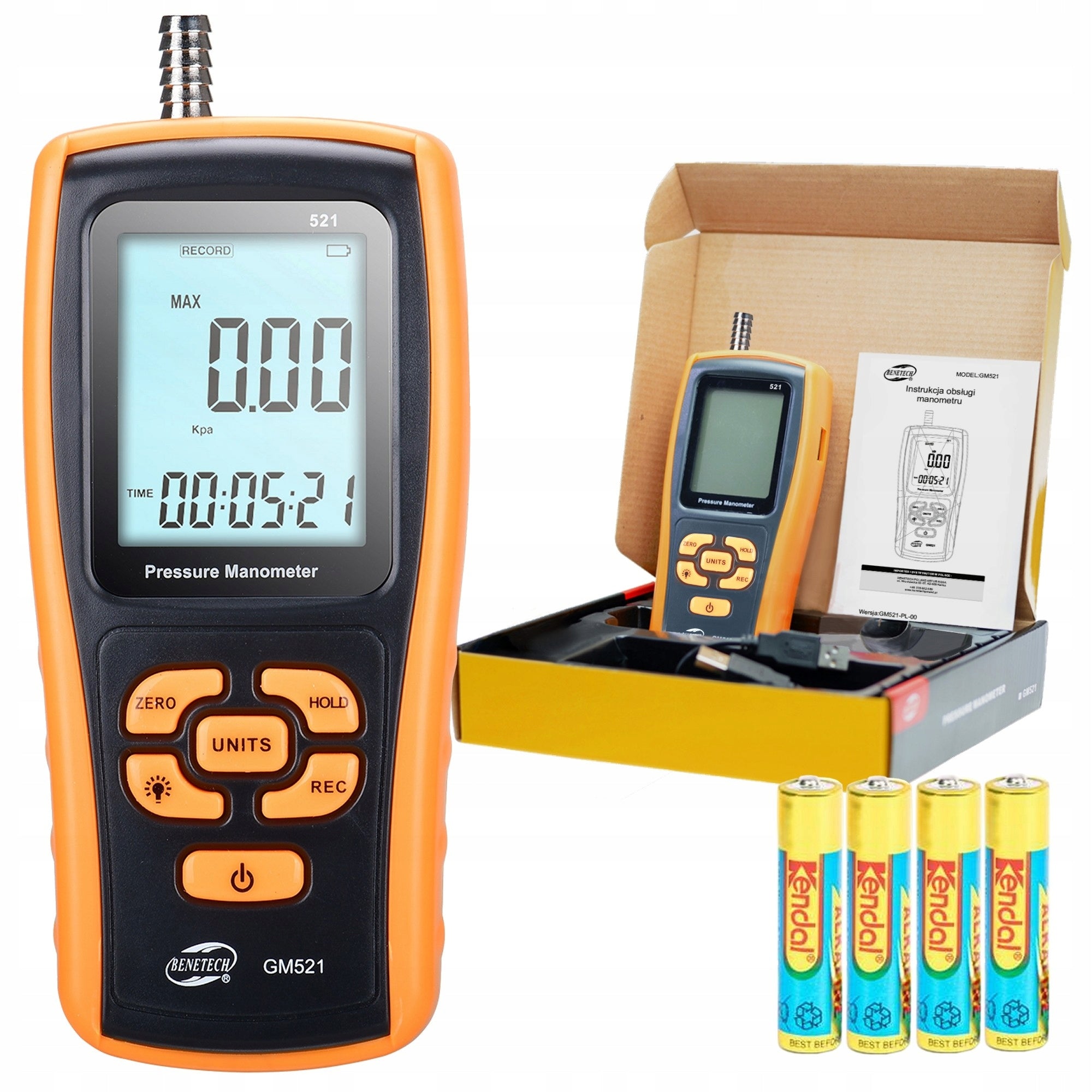

• 1 x Pressure Gauge
• 4 x 1.5V AAA battery
• 1 x User Manual in Polish and English
• 1 x USB Cable
• 1 x Original packaging

Downloadable software in electronic version.

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Directive EMC 2014/30/EU and RoHS 2011/65/EU

At the customer’s request, we attach a calibration report from the manufacturer translated into English. We receive the document electronically a few days later. In order to avoid delay in the execution of the order, we send the calibration report within about 7 working days to the e-mail provided in the order or assigned to the account.

The product meets European standards and directives, as evidenced by the CE certificate, at the customer's request this document is also attached.

The manufacturer’s calibration report and declaration of conformity (CE) is a free, optional document, and therefore not a jes
