Siurblio galvos remonto rinkinys KARCHER HD 1090 994 1094

Trumpai apie prekę

Prekė: Siurblio galvos remonto rinkinys KARCHER HD 1090 994 1094. Kategorija: Aukšto slėgio plovimo įrenginiai.

• Gamintojas: Kärcher
• Modelis: HD
• Įtampa: 0 V

KARCHER repair kit for pump

Original pump repair kit for KARCHER HD series washers

No. catalog: 2.883-447.0

COMPATIBILITY:

• HD 994 *EU
• HD 994 PL *EU
• HD 994 PLUS *EU
• HD 994 SX Plus *EU
• HD 994SX PLUS*EU-II
• HD 1090 *EU
• HD 1090 PLUS *EU
• HD 1090 SX *EU
• HD 1090 SX PL *EU
• HD 1094 *EU
• HD 1094 PL *EU
• HD 1094 PLUS *EU-II
• HD 1094 SX-PLUS *EU-II
• HD 1290 S *EU
• HD 1290 SX *EU
• HD 1290 SX-PLUS *EU

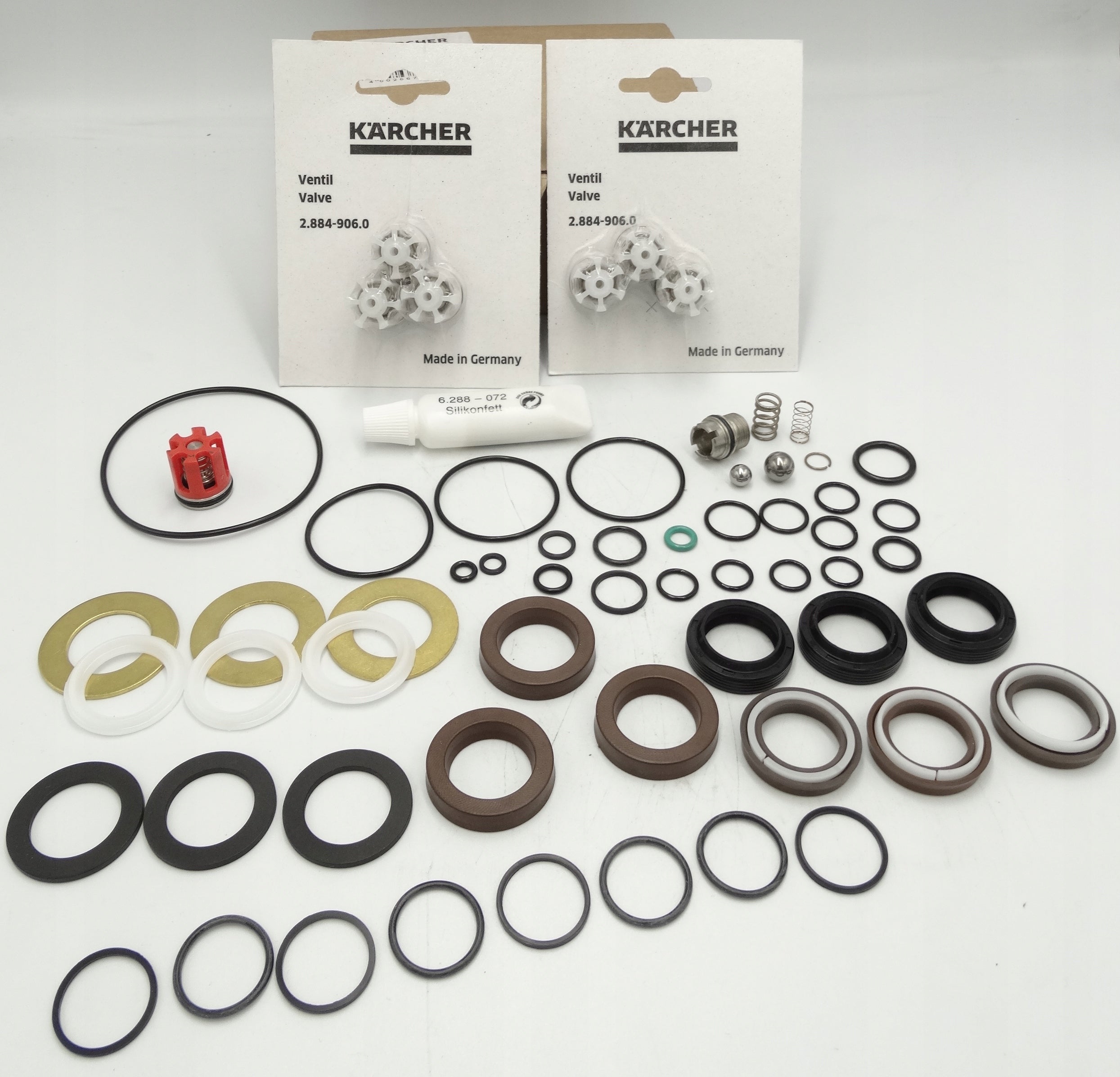

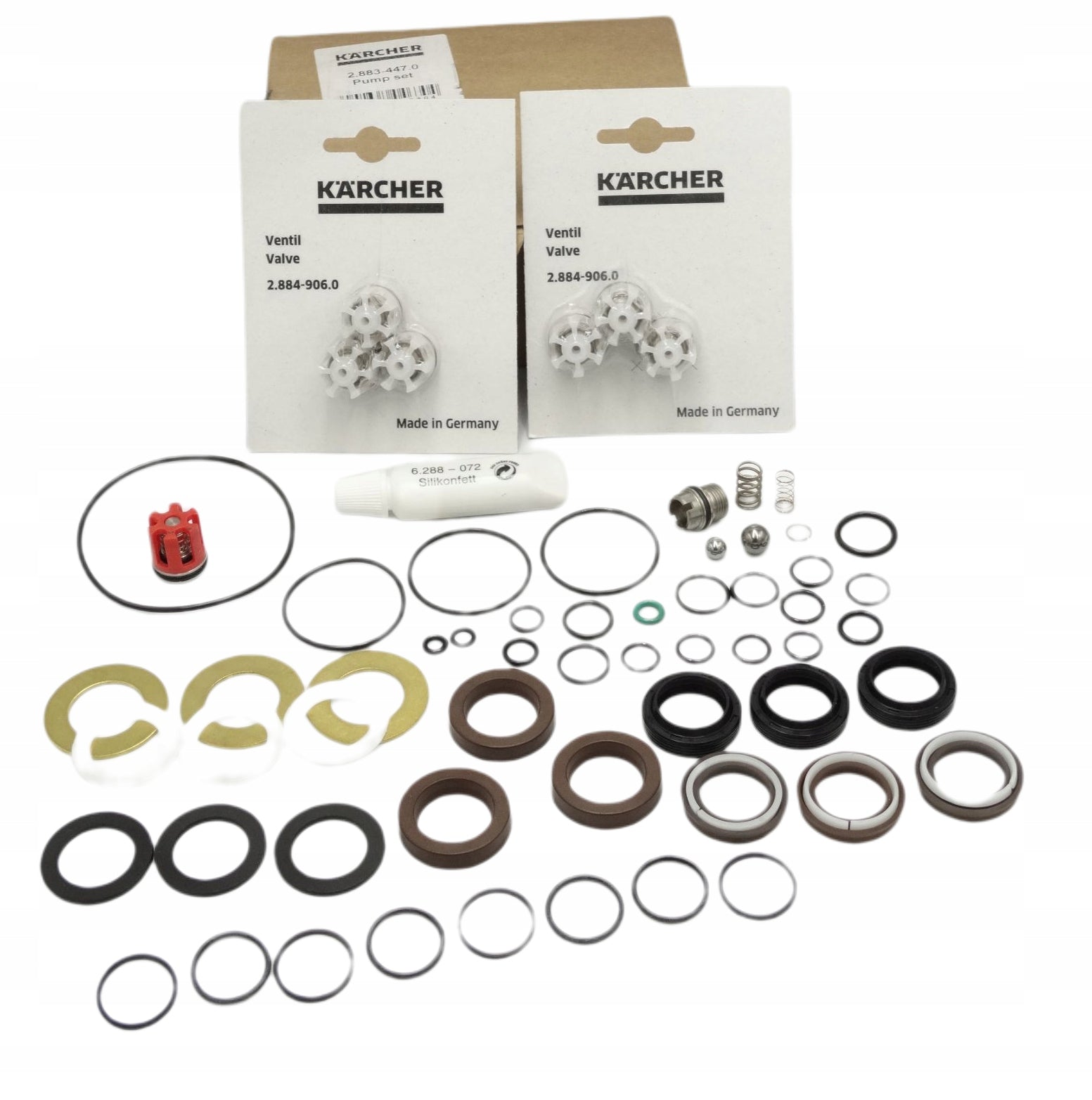

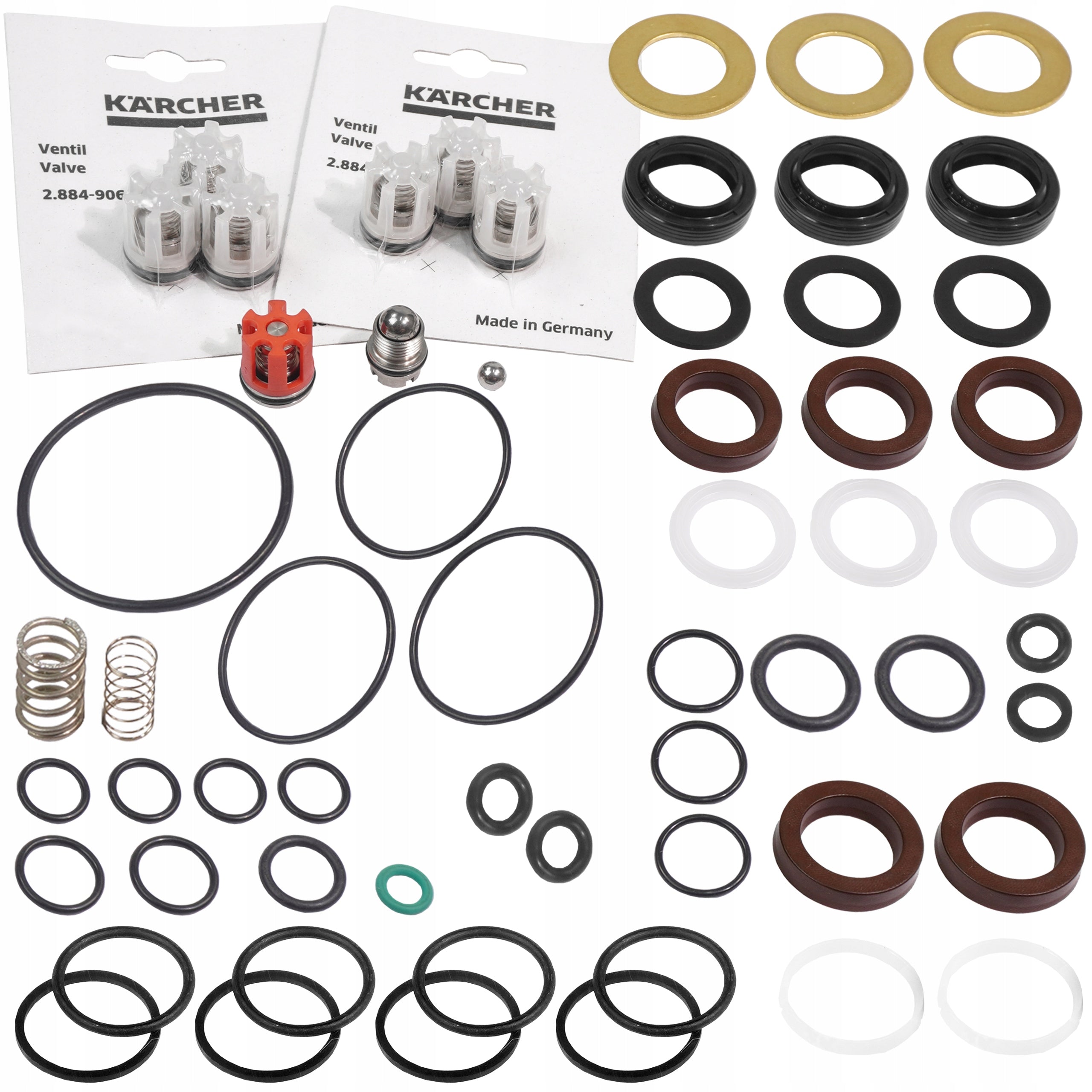

SET INCLUDES:

• 2x Valve (3 pcs.) - 2.884-906.0
• 1x Valve Assembly - 4.580-262.0
• 1x Valve Seat - 4.581-019.0
• 3x Washer - 5.115-537.0
• 1x Coil Spring - 5.332-110.0
• 1x Spring - 5.332-258.0
• 1x O-Ring 15.3 x 2.4-NBR 70 - 6.362-153.0
• 1x O-Ring Assembly (1 pc.) R.7.65 x 1.78 NBR80 - 6.362-365.0
• 1x O-Ring 6.0 x 2.0 - 6.362-383.0
• 4x O-Ring 9x1.5 - NBR 70 - 6.362-384.0
• 1x Seal Ring - 6.362-368.0
• 3x Seal Ring 34.65 x 1.78 -N - 6.363-607.0
• 3x O-Ring Assembly /1ST.-R.- 6.362-500.0
• 1x O-Ring 68.0 x 2.0-NBR 70 - 6.362-501.0
• 1x O-Ring 12.0 x 1.5-NBR 70 - 6.362-527.0
• 1x O-Ring 14.0 x 1.5-NBR 70 - 6.362-533.0
• 1x O-Ring 12.42 Assembly - 6.362-575.0
• 3x Seal Ring 11 x 1.5 -NBR70 - 6.363-615.0
• 3x Seal Ring 20x28x6/8 - 6.365-052.0
• 3x Seal Ring 20x30x6 - 6.365-377.0
• 3x Retaining Ring 20x30x4.2 - 6.365-378.0
• 3x Washer - 6.365-379.0
• 1x Expansion Ring 8 -1.4310 DIN 9925 - 7.343-484.0
• 1x O-Ring 10x2 EPDM 70 DIN 3770 - 7.362-501.0
• 1x Ball 3/8 G200-1.4301 DIN 5401 - 7.401-907.0
• 1x Ball 7 G300 -1.4301 DIN 5401 - 7.401-908.0
• 3x Low Pressure Seal Kit - 6.365-380.3
