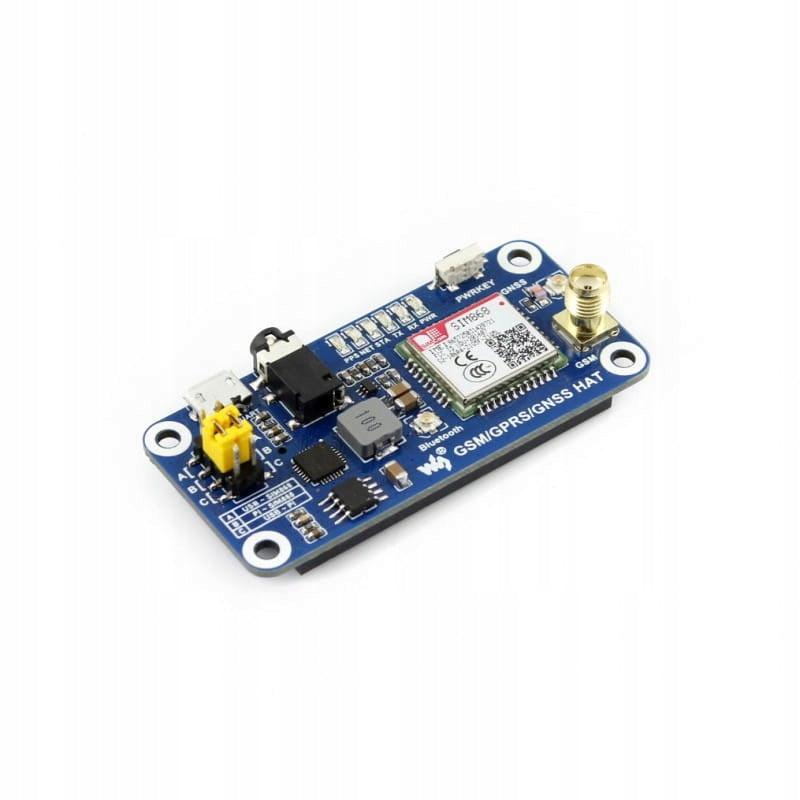

SIM868 GSM/GPS/GPRS/GNSS/Bluetooth modulis Raspberry Pi

Trumpai apie prekę

Prekė: SIM868 GSM/GPS/GPRS/GNSS/Bluetooth modulis Raspberry Pi. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: WaveShare 13460

Specification:

• Cooperation between Raspberry Pi and Raspberry Pi
• Connection to Rpi via GPIO 40 pin connector
• Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning
• Bluetooth 3.0 communication
• USB - UART converter on CP2102 chip for debugging
• 6x LEDs showing the operating status of the module
• 1.8V/3V SIM card slot
• RTC clock with battery backup
• Baudrate self-detection communication (1200bps ~115200bps)
• Control the module with AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supports SIM application toolkit: GSM 11.14 Release 99
• Supported examples for: Raspberry Pi/Arduino/STM32
• Supply/Working Voltage: 5V

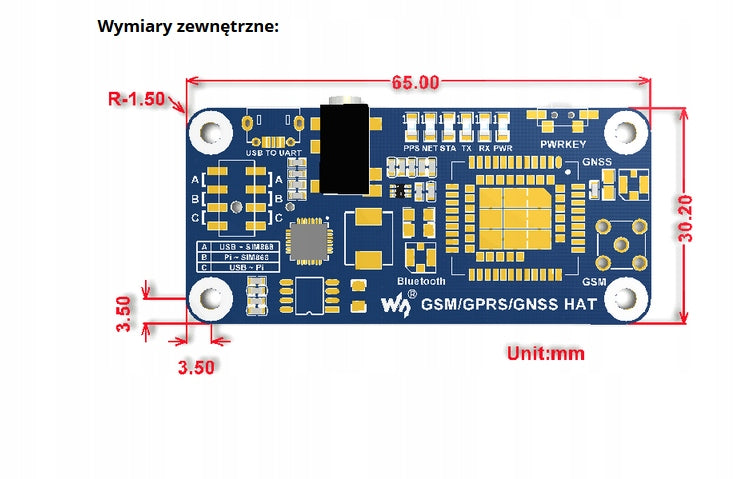

Description of the tile:

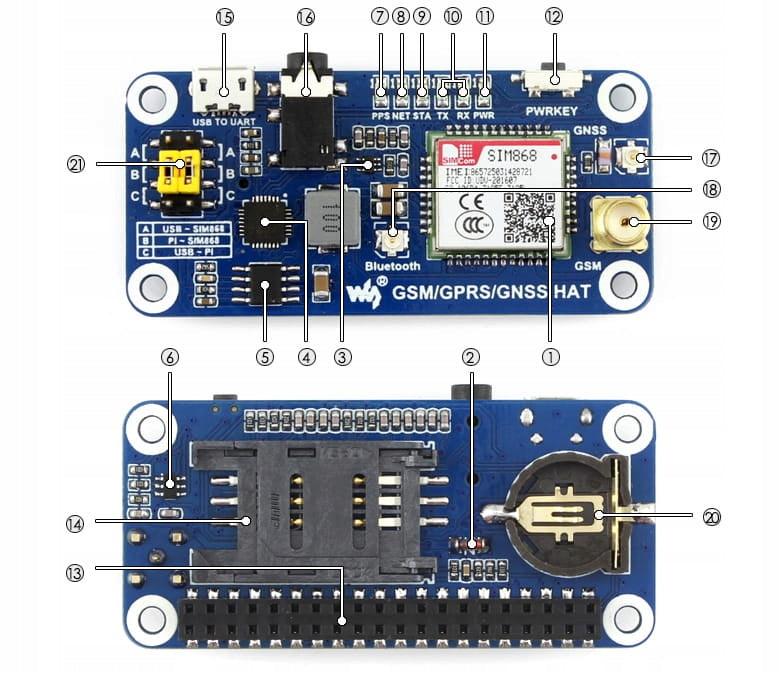

• SIM868 module
• ZMM5V1: diode regulator
• SMF05C: TVS diode
• CP2102: USB TO UART converter
• MP1482: power chip
• NDC7002N: voltage level translator
• GPS status indicator
• NET indicator: flashes fast when the module starts up, flashes slowly after GSM register succeed
• STA module working status indicator
• SIM868 UART Tx/Rx indicator
• power indicator
• SIM868 control button: press the button and hold for 1s, to startup/shutdown the SIM868
• Raspberry Pi GPIO connector
• SIM card slot
• USB TO UART interface
• 3.5mm earphone/mic jack
• GNSS antenna connector
• Bluetooth antenna connector
• GSM antenna connector
• CR1220 battery holder: for RTC backup battery
• UART selection switch:
• A: SIM868 control via USB TO UART
• B: SIM868 control with Raspberry Pi
• C: access to Raspberry Pi via USB TO UART

By buying you get:

• Module: GSM/GPRS/GNSS HAT x1
• GSM antenna x1
• Outdoor GPS Antenna x1
• Bluetooth antenna x1
• USB Type-A to micro USB cable x1
• Mounting grommets (2 pieces) x1
