SDI BNC jungiklis KALEA-INFORMATIQUE, 4 prievadų, modelis 9604514

Cena:
€180,40
Noliktava:
Ir noliktavā

Trumpai apie prekę

Prekė: SDI BNC jungiklis KALEA-INFORMATIQUE, 4 prievadų, modelis 9604514. Kategorija: Jungikliai ir koncentratoriai.

  • Gamintojas: no brand
  • Modelis: 9604514

Product Description

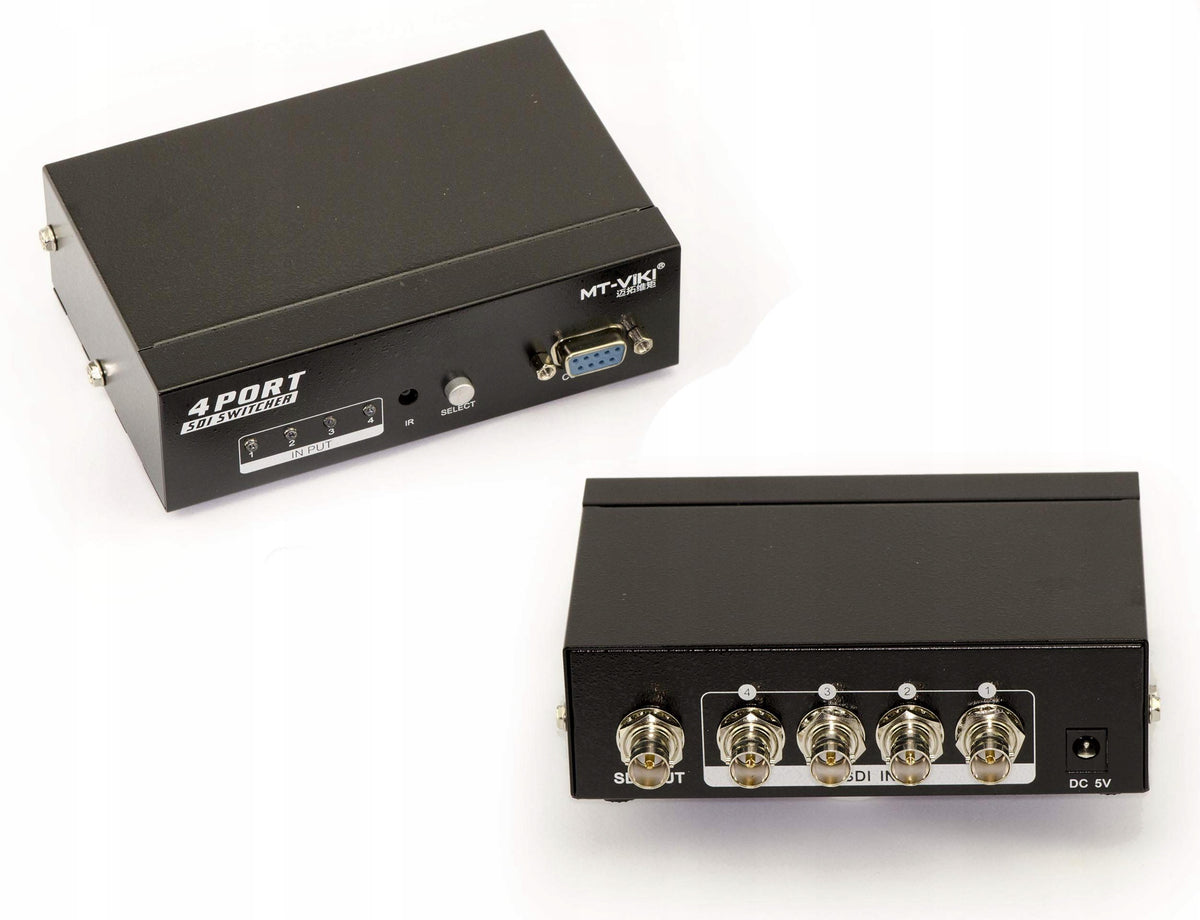

The KALEA-INFORMATIQUE 4-port SDI switch, model 9604514, allows you to direct the signal from one source to four possible outputs using BNC SDI connectors. This solution is designed for professional applications that require performance and reliability in video signal transmission.

The most important features

  • Purpose: SDI signal switching between 1 input and 4 outputs (BNC sockets)
  • Compatible with SD-SDI, HD-SDI and 3G-SDI standards
  • Signal bandwidth up to 2,97 Gbps (bitrate)
  • Maximum resolution supported: 1920x1200 pixels
  • Maximum transmission distance: up to 300 meters
  • Switching functions: via front buttons, IR remote control and via RS232 (COM) port
  • External 5V power supply (included)
  • Housing made of metal
  • Dimensions: 138 x 104 x 42 mm
  • Package weight: approx. 0,58 kg
  • Color: White

Operation and control

The switch allows convenient control via the included infrared (IR) remote control, manually buttons on the front panel, as well as remotely via the RS232 port. This allows you to adjust the method of operation to the requirements of the workplace or installation.

Application

The product is suitable for professional applications such as video surveillance systems, television solutions, conferences and inne advanced audio-video installations requiring high quality and reliability of switching SDI signals.

Contents of the set

  • SDI switch KALEA-INFORMATIQUE model 9604514
  • Infrared remote control
  • 5V power supply
  • User manual

Additional information

Featuring four BNC input ports and an output, the switch allows you to manage even advanced installations, offering fast and reliable signal switching. The metal housing increases the durability of the device, and support for multiple SDI standards ensures wide compatibility.

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer no brand
Parametry Number of ports 4
Parametry EAN (GTIN) 3045148492352
Parametry Manufacturer code 9604514
