Sąsaja PTstd6 LPG USB AG Zenit COMPACT BLUEBOX

Trumpai apie prekę

Prekė: Sąsaja PTstd6 LPG USB AG Zenit COMPACT BLUEBOX. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: PTstd6

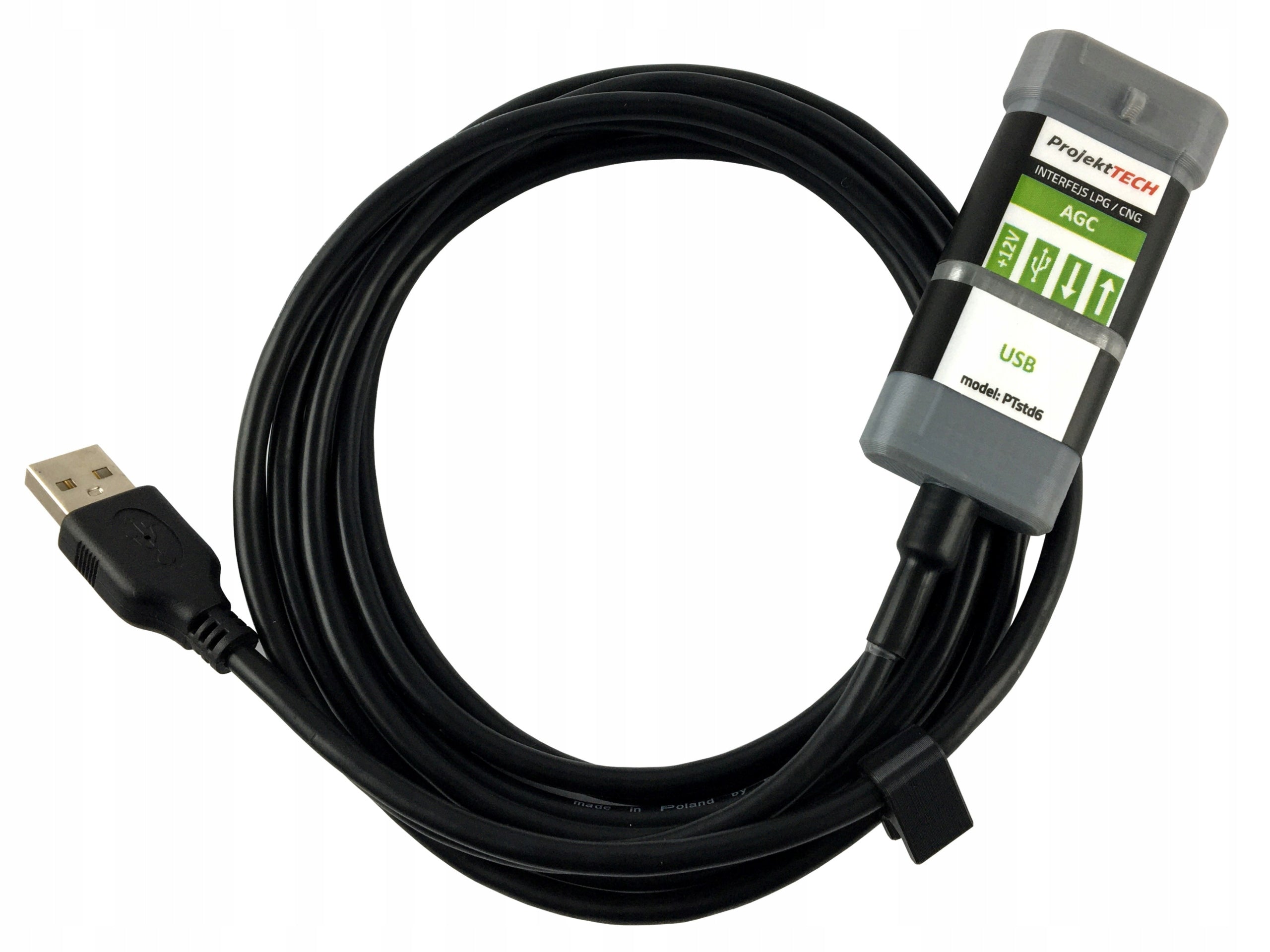

USB LPG INTERFACE - version with LED signaling in housing

Model: PTSTD6 (AGC)

We offer a fully functional diagnostic device and recommend it to anyone who wants to regulate their vehicle in person. FTDI electronics are a guarantee of support in drivers for the latest computers, while additional LED signaling definitely improves the user experience of our product.

Despite the very low price, the equipment allows you to carry out full diagnostics of the LPG system as well as make adjustments (autocalibration, maps, switching temperature, rotation, etc. ) – functionality is no different from the original.

The capabilities of our device:

• reading the operating parameters of the gas system (gas and MAP pressure, temperature, gasoline and gas injection times, engine speed, etc. )
• reading and erasing diagnostic errors in the gas controller
• reading and modification of maps and multiplier
• auto calibration
• change of installation parameters (after possible replacement, you can change the type of injectors, sensors, etc. so that the controller can control them more precisely)
• tests of implementing elements
• in newer drivers you can update the firmware
• modification of petrol injection
• modification of temperature and switching speed
• calibration of the gas level indicator in the tank
• deleting, enabling or completely disabling the service reminder (so-called. call for service for inspection)

And many others that you have done so far in the workshops.

NOTE: the scope and number of options depends on the type of your LPG installation, some drivers have a limited number of functions so the interface will only support those that are available in a given vehicle.

Application:

connector number 6:

• AG: ZENIT JZ-2005/2009, COMPACT, Zenit PRO (OBD), Diesel, BLUEBOX, BLACKBOX and all new models
• AUTOGAS ITALIA (AI): EASYJET, EASYDREM, POWERJET
• AUTRONIC: MISTRAL
• BAYKAN: BAYKAN
• CARGAS: BARDOLINI NEW
• EASY GAS: D07 CHINA
• EMMEGAS: ECU 07
• EMMER: FRANK AUTRONIC
• FEMA: SGI
• JX GAS: Jie Xing GAS
• MG MOTORGAS - MG CRC 600 / 648
• MIM GAS: FERONI
• TORELLI T1 T3
• MOTOR GAS: SIS
• NIGS: ZANARDI
• POLYAUTO: SEQUENTAL
• TOMASETTO: TOMASETTO (additional cable with so-called. "crocodile" if it occurs, connect to 12V battery)
• and others with this connector and communication standard...

Main features:

• very simple installation in any operating system (FTDI chip)
• Seamless cooperation with the latest diagnostic programs
• SUPPORT 100% gas controller functions
• durable double screen wiring (aluminum screen + steel beam braid) made to our special order
• reinforced tips
• Working in Windows 10 and all previous versions

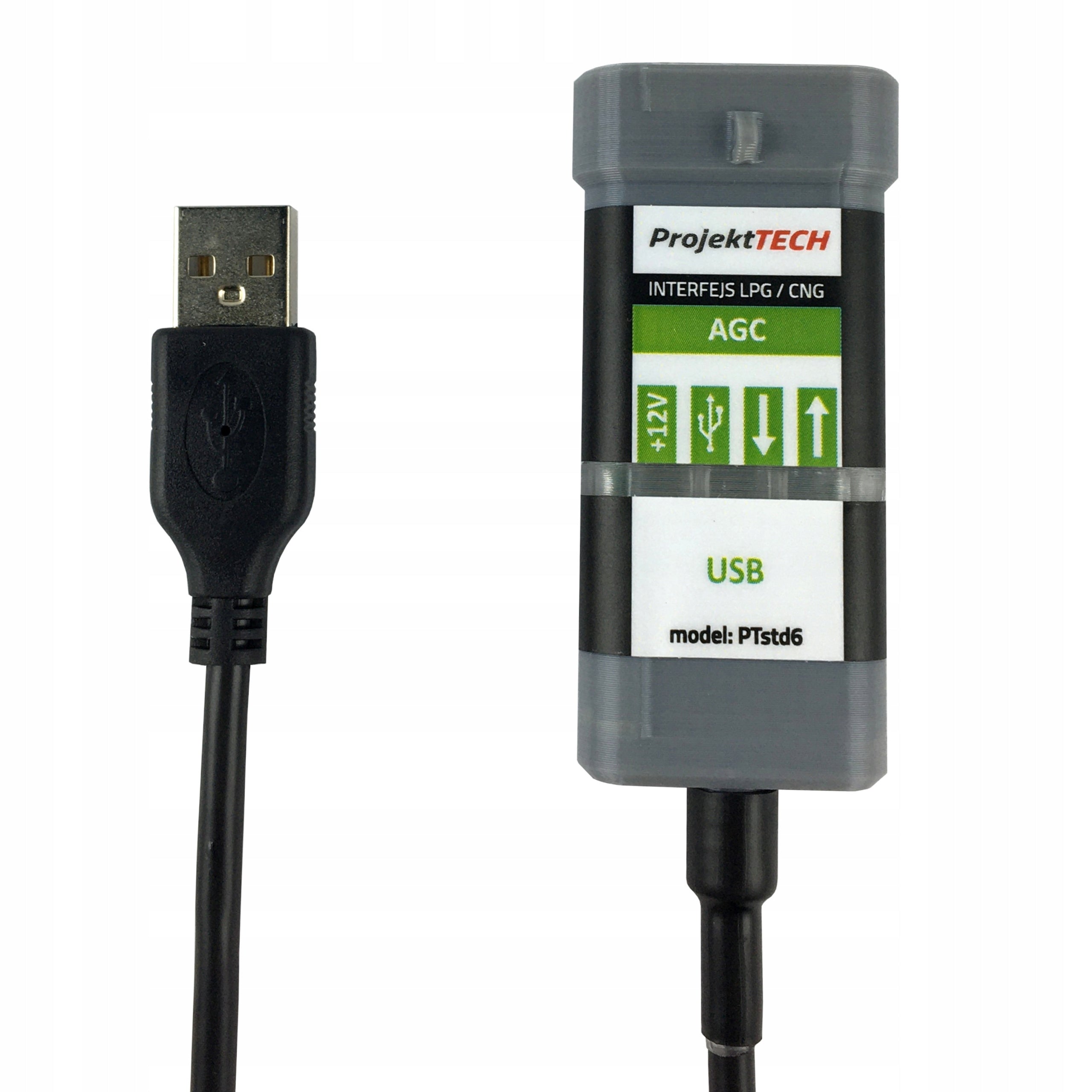

• 4 x LED signaling in housing:

+12V - the diode will light up when the correct power supply in the vehicle appears

READY - ready to work, the LED lights up after installing the drivers

IN - transmission signaling towards the PC

OUT - transmission signaling towards the vehicle

*LED coloring may vary depending on the batch of product.

• interface electronics (PCB printed circuit board) is machine made in SMD technology (FR4 epoxy)
• convenient clip that allows you to fasten the coiled cable for storage

Contents of the set:

• New diagnostic interface
• receipt or invoice authorising the guarantee (implementation by replacement with a new one or reimbursement)
• installation instructions and description of connectors (printed and electronic version for download)
• TECHNICAL SUPPORT - in case of problems, we answer your questions and provide addresses of websites with free access to a rich database with LPG files

Put your phone or tablet to the code on the interface sticker to read and automatically go to the page with free support:

• instruction manual,
• free software
