Sąsaja PTftdi7 LPG KME STAG Qbox KME LPGTECH

Trumpai apie prekę

Prekė: Sąsaja PTftdi7 LPG KME STAG Qbox KME LPGTECH. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: PTftdi7

INTERFACE LPG USB FTDI - professional version with protection and LED signaling in the housing

model: PTftdi7

Professional LPG and CNG diagnostic interface with one connector

USB 2.0 + 4m cable with screen + FTDI branded electronics + LED signaling + surge protection from WN installation (additional electronic circuits and double shielded cable)

4 meters of cable allows for convenient diagnostics directly from the vehicle cabin

The interface works with Windows 11 and all previous versions.

In this auction we offer an interface with 1 selected connector. made in Poland, the highest quality and durability, ready to work in vehicle maintenance workshops.

SIGNALING LED IN HOUSING:

• READY - the LED lights up only after the drivers are installed correctly
• IN - transmission signalling (transmits the vehicle)
• OUT - transmission signaling (gives an interface)

The capabilities of our device:

• reading the operating parameters of the gas system (gas and MAP pressure, temperature, gasoline and gas injection times, engine speed, etc. )
• reading and erasing diagnostic errors in the gas controller
• reading and modification of maps and multiplier
• auto-calibration
• change of installation parameters (after possible replacement, you can change the type of injectors, sensors, etc. so that the controller can control them more precisely)
• tests of implementing elements
• in newer drivers you can update the firmware
• modification of petrol injection
• modification of temperature and switching speed
• calibration of the gas level indicator in the tank
• deleting, enabling or completely disabling the service reminder (so-called. call for service for inspection)

And many others that you have done so far in the workshops.

NOTE: the scope and number of options depends on the type of your LPG installation, some drivers have a limited number of functions so the interface will only support those that are available in a given vehicle.

TECHNICAL DATA

• pworkshop designation and for personal use
• The interface electronics have been equipped with in protection systems against OVERVOLTAGE (m.in. from the WN system) and REVERSE POLARITY (e.g. connector error, which often happens in workshops)

  Built-in protectionenia protect the USB port in the computer and the entire communication path to the vehicle (after connecting the interface electronics protects the power line in the USB connector)

• 100% original FTDI converter - stable operation in any operating system without problems with drivers
• Support FOR ALL gas controller functions - you will do the same as the workshop
• TTL/CMOS compliance (full 5V on lines, CMOS switching levels with hysteresis filtering useful signal)
• 4 meters of solid cable made for our company according to specifications and automotive requirements
• reinforced tips (thermo shirts with glue) cable flanges protect the cable and connections to the PCB from breaking and tearing
• 3xLED in interface housing
• possibility of expanding the interface through the included adapters
• tight and ergonomic housing protects electronics from external conditions
• production in SMD surface mounting technology
• product Polish

We have been producing and selling this interface model continuously since 2010 - we are constantly looking for weaknesses (construction/materials/manufacturing method) and improving them. We ensure that the product is refined and adapted to the role it is supposed to play in the workshop.

SET CONTENTS:

• New LPG interface with selected connector
• User manual in Polish (we send a printed version and allow downloading . pdf)
• Technical support and access to a free database of LPG control programs

DESTINATION OF THE INTERFACE (PTftdi7)

connector 7

• AC: 4GAS, STAG 200 gofast, STAG 300, STAG 300 PLUS, STAG 300 PREMIUM, STAG 4 (ECO), STAG XL, VECTOR, ISA2, ISA3, Qbox, Qnext, Qmax and new models
• AGIS: ML210, P13, diesel and new models
• ATIKER: FAST, MULTI FAST, SAFE FAST
• CARGAS: SOLARIS
• DIGITRONIC: DGI, EASY FAST
• ESGI: ESGI 2 (for ESGI 1 and RADPID models, use cable with tip number 1)
• IC: 4-gas
• KME: BINGO, BINGO M, BINGO S, DIEGO, DIEGO G3, DIEGO LS, NEVO (PRO) SKY Direct, SKY Max (all models since 04.2009)
• LS: NEXT
• LOGOGAS: LOGOGAS
• LOVATO: FAST, SMART, EASY - all Exp, Exr and new models
• LPGTECH: tech-100, tech-200, tech-300, tech-500 and new models
• MILANO: MILANO
• OPTIMA GAS: ECO-TEC, PRO-TEC, NANO
• POLETRON: POLETRON 26/1, 26/2, 26/3
• TAMONA: PROGAS, T-GAS, TGSstream PM and NEW
• TE-GAS: TE-SL, TE-PS, TE-PM, TE-STREAM, TE-STREAM-OBD
• GOGAS: GOGAS

For installation of COMPACT and ZENIT use another connector from our allegro offer

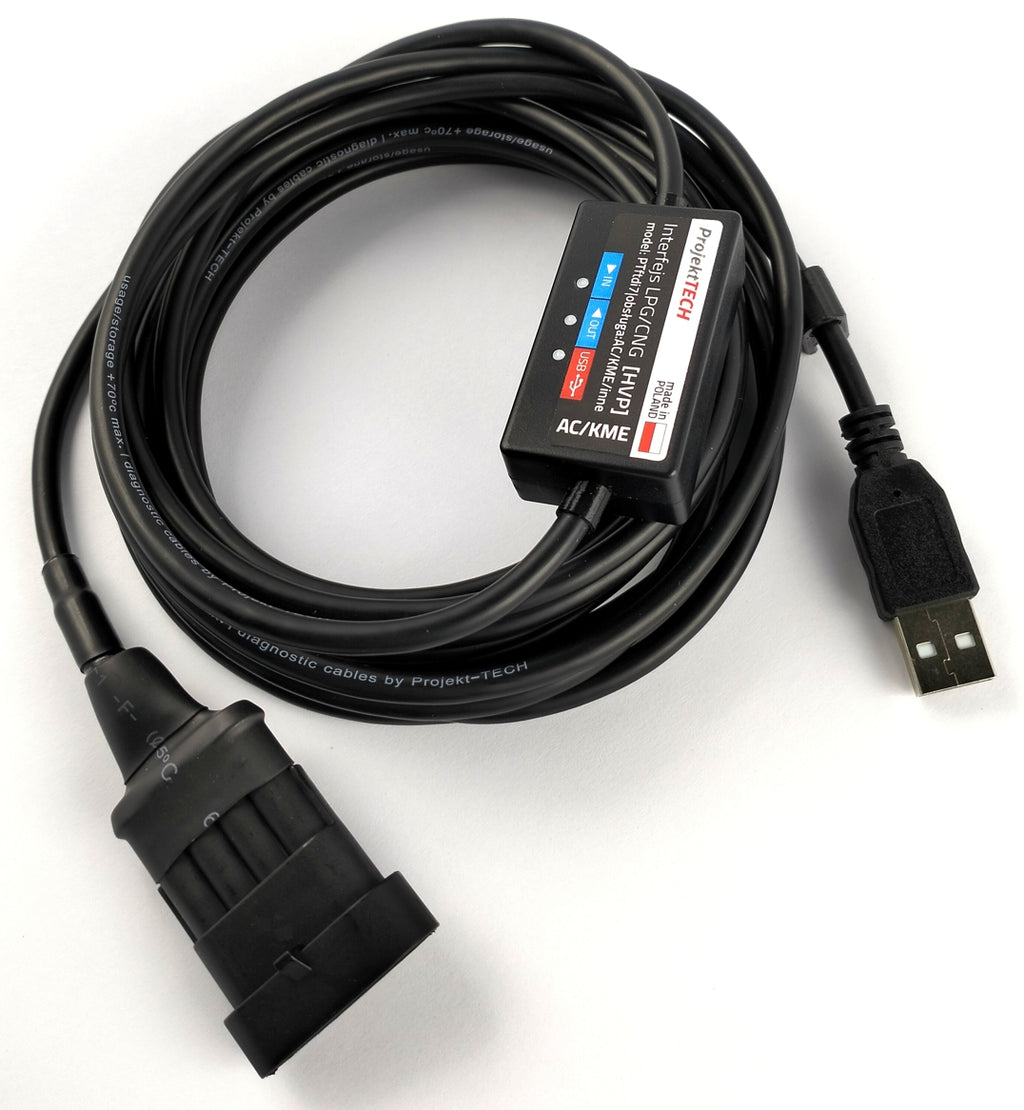

Actual photos of the equipment currently in production (model: ptftdi7):

EXAMPLES OF THRESHOLDS

ON THIS LISTING YOU BUY DIRECTLY FROM THE MANUFACTURER!

Specifications
