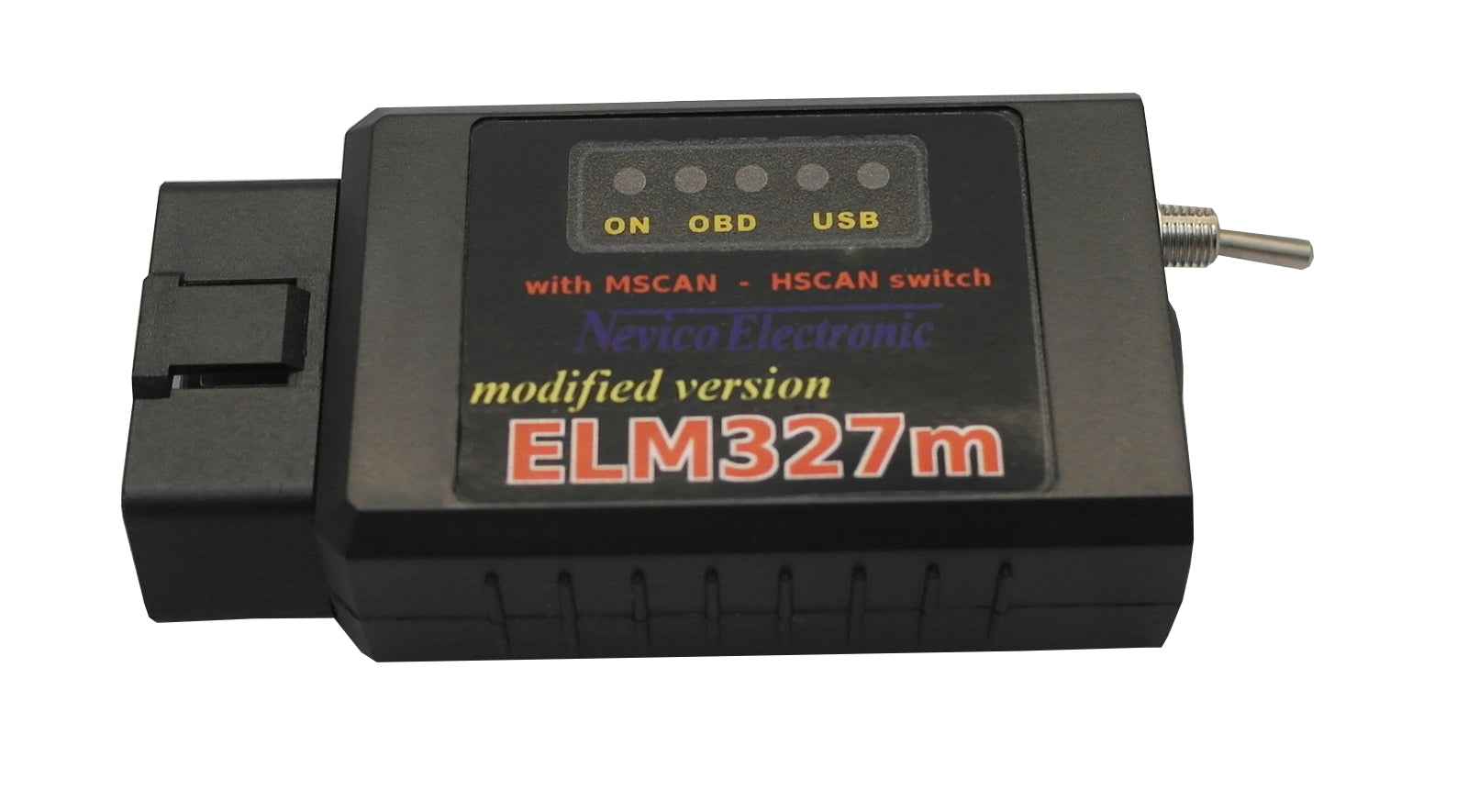

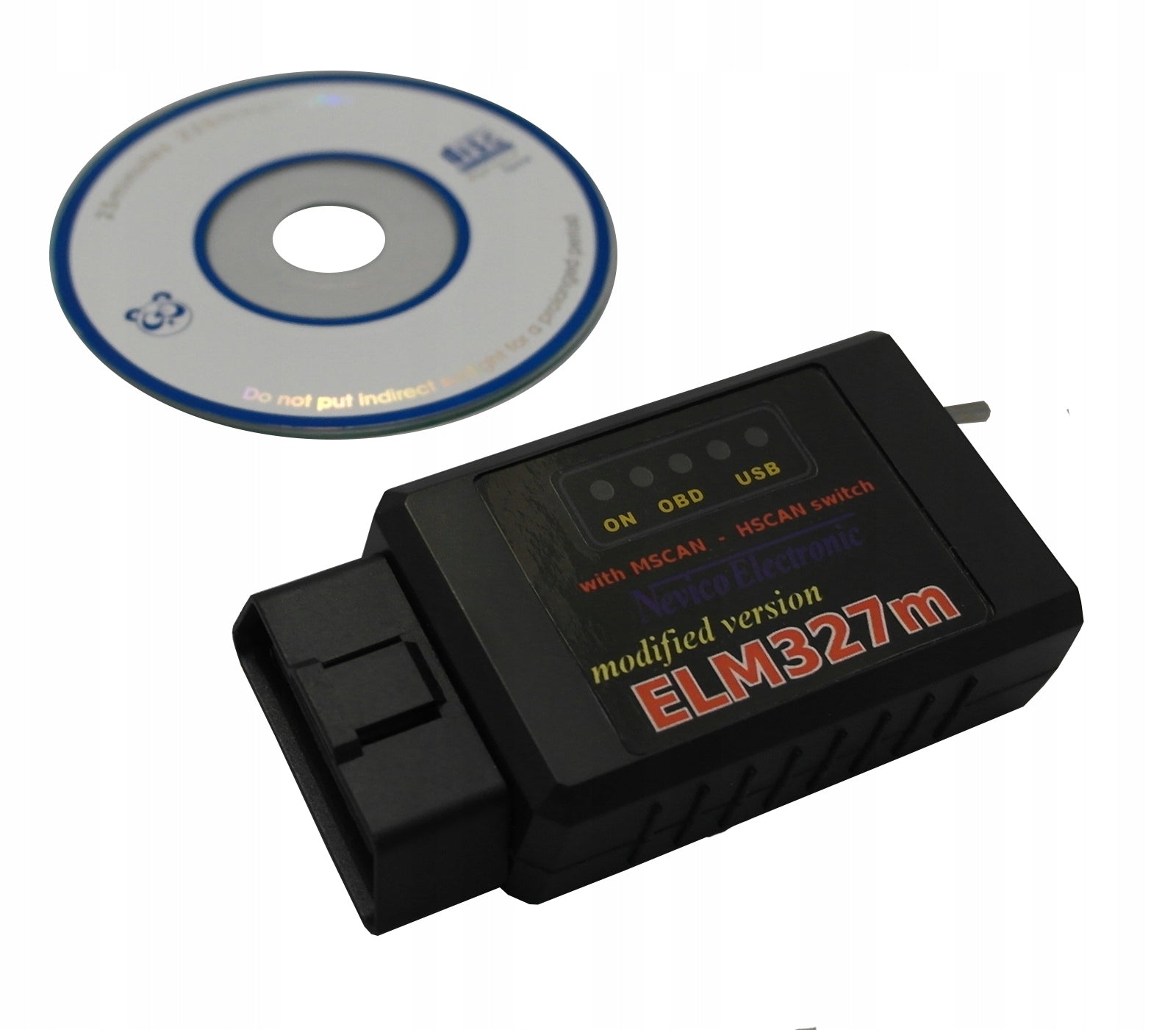

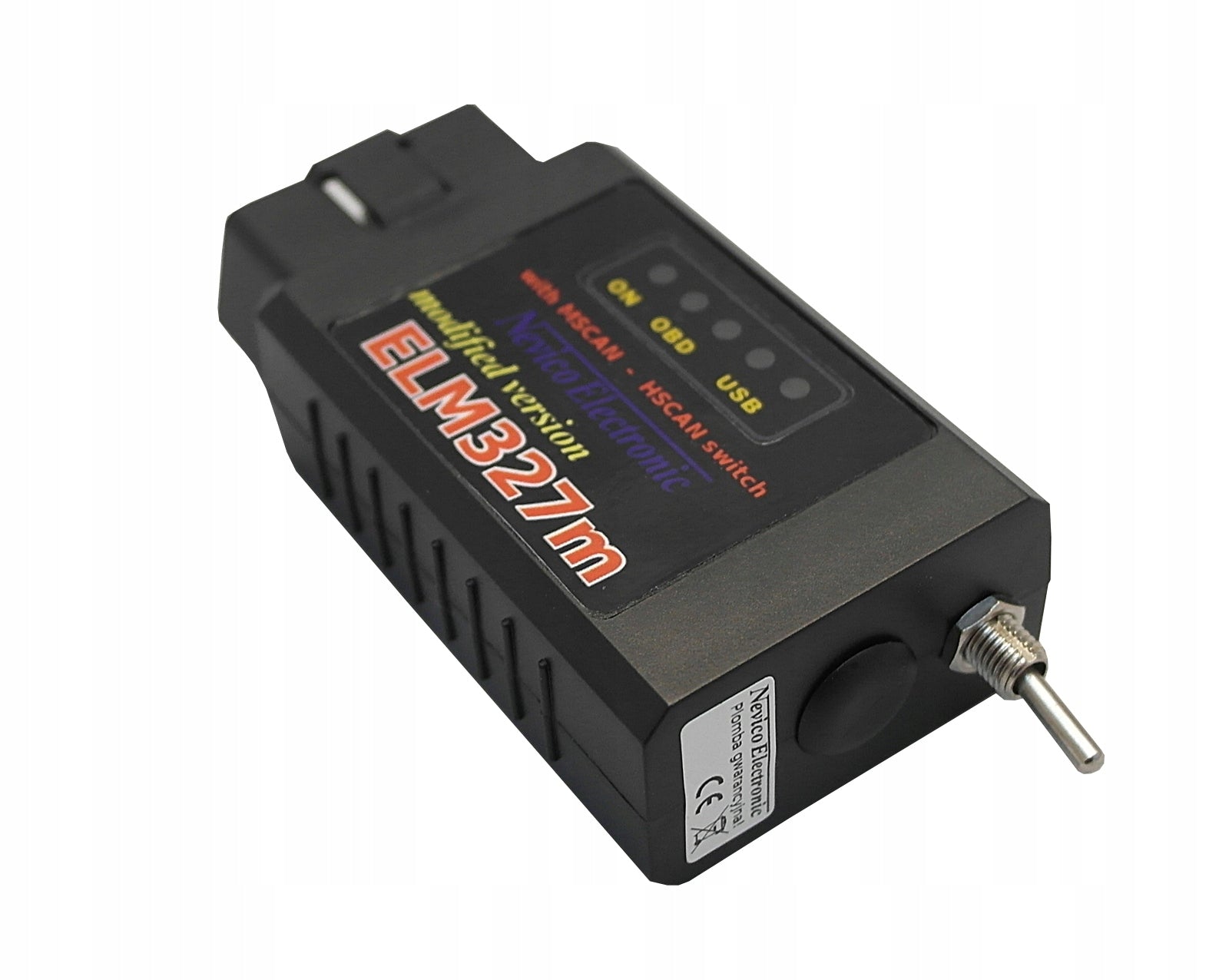

Sąsaja FORD Mazda automobiliams su MS HS CAN BT ELM327 Bluetooth

Trumpai apie prekę

Prekė: Sąsaja FORD Mazda automobiliams su MS HS CAN BT ELM327 Bluetooth. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: elm327 BT

Bluetooth interface with switch and modified construction, which connects to most cars, works even with electric Nissan Leaf.

.

On the latest chip: PIC18F25K80

supports the following protocols: J1850 VPW and PWM

The offered version supports MS CAN and HS CAN, has a built-in switch that allows you to switch between middle speed CAN and high speed CAN and this in turn allows access to modules such as: GEM, RCM, EATC, DDM, PDM, RDDM, RPDM, AHCM, PAM, ACU, SRM, BCM, PCM, TCM, HEC, EHPAS, HCM

Switch Position:

• HS CAN - connects pins 6 and 14
• MS CAN - connects pins 3 and 11 (communication used by FORD, MAZDA)

The android program is located on the attached board, but we recommend downloading newer versions of the programs from google play.

Thanks to the built-in switch and support for MS CAN and HS CAN, the interface is dedicated to Fords and Mazdas.

Note: trouble-free version for Ford and Mazda until 2010 (with newer ones may or may not have problems with dynamic data reading, therefore, up to above 2010 we recommend USB versions, there is no problem), the scanner also advises with other brands.

Thanks to the built-in switch and support for MS CAN and HS CAN, the interface is dedicated to Fords and Mazdas, but also copes with other brands.

Interface functions: restricted are only by the program used.

• reading errors from each car module
• erasure of errors
• monitoring of individual modules, including engine operating parameters
• approximate measurements of power, acceleration, etc.
• Enabling hidden, additional features
• and many others, programs are constantly being improved, they allow for more, new cars are coming.

Supported protocols:

• J1850 PWM (41.6 kbaud)
• J1850 VPW (10.4 kbaud)
• ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO KWP (5 baud init, 10.4 kbaud)
• ISO KWP (fast init, 10.4 kbaud)
• ISO CAN (11 bit ID, 500 kbaud)
• ISO CAN (29 bit ID, 500 kbaud)
• ISO CAN (11 bit ID, 250 kbaud)
• ISO CAN (29 bit ID, 250 kbaud)

The list of supported cars through this interface is unlimited, you can read and delete i.a. w: Audi, Alfa, Fiat, BMW, Citroen, Ford, VW, Mercedes, Dacia.....

The list of programs is also almost endless: Multiecuscan, ScanTool, PCMSCAN, Forscan, Elmconfig, OBD-II Scaner, ProScan, etc.

For Fords and Mazdas I recommend the Polish version of Forscan (constantly enriched with new features).

The interface gives access to car modules, allows you to change computer settings, activate or deactivate various functions.

It allows you to read injector data, encode new ones.

Of course, it reads car data, mileage, VIN.....

It shows in real time the operation of any sensor in the car.

It gives the ability to read and delete errors (reads the error code, its description, and possible cause (in Polish).
