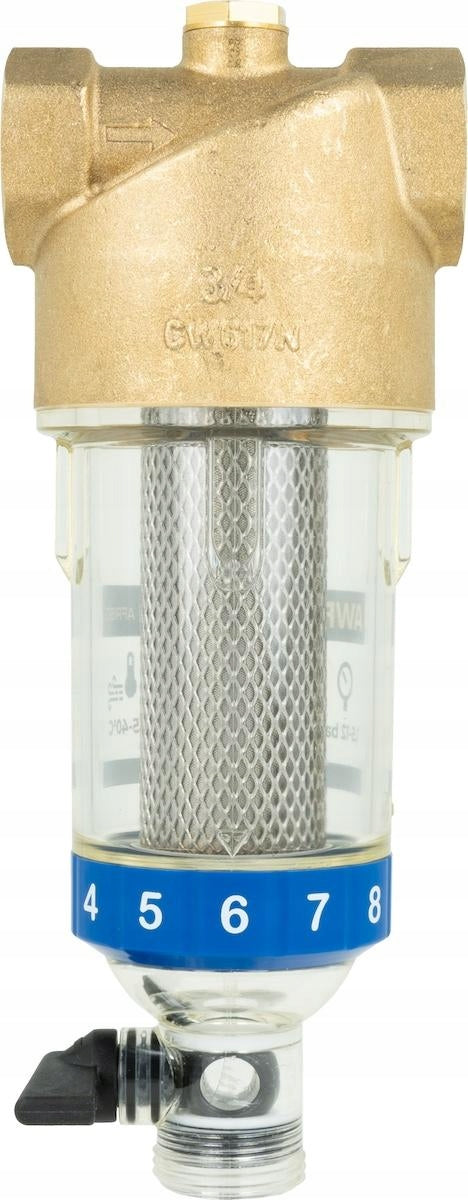

Šalto vandens filtras namams su atbuline plovyklė AFRISO AWF 120, 3/4

Trumpai apie prekę

Prekė: Šalto vandens filtras namams su atbuline plovyklė AFRISO AWF 120, 3/4. Kategorija: Filtrai ir vandens minkštikliai.

• Gamintojas: no brand
• Modelis: 605160870
• Talpa: 1 l

AWF backwash filters for drinking water installations are a reliable solution that provides effective protection for your installation and maintains high-quality water.

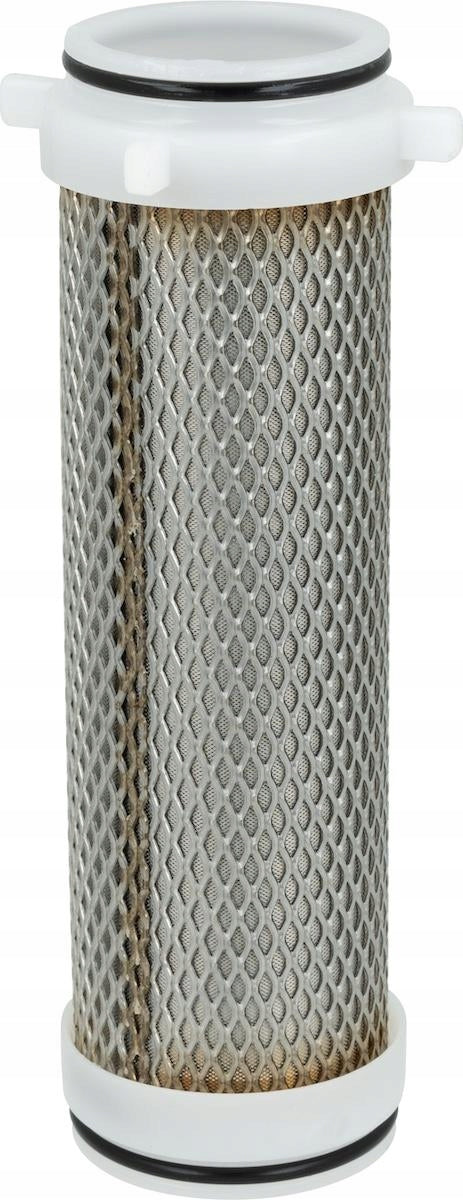

The mesh diameter of the filter mesh ensures effective retention of any solid impurities with a particle size of more than 90 micrometers. The unique design of the stainless steel mesh guarantees resistance to deformation and deformation, even under high pressure and heavy loads. The properly designed shape of the filter ensures that impurities settle on its bottom, which facilitates their quick removal with an integrated drain valve.

The filter features a date stamp that allows you to record your last cleaning with ease, making it a breeze to keep your device in top condition. Additional protection against the influx of contaminants is provided by plastic rings and seals connected to the mesh, which prevent particles from entering the overcrowded mesh to the further part of the installation.

AWF filters are the perfect combination of performance, durability, and convenience. It is an ideal choice for those who value clean water and reliable installation.

Construction:

1. GW G1/4" connection factory blinded with stopper.
2. Brass body with connections
3. Stamp
4. Hose connection
5. Transparent settler
6. Drain valve

Technical data:

• Connection: GW G3/4"
• Kvs : 9.7 m³/h
• Filter: 90 μm
• Maximum pressure: 12 bar
• Water temperature range: 5 ÷ 30°C
• Flow: 4,3 m³/h (at a pressure drop of 0,2 bar), 6,8 m³/h (at a pressure drop of 0,5 bar)

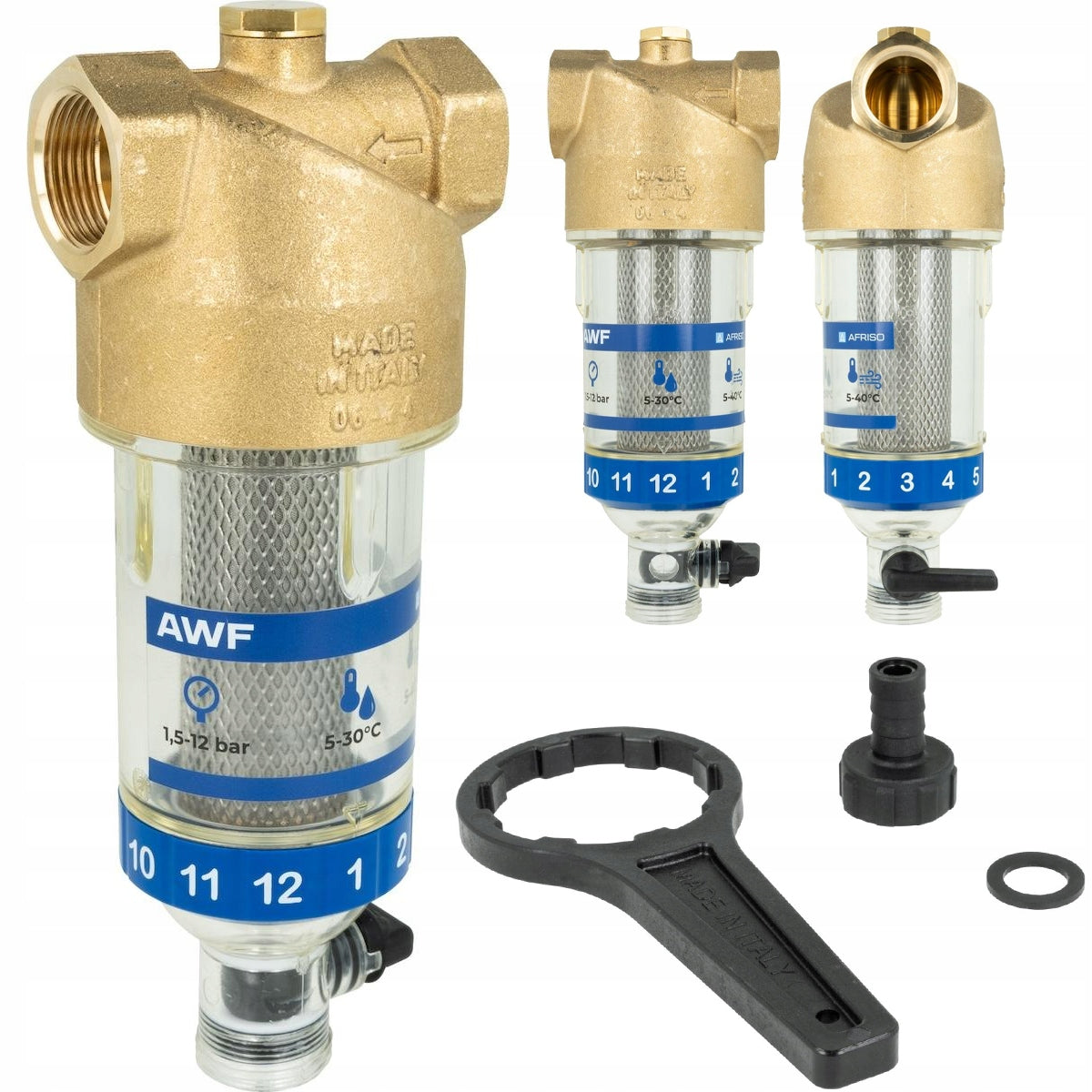

Included:

• Key for assembly and maintenance.
• Connection to flexible hose.
