Trumpai apie prekę
Prekė: Rinkinys griovelių, plunksnų ir įtvarų medienos frezoms 8mm. Kategorija: Pjaustytuvai.
- Gamintojas: HETRFLY
- Modelis: 8 mm

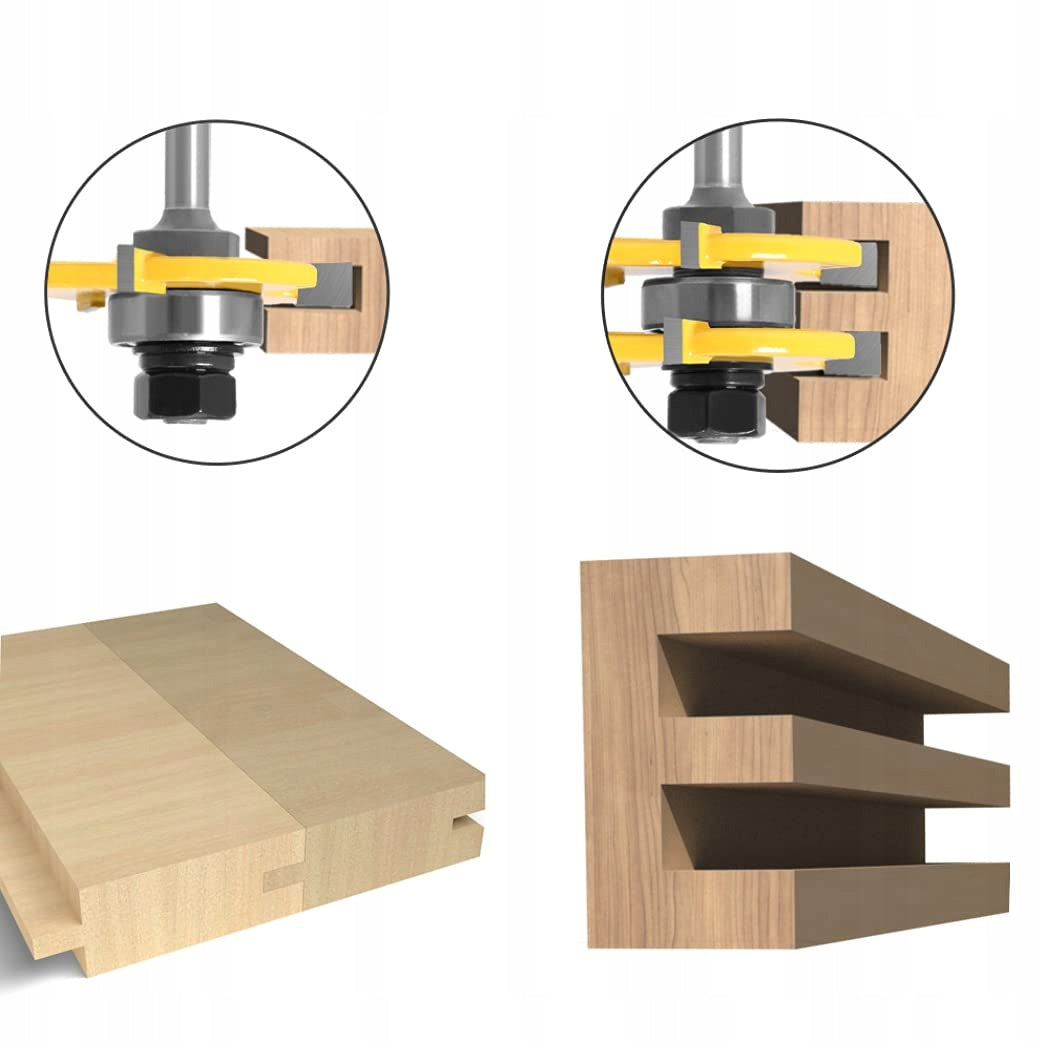

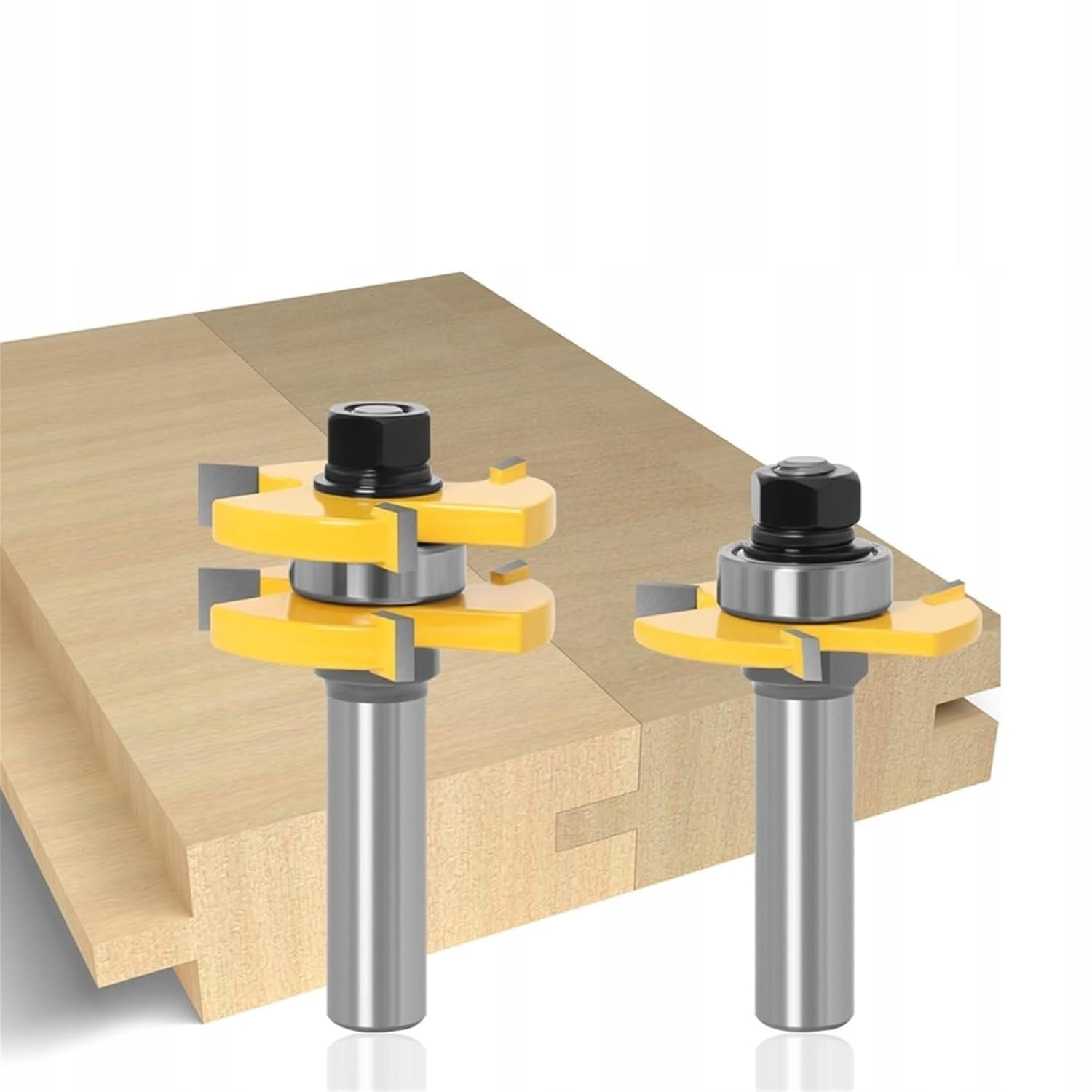

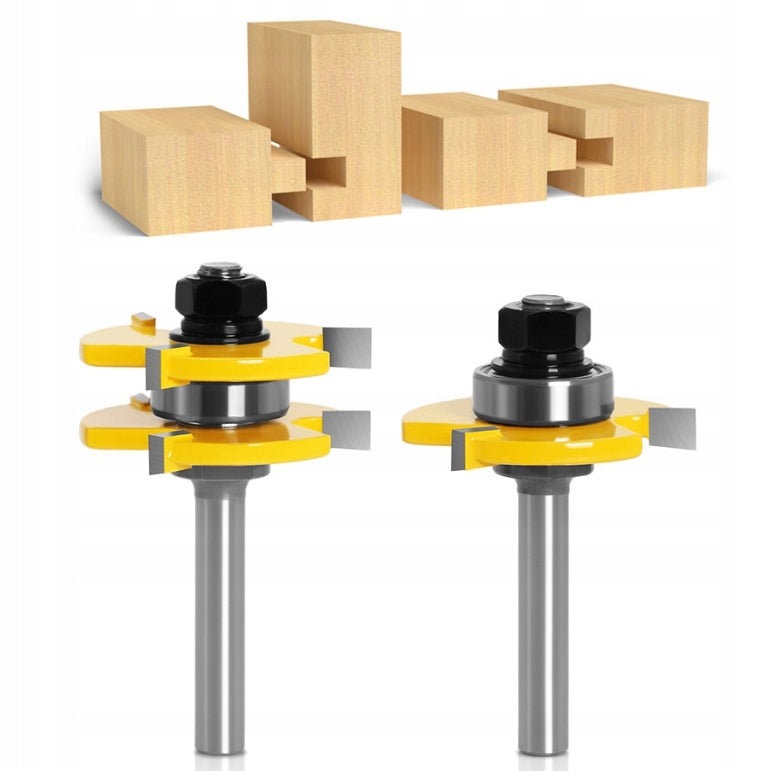

Router Bit Set with Tongue and Groove 8 mm Shank - 2 Pieces Router Bits for 3/4" Stock, 1/2" Cutting Depth - T Shape 3 Teeth Wood Milling Cutter Woodworking Tool
Bristles and heat resistant coating Robust hardened steel bodies with anti-kick design
Industrial quality, high quality carbide cutters
Ideal for edging, veining and grooving in all woodworking projects for both professionals and hobbyists
Suitable for wood, MDF, chipboard, compact plywood panels
Avoid cutting ferrous metals and non-wood materials such as steel, iron, sand, etc.
SPECIFICATIONS:
Color: Silver and Yellow
Shaft Diameter: 8mm
Material: steel
Milling Tool Width: 1/4 inch (6.35mm)
Milling Tool Depth: 1/2 inch (12.7mm)
Tip:
1. There may be slight dimensional discrepancies due to manual measurement. Thank you for your understanding.
2. Monitors are not calibrated the same, so the color of the item displayed in the photos may be slightly different from the actual product. Please treat the original as standard.
3. When installing the chisel, the entire stem must be clamped. When milling, the rotation speed should not be too high. It is recommended to go through many passages, even in the same place. When drilling holes, wear adequate eye protection to avoid injury to the eyes from chips.
Buyer's Note
Cutting diameter or height: less than 25 mm -- Maximum speed/min: 24000, Maximum feed speed/min: 5000.
Cutting diameter or height: 25.1-35 mm -- Maximum speed/min: 18000, Maximum feed rate/min: 4000.
Cutting diameter or height: 35.1-50 mm -- Maximum speed/min: 16000, Maximum feed rate/min: 3500.
Cutting diameter or height: 50.1-60 mm -- Maximum speed/min: 14000, Maximum feed rate/min: 3000.
Cutting diameter or height: 60.1-80 mm -- Maximum speed/min: 12000, Maximum feed rate/min: 2500.
Cutting diameter or height: above 80 mm -- Maximum speed/min: 10000, Maximum feed speed (mm/min): 2000.
Comments: Commonly used machine speeds:
Edge milling machine: 10000 – 30000 rpm
Bakelite Milling Machine:
1. Speed 9000 rpm
2. Speed 12000 rpm
3. Speed 15000 rpm
4. Speed 19000 rpm
5. Speed 23000 rpm
Vertical Engraving Machine: Low Speed 12000rpm
High speed 24000 rpm
Automatic engraving machine: Variable frequency up to 18000 rpm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | HETRFLY |
| Parametry | Kind | single milling cutter |
| Parametry | Cutter type | shank (slotting) |
| Parametry | Cutter diameter | 8 mm |
| Parametry | Shank diameter | 8mm |
| Parametry | Material of manufacture | carbon steel |
| Parametry | Number of pieces | 2 pcs |
| Parametry | Product weight with unit packaging | 0.25 kg |
| Parametry | Manufacturer code | 8 mm |
| Parametry | EAN (GTIN) | 4048093355160 |
| Parametry | Purpose | wood,fresh wood,branches,MDF |
