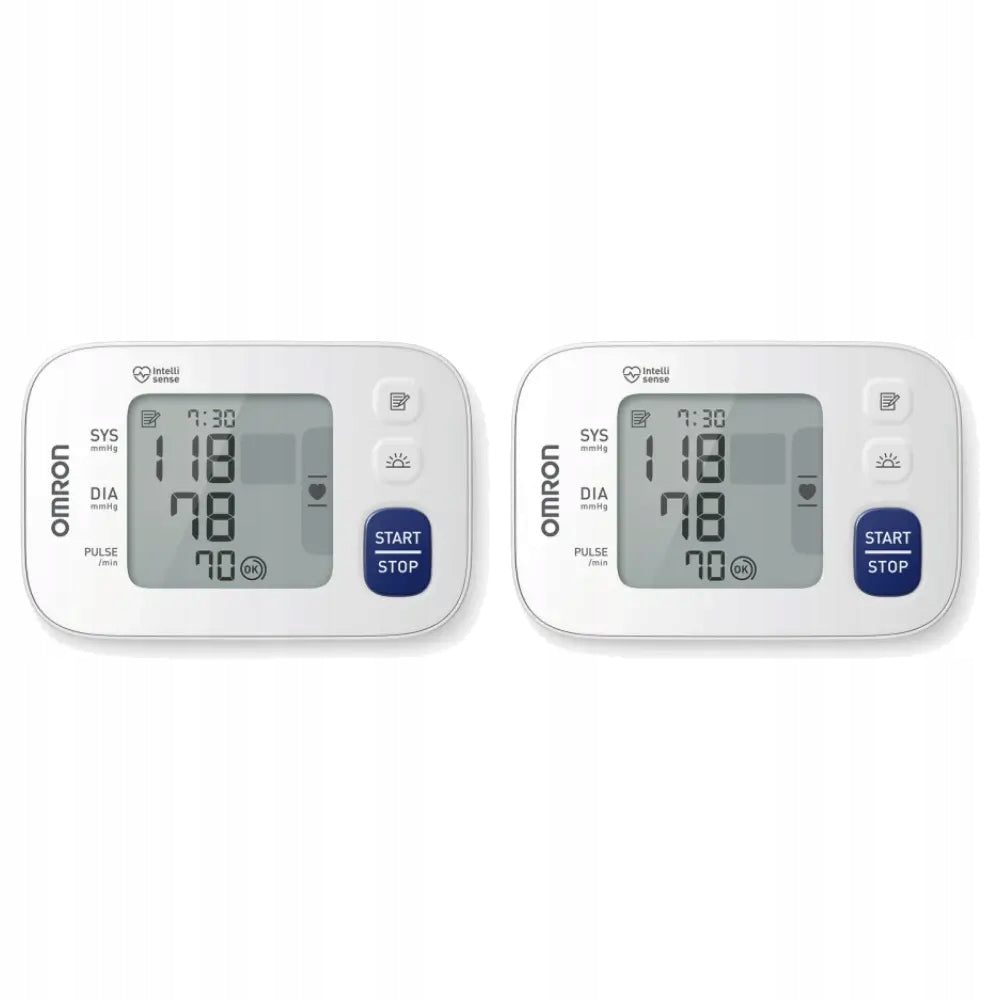

Riešinis kraujospūdžio matuoklis Omron RS4 HEM-6181-E, 2 vnt.

Trumpai apie prekę

Prekė: Riešinis kraujospūdžio matuoklis Omron RS4 HEM-6181-E, 2 vnt.. Kategorija: Kraujospūdžio matuokliai.

• Gamintojas: Omron
• Modelis: RS4

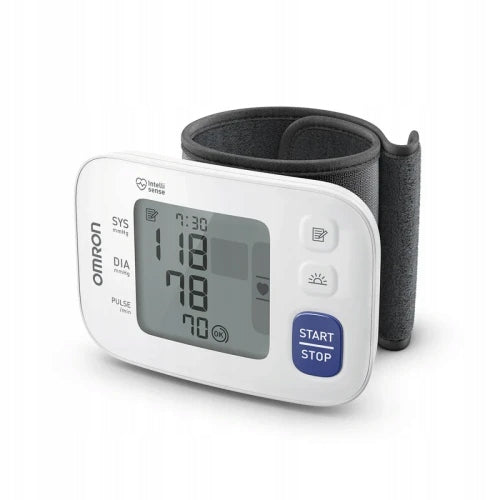

Omron RS4 HEM-6181-E – Wrist blood pressure monitor

OMRON RS4 is a medical device in the form of a wrist blood pressure monitor for self-control of blood pressure in adults. It records 60 measurements, detects irregular heartbeat and body movements. Lightweight and comfortable, this device is a great solution for frequent travelers.

Wrist blood pressure monitors

OMRON RS4 is a compact wrist blood pressure monitor, equipped with LED positioning sensor, Intellisense technology, cuff guide and irregular heartbeat detection function, as well as indicators of hypertension and morning hypertension. It records 60 measurements.

• Guide to putting on a cuff
• Memory: 60 readings
• Detection of irregular heart rhythm
• Detection of body movement
• Validation: Clinical trial
• Easy blood pressure level indicator
• Advanced position sensor during measurement
• Intellisense
• Comes with a storage case
• Measurement averaging function
• Cuff type Wrist cuff 13,5 – 21,5 cm
• Cuff type
• Wrist cuff 13,5 – 21,5 cm

How to use Omron RS4?

Preparation for measurement

• Sit comfortably in a quiet place, lay your feet flat on the floor.
• Rest for at least 5 minutes before starting the measurement.
• Remove your watch, jewelry and wrist-hugging clothing.

Putting on the cuff

• Put a blood pressure monitor on your left hand wrist (unless your doctor tells you otherwise).
• Place the device about 1 to 2 cm above the wrist.
• Tighten the strap so that the cuff fits well, but does not press too hard.

Correct measuring position

• Raise your wrist with a blood pressure monitor to your heart height.
• Hold your hand with your other hand to maintain a stable position.
• Sit still and do not talk while measuring.

Start of measurement

• Press the Start/Stop button.
• The cuff inflates automatically and then gradually deflates.
• After a few seconds, the result of systolic, diastolic and heart rate pressure will appear on the display.

After completion of the measurement

• Save the result or use the device memory to preserve it.
• Turn off the blood pressure monitor, remove the cuff and put the device in a safe place.

5 years warranty (from date of purchase)

This is a medical device. Use it according to the instructions for use or label.

https://www. omron-healthcare.com/storage/im-hem-6181-e-pl-05-01-2022.pdf?__hstc=266519505.5d1f52b94fc23a083540ce660976b43c.1778715123514.1779295749783.1779352972385.14&__hssc=266519505.1.1779352972385&__hsfp=d9dbdce63087d780abb93963d7815d8f

Product category

Electronic sphygmomanometers

Product Description

Wrist automatic blood pressure monitor

Model (code)

RS4 (HEM-6181-E)

Display

LCD Digital Display

Pressure range for cuff

0 to 299 mmHg

Range of blood pressure measurement

SYS (systolic): 60 to 260 mmHg

DIA (diastolic): 40 to 215 mmHg

Heart rate measurement range

40 to 180 strokes/min

Accuracy

Pressure: ±3 mmHg

Heart rate: ±5% of the indicated reading

Pumping

Automatic with electric pump

Release of air

Automatic quick release of air

Measurement method

Oscillometric method

Operating mode

Continuous work

IP classification

IP 22

Rated values

DC 3 V 3,0 W

Power source

2 AAA 1,5 V alkaline batteries

Battery life

Approximately 300 measurements (on new alkaline batteries)

Service life (use life)

5 years

Working conditions

From +10°C to +40°C / from 15 to 90% relative humidity

(non-condensing) / from 800 to 1060 hPa

Storage/Transport Conditions

From -20°C to +60°C / from 10 to 90% relative humidity

(without condensation)

Weight

Approximately 86 g (without battery)

Dimensions

Approximately 93 mm (W) ) × 62 mm (H) ) × 20 mm (L. ) (without cuff)

Wrist circumference

From 13,5 to 21,5 cm

Memory

Write up to 60 readings

Contents

Blood pressure monitor, cover, 2 AAA alkaline batteries, user manual 1 and 2

Protection against electric shock

Medical electrical device (ME) with internal power supply

Part coming into contact with the patient's body

Type BF (cassette)

Maximum temperature of the part coming into contact with the user's body

Lower than +48°C

The package contains:

• Wrist blood pressure monitor
• Wrist cuff (13,5 to 21,5 cm)
• Storage case
• 2 AAA batteries (or 4, depending on version)
• User manual

Specifications
