Rėmas FlyFishRC Volador II VD4 O4 Pro Deadcat FPV LR T700 geltonas

Trumpai apie prekę

Prekė: Rėmas FlyFishRC Volador II VD4 O4 Pro Deadcat FPV LR T700 geltonas. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: FF03846

⬇ See more ⬇

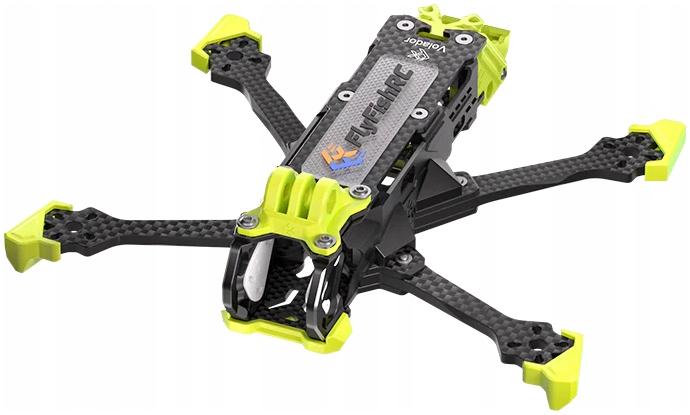

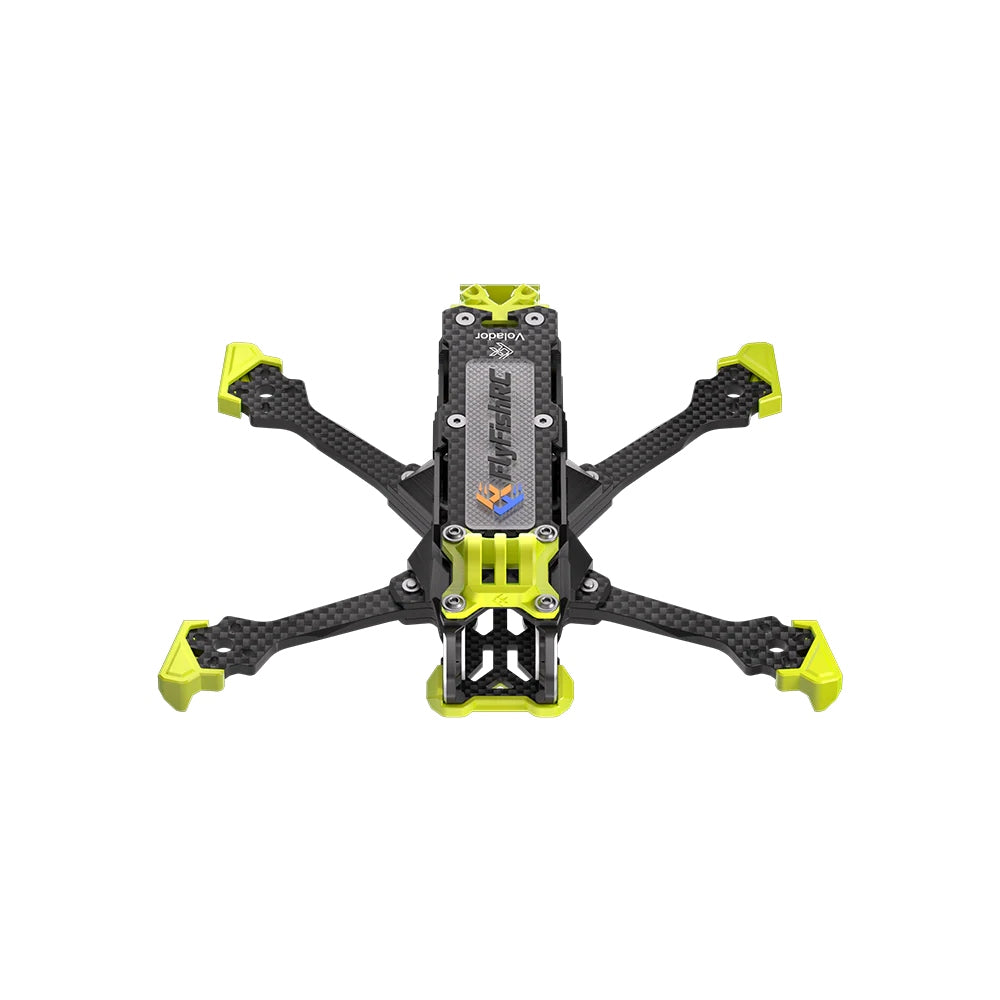

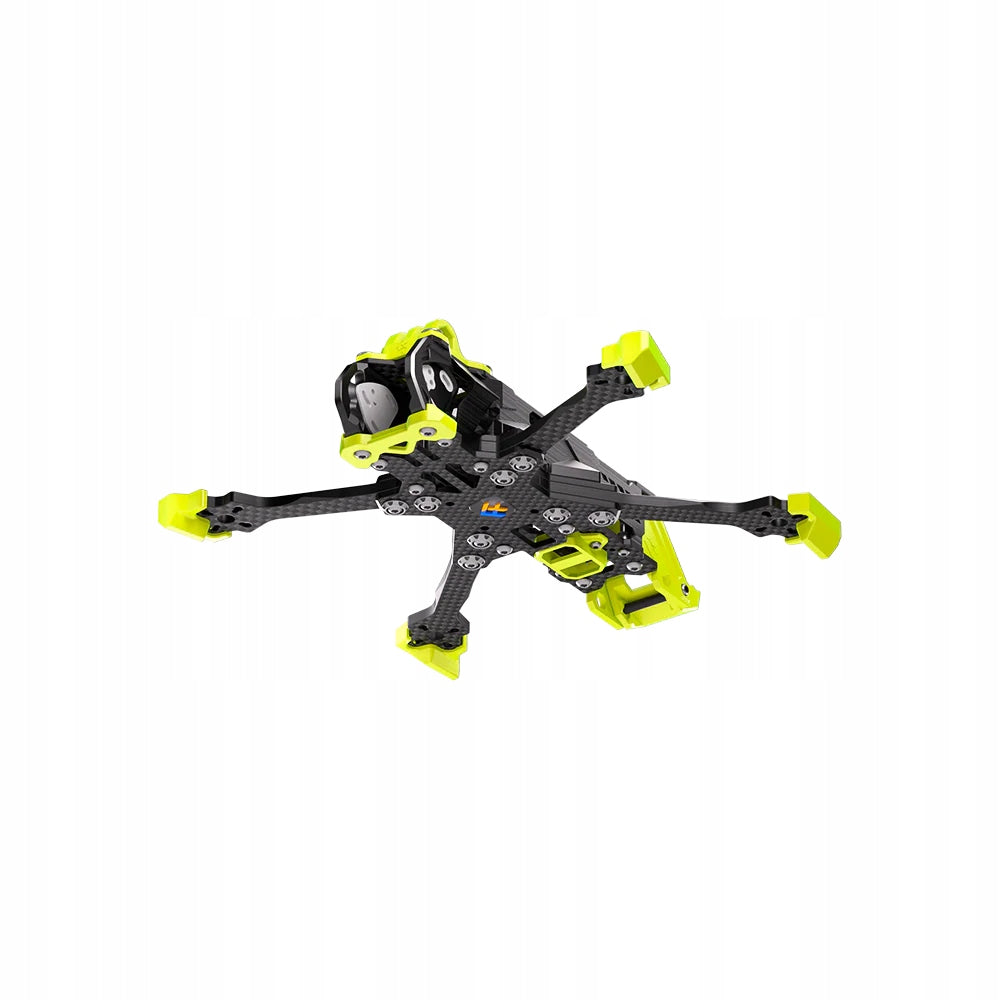

FlyFishRC Volador II VD4 O4 Pro Deadcat is a lightweight and durable 4" frame for LR and freestyle FPV drones. The Deadcat system reduces the visibility of propellers in the frame, while the T700 carbon fiber construction and CNC elements ensure rigidity, low weight and high vibration resistance.

Key features:

• Deadcat layout for a cleaner image without propellers in the frame
• T700 carbon fiber and CNC aluminum construction
• low weight approx. 127 g
• Suspension camera mount compatible with O4 VTX system
• effective vibration damping and reduction of the jello effect
• wide compatibility with analog and digital configurations
• simple installation and high durability in everyday use

Specification:

• Propeller Size: 4 inches
• wheelbase: 183 mm
• frame dimensions: 195 × 155 × 33 mm
• Material: T700 carbon fiber
• arm thickness: 4 mm
• thickness of the upper plate: 2 mm
• thickness of the middle and bottom plate: 2.5 mm
• thickness of CNC side plates: 5 mm
• FPV camera spacing: 19 / 20 mm
• stack assembly: 20 × 20 mm (M3) / 30.5 × 30.5 mm (M3)
• VTX mounting: 20 × 20 mm (M2) / 25.5 × 25.5 mm (M2)
• motor assembly: 12 × 12 mm (φ2 mm) / 16 × 16 mm (φ3 mm)
• colour: black and yellow

Composition of the set:

• 1 × FlyFishRC Volador II VD4 O4 Pro Deadcat FPV LR Freestyle T700 frame

It is a good choice for people building a compact 4" FPV quad with an emphasis on stable image, low weight and high compatibility of components.
