Raspberry Pi dirbtinio intelekto kamera 12 MP

Trumpai apie prekę

Prekė: Raspberry Pi dirbtinio intelekto kamera 12 MP. Kategorija: Priedai.

• Gamintojas: Raspberry pi
• Modelis: SC1174

The Raspberry Pi AI camera with Sony IMX500 sensor is an advanced solution for artificial intelligence projects, offering built-in machine vision processing . With the ability to run popular neural network models directly on the sensor, reliefs the Raspberry Pi processor, ensuring optimal performance and versatility in AI applications.

Index: RPI-25491

Main Features of Raspberry Pi AI Camera

• 12-megapixel Sony IMX500 sensor
• Image processing directly on the sensor, which relieves the Raspberry Pi processor
• Ready-to-use machine vision model, ideal for object recognition
• 76-degree viewing angle
• Precise image customization to meet specific project requirements
• The set includes a 200 mm tape for easy connection to any Raspberry Pi model.

Specification of Raspberry Pi AI Camera

• Sensor: Sony IMX500
• Matrix Resolution: 12,3 MPx
• Viewing angle: 76°, 66°±3° / 52.3°±3°
• Focus Setting: Manual
• Focus range: from 20 cm to infinity
• Inference engine: integrated, supporting popular neural network models (preloaded MobileNet)
• Sensor size: 7,857 mm (type 1/2.3)
• Pixel Size: 1,55 x 1,55 μm
• Resolution: 4056 x 3040 px
• IR cut filter: integrated
• Focal length: 4,74 mm
• Aperture: F1.79
• Infrared Sensitivity: None
• Output: image (Bayer RAW10), ISP (YUV/RGB), Roit, metadata
• Tensor Input Size: 640 x 640 px
• Input data type: 'in8' or 'uint8'
• Memory Size: 8388480 b
• Number of frames per second:
• 2x2 binned: 2028 x 1520 px 10-bit 30 fps
• full resolution: 4056 x 3040 px 10-bit 10 fps
• Dimensions: 25 x 24 x 11,9 mm
• Belt length: 200 mm
• Belt connector: 15 x 11 mm FPC or 22 x 0,5 mm FPC
• Compatibility: all Raspberry Pi models

Contents of the set

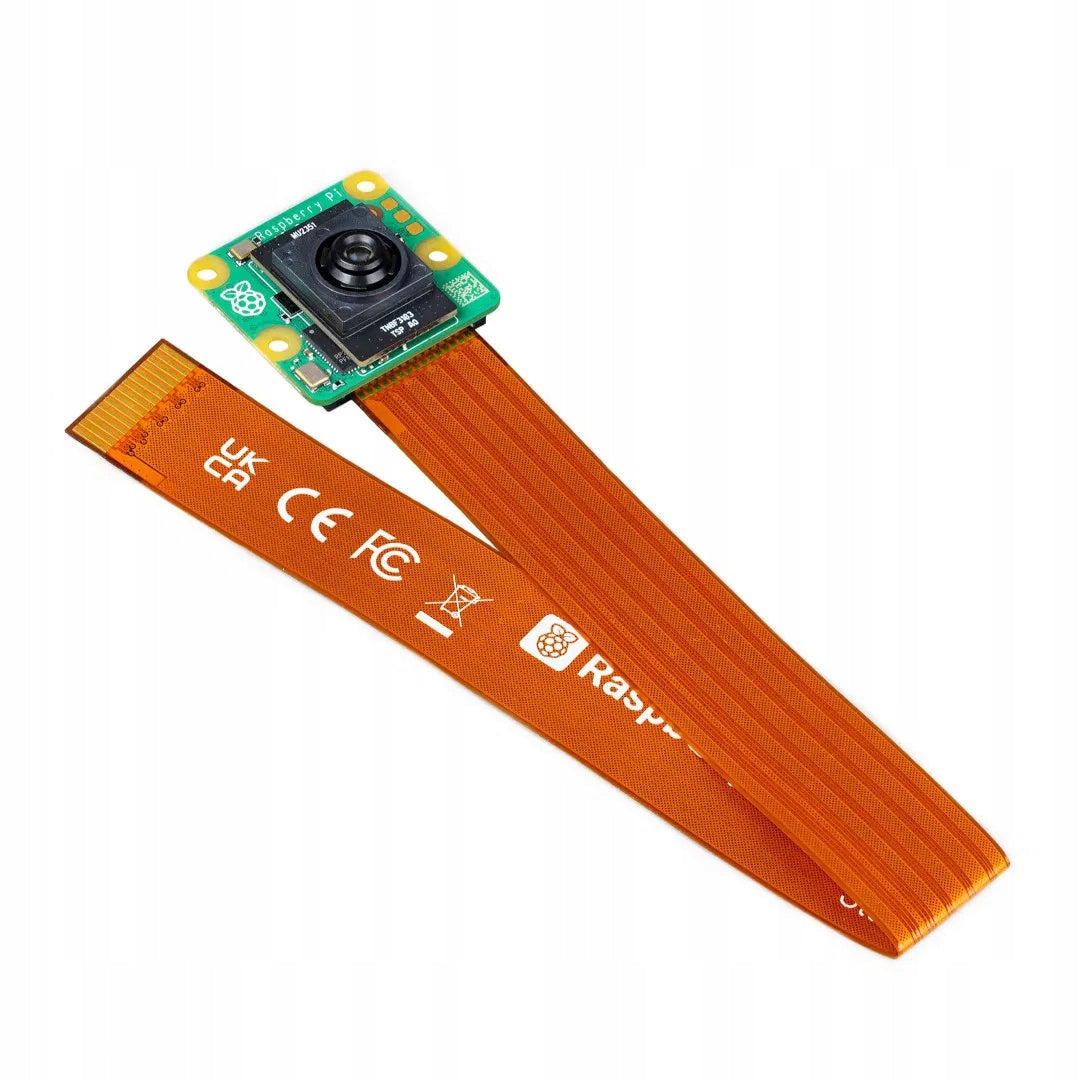

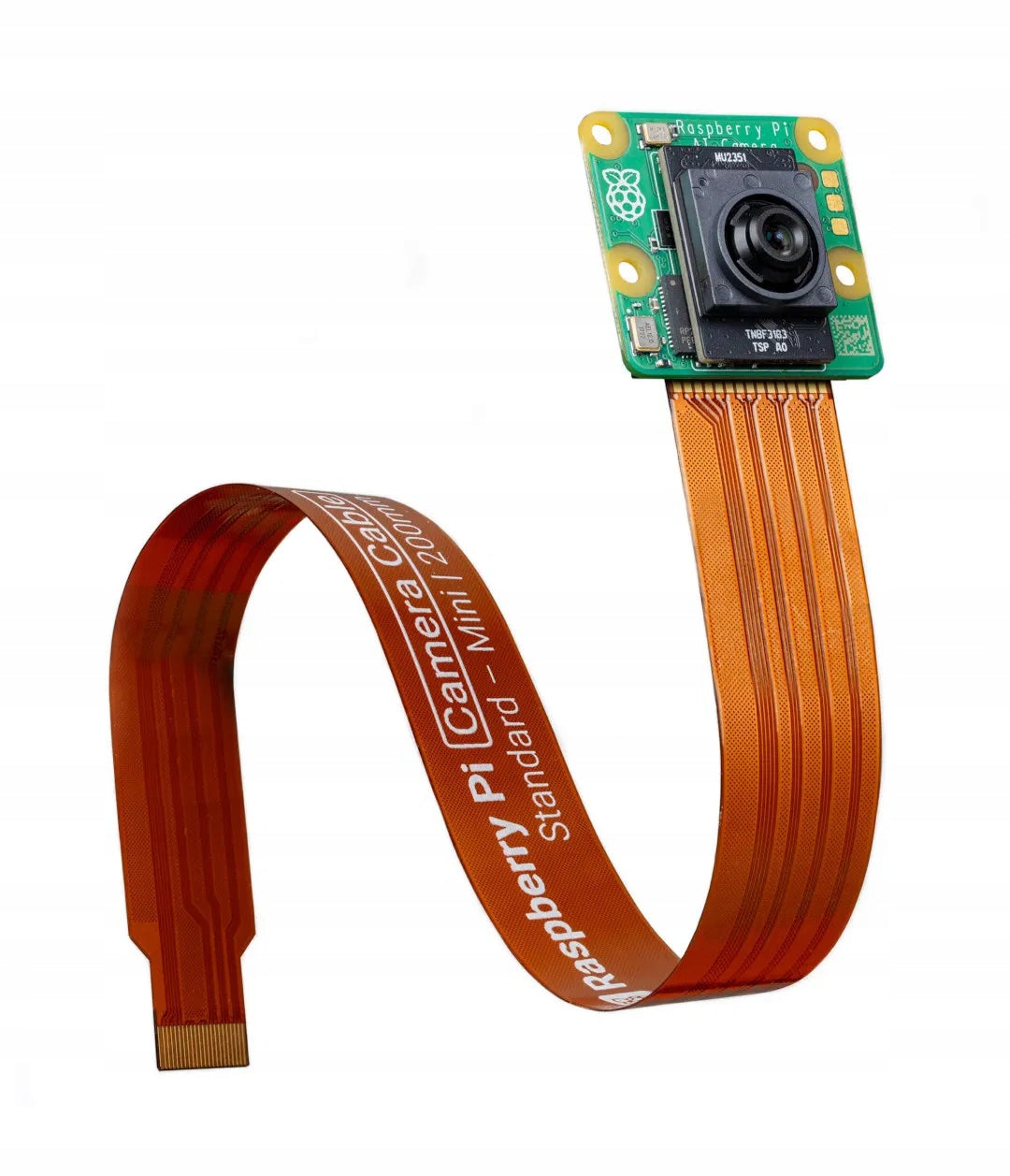

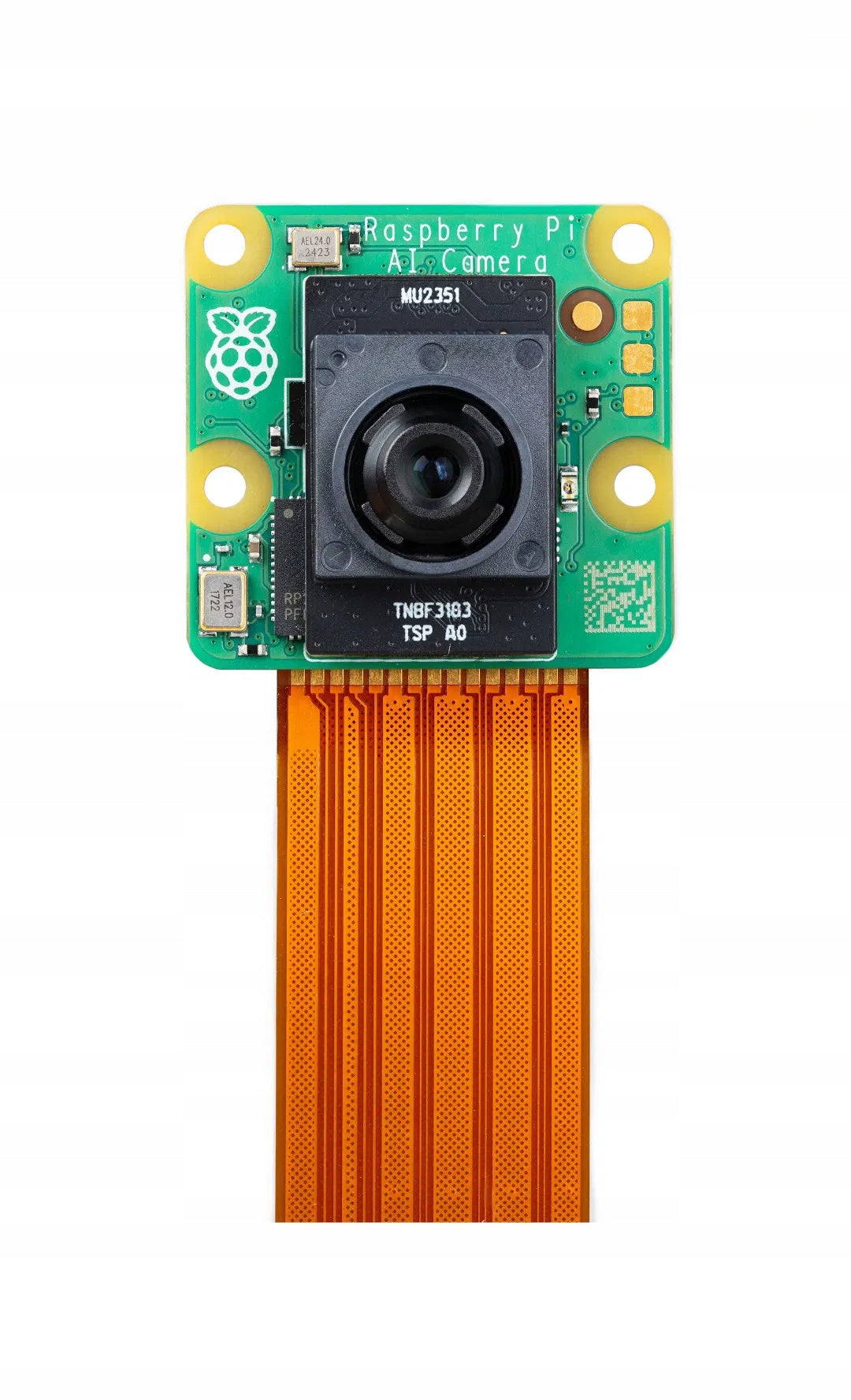

• Raspberry Pi AI Camera 12 MPx - original camera for Raspberry Pi with intelligent vision sensor IMX500
• CSI 15-pin tape 200 mm
• CSI tape 22-pin 200 mm
• Lens adjustment tool
