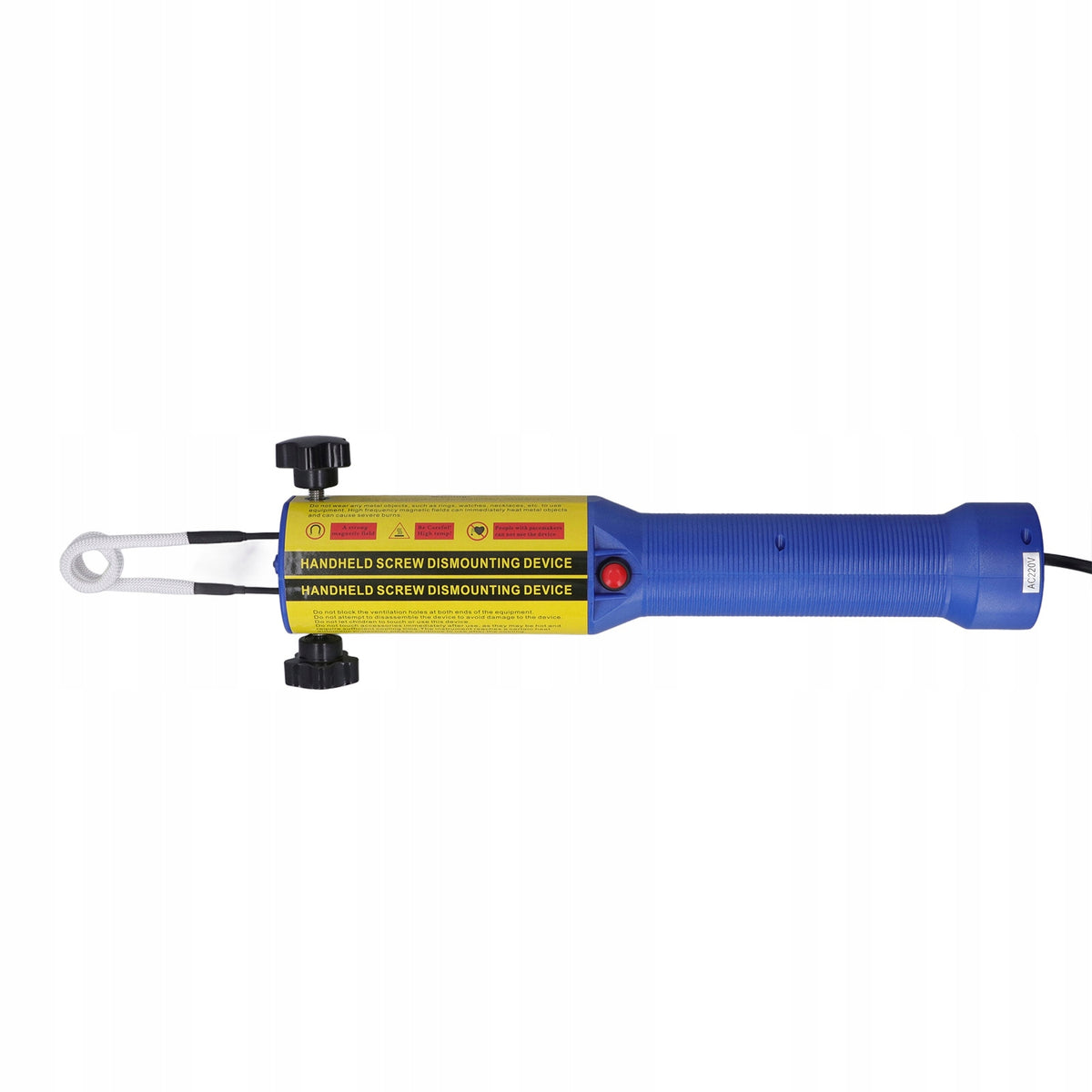

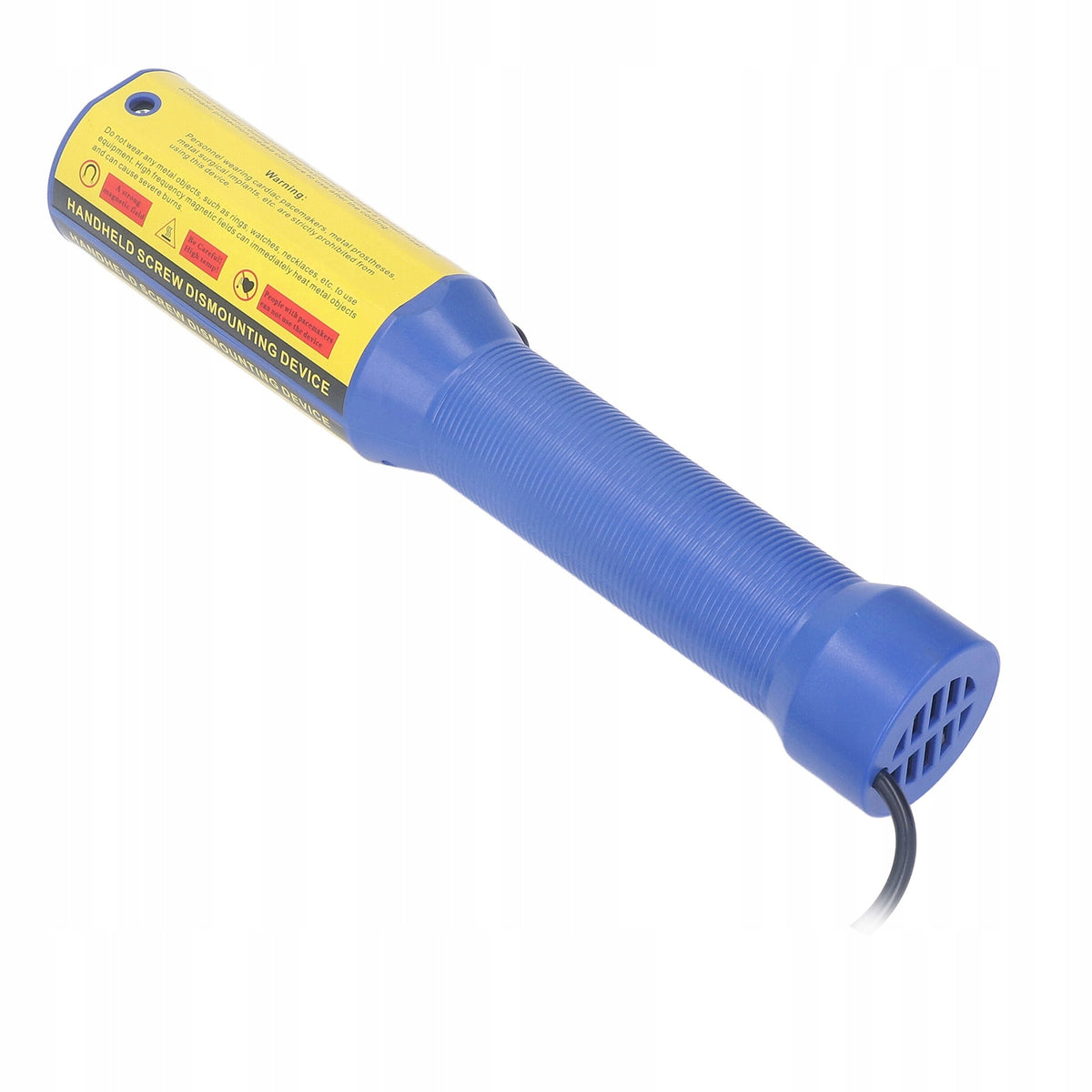

Rankinis elektromagnetinis indukcinis kaitintuvas 1500W Core LS

Trumpai apie prekę

Prekė: Rankinis elektromagnetinis indukcinis kaitintuvas 1500W Core LS. Kategorija: Oro šildytuvai.

• Gamintojas: no brand
• Modelis: AG251005072816

Function:

1. High working efficiency: This induction heating tool uses electromagnetic fields to heat metal, which is faster, more accurate and more efficient, without any open flames caused by heating, ensuring the safety of the working environment.

2. LED auxiliary lighting: The electromagnetic induction heater has an LED light at the end, providing auxiliary lighting in a dark work area, helping to clearly understand the progress of work and the status of heating objects.

3. 3 Different Coils: This kit comes with 3 different sizes of heating coils, includes 20mm (0,79inch) coil, 25mm (0,98inch) coil and 30mm (1,18inch) coil, many models of coils and sizes are available to meet different working needs.

4. 3,0mm Core Coil: These induction heating coils are made of 3,0mm brass wire, which can be heated to a high temperature of 800℃ for a long time, safe and reliable, and have a power saving effect of up to 30%.

5. Cooling system: The flvimir-free induction heater is equipped with cooling fan protection and overheating, which heats up without damage near the thermal sensor and prolongs the life of the device.

6. Wide Application: This magnetic induction heater set is mainly used to heat rusted bolts and nuts, and is used to process the heat of metal parts such as transmission, pulley and bearings in automotive and mechanical fields.

Specification:

• Item Type: Magnetic Induction Heater
• Model: FH-1500B
• Energy saving effect: up to 30% or more
• Operating frequency: 50-60 Hz
• Rated Power: 1500 W.
• Heating temperature: 800 ℃
• Heating time 800 ℃: 5-30 seconds (the larger the object, the longer the time required)
• Heating screw diameter: cover the coil, and the coil can be adjusted freely
• Environmental temperature: -40 ℃ -60 ℃
• Relative humidity: atmospheric pressure: 86KPA-100 kPA
• Functions:

1. Soft start function, for frequent startup, with long life span

2. IGBT overcurrent protection function

4. IGBT Advantage Protection Function

5. Heating coil short-circuit protection function

6. Open Heating Circuit Protection Function

7. Full bridge series resonance circuit topology, strong anti-interference ability

8. Using high performance IGBT chip drive, accurate drive and output mileage

9. Automatic identification of load function and phase lock to make the load side to achieve higher power factor, but also to perform circuit control

• Weak sensitive areas work effectively

10. Several electromagnetic heating controllers are installed in parallel on the same heating pipe without interfering with each other

11. Good power saving effect, compared with current electric heating coil, power saving more than 30%

12. Easy to install, can be connected to bucket type and plate type and other structural induction coil

How to use:

• Remove the product, install it, and then use it. List of packages

:

• 1 x Induction Heater
• 3 x Heating Coils
• Coil Storage Box 1 x
• 2 x Screws
• 1 x Memory
• 1 x User Manual
