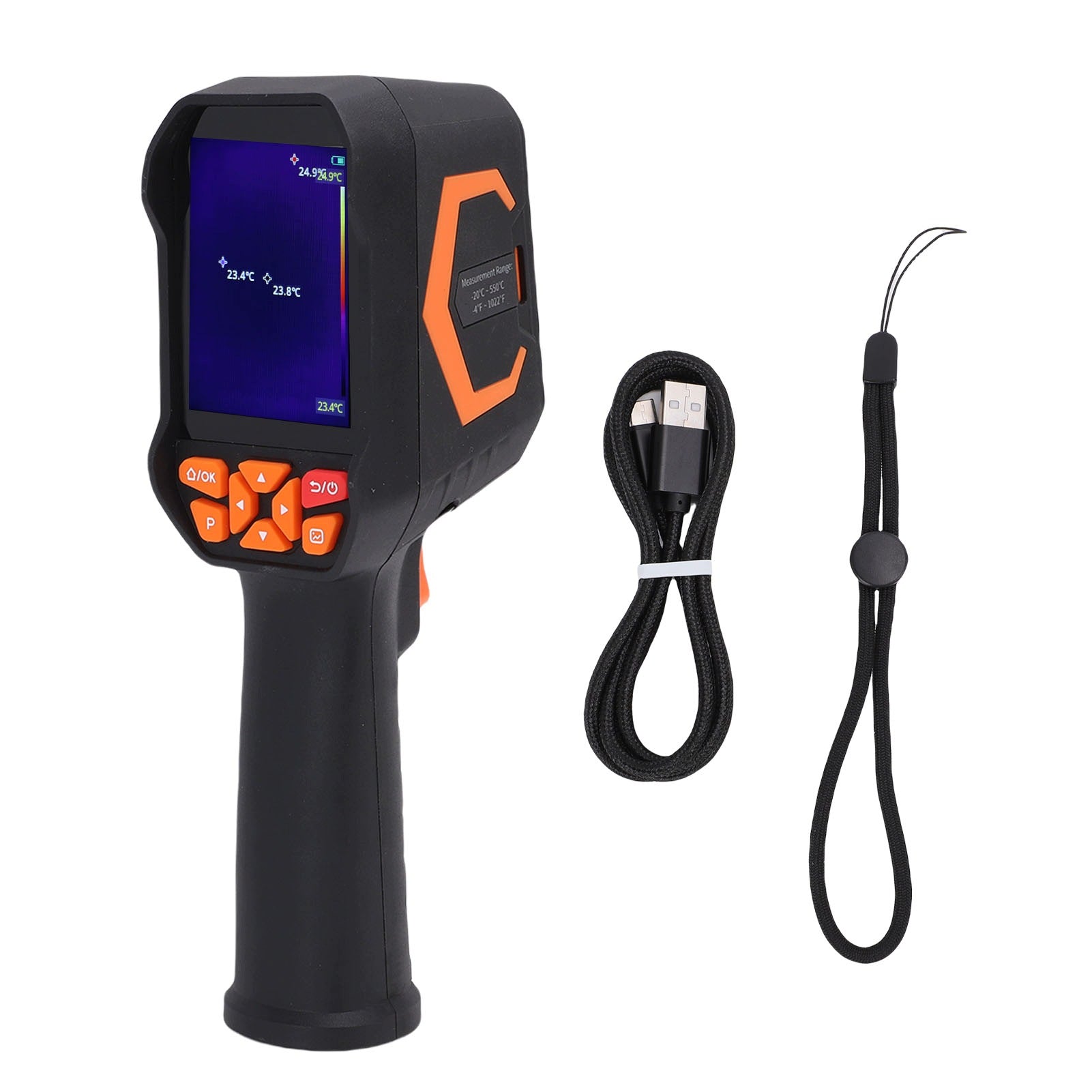

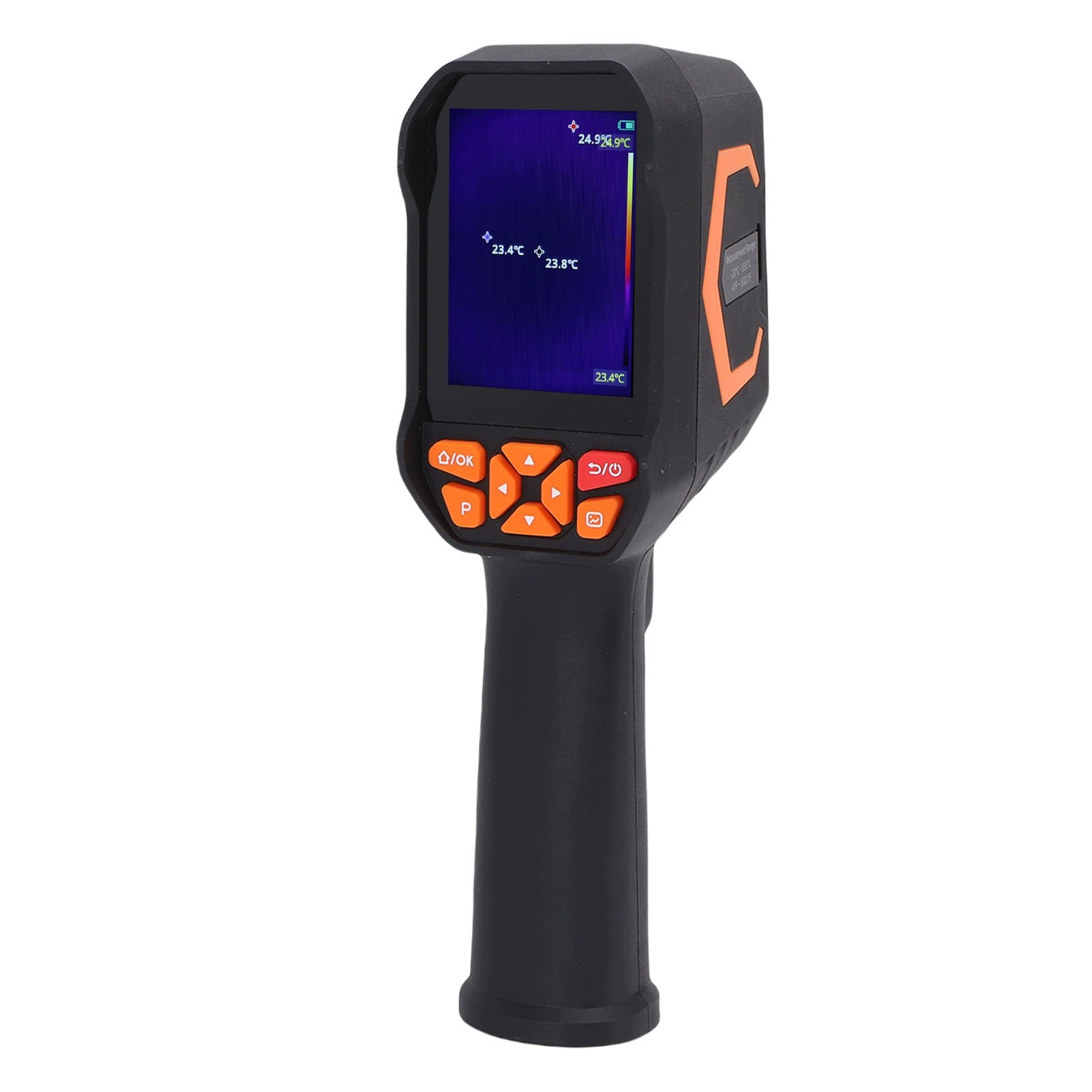

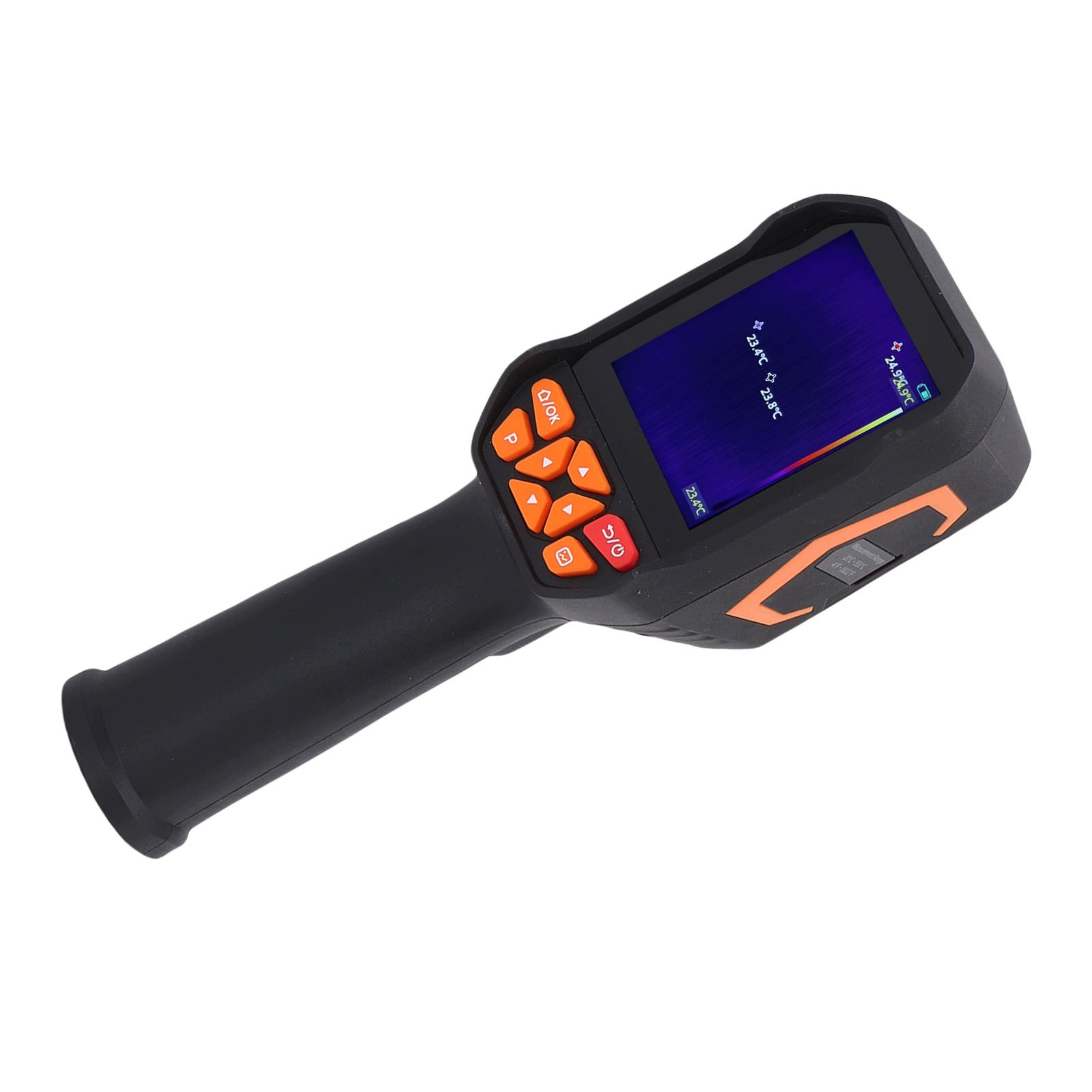

Rankinė infraraudonųjų spindulių termo vaizdo kamera Q4 256x192

Trumpai apie prekę

Prekė: Rankinė infraraudonųjų spindulių termo vaizdo kamera Q4 256x192. Kategorija: Veidrodiniai fotoaparatai.

• Gamintojas: no brand
• Modelis: 2224PQTT
• Komplektacija: not specified

Function:

1. High-resolution infrared detector: equipped with a high-efficiency infrared detector with a resolution of 256x192, recording the temperature of each pixel for precise imaging and data collection.

2. Advanced Image Processing: Uses proprietary aorithms such as super resolution, DDE gain, and saturation and gain adjustment for unparalleled thermal image quality.

3. Wide Temperature Range: Supports a wide temperature measurement range from -20C to 550C, thanks to cz this thermal imaging camera is versatile for controlling electrical equipment, solving mechanical problems and more.

4. Wide storage options: Built-in 4GB EMMC memory allows you to save more than 20 000 thermal images and supports photo and video modes to provide accurate documentation.

5. Long-lasting battery life: The thermal imaging camera is equipped with an industrial-grade battery with a capacity of 2600 mAh, ideal for long-term outdoor or on-site inspections and continuous operation tasks.

Specification:

• Article Type: Thermal Imaging Camera
• Matter: ABS
• Resolution: 256x192
• Working wavelength: 8 to 14um
• Pixels Size: 12um
• Function: supports DDE gain, noise reduction, super resolution, thanks to cz image is clearer
• Frame Rate: 25Hz
• NETD: 50mK at 25C
• Field of view: 42 x 56
• Lens: 3.2mm F1.1
• Temperature measurement range20C to 550C
• Temperature accuracy: +-2C or +-2 read, whichever is greater
• Temperature measurement: Operates peny screen highest point, lowest point, midpoint temperature measurement and surface measurement
• Temperature compensation: Supports distance compensation within 5 meters
• Color palette: iron red, hot biay, hot black, colorful, hot red, high contrast, lava, arctic, cold blue
• Screen Size: 2.8 inch
• Image mode: Edge joining, cap mixing, picture in picture, infrared only, visible world only
• Language: supports English, French, German, Spanish, Portuguese, Russian, Arabic, Japanese, Korn, Chinese learned and traditional
• Interface: USB Type-C (supports advertising and data transmission)
• Delight the world: support
• Battery: 2600mAh lithium battery (supplied with built-in battery)
• Operating time: Okoo 4 hours with penny battery charge
• Operating temperature10C to +60C
• Storage temperature40C to +85C
• Capacity: 4 GB of built-in memory
• Image Storage Mode: JPG
• Video Recording Format: MP4

How to use:

• Ready to use

List of packages:

• 1 x Thermal Imaging Camera
• 1 x Ad Cable
• 1 x Operating Instructions
• 1 x Wrist Strap
