Radijo modulis Raspberry Pi RMC20452T

Trumpai apie prekę

Prekė: Radijo modulis Raspberry Pi RMC20452T. Kategorija: Priedai.

• Gamintojas: Raspberry pi
• Modelis: SC1169

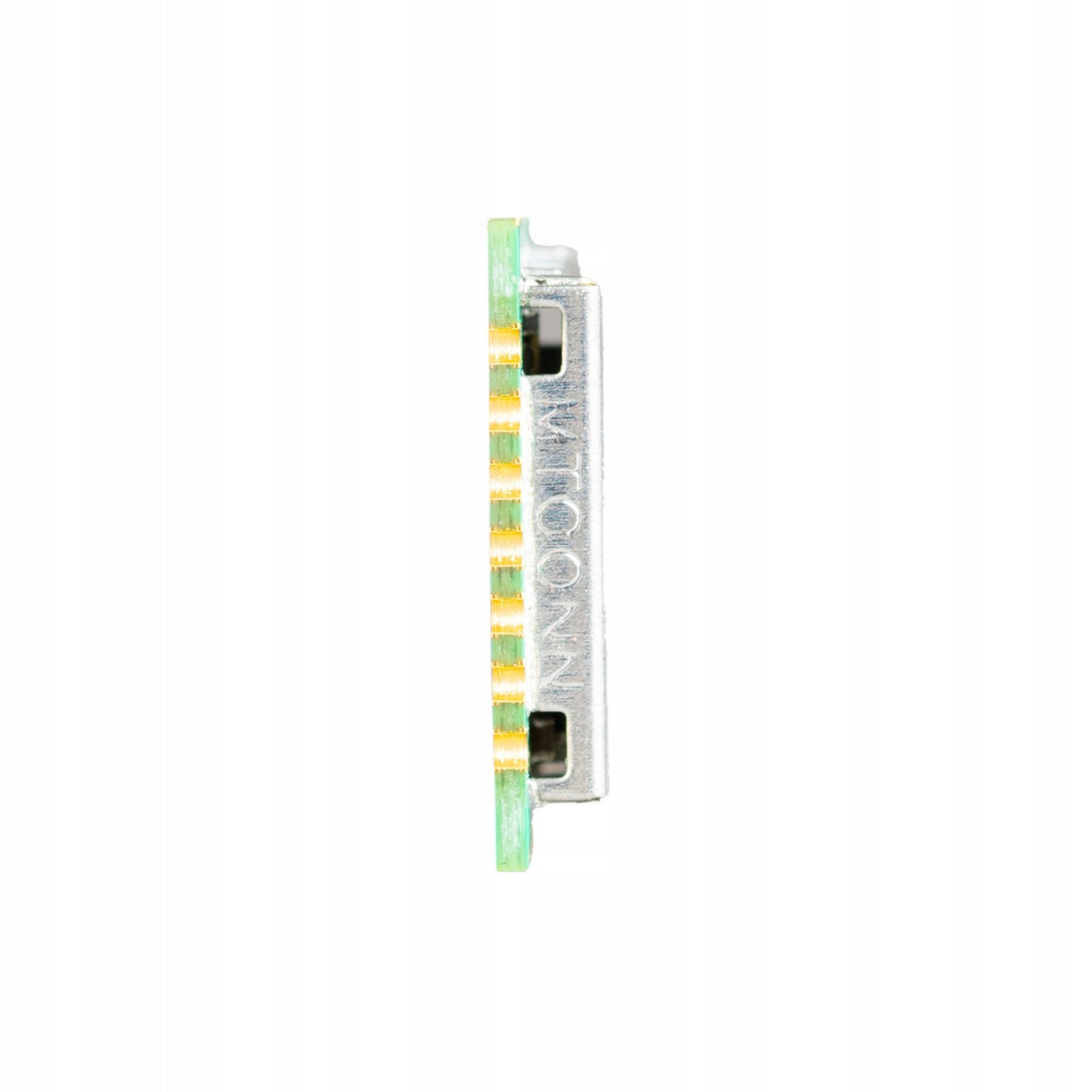

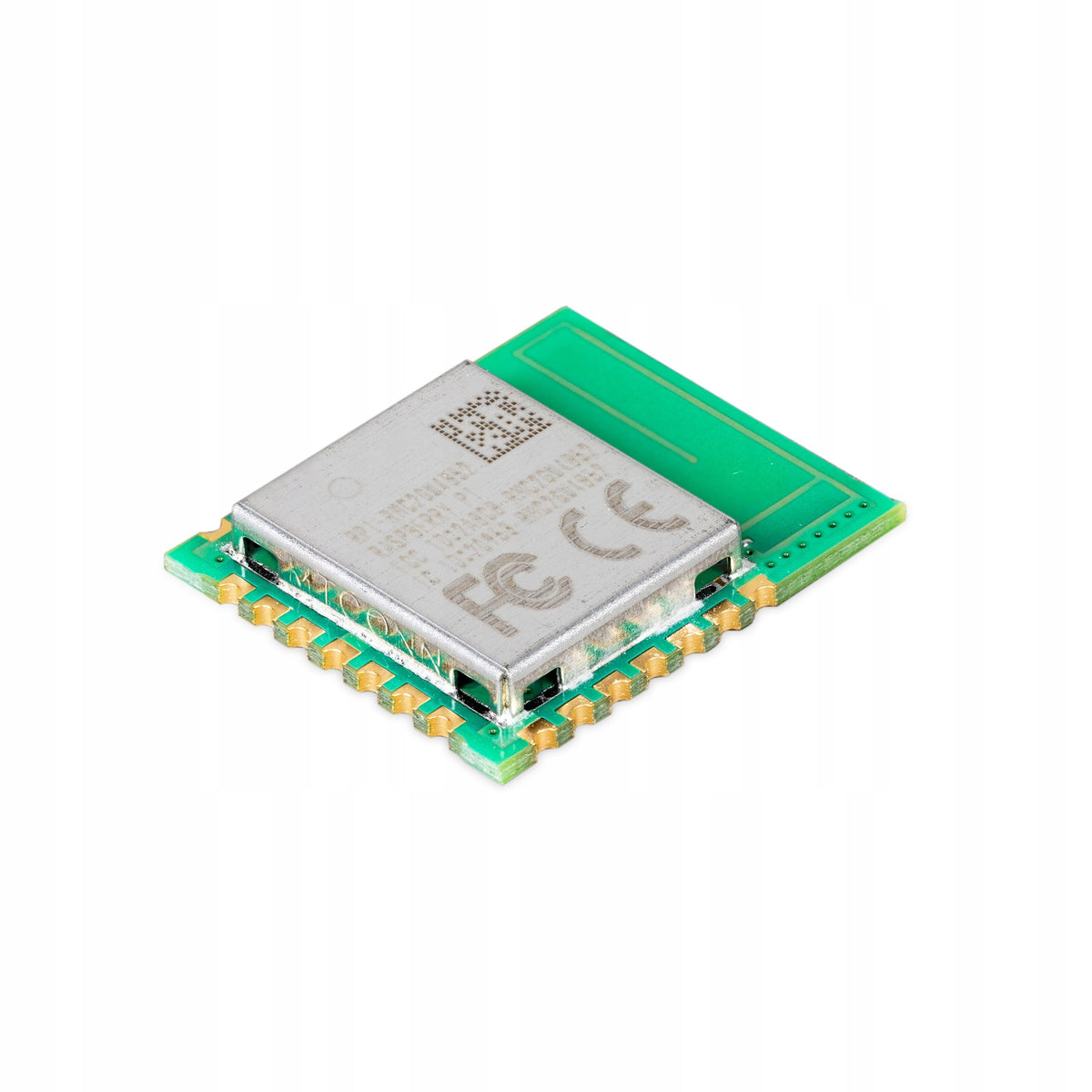

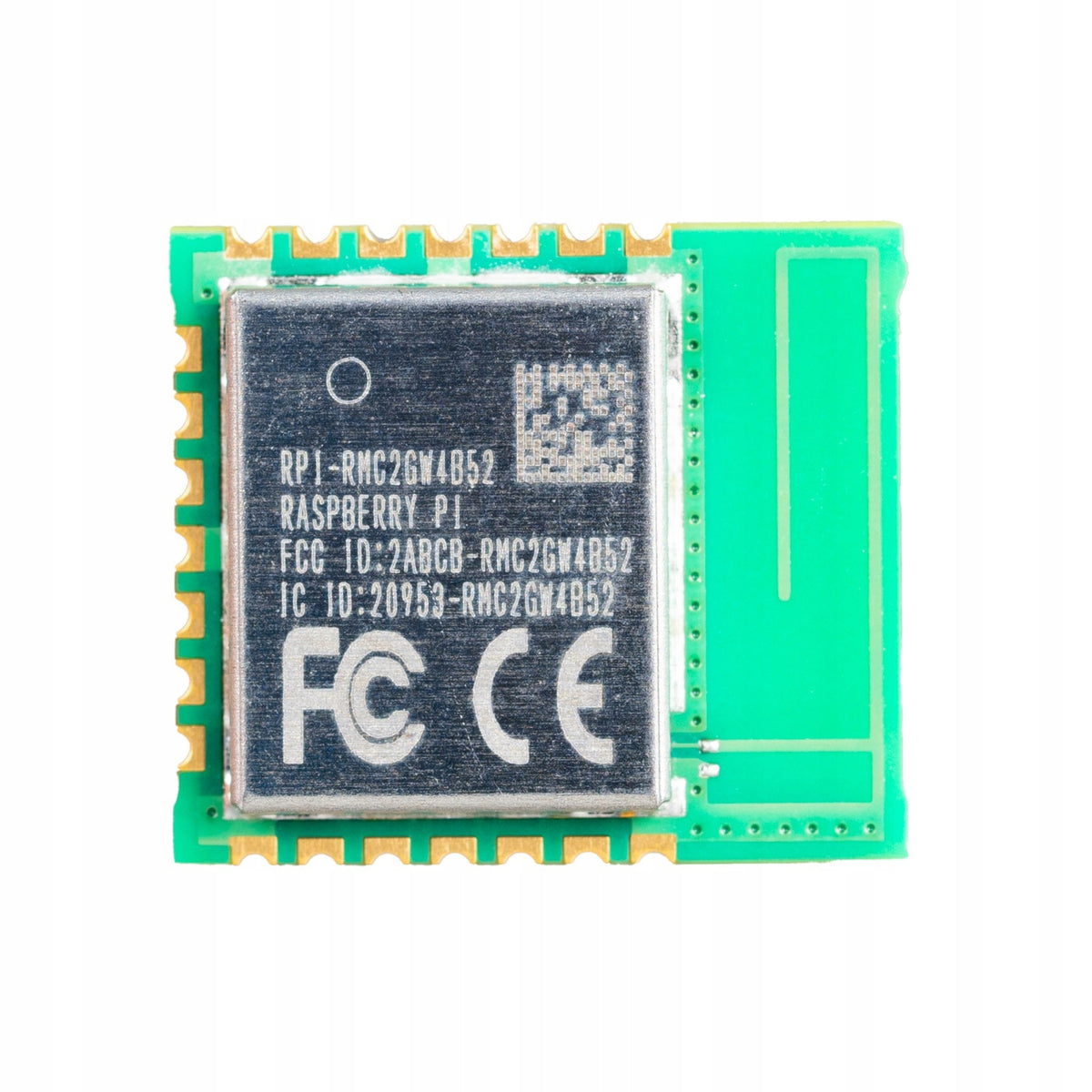

Raspberry Pi Radio Module 2 RMC20452T - radio module for microcontrollers Raspberry Pi

Description

Radio module RMC20452T designed to work with Raspberry Pi microcontrollers such as RP2040 and RP2350. It is based on the Infineon CYW43439 chip and supports Wi-Fi 4 (802.11n) wireless communication in the 2,4 GHz band and Bluetooth 5.2 (Classic and Low Energy). The integrated single 2,4 GHz antenna supports both Wi-Fi and Bluetooth in SISO configuration at the same time, which simplifies device design.

The module has full modular certification, which facilitates compliance with radio communication regulations. It communicates via a low-imposed I/O gSPI interface and provides three host-controlled GPIO lines. Integrated PA and LNA amplifiers increase transmission range and reliability. The RMC20452T features low power consumption, making it suitable for energy-efficient IoT applications and embedded systems.

Properties

• Wi-Fi 4 (802.11n), 2,4 GHz band, transmission rate up to 96 Mbps (PHY)
• Bluetooth 5.2: Classic and Low Energy, range up to 100 m (Class 1)
• Software compatibility with the SDK for Pico W and Pico 2 W
• Three GPIO lines controlled by the host
• gSPI interface with low pin overhead
• SISO configuration with one 2,4 GHz antenna
• Built-in PA and LNA amplifiers
• Current consumption: 1,19 mA (sleep mode), 43 mA (receiving), 271 mA (broadcasting)
• Operating temperature: from −30°C to +70°C
• Dimensions: 16,5 mm × 14,5 mm, housing with 21 castellated pads
