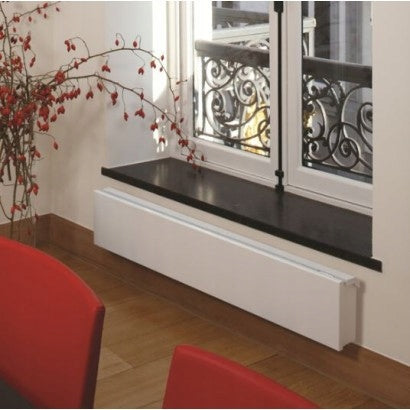

Radiatorius Jaga Linea Plus 50x140 T16, 2750 W, šilumos siurbliams

Trumpai apie prekę

Prekė: Radiatorius Jaga Linea Plus 50x140 T16, 2750 W, šilumos siurbliams. Kategorija: Konvektoriniai radiatoriai.

• Gamintojas: Jaga
• Modelis: 545446321
• Plotis: 1400 mm
• Aukštis: 500 mm
• Spalva: white

When installing a condensing boiler or heat pump, radiators need to be larger. It's not always possible to increase the size of units due to limited space or aesthetic concerns. The modern Jaga LowH2O system perfectly solves this problem. For wall mounting or with floor stands. Low water volume, light weight, and excellent heat conductivity of the copper-aluminum heat exchanger mean the radiator quickly reaches full heating power, even with low water temperatures. This ensures easy control, resulting in thermal comfort and heating cost savings of approximately 15%.

Construction: Copper-aluminum

• Low-H2O technology, with a highly conductive and ultra-fast heat exchanger, ensures low energy consumption and maximum heat output.
• For heating and cooling.
• Twin heat exchanger for better compensation of cold air downdraft near glass facades.
• DBH system for very low water temperatures – from 28 °C.
• Integrated valves and hidden connections.
• Safe surface temperature.
• Tested at 20 bar pressure.
• Coated with a special lacquer that prevents dust buildup on the radiator elements.
• Reaches the desired temperature quickly due to very low water volume.
• Impressive heating performance at both typical and extremely low supply temperatures.
• Ideal combination of convection (warm air circulation) and radiation.
• Housing finished with a durable, polyester powder coating with a fine texture.

Includes:

- Low H2O heat exchanger with wall brackets, mounting kit, 1/8" air vent, and 1/2" plug.

- Partially assembled casing with left or right bottom connection.

- Aesthetic side panel cover, to be installed on the opposite side of the valve.

Type: Wall-mounted

COLOR: WHITE

Technical Data:

Height (cm): 50

Width (cm): 140

Depth (cm): 16

Heat Exchanger: (T16)

Output (75°C): 2750 W

Output (55°C): 1320 W

Operating Pressure: max. 10 bar

DBH Fan (optional!) significantly increases heating output and also enables cooling in summer.

.                                                            Retail Price - 3300 PLN

.                                                                     Our Price - 1650 PLN

Other items available in neighboring listings. We also have Jaga wall-mounted radiators in other wattages and sizes, floor-standing radiators, trench heaters, and matching grilles in dozens of exotic wood types.

.                                             We help optimize your order.
