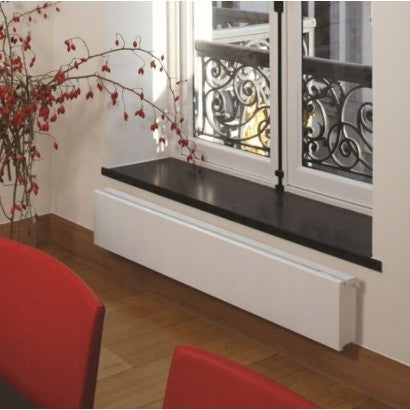

Radiatorius Jaga Linea Plus 35x50 T10, 400 W, tinkamas šilumos siurbliams

Trumpai apie prekę

Prekė: Radiatorius Jaga Linea Plus 35x50 T10, 400 W, tinkamas šilumos siurbliams. Kategorija: Konvektoriniai radiatoriai.

• Gamintojas: Jaga
• Modelis: 545169781
• Plotis: 500 mm
• Aukštis: 350 mm
• Spalva: white

When installing a condensing boiler or heat pump, radiators need to be larger. It's not always possible to increase the size of units due to limited space, and often for aesthetic reasons. The modern Jaga LowH2O system perfectly solves this problem. For wall mounting or with floor stands. Low water volume, light weight, and excellent thermal conductivity of the copper-aluminum heat exchanger mean the radiator quickly reaches full heating power, even with low water temperatures. This ensures easy control, resulting in thermal comfort and approximately 15% lower heating costs.

Construction: Copper-aluminum

• Low-H2O technology, with a highly conductive and ultra-fast heat exchanger, ensures low energy consumption and maximum heat output.
• For heating and cooling.
• Twin heat exchanger for better compensation of cold air downdraft along glazed facades.
• DBH system for very low water temperatures – from 28 °C.
• Integrated valves and hidden connections.
• Safe surface temperature.
• Tested at 20 bar pressure
• Coated with a special lacquer that prevents dust from accumulating on the radiator elements
• Reaches the desired temperature quickly due to very low water volume
• Impressive heating performance at both typical and extremely low supply temperatures
• Ideal combination of convection (warm air circulation) and radiation
• The casing is finished with a durable polyester lacquer with a fine texture

Includes:

- Low H2O heat exchanger with wall brackets, mounting kit, 1/8" air vent, and 1/2" plug

- Partially assembled casing with left or right bottom connection

- Aesthetic side panel cover, to be installed on the opposite side of the valve.

Type: Wall-mounted

COLOR: WHITE

Technical Data:

Height (cm): 35

Width (cm): 50

Depth (cm): 11

Heat Exchanger: (T10)

Output (75°C): 400 W

Output (55°C): 200 W

Operating Pressure: max. 10 bar

DBH boost significantly increases heating power and additionally enables cooling in summer.

.                                                            Market Price - 950 PLN

.                                                                     Our Price - 500 PLN

Other items available in neighboring listings. We also have Jaga wall-mounted radiators in other wattages and sizes, floor-standing radiators, trench heaters, and grilles for them made from dozens of types of wood, including exotic.

.                                             We help optimize your order.
