Trumpai apie prekę
Prekė: Pusiau automatinis suvirinimo aparatas FANMIG WELD J5 MOST, komplektas Nr. 5 su rankena M1. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: MOST
- Modelis: 5100020K25
- Ilgis: 440 mm
- Plotis: 180 mm
- Aukštis: 350 mm
MOST FANMIG J5 Ready To Weld No. 5
Set configured for diameter 0,8mm.
The welding kit based on a modern inverter semi-automatic welding machine for MIG/MAG.Urządzenie welding is used for welding steel or stainless steel in gas mixtures. Basic applications are crafts, car flashing machine, hobby work, renovations.
Unpack and weld!
The set selected by our specialists will allow you to start welding work without any problems.
Cheaper in the set!
The best price, you will not get such a price by completing this set yourself.
- Designed mainly for hobby and workshop applications, but it also performs well in industry.
- MIG/MAG, TIG Lift and MMA welding with a wrapped electrode.
- Ready To Weld Device - Ready to Weld!
Method of use
Before starting work, please read the instruction manual attached to the device.

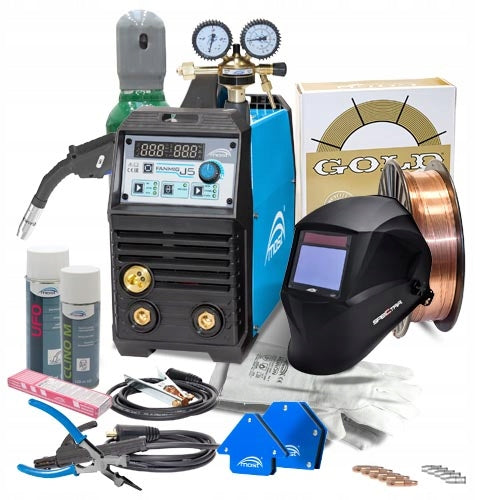

Included in the set:
- Semi-automatic welding machine MOST FANMIG J5.
- Welding wires (mass and electrode included).
- Welding torch MOST M1 3m
- Welding visor MOST Spectra Black with automatic filter in optical class 1/1/1/1.
- Welding gloves MOST HURON.
- Cylinder with Arg/Co2 8L mixture.
- Gas reducer Arg/Co2 MOST BLACK.
- Welding wire G3Si1 GOLD 5KG 0,8mm.
- Welding electrodes MOST 6013 (pink) diameter 2,5mm 1KG.
- Set of magnetic triangles MOST
- Anti-chipping preparation MOST UFO SPRAY, 400ml.
- Cleaner and maintenance of visors MOST CLINO M, 320ml.
- Welding pliers MOST 8"
- Gas nozzles - conical MOST FI 12 mm (2pcs) for M1 holder
- Current terminals MOST M6 0,8mm (5pcs) for M1 holder
Semi-automatic welding machine MOST FANMIG J5
- 230V power supply, just a simple outlet. /li>
- Wide range of MIG/MAG welding current: 30-200A, TIG: 10-180A, MMA: 10-160A.
- Welding current in the duty cycle: MIG/MAG: 200A 20%, 90A 100%, MMA: 160A 20%, 71,5A100%.
- MIG/MAG, TIG Lift Arc, MMA welding
- Digital control panel for precise settings.
- Bulk cable and electrode cable set
- Low weight of the device, only 9,2KG
- Handy dimensions 550x210x410mm.
- A device that meets strict European standards.
Welding visor MOST SPECTRA Black with automatic filter
- Large field of view: 100 x 65 mm
- Full range of darkening adjustment from 4 to 13 DIN
- Highest optical grades: 1/1/1/1 according to EN 379.
- Effectively protects eyes and face from sparks, chipping and harmful UV/IR radiation.

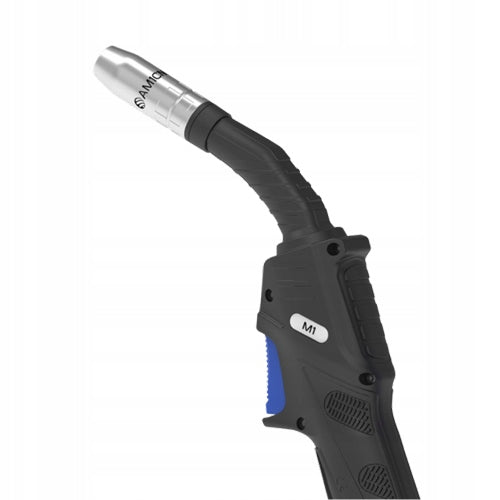

MOST M1 handle
- Length: 3m
- Gas cooling
- Wire diameter: 0,6 - 1,0 mm
- Working cycle: 60%
- CO2 load capacity: 180A
- Load capacity MIX: 150A
- 20% lighter - after a long day of work you will feel the difference.
- Excellent balance, flexible wires - comfort of all-day work.
- SIC technology - quickly and easily get rid of chipping from the nozzle gazowej.Przekręć nozzle, and the chips will fall out.
- Increased lifespan of consumable parts - you'll save time and money.
Welding gloves MOST HURON
- Leather gloves made of bovine split.
- Effectively protect hands and hands from chipping and UV/IR radiation.
- Long cuffs for forearm and wrist safety (glove length35cm).
- Meets all required safety standards: EN 388, EN 407, EN 420, EN 12477+A1.
Welding wire G3Si1 GOLD 5KG 0,8mm and electrodes MOST 6013 (pink) diameter 2,5mm 1KG
- Universal medium coated rutile electrode with very good welding properties for welding steel structures and assembly work.
- Manganese-silicon electrode wire, copper-plated, designed for MAG welding of low-carbon structural steels, boiler steels, marine steels, as well as fine-grained carbon-manganese steels. It allows the use of high current intensities at the spray arc and low at short-circuit metal transfer.
Reducer ARG/CO2
- Operation at an inlet pressure of 200 bar (20 MPa)
- Compliance with EN ISO 2503
- Shut-off valve as standard
- Body made of aluminium alloys
- High-quality pressure gauges equipped with covers
- Easy and precise adjustment of working pressure
- Operating pressure range 0,5-6 bar
- Max. throughput 0-32 l/min
- Nut thread at inlet W 21,8 x 1/14"
- G 1/4 output stub thread
- Hose tip 6,3 mm
- Full cylinder with 8L ARG/CO2 mixture

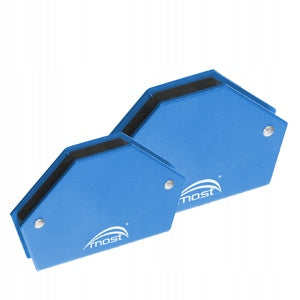

Set of magnetic triangles XS MOST
- Allows you to hold welded materials
- Guarantees the preservation of angles: 45°/90°/135°/180°
- Handy dimension for welding smaller profiles 43x72x12 mm
Anti-chipping preparation MOST UFO.
MOST CLINO M.
- Agent to prevent chipping from sticking in the welding process
- Facilitates the removal of chipping and contaminants from the surfaces of welded metals and gas nozzles
- Does not contain silicones and solvents
- Special protection against adhesion and melting of chippings to welding visors
- Perfectly cleans and maintains both the visor itself and replacement glass, which extends their service life
- Creates an invisible protective coating. It is safe during use
- It has antistatic properties so it does not attract dust and debris.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | MOST |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,0 |
| Parametry | Device weight | 9.2 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 350 mm |
| Parametry | Length | 440 mm |
| Parametry | Width | 180 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 9.2 kg |
| Parametry | Manufacturer code | 5100020K25 |
| Parametry | EAN (GTIN) | 5906340818853 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle |
