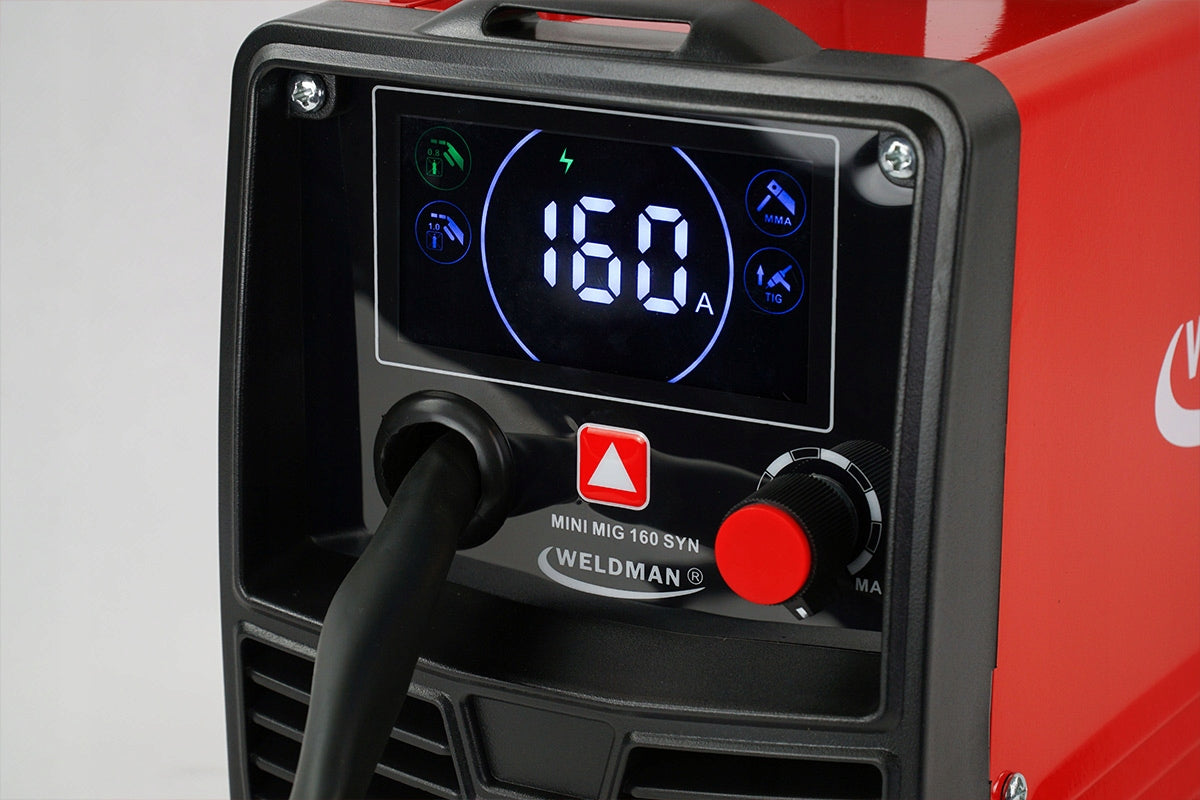

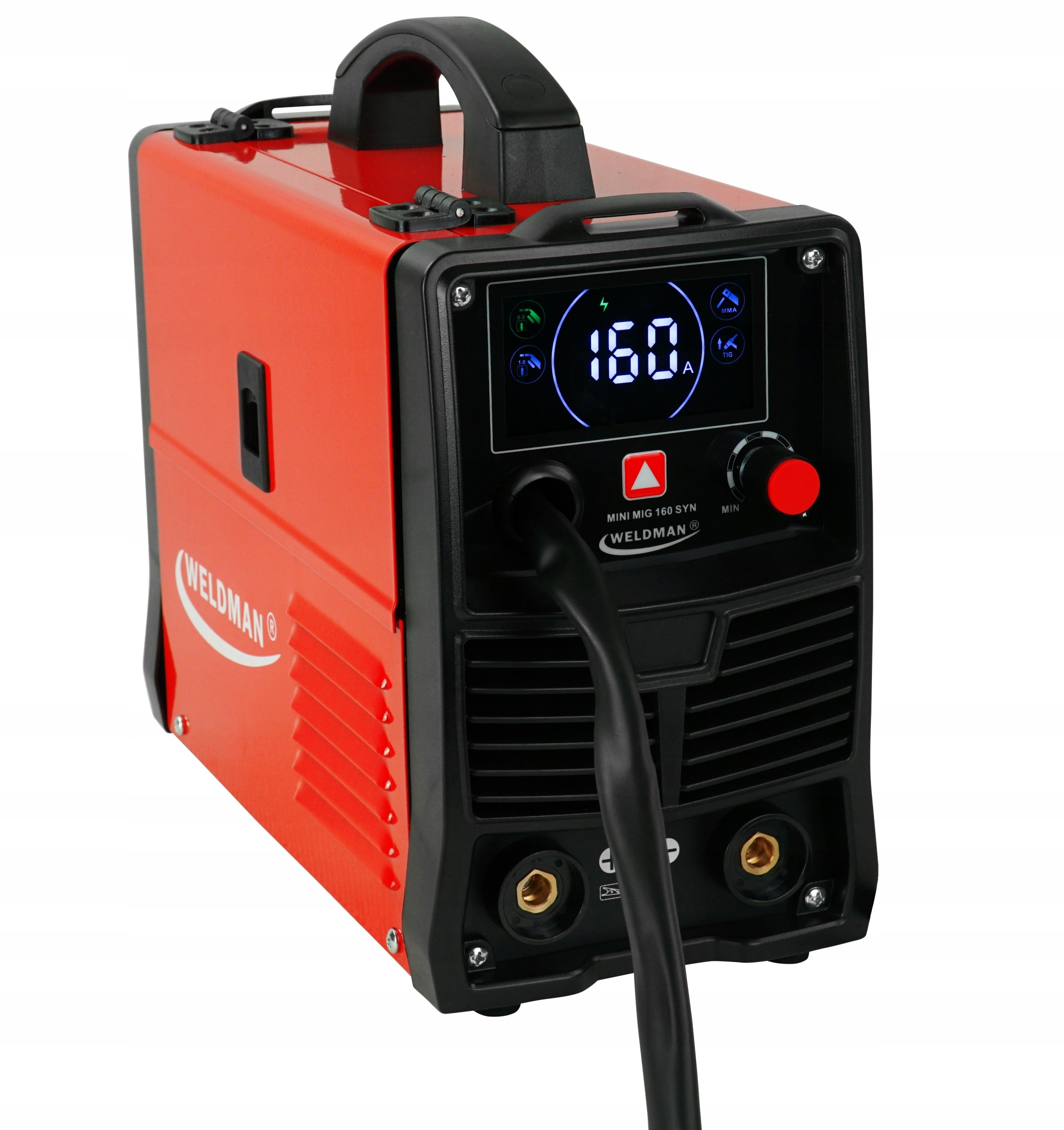

Pusautomačis suvirinimo aparatas be dujų Weldman MIG 160 FCAW FLUX MMA

Trumpai apie prekę

Prekė: Pusautomačis suvirinimo aparatas be dujų Weldman MIG 160 FCAW FLUX MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: 103128
• Ilgis: 350 mm
• Plotis: 160 mm
• Aukštis: 280 mm

Semi-automatic welding machine MINI MIG 160 SYN powered by single-phase 230V, made in IGBT technology, has a SYNERGY function, is designed for MIG welding without gas shield (FLUX) wire on a spool of 1 kg sheets with a thickness of max 4 mm.

The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source, lower energy consumption and rapid adjustment of the current to change parameters during welding.

It can weld with DC electrodes and tungsten electrodes (TIG DC LIFT).

The device is designed for small welding work in repair workshops, farms, DIY, etc.

• smooth regulation of welding current,
• synergy function,
• built-in fan - good air circulation,
• electric welding - no need to purchase gas cylinders,
• processes: MIG/MAG, MMA, TIG Lift
• compact dimensions and light weight.

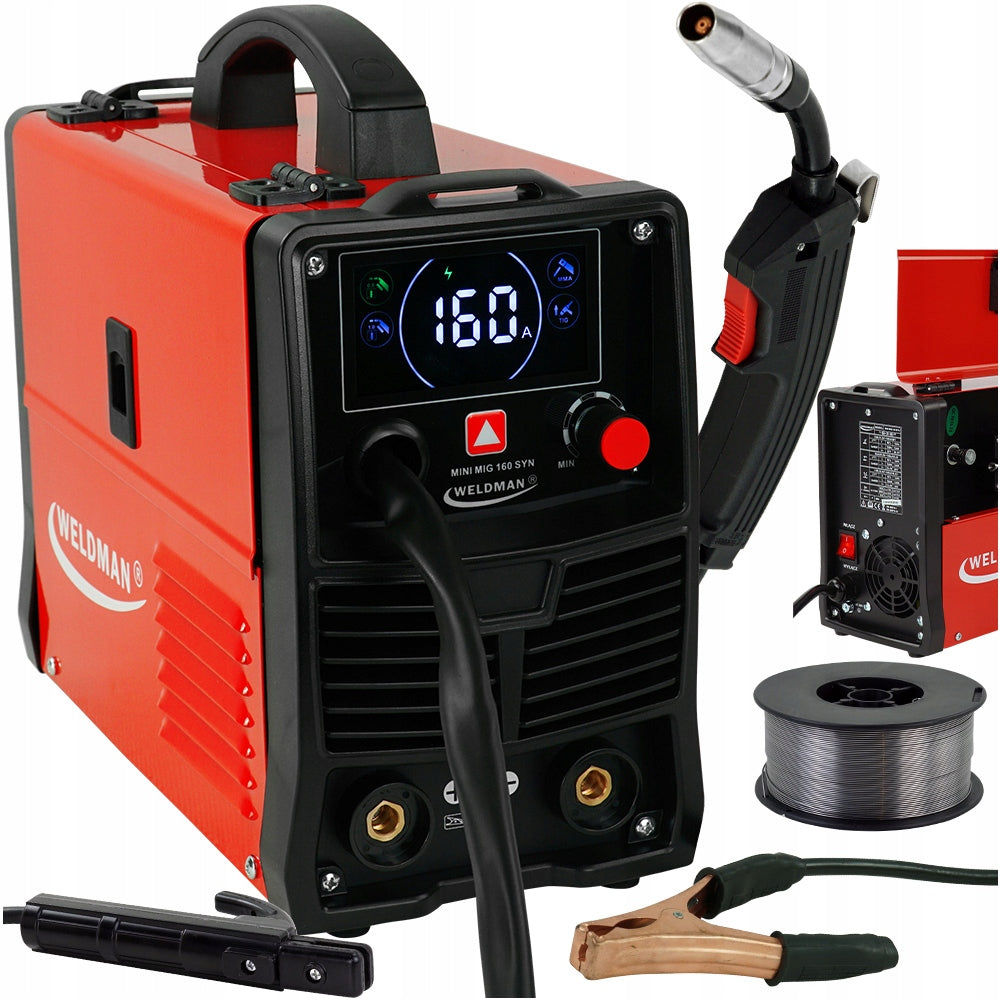

• Device Weldman MINI MIG 160 Synergy
• Welding torch MIG TW-14/2m
• MMA electrode cable
• Bulk cable
• User manual in Polish

• welding disc,
• hammer with brush.

⏭FLUX welding wire 0,8mm x 0,9kg – welding without gas

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

The FCAW method is arc welding with core wire (powder). It is a welding method similar to the MIG/MAG method, except that the wire inside is filled with flux or a chemical that produces protective gases during welding. FCAW welding combines the advantages of both wrapped electrode welding and MAG welding.

The device is made of elements that allow for effective operation of the welding machine in demanding conditions.

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The handle attached to the welding machine housing allows it to be comfortably moved to its destination.

Weldman specializes in welding accessories and equipment. The wide line of Weldman devices is used both in industry as well as in workshop and amateur applications. In addition to welding solutions, Weldman provides valued and reliable spotters used for body repairs, as well as induction heaters for automotive workshops.

• Power Supply: 230V
• Welding Methods: FLUX, MMA
• Maximum welding current: 160A
• Working cycle: 60%
• Net weight: 5,6kg
• Degree of protection: IP21
• Idle current voltage 62 V

Welding parameters

• Welding Current: 35 - 160A
• Welding Voltage: 15,5-22V
• Parameter adjustment: smooth
• Wire diameter: 0,8 /0,9/1,0 mm
• Wire spool weight: max. 1kg - D100

Welding parameters TIG LIFT

• TIG LIFT 15A/10.4V-160A/16.4V
• Efficiency (at 40°C) 60%: 160 A
• Efficiency (at 40°C) 100%: 130 A
• Welding Current Voltage:16,4 V

Welding parameters MMA

• Efficiency (at 40°C) 60% 160A
• Efficiency (at 40°C) 100% 130A
• Welding current 160 A
• Welding Current Voltage 26,4 V
