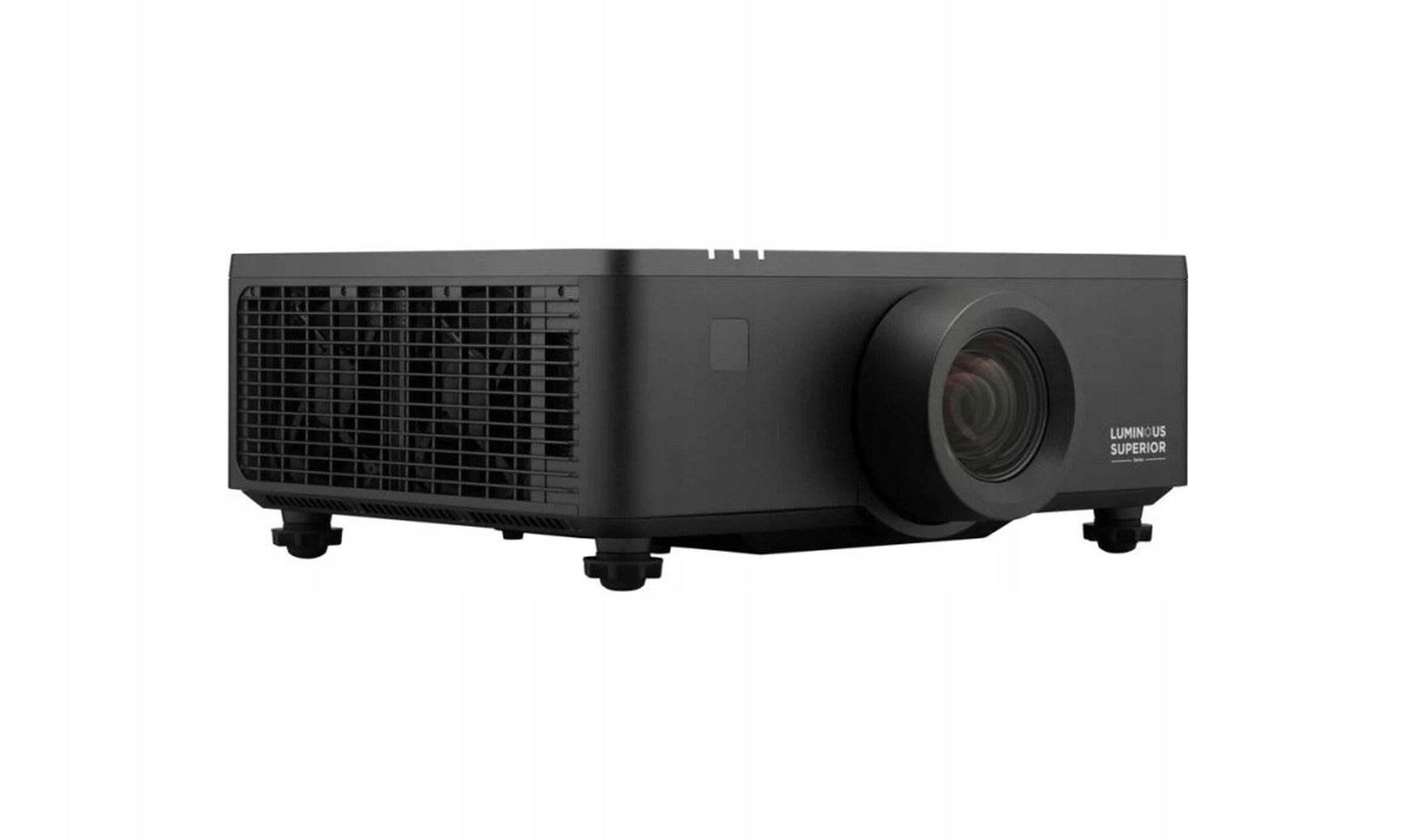

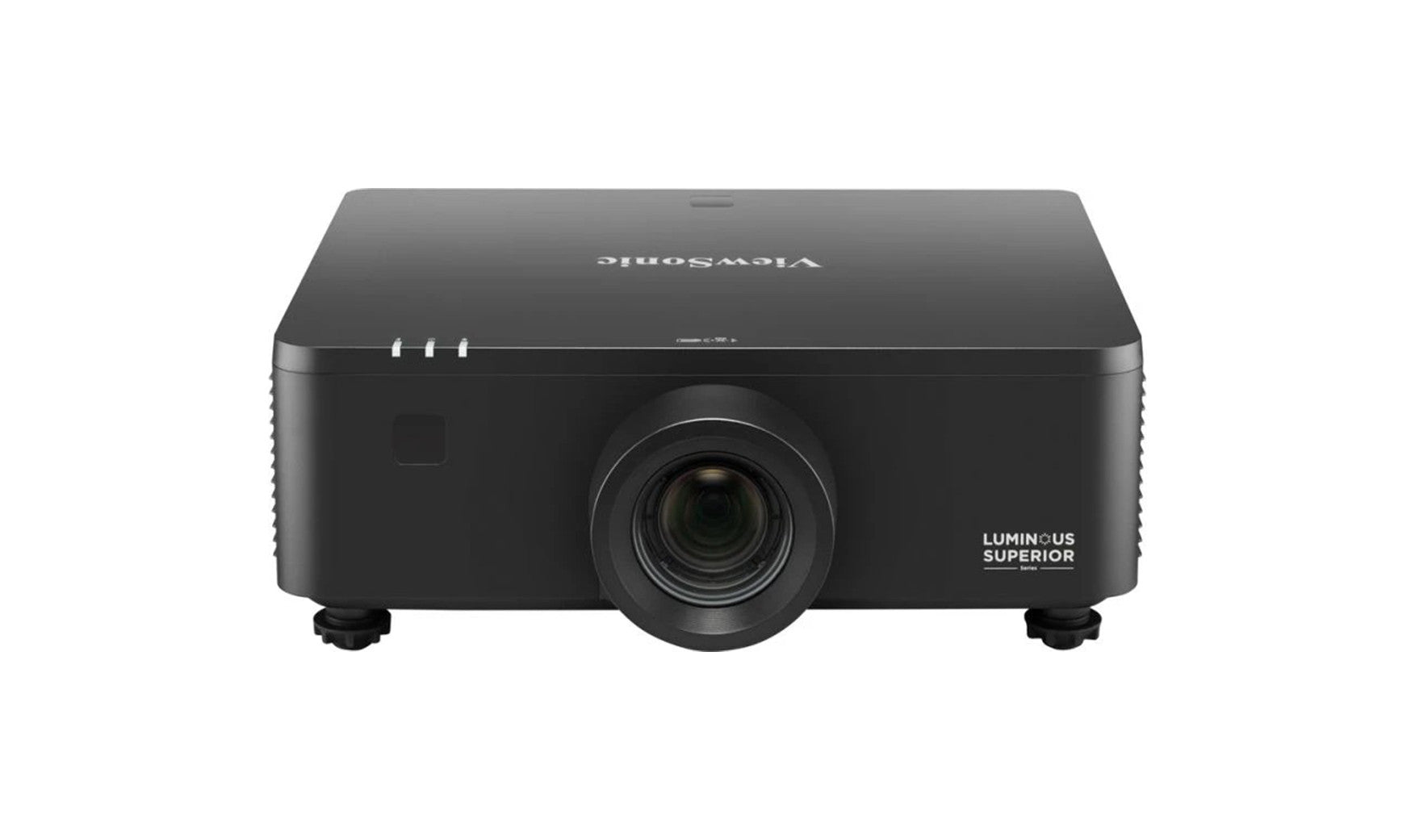

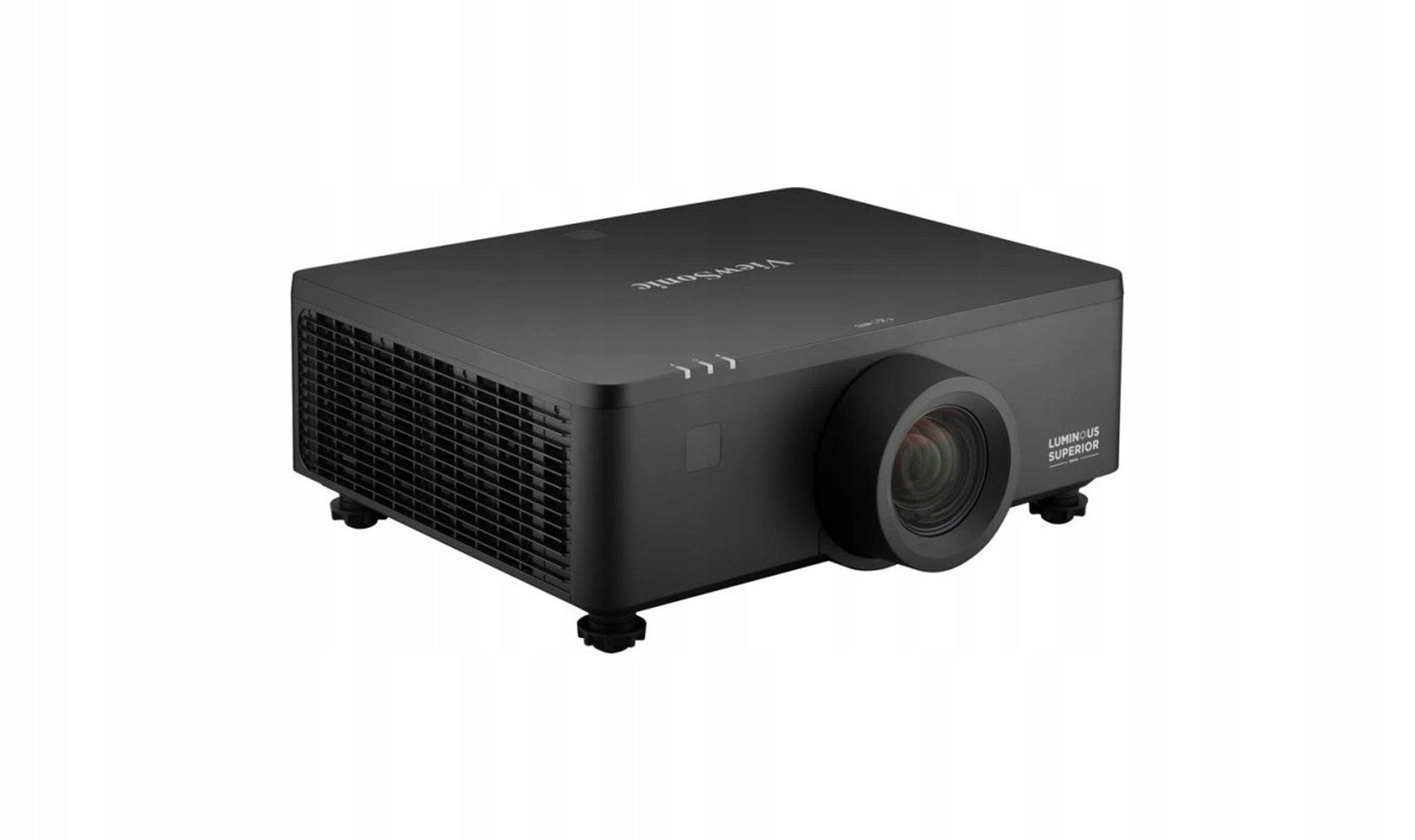

Projector VIEWSONIC LS950WU

WUXGA laser installation projector with 7100 lumens ANSI brightness

• 7100 lumens ANSI provides vivid images in large rooms
• High native contrast ratio thanks to DMD 0,67" chip and DLP technology
• Supports 21:9 aspect ratio, ideal for Microsoft Teams Rooms
• Installation flexibility: automated focusing, 1,6x optical zoom, vertical and horizontal lens offset, and 360° projection
• Central LAN control for efficient management
• Second generation phosphor laser technology with a lifespan of up to 30 000 hours

Introducing the LS950WU from the Luminous Superior series from ViewSonic, adapted to large displays. With a solid brightness of 7100 ANSI lumens and high native contrast provided by the DMD 0,67" chip via DLP technology, it delivers stunning visuals on screens up to 300 inches. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms, which enhances collaboration environments. With 1,6x optical zoom, it enables flexible configuration to suit different installation needs, while automated focusing, lens offset and H/V trapezoid adjustment make the process a breeze. In addition, portrait mode and 360° projection capabilities meet more advanced requirements. Comprehensive LAN control ensures seamless integration with existing device management networks. Thanks to the use of advanced second-generation phosphor laser technology, the LS950WU boasts an impressive service life of 30 000 hours, which allows for lower maintenance costs in both companies and educational institutions.

Great visuals for large objects

With an impressive 7100 ANSI Lumens, the LS950WU delivers crystal clear images even in brightly lit environments. WUXGA resolution delivers stunningly detailed images, increasing the impact of presentations, training sessions, and events. This makes it the preferred choice for large venues such as auditoriums, reception areas, training rooms and indoor golf clubs.

Unmatched contrast, better visibility

Experience enhanced visuals with the LS950WU, which features high contrast thanks to DLP technology and Texas Instruments’ advanced DMD 0,67" integrated circuit. This provides a deeper black and richer depth for a unique visual experience.

Ultra large image

This easy-to-install projector allows you to display images up to 300 inches, offering a lower cost per inch compared to other types of commercial displays.

Experience next-generation meetings with 21:9 aspect ratio

The projector supports 21:9 aspect ratio, adapted to Microsoft Teams Rooms (MTR) in first-order mode. This panoramic format enhances the meeting experience while displaying a presentation, chat window, raised-hand notifications, and participant video channels, which fosters a highly engaging and collaborative environment.

Greater installation flexibility

Equipped with 1,6x optical zoom, the projector allows users to choose the perfect setting location in the range, obtaining the desired image size without changing the existing interior design. Conveniently adjust zoom and focus with the remote control, ensuring hassle-free operation without having to access a ceiling-mounted projector.

Convenient placement

Tool-free knobs to control the lens offset allow you to adjust the projection up, down, left and right without moving the projector. In addition, you can also adjust the position of the image directly using the remote control from a distance. It provides flexible installation options with a wide adjustment range (H: +/- 25%, V: +/- 55%) and minimum placement restrictions.

Get perfectly shaped images effortlessly

Vertical and horizontal trapezoid correction and 4 corner adjustment functions allow you to eliminate curves or distorted images, ensuring a perfectly proportioned image every time.

Central control for management efficiency

The LS950WU is compatible with Crestron, AMX, PJ Link, ATEN and Extron systems, allowing for centralized device management and thus delivering greater operational efficiency.

Phosphorus laser technology 2. generation

LS950WU uses second generation laser phosphorus technology. In addition to inheriting excellent color performance, lampless design and instant power on/off from the previous generation, the new generation improves brightness by about 20%, offers better heat resistance and features a smaller module design. The result is consistent images in different ambient settings, increased reliability, and a more compact size for extended use in different scenarios.

Reliable, long-term performance with DLP projection technology

Thanks to DLP technology, the LS950WU projector maintains consistent color performance for a long time without any yellowing problems. In addition, it offers a sharp and smooth image, displaying extraordinary contrast and eliminating the noticeable effect of the screen door.

Expressive colors for an authentic golf experience

With advanced ViewSonic color tuning technology, the projector has a dedicated golf mode that enhances colors, especially greens and blues, and brings playing surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.

Versatile creative applications

The projector can rotate vertically at any angle, allowing projection on ceilings, walls or floors. Portrait mode further expands its capabilities in projection mapping, staging and creative advertising applications.

Economical long-distance AV signal reception

With its built-in HDBT receiver, the projector can receive uncompressed high-resolution video and audio signal over long distances (up to 100 m for 1080p resolution) via a single Cat.5e/6 network cable and is compatible with any HDBaseT certified transmitter.

Seamless collaboration with split-screen modes

Improve shared content sharing with intuitive screen sharing capabilities. The projector seamlessly supports Picture-by-Picture (PBP), allowing up to two different inputs, and Picture-in-Picture (PIP), displaying a smaller screen on the main display in real time. This creates a dynamic and comprehensive collaborative experience.

Technical specification

Specification

Projection System: 0.67" WUXGA

Native Resolution: 1920x1200

Brightness: 7100 (ANSI Lumens)

Brightness (Center Lumens): 7300

Contrast Ratio: 3000000:1

Display Color: 1.07 Billion Colors

Light Source Type: Laser Phosphor

Light Source Life (hours) with Normal Mode: 20000

Light Source Life (hours) with SuperEco Mode: 30000

Lens: F=2.0-2.4, f=18.72-29.59mm

Projection Offset: 0%±10%

Throw Ratio: 1.25-2.00

Optical Zoom: 1.6X

Digital Zoom: 0.5x-4.0x

Image Size: 50"- 300"

Throw Distance: 1.33-13.06m

(100"@2.70m)

Keystone: H:+/-30° , V:+/-30°

Lens Shift V. Range: +55%, -55%

Lens Shift H. Range: +25%, -25%

Audible Noise (Normal): 32dB

Audible Noise (Eco): 30dB

Input Lag: 19ms

Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p

Horizontal Frequency: 15K- 135KHz

Vertical Scan Rate: 23- 120Hz

Input

Computer in (share with component): 1

HDMI: 2

(HDMI 2.0/ HDCP 1.4/2.2)

Audio-in (3.5mm): 1

3D VESA (Sync): 1 (BNC)

HDBaseT: 1

IR In: 1

Output

HDMI out: 1

Audio-out (3.5mm): 1

Speaker: 10W x2

USB Type A (Power): 1 (5V/1.5A)

12V Trigger (3.5mm): 1

3D SYNC Out: 1

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	ViewSonic
Parametry	Model	LS950WU
Parametry	Product width	48.6 cm
Parametry	Product depth	43.3 cm
Parametry	Color	black
Parametry	Display technology	DLP
Parametry	Lamp lifetime in normal mode	20000 h
Parametry	Lamp life in power saving mode	30000 h
Parametry	Operating volume	30 dB
Parametry	Power consumption	405 W
Parametry	Functions	zoom
Parametry	Built-in speakers	yes
Parametry	ANSI brightness	7100 lm
Parametry	Basic resolution (px)	1920 x 1200
Parametry	Contrast (x:1)	3000000
Parametry	Image format	16:10
Parametry	EAN (GTIN)	766907027280
Parametry	Manufacturer code	LS950WU
