Projektorius Sharp V801U-B juodas su rankena

Trumpai apie prekę

Prekė: Projektorius Sharp V801U-B juodas su rankena. Kategorija: Įrenginiai.

• Gamintojas: Sharp
• Modelis: V801U-B
• Spalva: black

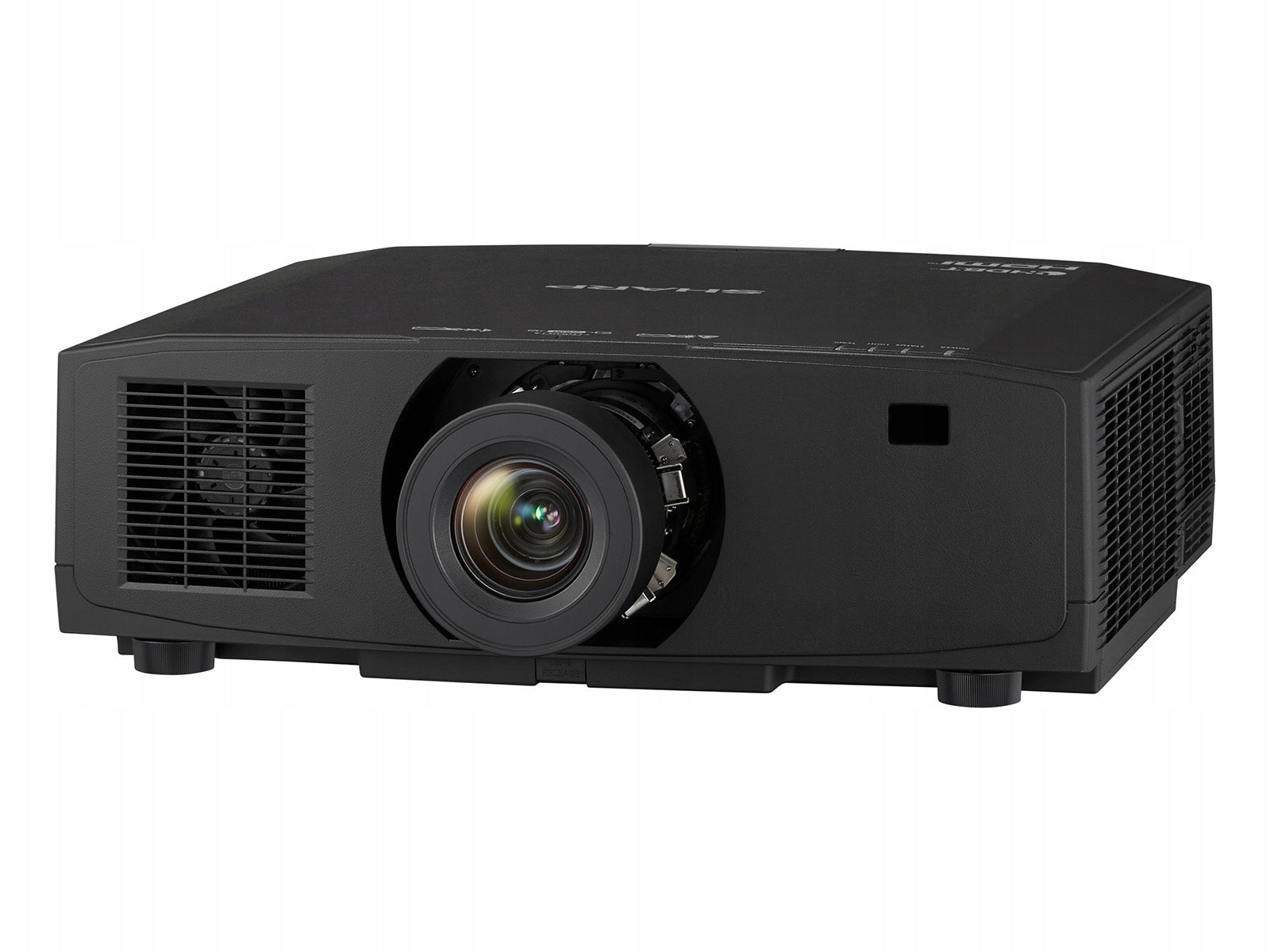

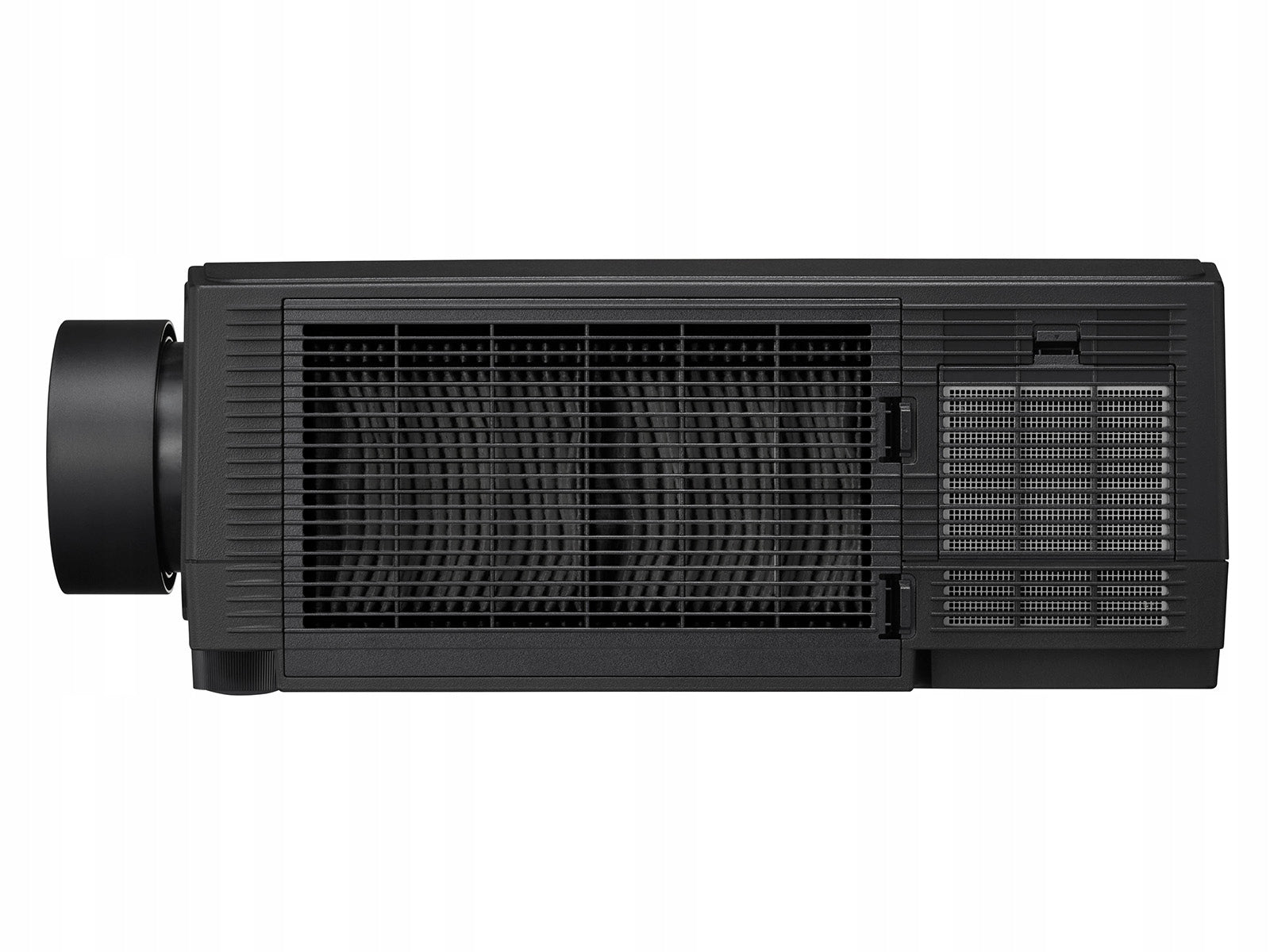

Projector Sharp V801U-B Black

+ FREE HANDLE

Sharp V801U new

Professional LCD Laser Installation Projector with Favorable Value for Money

• Type of LCD
• Brightness [Lm] 8000
• Resolution 1920 x 1200
• Weight [kg] 11,1
• Product code 60006250 (B), 60006249 (W)

Universal performance that pays off

The Sharp V series is an extremely cost-effective projection solution that offers flexible mounting options, low operating costs and long laser life in a compact, affordable form. The 3LCD technology ensures vibrant colors, while the precise calibration and 12-bit color signal processing result in saturation and high image contrast, making the series ideal for educational, corporate, entertainment, and simulation applications.

With the ability to use existing mounts and lenses, the V Series provides a seamless transition from tube or earlier laser models to next-generation solutions, maximizing the utilization of existing resources and reducing costs.

The Sharp Pro Assist software allows for remote configuration and adjustment, while advanced features such as geometric correction, edge blending, and a large lens offset range support flexible and precise image integration.

Benefits

• No more replacing lamps – up to 20.000 hours of maintenance-free operation thanks to a laser light source.
• Get excellent performance – while maintaining high quality and ease of use.
• Low noise – quiet technology (noise level 31 dB) will not interfere with meetings.
• Inspire viewers with vibrant color and deep contrast – excellent whiteness, wide color space and dynamic contrast.
• Amazing visualization possibilities – impressive possibilities for free tilting and portrait editing, unique geometric adjustment, tiling and camera-based mixing.

SPECIFICATION:

OPTICAL PARAMETERS

3LCD Technology projection technology

Native resolution

1920 x 1200 (WUXGA)

Image aspect ratio 16:10

Contrast 3000000:1

Brightness 8000 Lm in normal mode / 8300 Lm in center mode / 7200 Lm in silent mode; ISO21118-2012 compliant

Lamp power Laser light source

Lifespan of the light source [h. ] 20000 1

Lens Number of driven lens options: 5

Motorized Lens Adjustment

Lens sliding H:±20, V:+50,-10

Correction of trapezoidal distortion +/-30° horizontally (manually) / +/-30° vertically (manually)

Projection factor depending on lens selection (standard option XP-41ZL, 1,3:3,02:1)

Projection distance [m] 0.7 – 50.9

Screen size (diagonal) [cm] / [inches] Maximum: 1 270 / 500"; Minimum: 101,6 / 40"

Zoom Driven and manual (depending on lens)

With drive and manual adjustment (depending on the lens)

Supported resolutions

1080i/50/60;

1080p/50/60;

1280 x 768 (60);

1920 x 1200 (60);

3840 x 2160 (23.8/24/25/29.97/30);

480p/60;

576p/50;

720p/60

Digital Frequency: Horizontal: 15/24-153 kHz; Vertical: 50-120 Hz

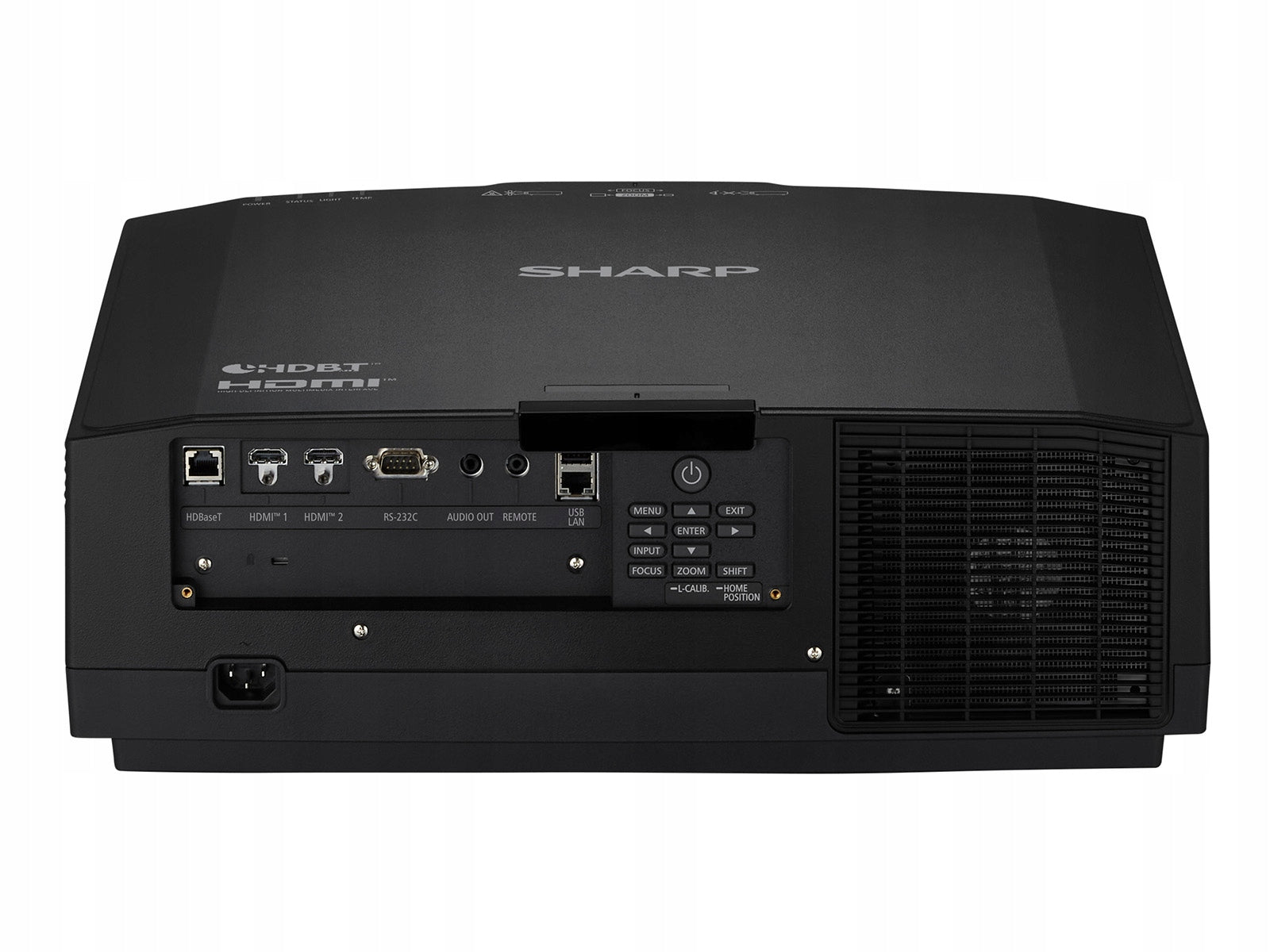

CONNECTIVITY OPTIONS

Digital Input: 1 x HDBaseT; 2 x HDMI™ with HDCP 1.4 support

Audio Input: 1 x HDBaseT support for audio signal; 2 x HDMI support for audio signal

Output: 1 x 3.5 mm Stereo Mini Jack (variable)

Control Input: 1 x 9-pin D-Sub (RS-232), Ethernet; 1 x stereo mini jack 3,5 mm (cable remote control)

LAN 1 x RJ45

USB 1 x USB A (2A power delivery)

REMOTE CONTROL FUNCTIONS

Input: 1 x 3.5 mm Stereo Mini Jack

Remote Control Functions Image Customization; Aperture Function; HDMI; Audio Control; Trapezoidal Effect Correction; Geometric Correction; Focus, Image Magnification and Lens Offset (Lens Shift); Navigation (Up, Down, Left, Right); ID Number; Test Image; Picture Mute; Cable/Wireless Connections; Power (On-OFF); ID Selection; Signal Source Selection; Digital Zoom

ELECTRICAL PARAMETERS

Power supply 100-240 V AC; 50 - 60 Hz

Power consumption [W] 467.0 in normal mode / 421.0 in silent mode / 2.0 standby mode with network support / 0.5 standby mode

MECHANICAL PARAMETERS

Dimensions [mm] 499 x 164 x 407 (without legs and lens)

Weight [kg] 11.2

Noise level [dB(A)] 42 / 32 (normal / silent mode)

Color versions White; Black

AMBIENT CONDITIONS

Ambient temperature of the operating stage [°C] 0 to 40

Ambient humidity during operation [%] 20 to 80 non-condensing

Storage temperature [°C] -10 to 50

Storage humidity [%] 20 to 80 non-condensing

ERGONOMICS

Safety and ergonomics CE; EAC; ErP; RoHS; TUEV Type Approved

ADDITIONAL FUNCTIONS

Special Features AMX Beacon; Crestron RoomView; Direct Power-Off Function; Control ID Function;Edge Blending Function; HDBaseT; Keystone Correction (H=±30°,V=±30°); control by RS232;Geometric correction; Lens Shift (vertical +0.5 max/-0.1 max,horizontal ± 0.2 max.); OSD menu in 27 languages;NaViSet Administrator 2; User logo optional; Lens settings memory; PJ LINK; Control board;CQP (cinema quality) processing technology for the best image quality; Light source adjustment;Manual adjustment of wall color compensation; Control by web browser; Control by LAN;Freely tilted; Simulation of DICOM standard; Quick start and quick shutdown; High-altitude mode;Vertical orientation setting; Password protection; Light source life 20 000 hrs.

ECO FUNCTIONS

Energy efficiency Longer life of light source; Clock function; Intelligent power management system; Operating mode planning software; Standby power consumption below 0,3W; ECO scheduler

Instructions for download in electronic version; 100% recyclable packaging

Environmental standards Compliance with ErP

DIALECT.

On projector Service throughout Europe for 3 years

Light source 3 years or 10000 h (whichever comes first)

CONTENTS OF THE PACK

Power cable; Quick guide; Remote control (RD-480E); Projector

OPTIONAL EQUIPMENT

5 optional bayonet mount lenses available; Air filter (XP-06FT); Wire guard (XP-10CV-W, XP-10CV-B); Universal ceiling mounts (PJ01UCM, PJ02UCMPF)

Lenses - with XP-40ZL/NP40ZL drive (0.79-1.11:1); XP-41ZL/NP41ZL (1.3-3.02:1); XP-43ZL/NP43ZL (2.99-5.93:1); XP-44ML-V/NP44ML (0.32:1); XP-50ZL/NP50ZL (0.6-0.75:1)

1 Brightness at the end of the specified laser life equal to 50% of the initial value while maintaining an ambient temperature of 25°C
