Projektorius NEC UM352Wi (Multi Pen)

Trumpai apie prekę

Prekė: Projektorius NEC UM352Wi (Multi Pen). Kategorija: Įrenginiai.

• Gamintojas: NEC
• Modelis: UM352Wi
• Spalva: white

The auction concerns the original product as in the title: Polish Distribution / 100% New PLUS additionally DISCOUNT CARD FOR PURCHASES ON OUR ALLEGRO for all AV equipment that we offer at other auctions.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

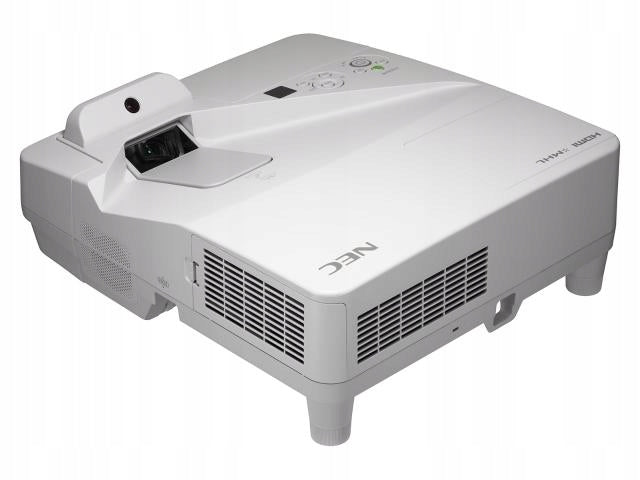

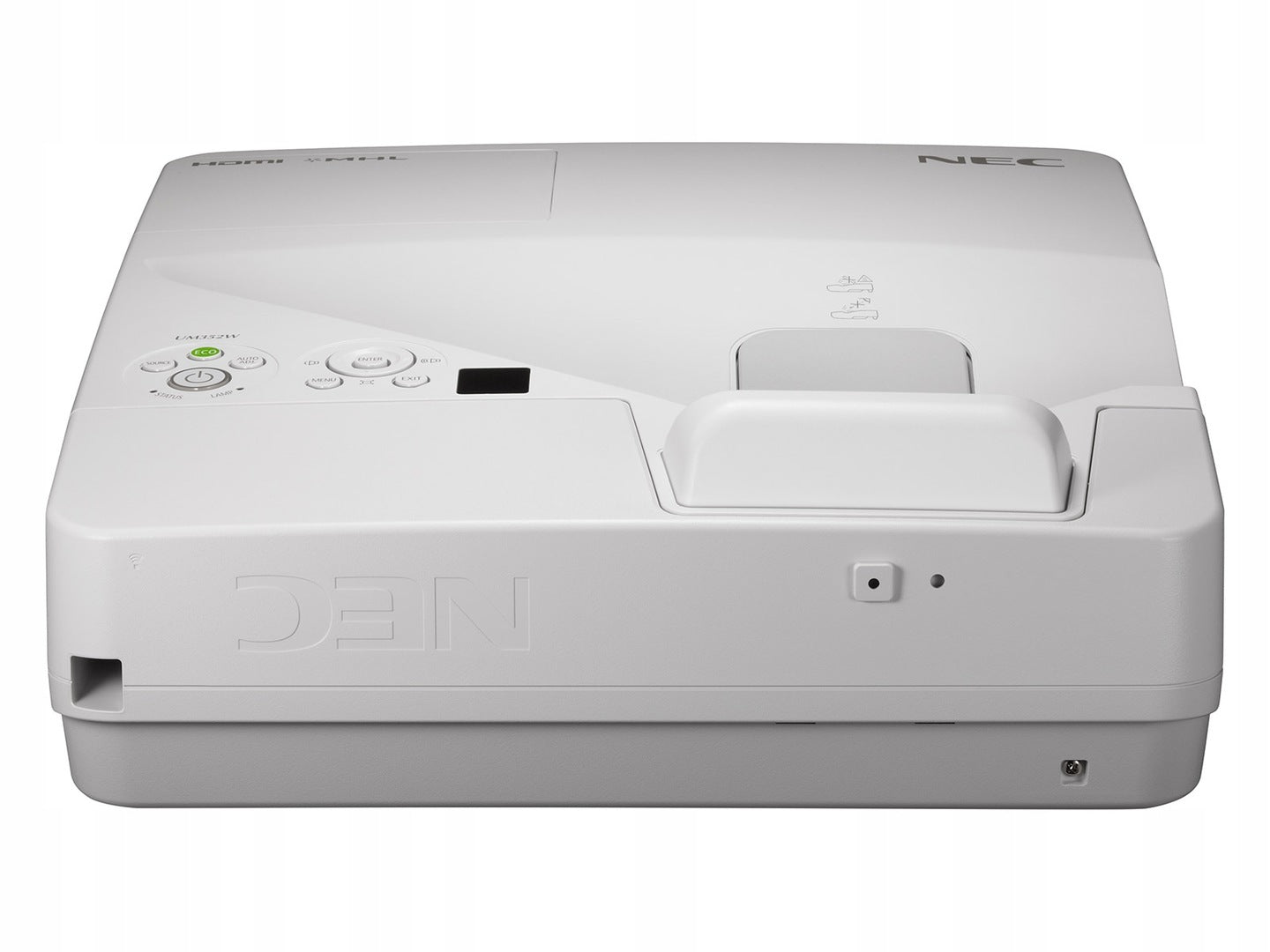

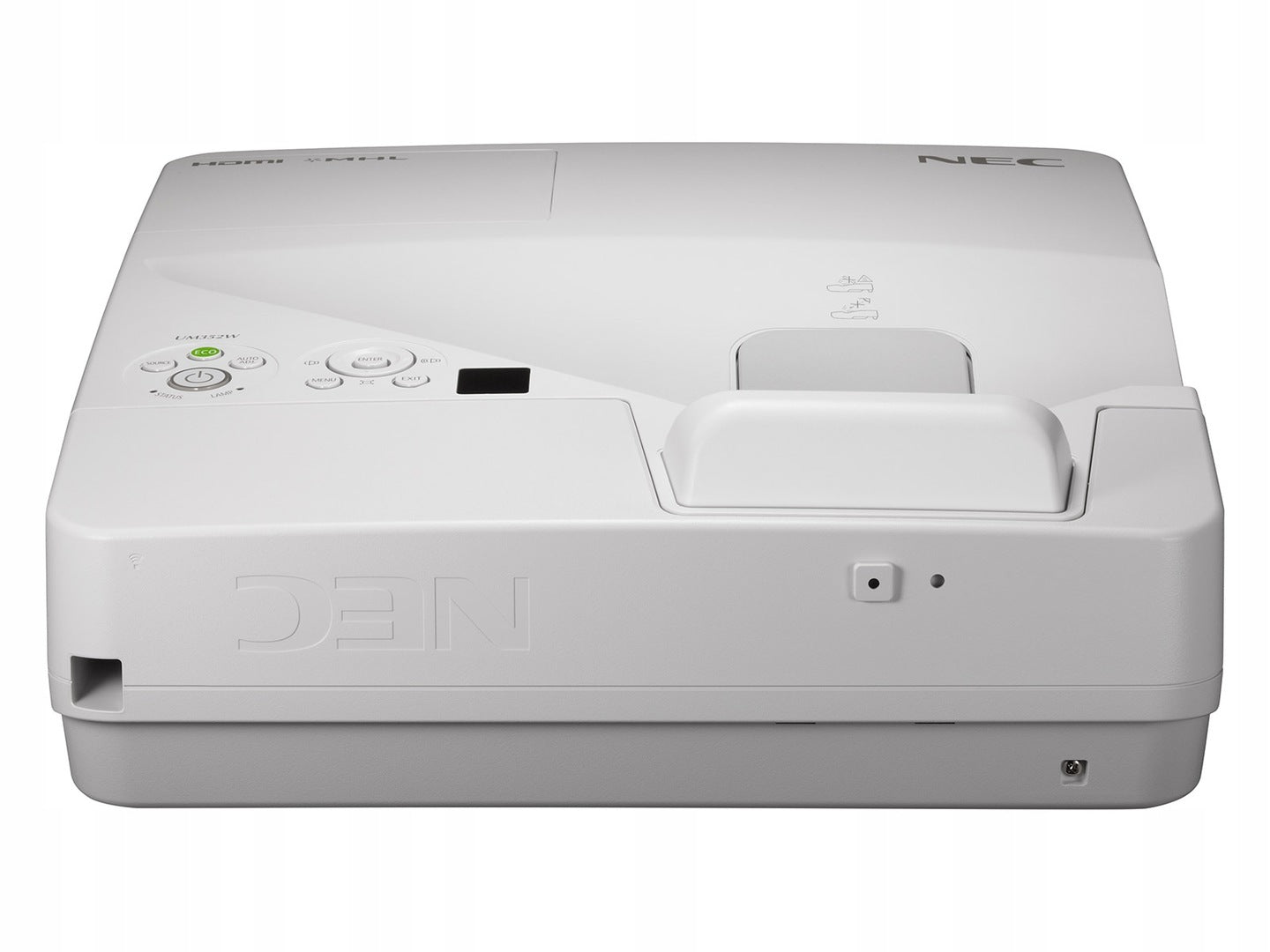

PROJECTOR NEC UM352Wi

+ VALUABLE FREE (RANDOM: BRANDED HANDLE AND/OR PROFESSIONAL AV CABLE AND/OR SODEXO VOUCHER FOR SHOPPING / ETC. - THERE ARE ALSO AUCTIONS WITHOUT ADDITIVES)

The UM352Wi is a universal solution for classrooms and conference rooms. With integrated white board functionality and DisplayNote support, this projector can become part of a complete interactive system or work independently without connecting a PC. Integrated wireless communication support allows you to connect multiple devices simultaneously and display the content transmitted from them. In addition, the built-in Miracast receiver allows you to create a full mirrored copy on Android and Windows 8.1 mobile devices without having to install any software. Reducing shadows and glare gives the presenter more space to communicate with viewers and improves the quality of work when using integrated interactive multi-pen support and optional support for solutions using multiple touch technology.

The UM352Wi (Multi-Pen) is particularly suitable for classrooms and small to medium-sized meeting rooms.

Benefits

• Built-in interactivity – support for multiple pens and auto-calibration.
• Get excellent performance – while maintaining high quality and ease of use.
• Less shadows and glare – the presenter stands outside the beam of light, thanks to which he has more space to communicate with viewers when presenting the material.
• Wireless Image Sharing – With powerful networking capabilities that allow multiple users to connect simultaneously, create a mirrored copy of your Android device through a Miracast receiver, or simply share content using a web browser.

TECHNICAL DATA:

OPTICAL PARAMETERS

3LCD Technology projection technology

Native resolution 1280 x 800 (WXGA)

Image aspect ratio 16:10

Contrast 1 6000:1

Brightness 1 3500 ANSI lumens (approx. 75% in normal mode and 60% in eco mode)

Lamp power 255 in high brightness mode / 200 in normal mode / 160 in eco mode

Lamp life [h] 6000 in eco / 5000 mode in normal / 3800 mode in high brightness mode

Lens F= 1.8, f= 4.78 mm

Lens offset [%] 81

Correction of trapezoidal distortion +/-10° horizontally (manually) / +/-10° vertically (manually)

Projection angle [°] 49,2

Projection coefficient 0.36 : 1

Projection distance [m] 0.1 – 0.51

Screen size (diagonal) [cm] / [inches] Maximum: 279 / 110"; Minimum: 147,3 / 58"

Zoom Digital Zoom 1,4x

Manual focal adjustment

Supported resolutions 1920 x 1200 (WUXGA); 1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1680 x 1050 (WSXGA+); 1600 x 1200 (UXGA); 1600 x 900 (WXGA++); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1366 x 768 (WXGA); 1360 x 768 (WXGA); 1280 x 1024 (SXGA); 1280 x 1024 (MAC 23"); 1280 x 960 (SXGA); 1280 x 800 (WXGA); 1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (MAC 21"); 1152 x 864 (XGA); 1024 x 768 (XGA); 832 x 624 (MAC 16"); 800 x 600 (SVGA); 720 x 576 SDTV 480p/480i; 720 x 480 SDTV 576p/576i; 640 x 480 (VGA/MAC 13")

Vertical Frequency: 50 – 120 Hz; Horizontal: 15 – 100 kHz (RGB: 24 kHz – 100 kHz)

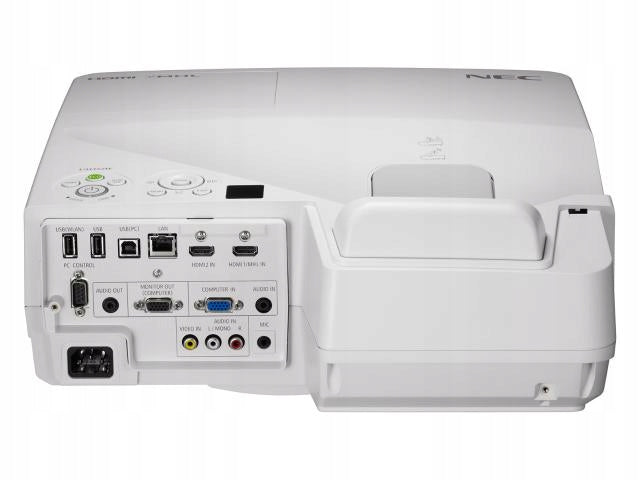

CONNECTIVITY OPTIONS

Computer (analog) Input: 1 x Mini D-sub 15-pin, compatible with component (YPbPr)

Output: 1 x Mini D-sub 15 pin

Digital Input: 1 x HDMI™ (color depth, video and audio synchronization); 1 x HDMI™ with MHL support

Video signal Input: 1 x RCA

Audio Input: 1 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo

Output: 1 x 3.5 mm Stereo Mini Jack (variable)

Microphone Input: Stereo "mini jack" connector 1 x 3,5 mm (dynamic microphone)

Control Input: 1 x D-Sub 9 pin (RS-232) (male)

LAN 1 x RJ45; Optional WLAN connector

USB 1 x Type B; 2 x Type A (USB 2.0 high speed)

NTSC Video; NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

REMOTE CONTROL FUNCTIONS

Remote Control Functions Automatic Image Geometry Adjustment; Direct Signal Input Selection; Image Customization; Help-function; Audio Control; ID Number; Mouse Presentation and Control; Image Proportions; Help Eco Mode; AV Mute; Image Stop; Digital Zoom

ELECTRICAL PARAMETERS

Power supply 100-240 V AC; 50 - 60 Hz

Power consumption [W] 261 (Normal) / 216 (ECO) / 3 (Network Stand-by) / 0,5 (Stand-by); 326 (high brightness mode)

MECHANICAL PARAMETERS

Dimensions [mm] 378 x 112 x 428 (without legs and lens)

Weight [kg] 5.8

Noise level [dB(A)] 28/29/38 (in eco/normal/in high brightness)

AMBIENT CONDITIONS

Ambient temperature of the operating column [°C] 5 to 40

Ambient humidity during operation [%] 20 to 80 non-condensing

Storage temperature [°C] -10 to 50

Storage humidity [%] 20 to 80 non-condensing

ERGONOMICS

Safety and ergonomics CE; Gost-R; RoHS; TüV GS

Speakers [W] 1 x 20 (mono)

ADDITIONAL FUNCTIONS

AMX Beacon Special Features; Automatic start and automatic shutdown; Automatic ECO mode; OSD key lock; Crestron RoomView; Direct Power-Off function; Magnifying glass function; Virtual remote control function; K-Slot security slot; Wall color correction; Carbon savings counter; OSD menu in 29 languages; NaViSetAdministrator 2; Optional user logo; Optional WLAN connection; PJ LINK; control board; USB viewer for JPEG files; DICOM standard simulation; Quick start and quick shutdown; Shutdown timer; Content transmission via the network; High-altitude mode; USB display; Password protection; Protection against unauthorized use; Color management; Includes an interactive module and a pen; Remote control and management via LAN and RS232 interface

ECO FUNCTIONS

Energy efficiency Automatic ECO mode; Longer lamp life; 75% AV Mute function; Intelligent power management system; Operating mode planning software; ECO scheduler; Green button on ECO and AV mute remote control; Reduced power consumption. Only 0,4W in stand-by mode

Instructions for download in electronic version; Eco packaging; 100% recyclable packaging

Environmental standards ErP compliance; RoHs compliance

GUARANTEE

Service projector all over Europe for 3 years

Light source 6 months, maximum. 1000 hours

CONTENTS OF THE PACK

Package Contents 2 Pens; Mini D-SUB Signal Cable; Power Cable (3 m); Quick Start Guide; Remote Control (RD-472E); User Manual on CD; Security Sticker; USB cable A-B (5 m); Wall Mount Kit NP04WK

OPTIONAL EQUIPMENT

Available accessories Automatic Wall Mount PJ03WHA with Height Adjustment; Wireless LAN Module (NP05LM2/4/5); DisplayNote; Lamp (NP33LP); Mobile Automatic Wall Mount NP02HM; PJ03MHA; Wall Mount PJ03WHM with Height Adjustment
