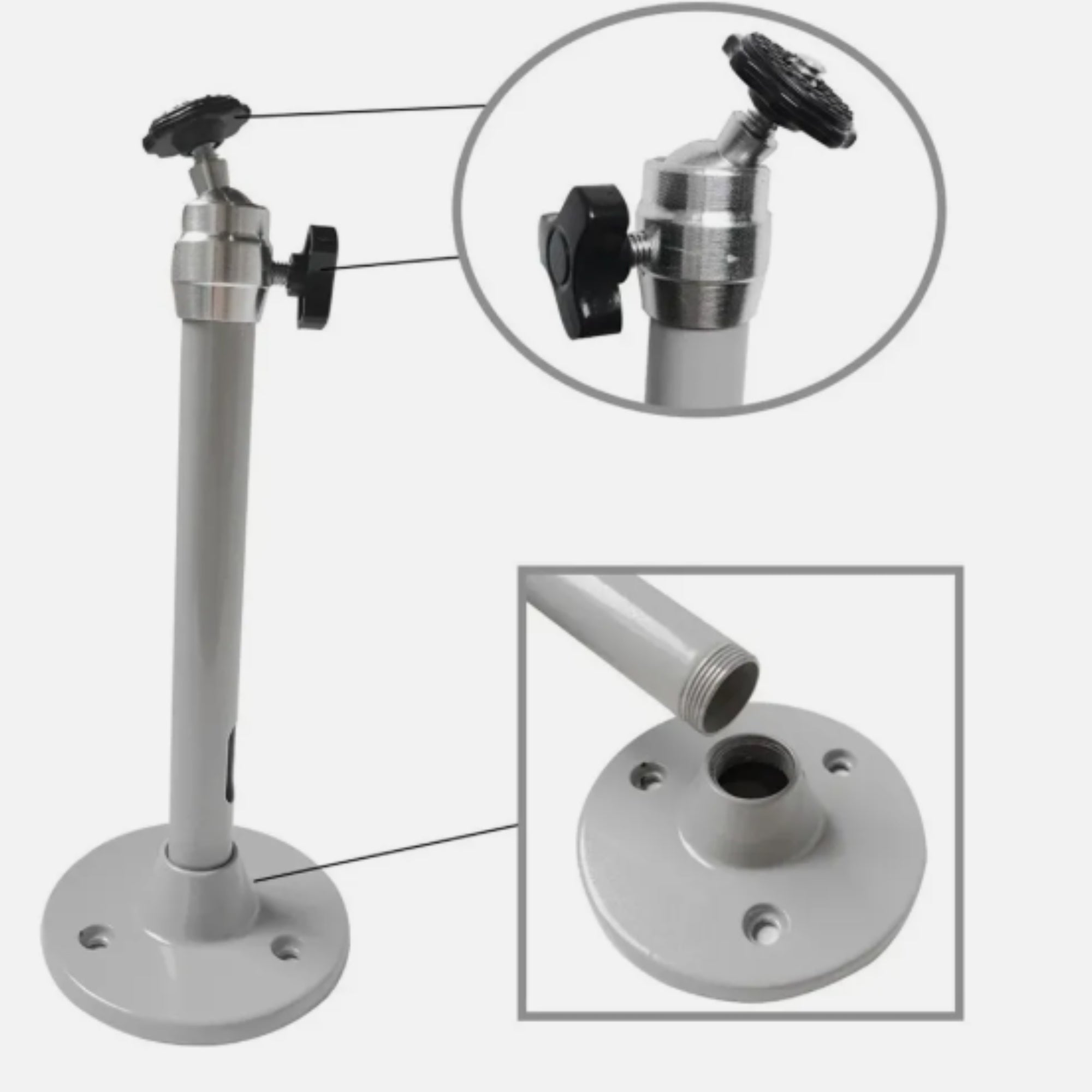

Projektoriaus laikiklis, lubinis-sieninis, 1/4 6,25 mm, 360°, pilkas

Trumpai apie prekę

Prekė: Projektoriaus laikiklis, lubinis-sieninis, 1/4 6,25 mm, 360°, pilkas. Kategorija: Rankenos.

• Gamintojas: Magcubic
• Modelis: uchwyt do projektora rzutnika na ściane sufit
• Spalva: silver

Metal ⭐| Ceiling⭐ and Wall ⭐| 6 mm (1/4")⭐ thread | 360°⭐ rotation | Silver⭐

✅Standard 6mm (1/4 inch) thread fits magcubic hy310 hy 320 L018 hy 310 projector models etc camera, rgb lights.

✅Full image adjustment – 360° rotation + 90° inclination

✅Metal construction

✅Ceiling and wall mounting

✅Compact length 21 cm

✅Cable routing hole

✅Complete mounting kit

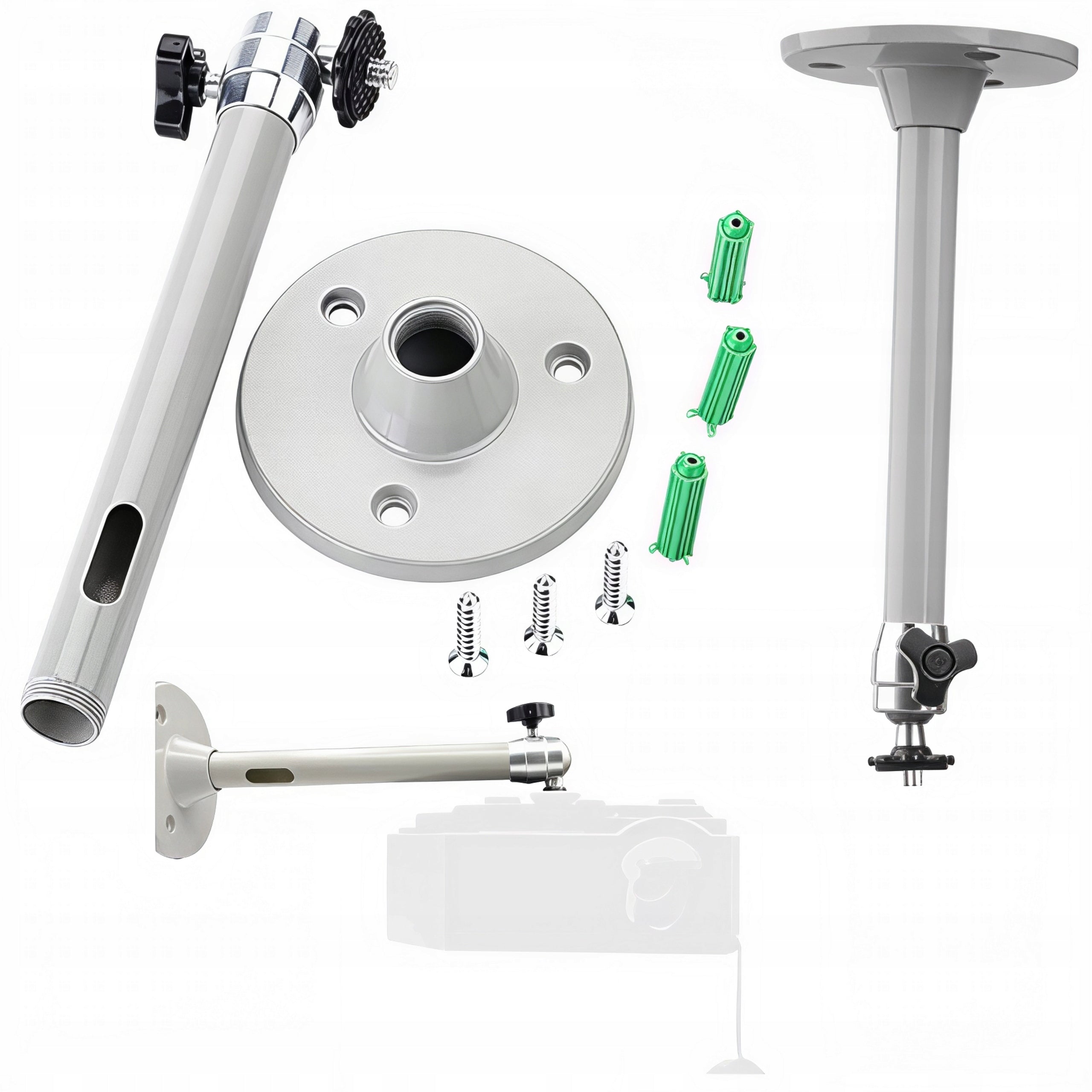

📦 What do you get after purchase?

• metal holder for projector / camera / lighting length 21 cm
• built-in 6 mm (1/4") thread for direct screwing into the device
• 3 × mounting screws
• 3 × dowels for concrete
• ready set for ceiling or wall mounting

The product is ready to assemble immediately after unpacking without having to buy additional elements.

What sets this holder apart from others?

• Direct screwing into projector thread – no need for additional adapters or mounting plates
• Standard 6 mm (1/4") thread – fits most projectors, cameras, cameras and studio lamps
• Full image adjustment – 360° rotation and up to 90° inclination allow precise projection setting
• Metal construction – greater stability than plastic handles
• Ceiling or wall mounting possible – one bracket, different installation methods
• Compact length 21 cm – ideal for mini and medium projectors, does not stick out and looks aesthetically pleasing
• Cable routing hole – orderly and neat appearance of the installation

➡ fits the most commonly used photo and video standard.

➕You can directly screw in a projector, camera or lamp without adapters,

➕you have certainty of compatibility with most popular devices.

➡ adjustable joint allows any position setting.

➕set perfect projection angle regardless of the mounting location,

➕ you will avoid combination with pads or improvised solutions.

➡ Greater rigidity and durability than plastic handles.

➕The projector holds steady and does not fall over time,

➕You can safely mount devices weighing up to 5 kg.

➡ universal design with three attachment points.

➕You will install the handle where it best fits into the room,

➕You gain more freedom to arrange home theater or office.

➡ short, aesthetic boom without unnecessary elements.

➕The handle does not stick out and does not dominate the interior,

➕Perfect for mini projectors (e.g. HY300 Pro, Magcubic).

➡ the possibility of conducting wires inside the handle.

➕installation looks clean and aesthetic,

➕cables are better organized and less likely to be damaged.

➡ All necessary components are included.

➕you can install the handle immediately after unpacking,

➕you don’t waste time or money on buying screws and studs.

🔧 How to mount the projector mount?

Step 1 – Select the mounting location

Decide whether the bracket should be mounted on the ceiling or on the wall. Make sure the surface is stable (preferably concrete).

Step 2 – Select holes

Apply the base of the handle to the selected location and mark 3 mounting points.

Step 3 – Drill holes and mount the base

Drill holes, insert expansion pins and screw the base of the handle with the included screws.

Step 4 – Screw in the projector or device

Screw the projector, camera or lamp directly into the 6 mm (1/4 inch) thread of the holder.

Step 5 – Set angle and position

Set the appropriate angle of inclination and rotation, then tighten the locking knob to immobilize the position.

Step 6 – Check stability

Before use, make sure that all screws are tightened well and the handle holds the device firmly.

⚠ Important:

• do not exceed the maximum load of 5 kg,
• for drywall use appropriate pegs (not included),
• installation should be carried out with the device turned off.

⚙ Technical specification

• Product type: projector holder/stand, camera, studio lamp
• Material: aluminium alloy
• Color:Grey
• Handle length: approx. 18 cm
• Total length of construction: approx. 21 cm
• Diameter of mounting base: approx. 90 mm

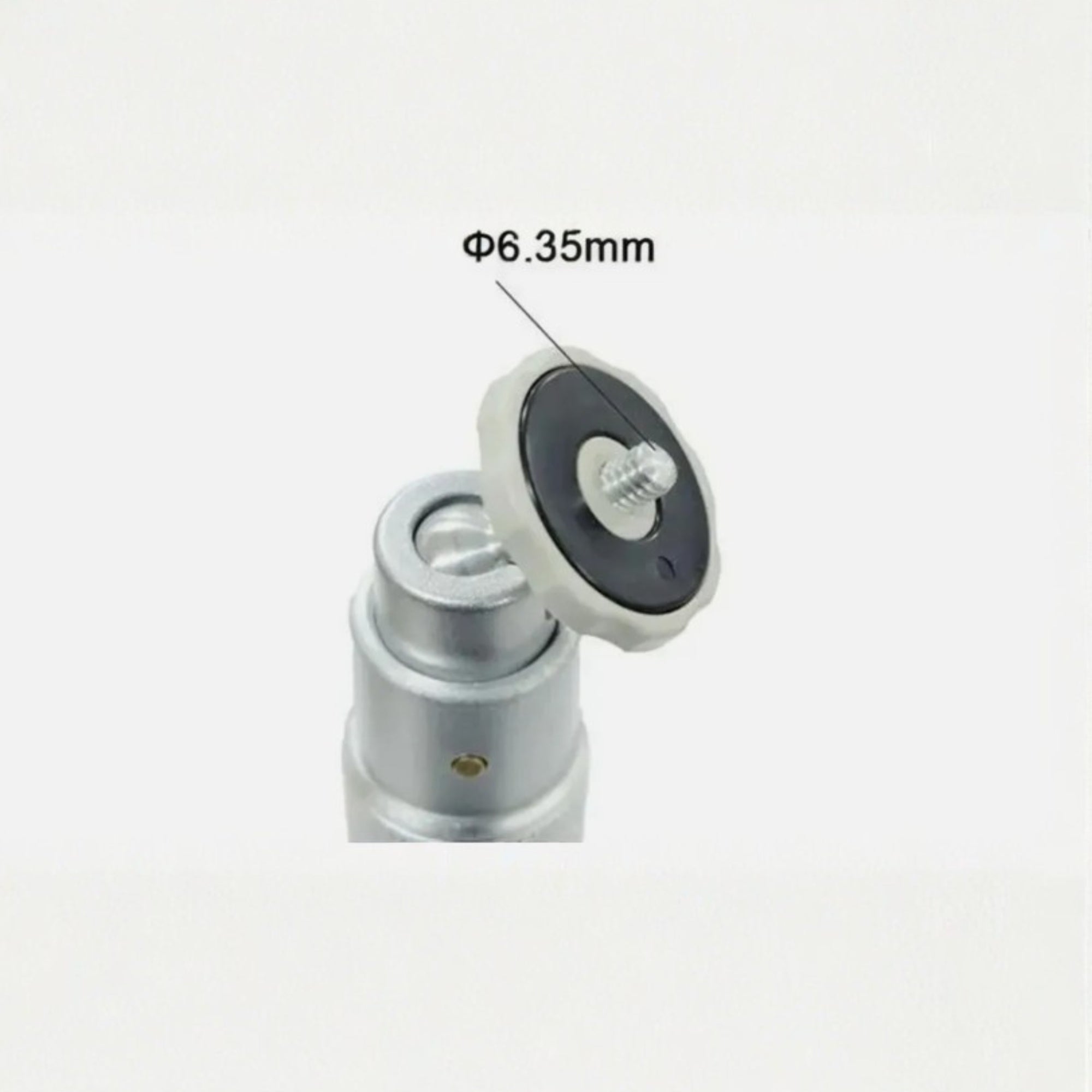

• Mounting thread: 6 mm (1/4 inch)
• Maximum load: up to 5 kg
• Adjustment:

  – rotation 360°

  – slope up to 90°

• Assembly method: ceiling or wall
• Application: projectors, video cameras, cameras, LED studio lamps

If you are looking for a simple and versatile handle that:

• fits many devices thanks to the 1/4" thread,
• allows installation on the ceiling or wall,
• allows you to set the ideal projection angle.

It is a proven solution for home theater, office and camera work.

❓ Frequently Asked Questions (FAQ)

Does the mount fit the HY300 Pro?

Yes. The handle has a standard 6 mm (1/4 inch) thread, which is used m.in. in HY300 Pro projectors and similar models.

Can I mount the bracket on the ceiling?

Yes. The handle is suitable for both ceiling mount and wall mount.

Are screws and studs included?

Yes. The set includes screws and dowels for concrete.

What weight will the handle hold?

The maximum permissible load is up to 5 kg.

Is the mount suitable for cameras or studio lamps?

Yes. Thanks to the 1/4 inch thread, the holder also fits cameras, cameras and LED lamps.

Can the projector angle be adjusted?

Yes. The handle allows rotation of 360° and slope up to 90°.

Is the handle suitable for mounting on a g-k board?

For installation on drywall, special pegs are required (not included). For concrete pegs are included.
