Profesionalus 3D ratų geometrijos įrenginys

Trumpai apie prekę

Prekė: Profesionalus 3D ratų geometrijos įrenginys. Kategorija: Ratų suvedimo matuokliai.

• Gamintojas: no brand
• Modelis: T288

⭐PROFESSIONAL 3D⭐ WHEEL GEOMETRY DEVICE

➡ PROFESSIONAL 3D WHEEL GEOMETRY DEVICE – the 3EXCEL T288 is an innovative computer measuring station designed for passenger cars and vans. Thanks to 3D technology with moving cameras and automatic altitude tracking (AutoTracking), it provides fast, precise and fully comfortable measurement of the wheel and axle position of the vehicle.

✅ THE MOST IMPORTANT ADVANTAGES:

• Innovative 3D technology – measurement based on the image from 2 HD cameras
• Moving beam with cameras (AutoTracking) – automatic following of the lifted vehicle
• Passive reflective discs – brak electronics and batteries, maintenance-free use
• Measurement speed – approx. 2 minutes, one of the fastest devices on the market
• Polish, multilingual software – intuitive interface and simple operation
• Full range measurement: convergence, tilt angles, advances, wheel turning, driving axle geometry and more
• Possibility to connect a second monitor – convenient work and presentation of results to the customer
• Range of supported rims: 10″ – 24″
• Printing results “before” and “after” regulation – professional documentation for the client

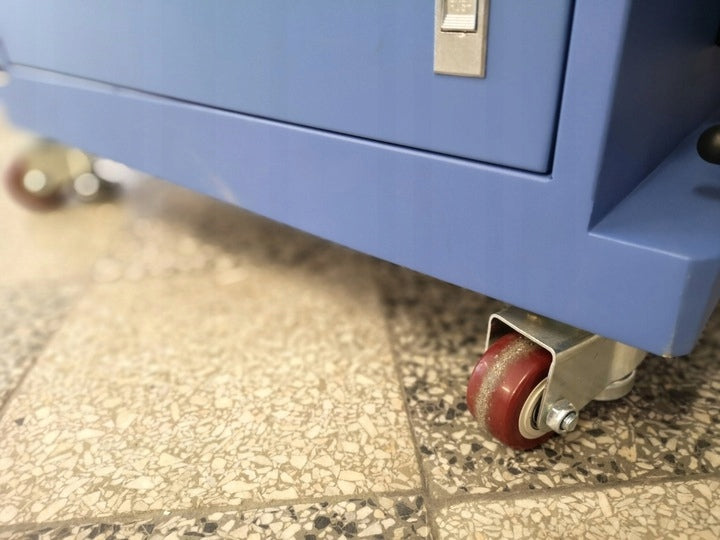

• Mobile design on the trolley – easy movement in the workshop

✅ MEASURING POSSIBILITIES:

• Total and half convergence (front/rear)
• Wheel tilt angle (front/rear)
• Angle of advance and inclination of the crossover pin
• Wheel offset (front/rear)
• Wheel steering angle and driving axle geometry
• Wheelbase and track width
• A number of additional parameters of the suspension system

✅ STANDARD EQUIPMENT:

• DELL PC + LCD monitor + keyboard
• User software (PL) with database and updates
• 4 passive reflective discs with covers
• 4 mounting brackets 10″–24″ (tire grips)

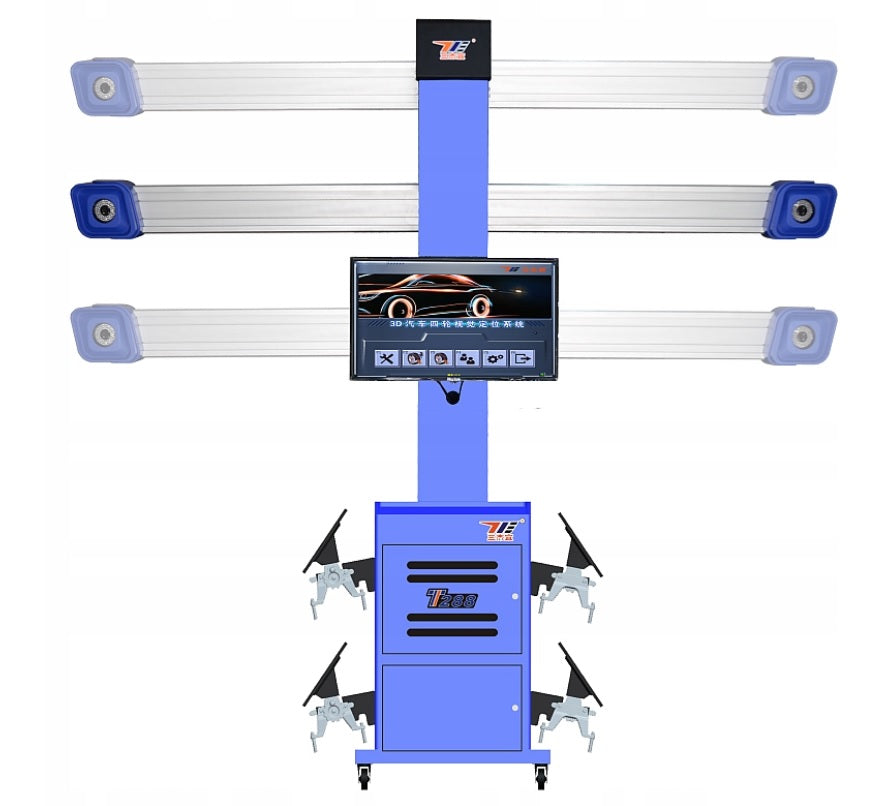

• Column with movable crossbeam and 2 high-quality cameras with IR diodes
• Mechanical Turntables (H) 50 mm)
• Steering wheel and brake pedal lock

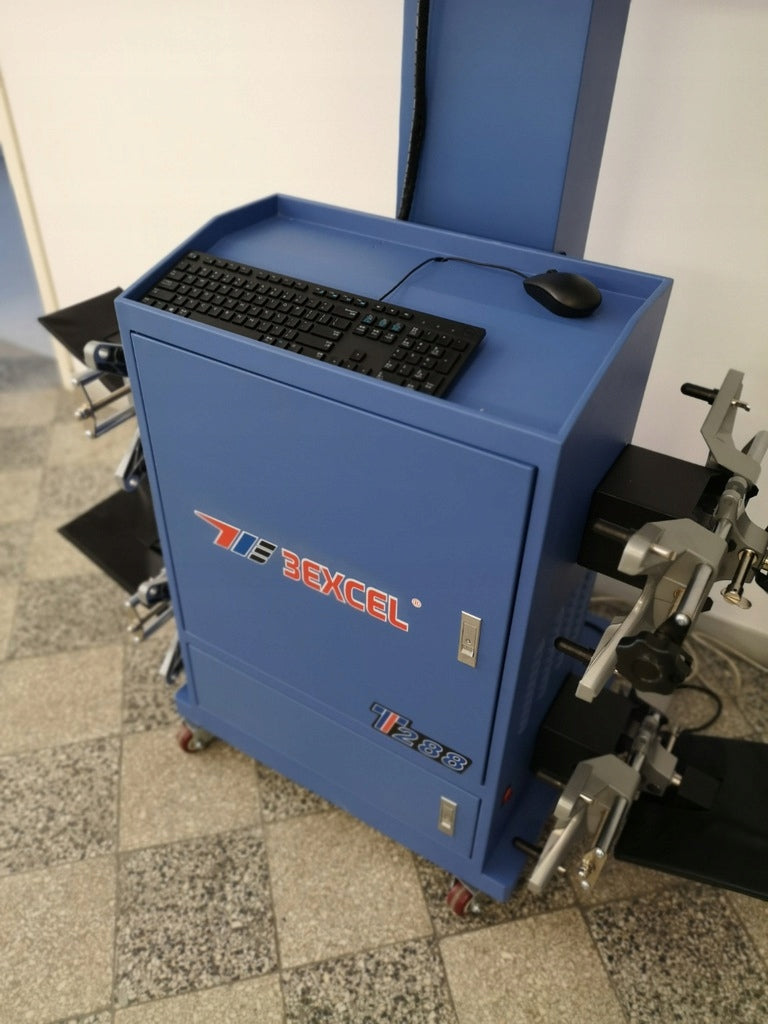

• Cabinet integrated with trolley and column – mobile design

⭐The T288 3D wheel geometry is one of the most modern devices on the market – a fast, precise and fully automatic solution for professional workshops and diagnostic stations.

Specifications
