Priekabos keltuvas, elektrinis, 2268 kg, 12V, 686 mm, LED lemputė

Trumpai apie prekę

Prekė: Priekabos keltuvas, elektrinis, 2268 kg, 12V, 686 mm, LED lemputė. Kategorija: Keltuvai stulpams.

• Gamintojas: no brand
• Modelis: 5907021479417

• We focus on quality, professionalism and comprehensive service of the public sector.

Dimensions:

Height: 73.5

Width: 14

Length: 24.5

Why choose our product?

Attaching and unplugging a heavy trailer does not necessarily mean tedious cranking and repeatedly correcting its height. The electric trailer lift with a load capacity of 2268 kg is designed for users who expect more comfortable operation and efficient positioning of the trailer during everyday use.

The 12 V drive allows for electric lifting and lowering, while the button control reduces the effort needed when setting up the trailer. The set also includes a 13-pin adapter, which allows you to connect to the trailer's electrical system.

The large adjustment range ensures that the device can be adjusted to different coupling heights and terrain irregularities. The stroke range of 230 to 686 mm and the total height range of 735 to 1336 mm provide a wide range of possibilities for setting the support.

The practicality of the solution is also ensured by the details. The built-in LED work light illuminates the coupling site in low light, while the weather-resistant cover protects the motor and switch from dust and rain.

At the same time, the possibility of manual operation was retained. The included crank allows for lifting in the event of a power failure, providing an additional way to operate the lift.

Key benefits and technologies

• Capacity 2268 kg – high rated value allows you to operate properly loaded trailers and facilitates their preparation for connection.
• Electric drive 12 V – lifting and lowering is carried out using an electric drive, so you do not have to do manual work with a crank every time.
• One-button control – the switch on the crank allows you to conveniently control the movement of the lift, simplifying height adjustment.
• Jump 230 – 686 mm – a wide range of work makes it easy to adjust the support to the required height.
• Total height range 735 – 1336 mm – a wider adjustment range allows you to better adjust the position of the lift to different trailer configurations.
• Adjustable in 4 directions support leg – additional adjustment by 114 mm helps to compensate for differences in height and uneven terrain.
• 90° rotating base – the solution allows mounting to frame A without the need for drilling or other modifications indicated on the product page.
• Built-in LED work light – illuminates the coupling place at dusk, at dawn and in the garage, making it easier to perform activities with a limited amount of light.
• Weather-resistant cover – protects the motor and switch from dust and rain, supporting long-term operation of the device.
• Manual operation – the crank allows lifting in the event of a power failure, providing an alternative way of operation.
• 13-pin adapter – allows quick connection to the electrical system of the trailer.

Technical specification

• Article model number: HH5000T
• Rated capacity: 5000 lbs / 2268 kg
• Scope of stroke (in the lowest setting): 9 – 27 inches / 230 – 686 mm
• Total height range: 28,9 – 52,6 inches / 735 – 1336 mm
• Product weight: 9,8 kg (with accessories, without packaging)

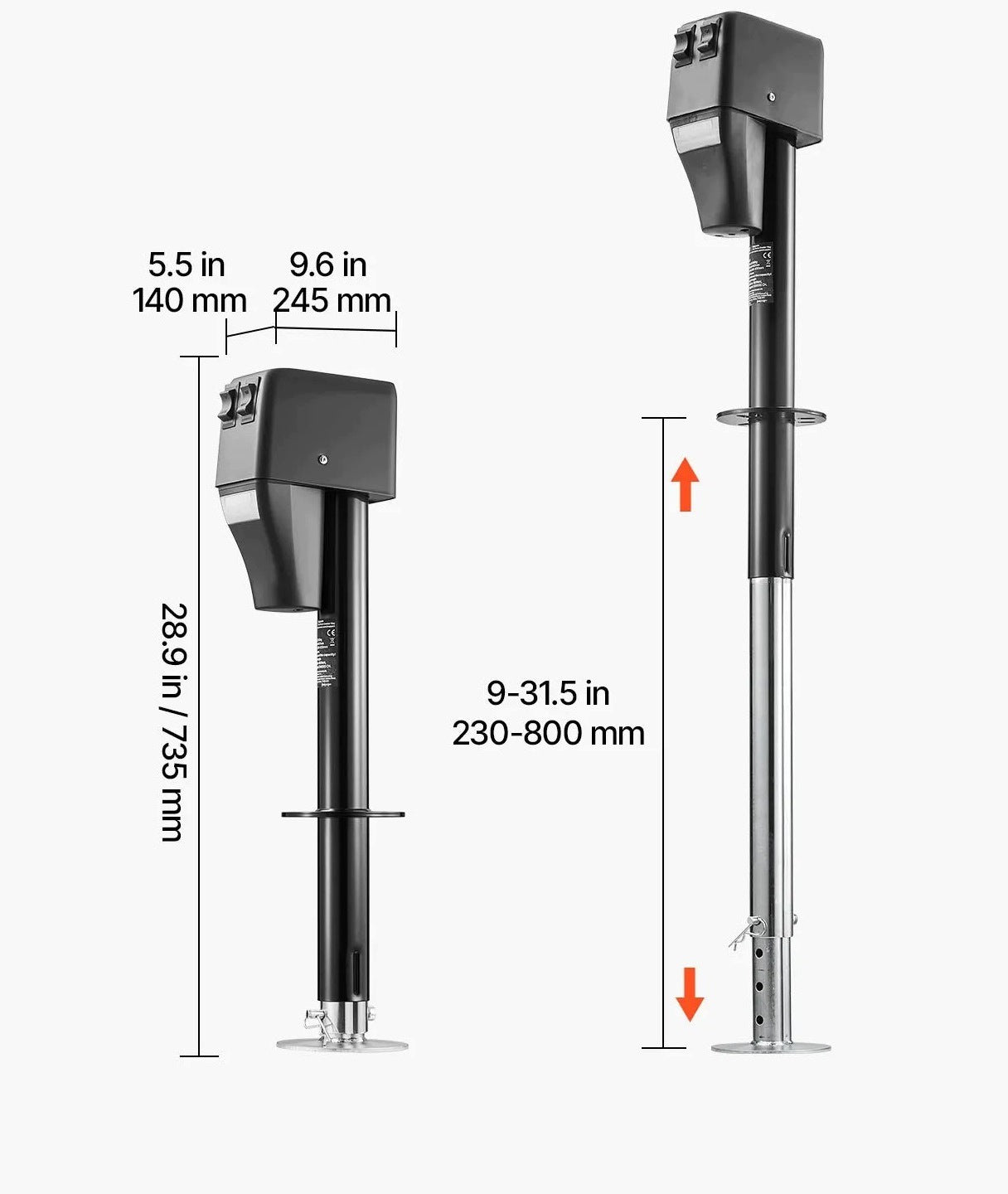

• Product dimensions: 9,6 x 5,5 x 28,9 inches / 245 x 140 x 735 mm (with minimum height)
• Power supply: 12 V DC
• Scope of additional adjustment of the support leg: 114 mm
• Base adjustment: 90° rotation

Application in practice

• ⭐ Camping trailers – electric lifting makes it easier to set up and support the trailer when preparing it for a stop or reconnection.
• ⭐ Camps and caravans – a wide range of height adjustment helps to adjust the position of the support to the specific configuration of the vehicle.
• ⭐ Trailers with boats and equipment – rated load capacity of 2268 kg ensures the ability to handle properly loaded trailers within the range specified by the manufacturer.
• ⭐ Working in the garage and with limited lighting – the built-in LED illuminates the coupling place, making the lift adjustment more convenient after dark or in a less illuminated place.

Contents of the set

• The set includes an electric trailer lift with a 12 V DC drive.
• A crank is included, allowing manual operation of the lift in the event of a power failure.
• The set includes a 13-pin adapter designed to connect to the trailer's electrical system.
• The lift is equipped with built-in LED work lighting.

Summary – choose a professional solution

If convenience, adequate load capacity and a wide range of adjustment count for you when operating a trailer, the 12 V electric lift provides a practical solution for everyday work with the trailer.

2268 kg of rated load capacity, stroke 230 to 686 mm, total height range 735 to 1336 mm, 12 V drive, LED lighting and the possibility of manual operation create a functional system designed for efficient lifting and lowering of the trailer.

Don't waste time spinning the crank multiple times. Choose electric control, a wide range of adjustments and additional protection in the form of manual operation.

Order a professional trailer lift 2268 kg and streamline the preparation of the trailer for connection, detachment and parking.

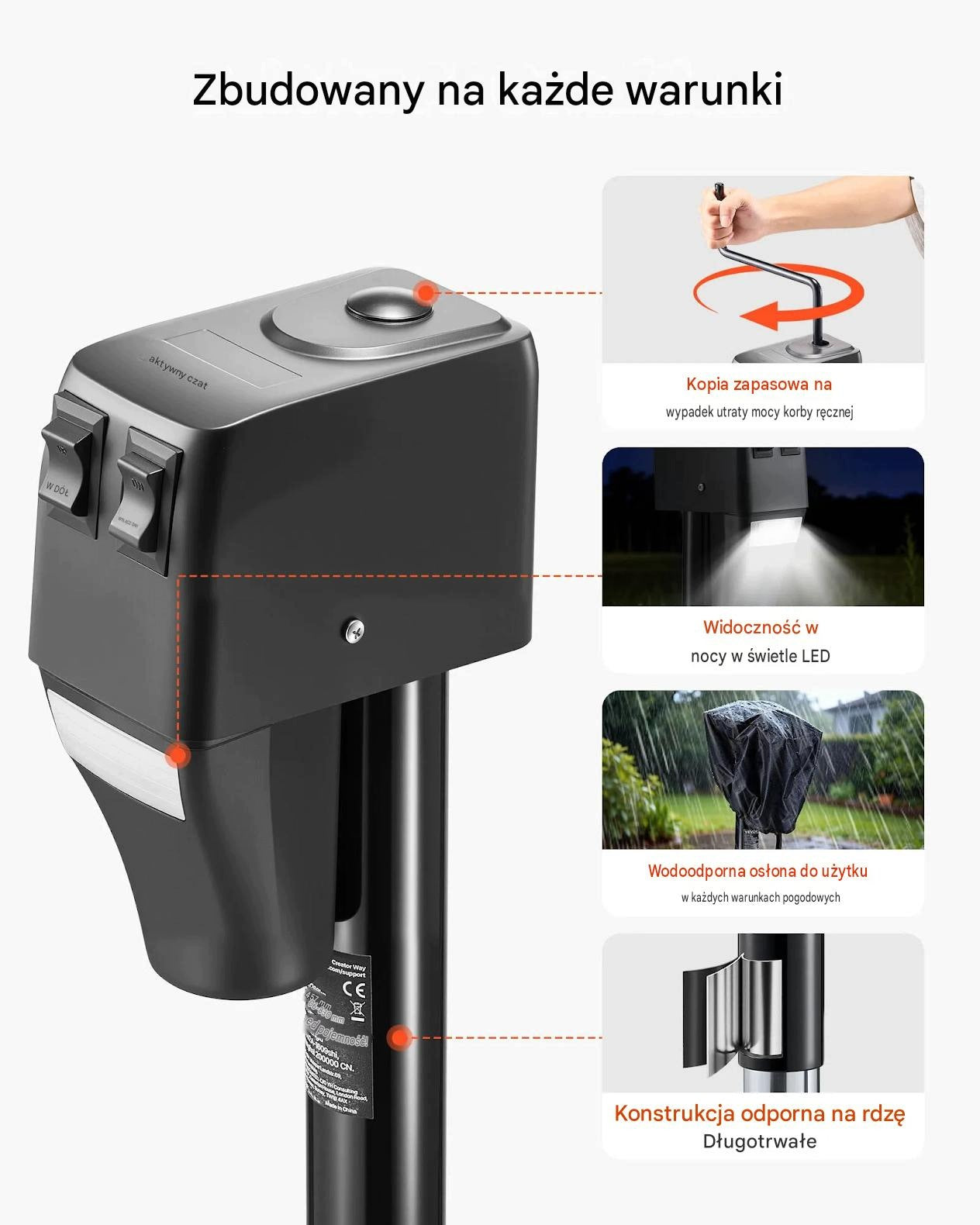

Resistance to all weather conditions

The lift is designed for reliable operation in all conditions. It features a manual emergency crank in case of power loss, LED lighting for improved visibility at night, a waterproof protective cover for all-weather use, and a durable, rust-resistant design for a long lifespan.

90 Degree Rotating Mount

The innovative 90-degree swivel handle prevents the lift from hitting the tailgate when opening. Unlike traditional fixed mounts, this solution allows you to freely lower the tailgate of your vehicle without the risk of damaging it.

Fast and efficient lifting

The device allows full lifting in less than 3 minutes. It offers a lifting range from 22,86 cm to 80,01 cm and a stroke length of 57,15 cm (22,5 inches). The lift is perfect for small, large, high and low-profile trailers.

High lifting capacity and robust construction

The lift has a lifting capacity of up to 2268 kg, which allows for trouble-free operation of heavy caravans. Durable high-strength carbon steel construction includes an outer tube with a diameter of 5,59 cm and a thickness of 0,20 cm and an inner tube with a diameter of 5,08 cm and a thickness of 0,20 cm.

One-button operation

The one-button control system ensures effortless lifting and lowering. The lift is powered by a powerful 12V DC electric motor and features a 13-pin trailer connector adapter for quick and convenient power connection.

We offer you a team of experienced experts, ready to provide comprehensive assistance and advice at every step of cooperation.

Trust our experience – welcome to buy!

• Sales with FV 23%
• Handling of in Poland

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Manufacturer code	5907021479417
Parametry	EAN (GTIN)	5907021479417
Parametry	Lifting capacity	2268 kg
