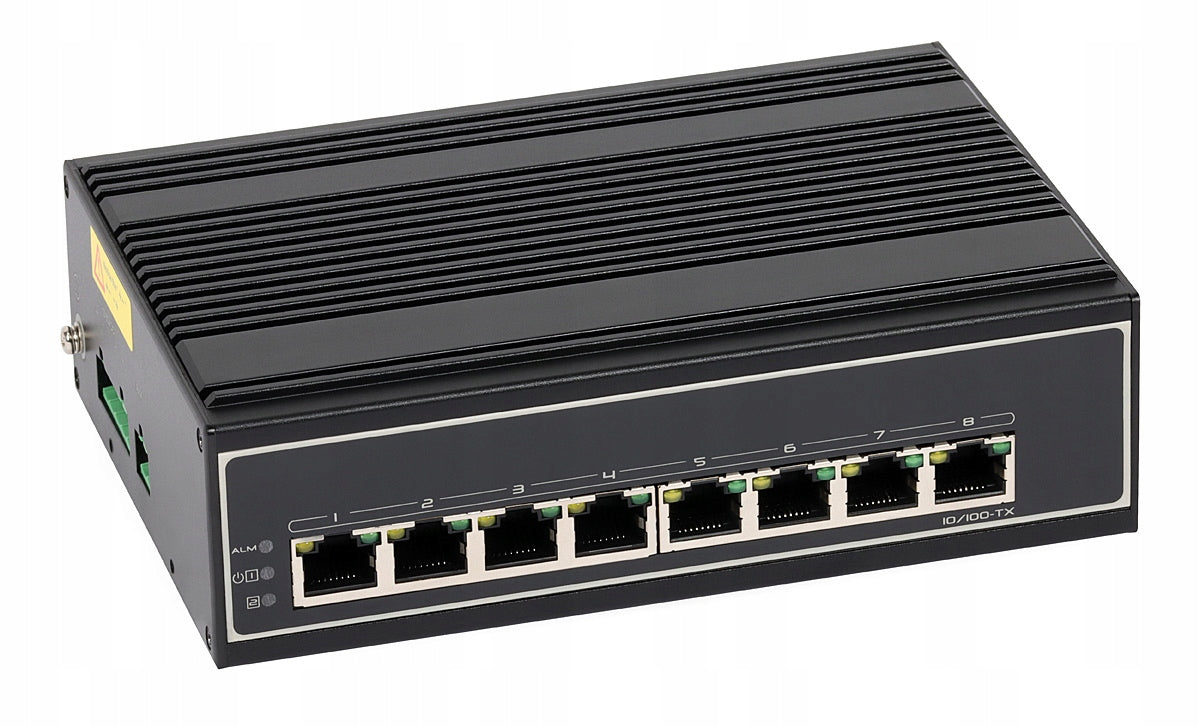

Pramoninis tinklo jungiklis ULTIPOWER 180IND, 8xFE

Trumpai apie prekę

Prekė: Pramoninis tinklo jungiklis ULTIPOWER 180IND, 8xFE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: N299728

Commodity code: 180IND

The PoE ULTIPOWER switch is an industrial type device ensuring smooth network transmission. It allows you to establish connections at a speed of 10/100 Mb/s. It has 8 RJ45 ports that support auto-negotiation of connection speed.

Switches of this type should be used in installations implemented in industrial facilities, where the occurrence of unfavorable conditions for the operation of devices, such as increased dust, high or low temperature, or high humidity, is possible. The installation of industrial switches is also recommended in the case of installations carried out on poles - in hermetic enclosures. Switches have Ethernet ports (depending on the model Fast Ethernet or Gigabit Ethernet) for connecting devices such as IP cameras or computers. ULTIPOWER industrial switches have a casing that meets the IP40 standard (protection against access to hazardous parts, protection against solid foreign objects with a diameter greater than 1 mm).

Distinguishing features:

• Protection degree: IP40
• Power Supply:12-60VDC,
• Possibility to connect two power supplies (the second one is redundant),
• Power consumption: <5W,
• Ethernet ports: 8x Fast Ethernet 10/100 Mb/s,
• Protection against electrostatic discharge: 6 kV,
• Operating temperature range: -35...65℃,
• Permissible ambient humidity: 5 ... 95%,
• Can be mounted on a DIN rail.

Technical specifications:

• Name: ULTIPOWER 180IND 8xFE industrial switch
• Model: 180IND
• Purpose: Industrial switch
• Manufacturer: ULTIPOWER
• Device interfaces
• Ethernet ports number of ports: 8
• type of ports: Fast Ethernet
• 10/100Mbps: 8
• Optical port SFP slot: No
• 100 Mb/s SFP slot: 2
• Console Port: No.
• Hardware performance
• Bandwidth: 1.6 Gb / s
• Packet forwarding speed: 1.19 Mp/s
• Buffer memory: 1Mb
• MAC address table: 8K
• PoE Properties
• PoE: No.
• Hardware Properties
• Power supply: DC 12...60V
• Number of fans: None
• Dimensions: 165x115x50mm
• Mounting method: Desktop, DIN (TH35)
• Redundant power supply: Yes
• Certificates: CE / FCC

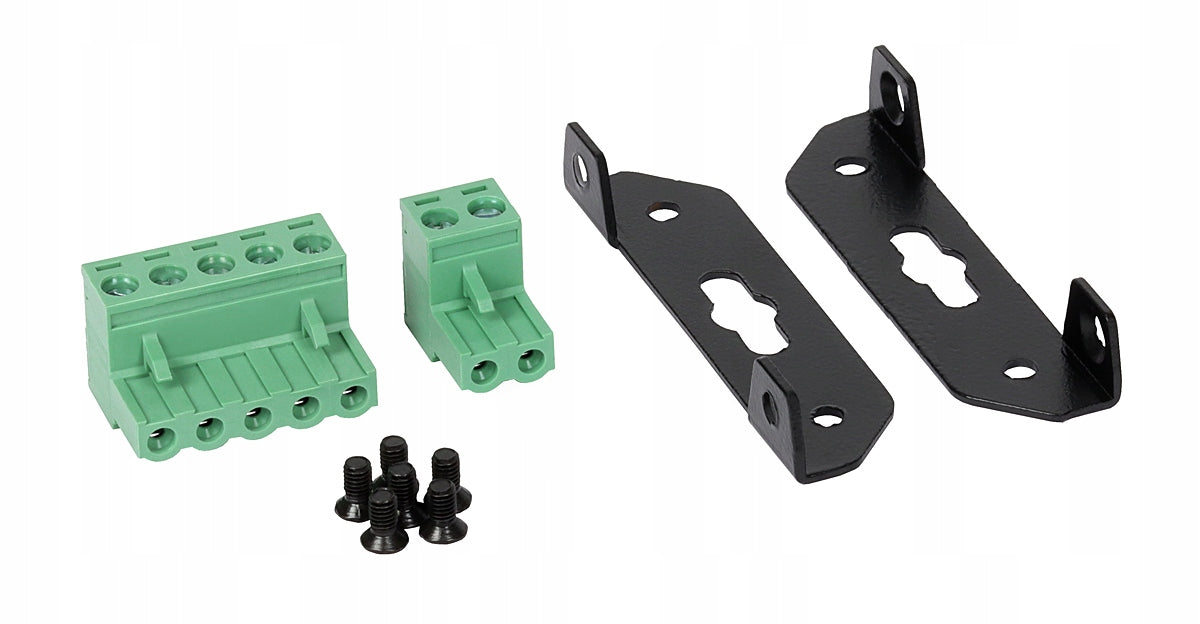

• Package contents: Manual, Switch, DIN mounting brackets
• Working environment
• Operating temperature: -35...+65 ℃
• storage: -40...+75 ℃
• Air humidity: 10...90%
• storage: 5...90%
