Pramoninis PoE komutatorius ULTIPOWER 350mini, 5xGE

Trumpai apie prekę

Prekė: Pramoninis PoE komutatorius ULTIPOWER 350mini, 5xGE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: N299725

Item code: 350MINI

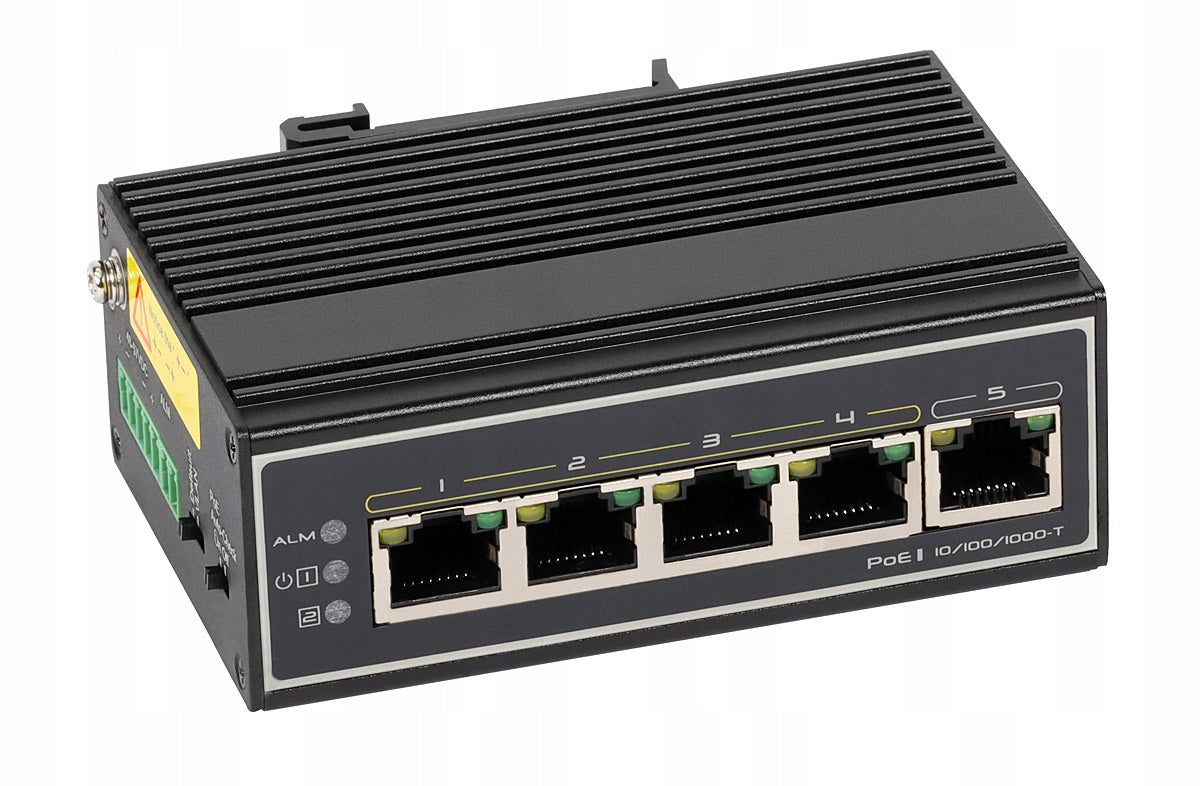

The ULTIPOWER PoE switch is an industrial type device that ensures smooth network transmission. It allows you to establish connections at a speed of 10/100/1000 Mb/s. It has 5 RJ45 ports that support auto-negotiation of connection speed and the Power over Ethernet (PoE) function. The switch automatically detects the PD device Power Device) operating in the IEEE 802.3af/at standard and provides it with power. This allows you to extend the network coverage in places where there is no access to sockets or power lines, and where there is a need to place access points, IP cameras, IP phones, etc.

Switches of this type should be used in installations carried out in industrial facilities, where conditions unfavorable for the operation of devices may occur, such as increased dust, high or low temperature, or high humidity. Installation of industrial switches is also recommended in the case of installations carried out on poles - in hermetic enclosures. The switches have Ethernet ports (Fast Ethernet or Gigabit Ethernet depending on the model) for connecting devices such as IP cameras or computers. ULTIPOWER industrial switches have a housing that meets the IP40 standard (protection against access to hazardous parts, protection against foreign solid objects with a diameter of more than 1 mm). All ports have the ability to power PoE devices connected to them.

Distinguishing features:

• Degree of protection: IP40
• Power supply: 48...57 V DC,
• Power consumption: < 5 W (without PoE),
• Ethernet ports: 5x GigabitEthernet 10/100/1000 Mb/s,
• PoE ports: 4: 802.3af/at
• Protection against electrostatic discharge: 6 kV,
• Operating temperature range: -30...65℃,
• Permissible ambient humidity: 5...95%,
• DIN rail mounting possible.

Technical data:

• DC power supply V 48...57
• Number of fans None
• Dimensions mm 101 x 65 x 36
• Mounting method Desktop, DIN (TH35)
• Redundant Power Yes
• CE / FCC certificates
• Package contents Manual, Switch, DIN mounting brackets
• Working environment
• Operating temperature ℃ -30...+65
• storage ℃ -40...+85
• Operating air humidity % 10...90
• storage % 5...90
