Pramoninis PoE komutatorius Dahua S4101-16ET2GF-240-C, 16 prievadų, SFP

Trumpai apie prekę

Prekė: Pramoninis PoE komutatorius Dahua S4101-16ET2GF-240-C, 16 prievadų, SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Dahua
• Modelis: S4101-16ET2GF-240-C

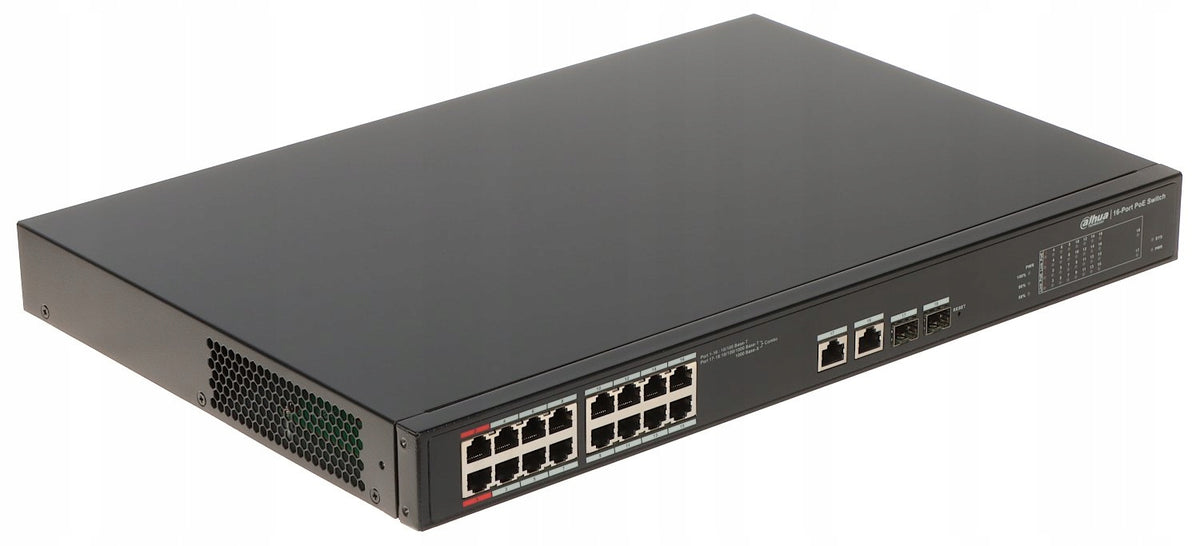

INDUSTRIAL POE SWITCH S4101-16ET2GF-240-C 16-PORT SFP Dahua

Dahua

The S4101-16ET2GF-240-C PoE Switch is an industrial-grade device that provides seamless network transmission at 10/100 Mbps 16 ports supports Power over Ethernet (PoE). Switch is managed via the web and through the cloud (DoLynk Care application). Attention! The SFP port requires the purchase of an SFP module, which is available in our offer

LAN ports:

• 16 x RJ45 10/100 Base-T (2 x Hi-PoE (802.3bt) + 14 x PoE (802.3af/at) ),
• 2 x Combo port: SFP (1000 Base-X) / RJ45 (10/100/1000 Base-T) - Uplink

Management: Yes LEDs: Link, PoE, Power, System, 50 % Power, 80 % Power, 100 % Power Transmission Rate:

• 10 / 100 Mbps : 16 LAN & PoE ports,
• 10 / 100 / 1000 : 2 RJ45 ports (Uplink),
• 1000 : 2 SFP ports (Uplink)

Maximum output power:

• 90W/Port Hi-PoE/PoE 802.3bt - Ports 1, 2
• 30 W / PoE port 802.3af/at - Ports 3 ... 16

Maximum total power: 240 W MAC address array: 16k Operating modes: Extend On : 250 m, 10 Mb/s @ UTP cat. 5e, 6 Selected features:

• Switch is managed via the web and via the cloud (DoLynk Care app)
• PoE Power Mode: The device supports 8-pin power supply
• Intelligent management of power supply output
• protection against atmospheric discharges and potential differences between devices
• Watchdog PoE
• Compliance with the LLDP protocol
• Preview of topology and network status
• RESET button
• Can be mounted in a 19" rack

Certificates: CE, FCC Security:

• Protection against atmospheric discharges (common/differential) : 4 / 2 kV
• Protection against electrostatic discharges - Contact/Air (ESD/EMP) : 6 / 8 kV

Housing: Metal Power supply: 100 ... 240 V AC @ 50 / 60 Hz Power consumption: max. 240 W Operating temperature: -10 °C ... 55 °C Weight: 3.15 kg Dimensions: 440 x 300 x 44 mm, RACK 19", 1U Manufacturer / Brand: Dahua
