Pramoninis gigabit PoE jungiklis BCS-ISP04G-1SFP, 4 prievadai, 1 SFP, 120W, DIN

Trumpai apie prekę

Prekė: Pramoninis gigabit PoE jungiklis BCS-ISP04G-1SFP, 4 prievadai, 1 SFP, 120W, DIN. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 1438

BCS

4 port industrial PoE switch for DIN rail

Series: BCS Universal

Model: BCS-ISP04G-1SFP

Switch industrial BCS-ISP04G-1SFP is a four-wire network switch with PoE function, mounted on a DIN rail. It is designed to expand and power network devices in industrial environments and harsh environments, offering four 1 Gbps PoE ports and a high-speed uplink on a 1 Gbps SFP connector. With a total PoE power of up to 120 W and a robust design, it is ideal for CCTV installations, automation and IoT systems.

The most important advantages and features

• 4 PoE ports 1 Gbps for power supply and data transmission for network devices (e.g. IP cameras, access points)
• 1 SFP 1 Gbps uplink port for high-speed fiber optic or copper connection (after using the appropriate module)
• PoE power up to 120 W – sufficient to power several devices simultaneously
• Industrial construction – resistant to temperatures from -40°C to +80°C, DIN rail mounting
• Automatic negotiation of speed and operating mode – simplified installation and configuration
• LED indicators indicating power status, connection and PoE delivery
• High bandwidth 20 Gbps and fast packet processing for stable and efficient network operation
• Compact size and low weight – easy installation even in limited space

Detailed technical specification

Ports and standards:

• 4× RJ45 1 Gbps with PoE (IEEE 802.3af/at)
• 1× SFP 1 Gbps uplink port (fiber or copper with module)
• Ethernet support: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az

PoE power supply:

• Total PoE power: up to 120W (at 48V DC), also support for 90W (24V DC) and 60W (12V DC)
• PoE Standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Network functions and management:

• Data transfer rate 10/100/1000 Mbps, half/full-duplex, auto-negotiation
• Auto MDI/MDIX – automatic cable adjustment
• No advanced management (typical industrial plug & play switch)

Security:

• MAC address filtering (up to 8K entries)
• PoE overload protection
• Lack of advanced security features (simple, reliable industrial equipment)

Physical parameters and power supply:

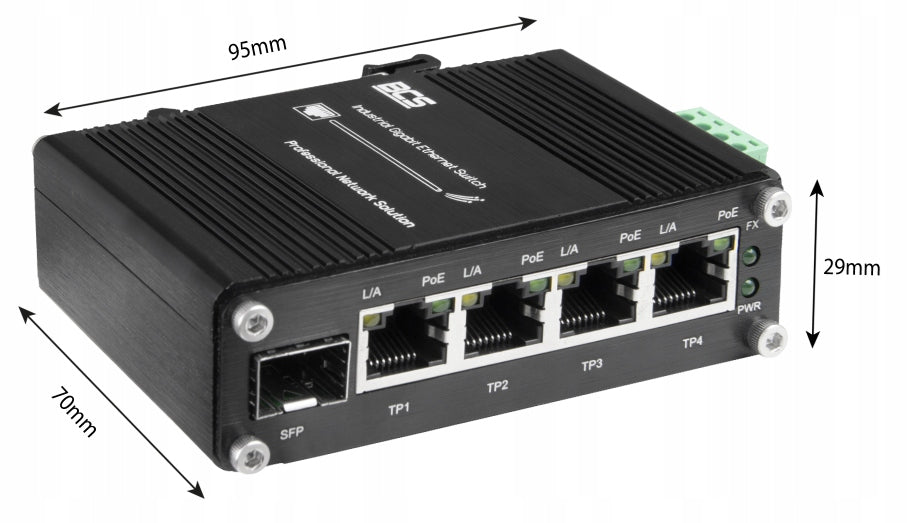

• Dimensions: 95×70×29 mm
• Weight: 0,25 kg
• DIN rail mounting housing
• Power supply range: 12 to 48 V DC (power supply to be purchased separately)
• Operating temperature: -40°C to +80°C, humidity max 95% RH
• MTBF: 200 000 hours

Explanation of technical abbreviations and terms

• PoE (Power over Ethernet) – technology that allows you to power network devices via an Ethernet network cable, without the need for a separate power supply.
• IEEE 802.3af/at – PoE standards; 802.3af provides up to 15,4W per port, 802.3at (PoE+) up to 30W, allowing you to power more powerful devices.
• SFP (Small Form-factor Pluggable) – a replacement module that allows you to connect an optical fiber or copper cable to an uplink port.
• RJ45 – standard connector for Ethernet cables.
• Auto-negotiation – automatic adjustment of speed and mode of operation of ports, facilitating installation.
• MTBF (Mean Time Between Failures) – the average time between failures indicates the reliability of the device.
• Half-duplex / Full-duplex – port modes; full-duplex allows simultaneous communication in both directions, half-duplex only in one at a time.
• MDI/MDIX – automatic recognition of cable type (straight or patch), allowing for any connection of devices without errors.

PoE ports 802.3af/at

Data transmission and power supply for PoE / PoE+ cameras

Switch BCS-B-ISP04G-2SFP has built-in 4 PoE ports gigabit ethernet, in the standard 802.3af / 802.3at (PoE / PoE+). With their help, it is possible to transmit data and power PoE cameras on the same UTP cable. The power of all devices connected to the switch must not exceed 125 W. The most important advantages of Power over Ethernet technology include:

• No additional power cables or additional configuration required - which translates into simplicity of installation
• Increases installation flexibility and allows cameras to be mounted in places where standard power supplies cannot be brought
• Reduces the number of wires needed for proper installation, which can speed up installation and reduce its cost
• PoE power supply is interoperable, so PoE IP cameras can be used in various surveillance systems, practically independently of the manufacturer
• Remote system management by controlling and monitoring the power supply of each camera, which enables optimization of power management

Gigabit RJ-45 ports allow you to transfer large amounts of data simultaneously, which guarantees performance and fast transmission. This makes the switch perfect for IP surveillance systems, allowing you to connect and operate multiple IP cameras at once.

Switch supports 2 transmission modes:

• Full-duplex - simultaneous communication of both connected devices, which can be crucial in places where high bandwidth is crucial. This mode also provides better link utilization and minimizes collisions that can occur in half-duplex mode
• Half-duplex - alternating communication between devices, ensuring good resistance to losses and interference

Supported standards and protocols:

• 802.3 - bandwidth 10 Mbps
• 802.3u - bandwidth up to 100 Mbps
• 802.3ab - bandwidth 1000 Mbps
• 802.3z - bandwidth 1000 Mb/s
• 802.3af - power up to 15.4 W
• 802.3at - power up to 30 W

UPLINK SFP ports

Ability to work in fiber optic network

A characteristic feature of the "2SFP" model is the built-in, double UPLINK SFP port. After using the appropriate SFP module (mini-GBIC), the switch can be connected to the fiber optic network. This is a considerable advantage, enabling the use of the switch in modern IP monitoring systems that use high-throughput fiber optic technology.

VLAN mode

Improvement of transmission security

dy VLAN mode is active, PoE ports "cannot see each other", which prevents data from passing between them. This simple procedure significantly increases the safety of work of the entire monitoring system. A third party cannot detach the camera from the network, connect to it on the same cable and try to reconfigure or disable the other cameras.

EXTEND mode

Increasing transmission range

Another advantage of the BCS-B-ISP04G-2SFP switch is support for EXTEND mode on ports 1 - 4. Switch operating in this mode increases the effective transmission range from 100 m to 250 m. Thanks to this, the switch can be used to build a relatively extensive monitoring system. Switching to EXTEND mode, however, involves limiting the bandwidth of PoE ports to 10 Mbps.

QoS mode

Providing a continuous, quality connection

QoS mode for intelligent packet flow management. The switch operating in this mode increases the priority of transferring packets that contain video file data. This allows you to maintain the continuity of video transmission in conditions when there are any losses on the link.

PoE mode

Effortlessly power PoE devices and protect devices without PoE support

A big advantage of the switch is the support for PoE mode. It allows you to monitor ports to power PoE devices. It also enables automatic restart by cutting off the power when the switch detects that unresponsive devices have been connected to it.

MDI/MDIX function

Simple connection of cameras

Another advantage of the switch is the support for MDI/MDIX automatic patching. The function recognizes whether a straight or patch cable has been used and adjusts the port operating parameters to it. Thanks to it, the correct connection of the switch is even easier.

The BCS-ISP04G-1SFP industrial switch is a robust and efficient device dedicated to demanding industrial environments, offering powerful PoE power and fast uplink connection via SFP. Its durable housing and wide operating temperature range guarantee reliability even in harsh environments. The ideal choice for CCTV installations, automation systems and other networks requiring stable and efficient power supply to PoE devices. With its simplicity of operation and compact form, it ensures easy installation and hassle-free operation.
