Pramoninis 8 jungčių gigabitinis Ethernet PoE komutatorius USR-ISG1008P

Trumpai apie prekę

Prekė: Pramoninis 8 jungčių gigabitinis Ethernet PoE komutatorius USR-ISG1008P. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: PusR
• Modelis: USR-ISG1008P

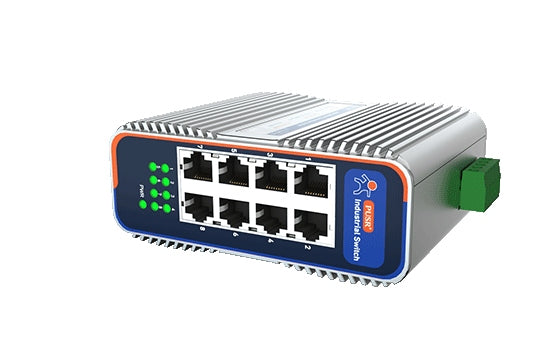

USR-ISG1008P - Industrial 8 Port Gigabit Ethernet PoE Switch 10/100/1000 Mbps

Description

Industrial switch USR-ISB1008P (PoE) is an advanced network device equipped with 8 Gigabit Ethernet ports 10/100/1000 Mbps RJ45, designed to build efficient and interference-resistant industrial networks. With support for IEEE 802.3, 802.3u, 802.3ab and 802.3x standards, the switch ensures stable data transmission and high compatibility with a variety of network devices. 16 Gb/s bus bandwidth, 1 Mbit packet buffer and 4K MAC address table enable smooth real-time transmission, which is particularly important in video surveillance systems, industrial automation or intelligent installations.

The PoE (Power over Ethernet) version allows for simultaneous data transfer and power supply to end devices, such as IP cameras, access points or IoT terminals, using a single network cable. The device supports IEEE 802.3af/at standards, offering up to 30 W of power per port, which significantly simplifies installation and reduces cabling infrastructure costs. The switch is designed to work in harsh environmental conditions. Power supply in a wide range from 9,6 to 60 V DC together with protection against reverse polarity, overload and overvoltage (up to 6 kV) ensures stability of operation even in unstable power installations. In addition, the device meets the requirements of electromagnetic compatibility (EMC), which increases its resistance to electrical interference.

Thanks to the possibility of mounting on the DIN rail and compact dimensions, the USR-ISB1008P is perfect for control cabinets and industrial installations with limited space. It is a reliable solution for systems requiring continuous operation, high performance and integration with PoE devices.

Properties

• 8 ports 10/100/1000 Mbps RJ45, auto MDI/MDIX
• PoE support: IEEE 802.3af/at
• Maximum PoE power per port: up to 30 W
• Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards
• Bus bandwidth: 16 Gbps
• Package Buffer: 1 Mbit
• MAC Addresses: 4K
• DC power supply 9,6 to 60 V, 5-pin connector
• Power consumption < 5 W (without PoE load)
• Protection against reverse polarity and overload
• Surge protection: up to 6 kV
• IP40 aluminum housing, fanless design
• Mounting: on DIN rail or desk
• EMC resistance: ESD ±8 kV (air), ±6 kV (contact), EFT, overvoltage (Level 3)
• Dimensions: 118 × 96 × 47,5 mm
• Weight: 430 g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	PusR
Parametry	Number of ports	8
Parametry	EAN (GTIN)	5902186335769
Parametry	Manufacturer code	USR-ISG1008P
