Pramoninis 5G maršrutizatorius SELFSAT MWR 5540, Dual SIM, WiFi, WAN prievadas, 2,4/5 GHz

Trumpai apie prekę

Prekė: Pramoninis 5G maršrutizatorius SELFSAT MWR 5540, Dual SIM, WiFi, WAN prievadas, 2,4/5 GHz. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: no brand
• Modelis: R5GSMWR5540

SKU: R5GSMWR5540

Key Features

✅Certified operation at temperatures from -40°C to +75°C - You will maintain data transmission stability even in unheated warehouses in winter and heavily heated control cabinets in summer.

✅ Flexible industrial power supply 9-50 V DC - Securely connect the equipment directly to the installation in a motorhome, yacht or industrial machine, without worrying about voltage drops.

✅ Starlink integration via dedicated WAN port - Easily connect your router to satellite internet, creating a reliable network in places completely devoid of ground infrastructure.

✅ 4 RJ45 LAN ports for industrial equipment - Directly and stably connect PLCs, surveillance cameras, IoT sensors or payment terminals with a cable.

✅ Smooth Traffic with Dual-Band Wi-Fi 2,4 and 5 GHz - Separate devices on your network, guaranteeing maximum bandwidth for mission-critical tasks and long range for legacy hardware.

✅ IP30 protection class for indoor applications - You gain equipment ideally suited for installation in closed distribution cabinets, with a housing protecting against solids.

✅ Gold threaded connectors for external antennas - Effectively amplify cellular signal in areas with poor coverage by tightening optional directional or roof antennas.

✅ 1 complete device included - You get one piece of router, ready to set up right away.

The Heart of Modern Automation

Compact format and adaptation to assembly in enclosed spaces make the device perfect as a network gateway for PLCs and sensors, ensuring continuous data exchange.

Mobility without loss of range

Direct connection to the electrical system of the vehicle guarantees stable operation of the equipment on the road, and support for multiple cellular bands allows you to maintain communication away from urban agglomerations.

Supervision in Difficult Locations

Photovoltaic farms, pumping stations or remote warehouses require equipment that will survive frosts and heat.

Network gateway takes care of:

• uninterrupted transfer of images from security cameras, uninterrupted transfer of logs from telemetry systems,
• minimizing costly service visits.

Instant Network in the Area

Create an efficient work environment for the entire engineering or event team.

1 Place the main operator card in the SIM1 slot and the backup card in SIM2.

2 Scan the QR code placed on the housing and log the service terminal to the WLAN without entering passwords.

3 Take the antennas outside when mounting inside the metal distribution cabinet and eliminate signal attenuation.

4 Use a dedicated ankle connector to permanently plug in the power supply and prevent the wires from accidentally extending.

5 Install the equipment at a safe distance from inverters and motors to minimize the impact of strong electromagnetic interference.

6 Secure Ethernet cables with organizational bands right next to ports, making it easier to diagnose and manage infrastructure later.

What exactly are you buying?

The design of the router acts as an efficient heat sink that passively dissipates heat, guaranteeing stability without the risk of overheating (thermal throttling) under heavy load.

• metal housing,
• designed to work inside closed distribution cabinets, machinery or vehicles,.

Specification

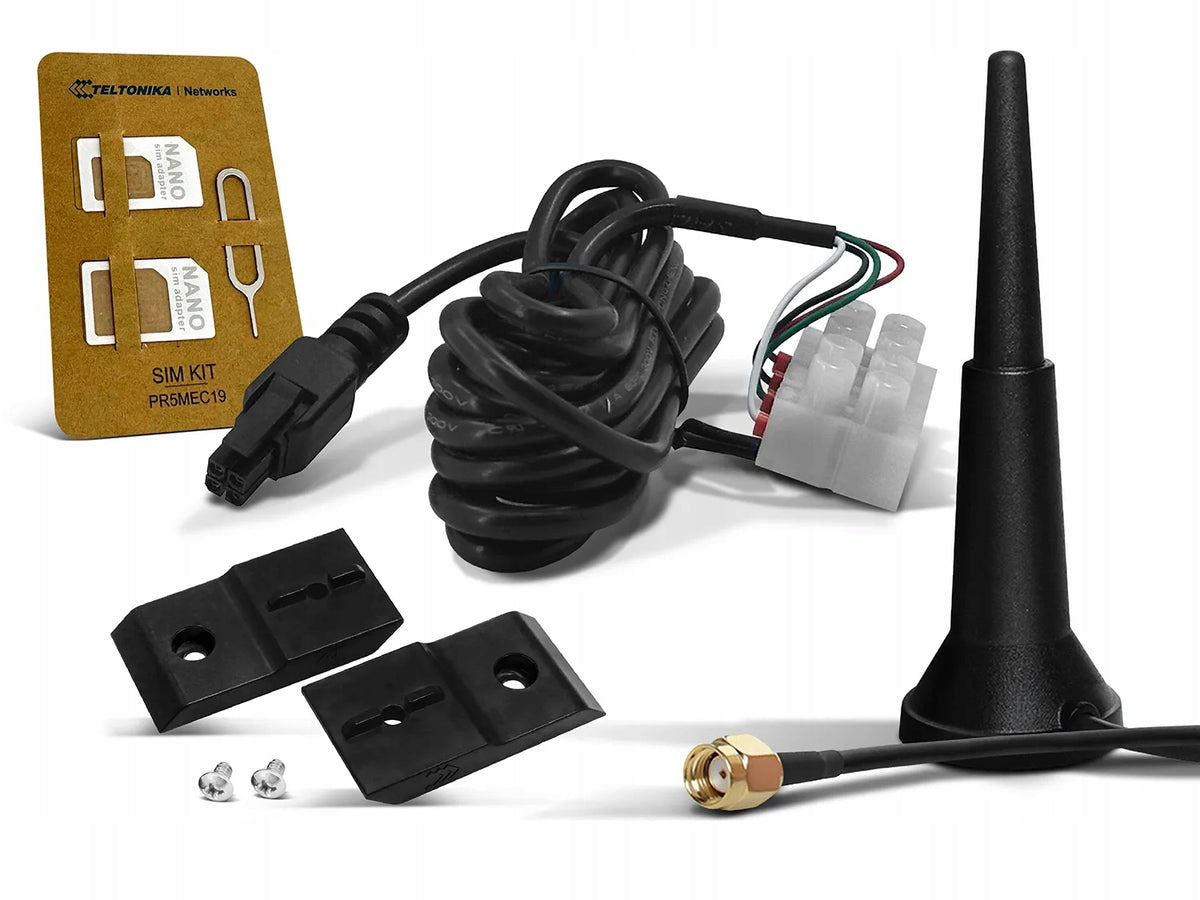

Contents of the set:

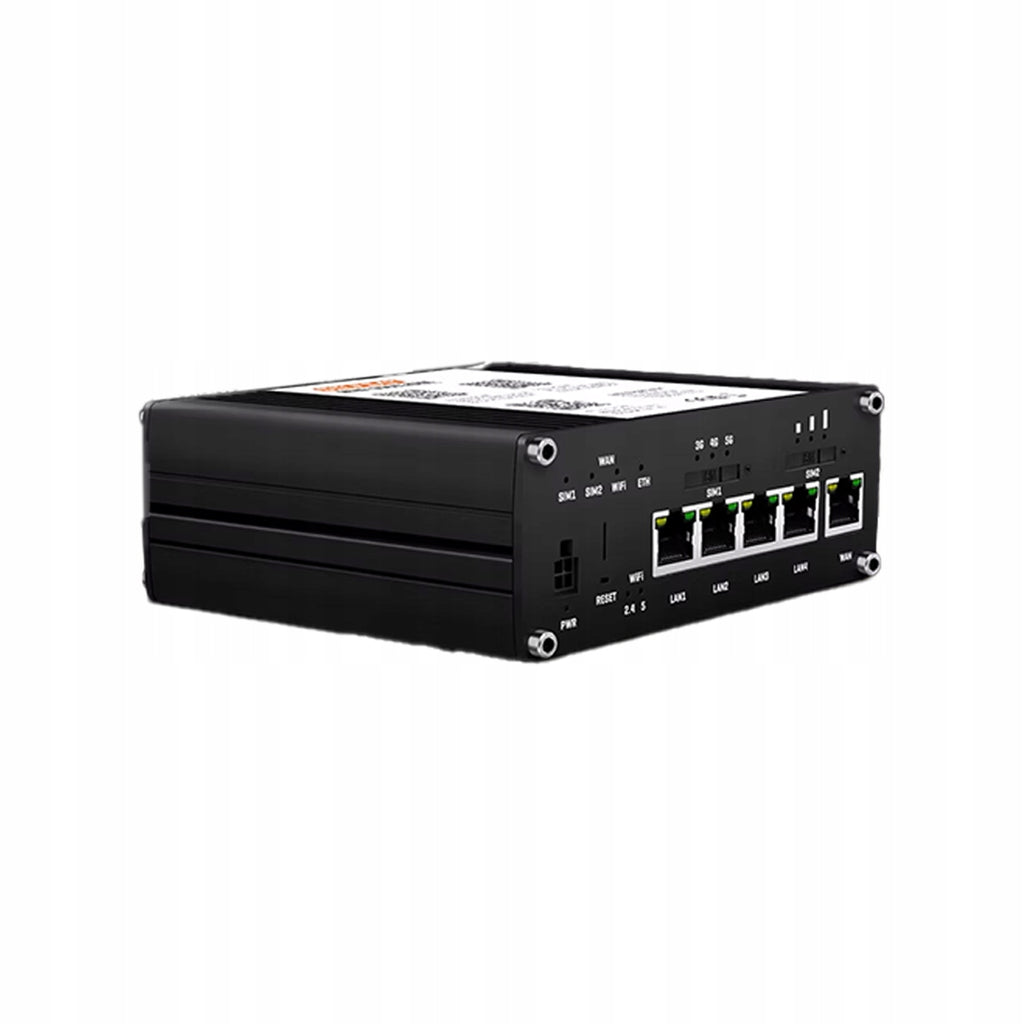

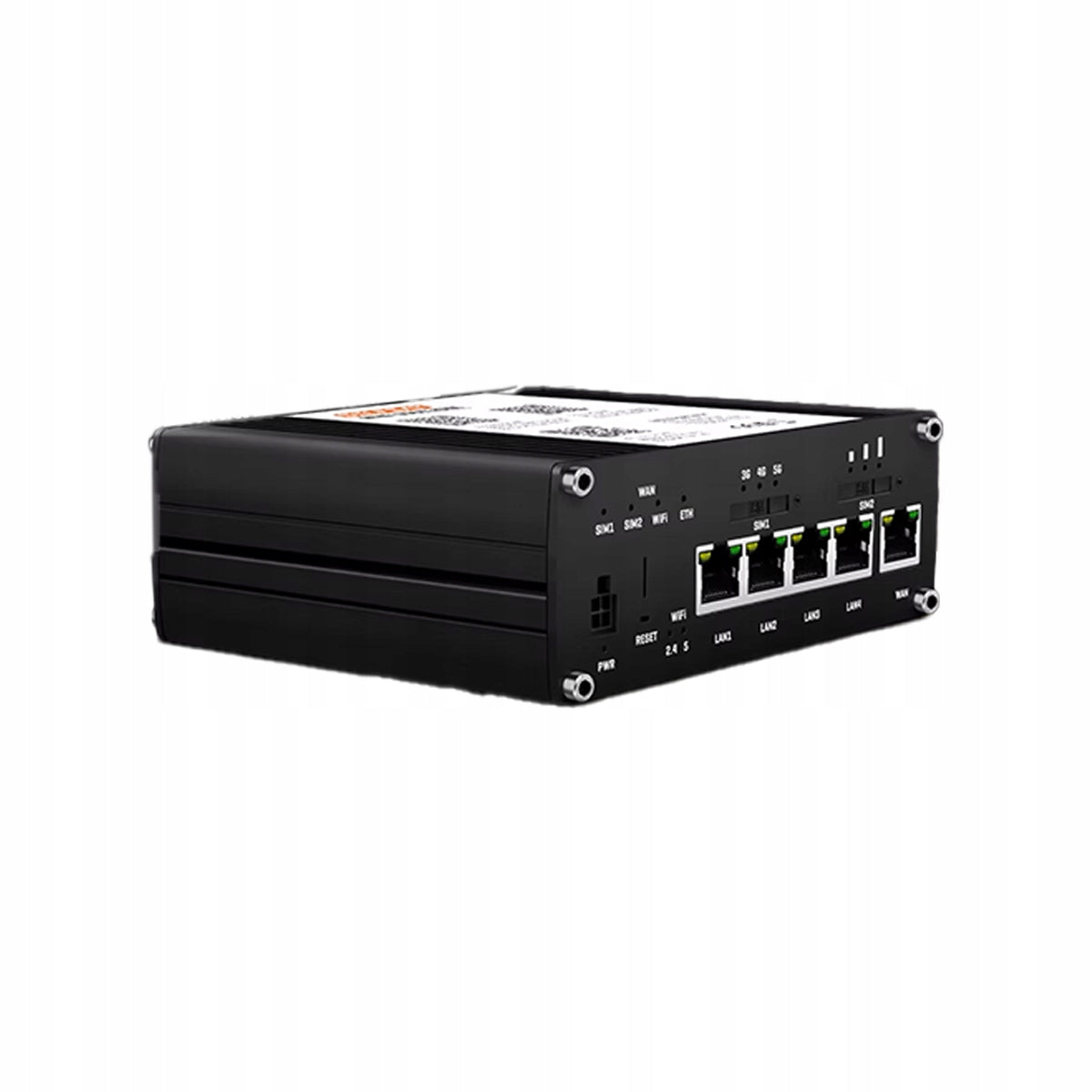

• router MWR 5540 (in the picture you can see the same router from two different sides, 1 piece of the device is included)
• 4-pin power cable

Network parameters:

• supported cellular network generations: 5G (up to 2,6 Gbps), 4G LTE (Cat 12 to 600 Mbps), 3G (up to 42 Mbps)
• Supported Wi-Fi Frequency (Input): 2,4 GHz, 5 GHz
• Supported Wi-Fi Frequency (Output): 2,4 GHz, 5 GHz
• SIM card slots: 2 x Mini SIM (2FF)

Interfaces:

• Ethernet Connectors: 1 x WAN, 4 x LAN RJ45

Power Supply:

• Voltage: 9 - 50 V DC

Dimensions and weight:

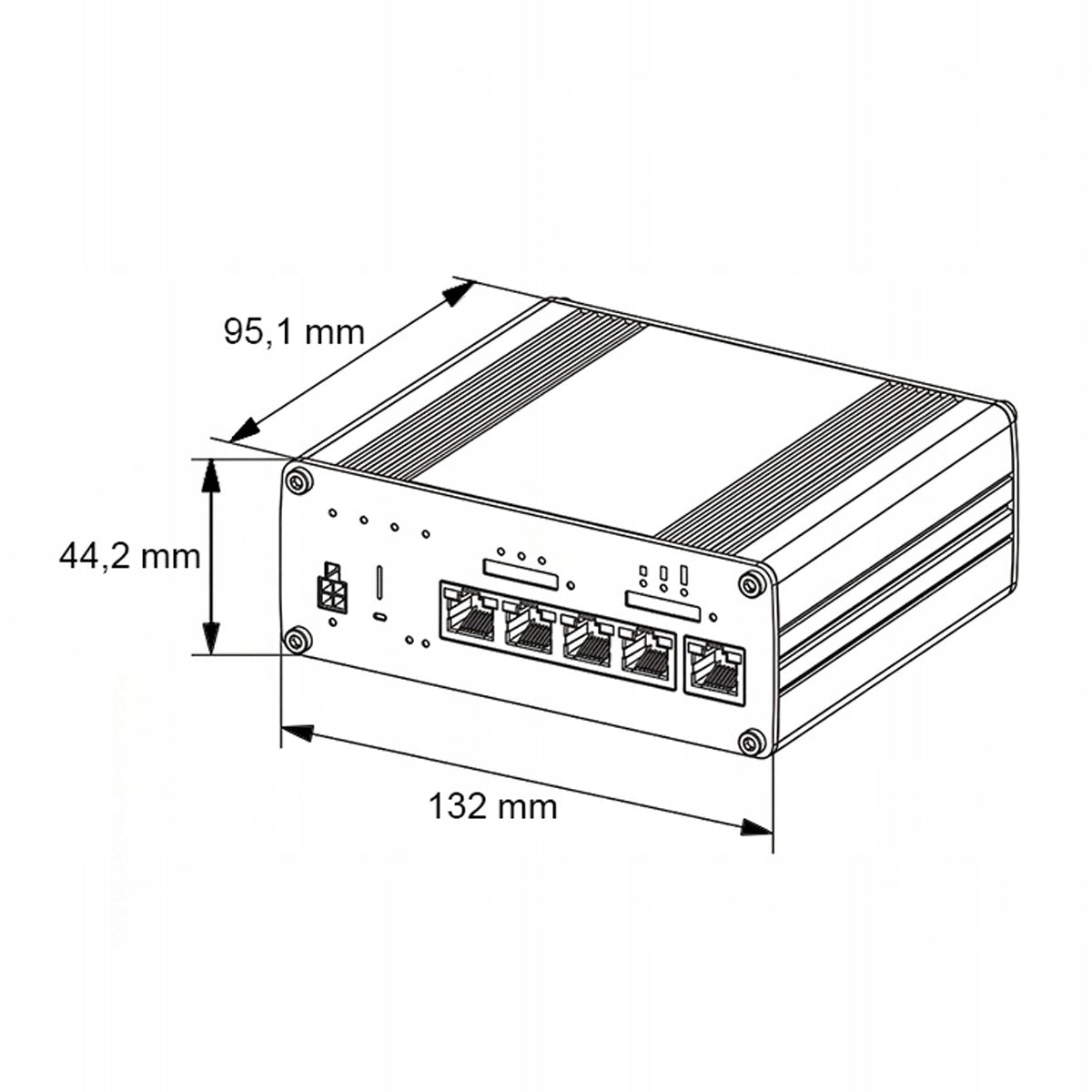

• dimensions: 132 x 44,2 x 95,1 mm
• Weight: 519 g

Environmental conditions and design:

• Operating temperature: -40°C - 75°C
• degree of protection: IP30

Applications:

• Control cabinets and industrial automation (IoT) systems
• Special vehicles, motorhomes and yachts
• unheated warehouses and production halls
• integration with satellite internet (e.g. Starlink)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Mode of operation	Router
Parametry	Wireless operation standard	other
Parametry	Internal modem	no modem
Parametry	Number of LAN (RJ-45) ports	4
Parametry	LAN port operating standard	not specified
Parametry	EAN (GTIN)	5903031068511
Parametry	Manufacturer code	R5GSMWR5540
Parametry	Model	R5GSMWR5540
Parametry	Packaging status	original
Parametry	The highest standard supported	other
Parametry	Batteries included	no
Parametry	Band	2,4 GHz,5 GHz
