PoE komutatorius Ultralink USF64P, 4 PoE+ prievadai (100Mbps), 2 uplink, 60W

Trumpai apie prekę

Prekė: PoE komutatorius Ultralink USF64P, 4 PoE+ prievadai (100Mbps), 2 uplink, 60W. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: USF64P

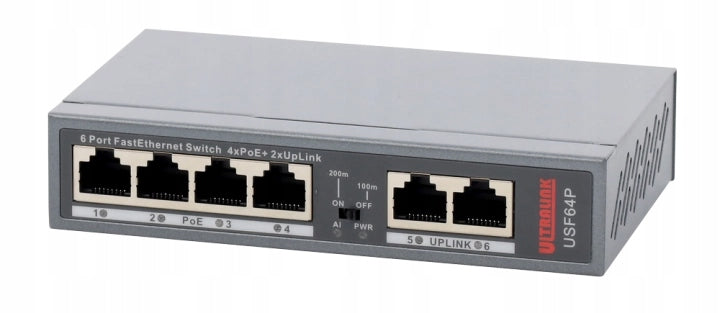

USF64P is a 6-port PoE switch designed to power IP cameras operating in the IEEE 802.3af/at standard. Switch on ports 1 to 4 has the function of automatic detection of devices powered in the PoE / PoE + standard. UPLINK ports are used to connect additional network devices via RJ45 connector. On the front panel there is an indication of the operating status of the device realized on LEDs.

PoE technology provides a network connection and reduces installation costs, eliminating the need to supply a separate power cable to each device. In addition to cameras, network devices that use this technology can be powered in this way, e.g. IP phone, access point, router.

Long Range Mode

The switch allows you to work in two modes: standard and extended range. When the Long Range switch is in the STANDARD position, PoE ports operate at 100 Mbps and offer Ethernet coverage up to 100 meters. After switching the switch to the EXTEND position, the range is increased to 200 meters and the speed is reduced to 10 Mb/s. In addition, the VLAN function is activated, which isolates PoE ports between each other (communication takes place between UpLink ports and individual PoE ports). In both modes, the UpLink port speed is 100 Mbps.

Note: Changing modes requires a power restart!

• 4 PoE ports 10/100 Mbps (data transfer and power supply)
• 2 ports 10/100 Mbps (UP LINK)
• Long Range mode up to 200 meters
• 30 W for each PoE port *
• Support for IEEE 802.3af/at (PoE+) compliant devices
• Support auto-learning and auto-aging MAC addresses (1K size table)
• Desktop power supply included
• Additional mounting hardware
• Optical signalling

* the specified value of 30 W per port is the maximum value. When fully populated with PoE ports, the total power consumption of should not exceed 60 W.

• Ports: 6 ports 10/100 Mbps (4x PoE + 2x UPLINK), with automatic connection speed negotiation, Auto MDI/MDIX automatic patching
• PoE power supply: IEEE 802.3af/at (1-4 ports), 52 VDC / 30 W for each port
• Operating Mode: Long Range, VLAN
• Protocols, standards: IEEE 802.3, 802.3u, 802.3x, CDMA/CD, TCP/IP
• Bandwidth: 1.6 Gbps
• Transmission method: Store-and-Forward
• Optical operating signal: switch power supply, Link/Act, PoE Status
• Power supply: 100-240 V, 50/60 Hz, 1.3 A (desktop power supply 1.15 A / 60 W max.)
• Operating conditions: temperature from -10°C to 40°C, relative humidity up to 90 %, non-condensing
• Dimensions: 133 x 32 x 78 [mm]
• Net / gross weight: 600 g / 700 g
• Protection class PN-EN 60950-1:2007: II (second)
• Storage temperature: from -20°C to 60°C
• Declarations: CE

Example of using Ultralink USF64P network switch
