PoE komutatorius Pulsar SF116WP, 18 jungčių, tinka 16 kamerų

Trumpai apie prekę

Prekė: PoE komutatorius Pulsar SF116WP, 18 jungčių, tinka 16 kamerų. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: SF116WP

Product Code: SF116WP

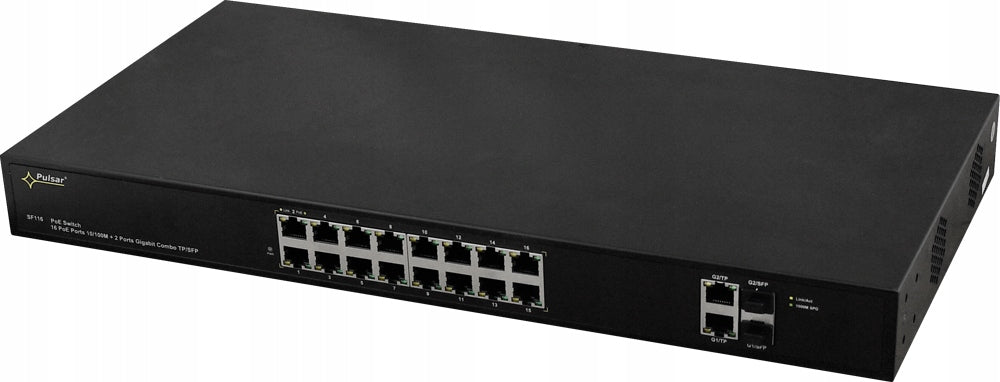

The 18-port PoE switch SF116WP without power supply for 16 IP cameras

• Switch 18 ports
• 16 PoE ports 10/100 Mb / s (data transfer and power supply)
• 2 10/100/1000 Mb / s RJ45 ports (G1 / TP, G2 / TP ports) (UpLink)
• 2 10/100/1000 Mbps SFP ports (G1 / SFP, G2 / SFP port) (UpLink)
• 30 W for each PoE port, support for devices compliant with the IEEE 802.3af / at ( PoE + ) standard
• Support for auto-learning and auto-aging of MAC addresses (16K table)
• Additional assembly elements
• Optical signaling

The SF116WP is an 18-port PoE designed to supply IP cameras operating in the IEEE 802.3af / at standard.

The switch on ports 1 to 16 has the function of automatic detection of devices powered in the PoE / PoE + standard.

The ports marked G1 / TP and G2 / TP are used to connect other network devices through the RJ45 connector.

The switch also has two SFP sockets (marked G1 / SFP and G2 / SFP), which, after using a fiber optic module (GBIC insert), enable fiber optic transmission. On the front panel, there is a LED diode signaling of the device's operating status.

PoE technology provides network connectivity and lowers installation costs by eliminating the need to run a separate power cable for each device. In addition to cameras, network devices that use this technology, e.g. IP phone, access point, router.

Technical data:

• Standard switch type
• Power
• 48 ÷ 54VDC, detachable power socket
• no power adapter included
• Ports 18
• PoE ports
• 16 x 10/100 Mb / s - IEEE 802.3af / at, PoE +
• 48 ÷ 54VDC, 30W / port, 240W / all ports
• UPLINK ports 2 x 1Gb / s - G1 / TP, G2 / TP
• SFP UPLINK sockets
• 2 x 1Gb / s - G1 / SFP, G2 / SFP
• G1 / TP and G1 / SFP - cannot work simultaneously
• G2 / TP and G2 / SFP - cannot work simultaneously
• Dimensions 442 x 44 x 224 [+/- 2 mm]
• Standard / RACK 19 "mounting
• Signaling LED optical signaling
• Comments additional mounting elements - RACK bracket

Note: The Pulsar "WP" PoE switch series does not include a power adapter. The power supply should be selected separately depending on the required current capacity, type (standard / buffer) and place of installation (e.g. desktop, rack, DIN rail etc. ).

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Pulsar
Parametry	Product weight with unit packaging	2.6 kg
Parametry	Number of ports	18
Parametry	EAN (GTIN)	5902135320556
Parametry	Manufacturer code	SF116WP
