Tinklo jungiklis GetFort, 4 PoE prievadai, 2 uplink, 65 W, 2 vnt.

Trumpai apie prekę

Prekė: Tinklo jungiklis GetFort, 4 PoE prievadai, 2 uplink, 65 W, 2 vnt.. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: getfort
• Modelis: GF-106D-4P-65

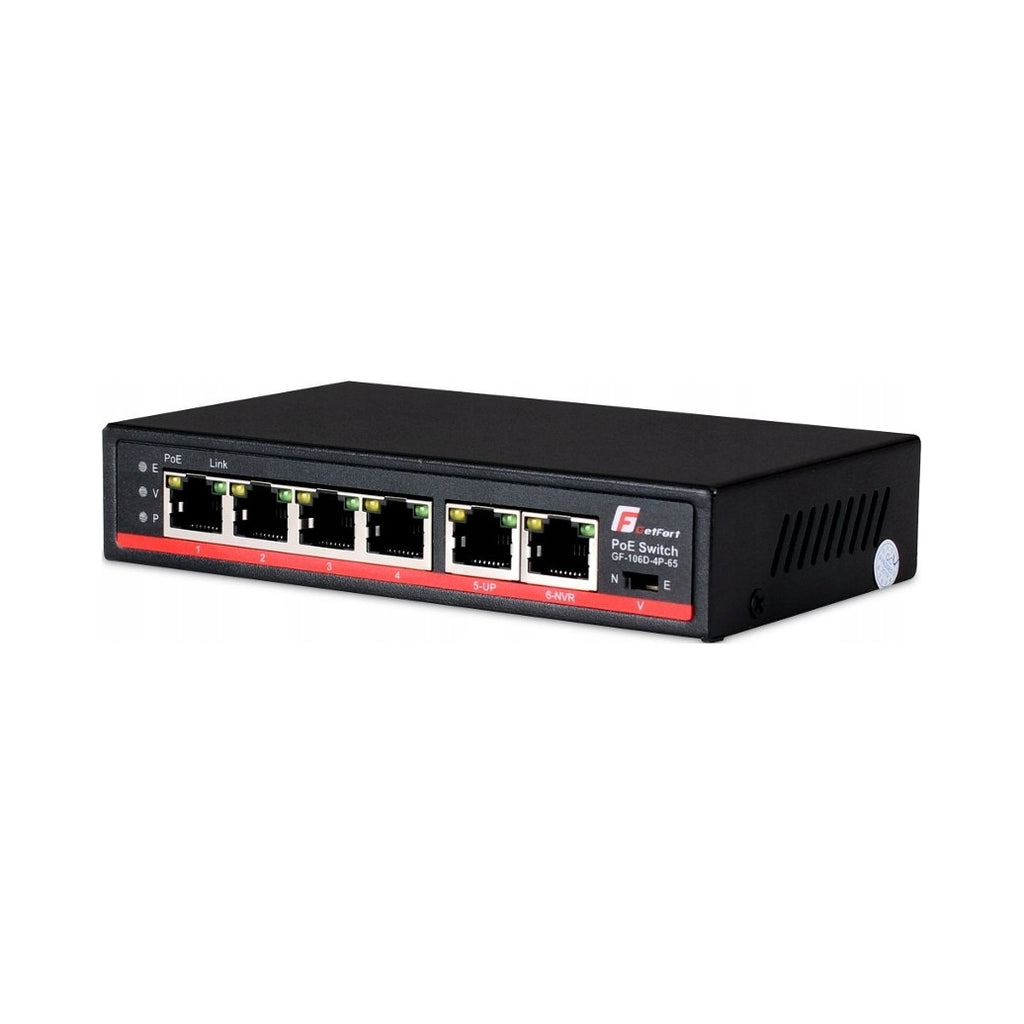

SWITCH POE GETFORT: GF-106D-4P-65 4 x POE + 2 UPLINK 65W

THE MOST IMPORTANT FEATURES OF THE DEVICE:

• 6 ports 100Mbps RJ45
• 4 PoE ports 802.3 af/at
• PoE support: up to 30W per port
• Power Supply: 52V/65W
• Long range PoE mode, up to 250m
• Support for VLAN port isolation
• Additional mounting brackets

PURPOSE :

• Switch GetFort GF-106D-4P-65 enables up to 250 m of data and power transmission range for monitoring systems.
• The high budget of PoE makes the device ideal for small and medium-sized company monitoring systems.

TRANSMISSION RANGE - up to 250m:

• Switch GetFort GF-106D-4P-65 was designed specifically for IP monitoring.
• It supports Long range mode which allows connection over a distance of up to 250m.
• Switch Getfort GF-106D-4P-65 is the perfect solution for deploying IP cameras over a large area.

STABLE AND RELIABLE:

• Switch GetFort GF-106D-4P-65 is a 6-port unmanaged 10/100Mbps switch that requires no configuration and provides 4 PoE ports.
• All 6 ports support automatic MDI/MDIX, which allows the use of any type of cable.
• Equipped with full duplex mode, the switch can process data at speeds up to 200 Mbps, making it an ideal choice for expanding your high-performance wired network.

TECHNICAL SPECIFICATION:

Interface

6 ports 10/100Mbps RJ45

Connection

10/100BASE-TX: UTP cat.5 or higher (maximum 250m)

PoE Budget

65W

Power supply

DC52V / 1.25A AC Adapter

Ports

Standard: 802,3 af/at

PoE: Port1-Port4

Pins: 4/5(+), 7/8(-)

Throughput

Ethernet 1.2 Gbps

MAC Address Table Size

2000

Packet transfer rate

900 Kpps

Buffer

768 Kbps

Jumbo frames

10240B

Dimensions

136*66*32 mm

Transmission method

Store-And-Forward

Additional Features

Priority function

Automatic addressing of packets

Full-duplex data flow control

Half-duplex data bitrate control protocol on Ethernet.

VLAN mode

Long Range Function 250m

Certificates

CE, FCC, RoHS

Contents of the pack

Switch GetFort

AC adapter

Power cable

Quick Start Guide

Operating temperature range

-10°C~55°C

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Manufacturer	getfort
Parametry	Product weight with unit packaging	0.4 kg
Parametry	Number of ports	4
Parametry	EAN (GTIN)	5907377218173
Parametry	Manufacturer code	GF-106D-4P-65
Parametry	Certificates of conformity	CE
