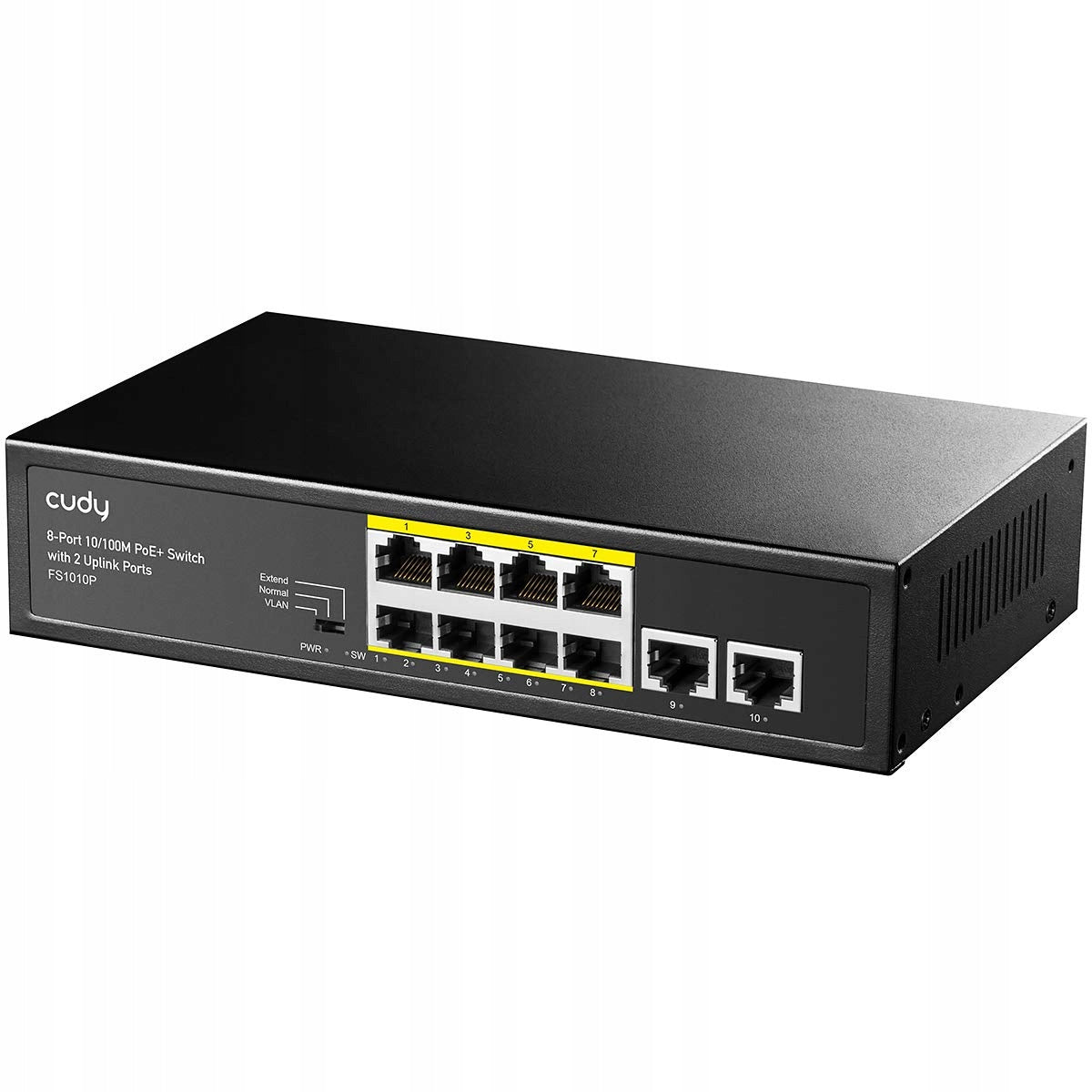

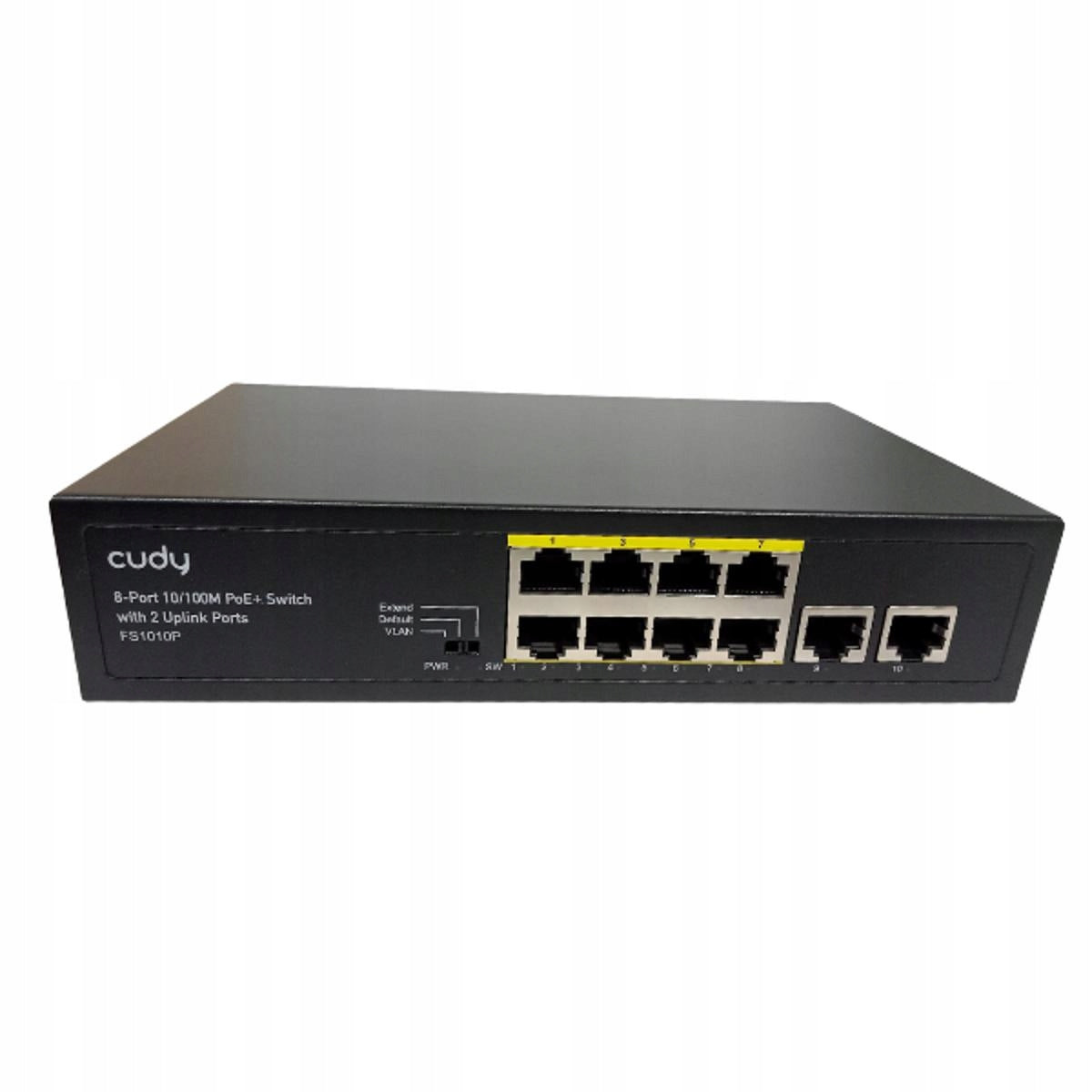

PoE komutatorius Cudy FS1010P, 8x FE PoE+, 120W, 8+2 prievadai

Trumpai apie prekę

Prekė: PoE komutatorius Cudy FS1010P, 8x FE PoE+, 120W, 8+2 prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cudy
• Modelis: 569531041

• IEEE802.3at and IEEE802.3af support
• Total PoE output power 120W, up to 32W for one PoE port
• IEEE802.3x full duplex and half duplex flow control support
• Support VLAN and CCTV functions
• Diodes on the panel to monitor the working status and help in fault analysis
• Excellent safety mechanism

Product Features:

• Supported protocols and standards: IEEE802.3 at, IEEE802.3 af, IEEE802.3 x, IEEE802.3 az,
• Management, monitoring, configuration: Modes: VLAN, CCTV
• Network architecture (switches): FastEthernet
• Certificates: CE, FCC Class A ,
• Console port: No
• Environmental requirements: Operating temperature: 0°C ~ 40°C, Storage temperature: -40°C ~ 70°C, Operating humidity: 10% ~ 90% non-condensing, Storage humidity: 5% ~ 90% non-condensing,
• Forward mode: Store-and-forward
• Power supply: 100~240V AC 50/60Hz PoE: Ports: 1-8, PoE budget: 120W, Power for one port: 32W,
• Power supply (switches): Internal
• Housing type: Desktop (PC/Switche)
• Power consumption: 120 W
• Application (switches): Home and small office (up to 16 ports)
• Switch class: Unmanaged
• Dimensions: 220 x 150 x 44 mm
• Weight: 1 kg
• Stackable: No
• Fan (switches): No
• Number of ports 10/100/1000 mbps: None
• Number of sfp+ ports: None
• Capacity (switches gbps): 2 Gbps
• Transmission speed (mpps): 1.48 Mpps
• Address table size mac: 8000
• Working time between failures (mtbf): 50000 h
• Number of poe ports (poe + poe+): None
• Number of sfp ports: None
• Support jumbo frames: Yes
• Number of ports 10/100 mbps: 10
• Number of ports 10gb: None
• Number of poe+ ports: 8
• Number of combo ports: None
• Number of qsfp+ ports: None
• Jumbo frame size: 1.528 KB
• Number of ports 10/100/1000/2500 mbps: None
• Number of ports sfp56: None
