PoE kamerų jungiklis, 8 PoE, 2 uplink, 96W, iki 250 m

Trumpai apie prekę

Prekė: PoE kamerų jungiklis, 8 PoE, 2 uplink, 96W, iki 250 m. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TG CCTV
• Modelis: TG-SP08F2F-TA

Switch 8x PoE 10/100 Mbps 802.3af/at + 2x Uplink 10/100 Mbps, 96W Extend mode (250m)

✅Switch equipped with 10 LAN ports, of which 8 PoE ports with a speed of 10/100 Mbps, allow data transfer and power supply in the 802.3af/at protocol standard, with a total power budget – 96 W.

✅Up link o ports speed 10/100 Mbps, are used to transfer data that can be used to connect devices that do not require power.

✅Switch works in the Plug and Play standard and does not require configuration, thanks to which it detects and adjusts the speed of transmitted data, to the type of cable and end device. The device is designed to connect subsequent segments of the computer network with the possibility of direct power supply to PoE peripheral devices such as cameras, video intercoms, telephones, access points (AP).

• 8 ports PoE 10/100 Mbps
• 2 ports Uplink 10/100 Mbps
• PoE budget: 96 W
• "Extend" function: signal transmission up to 250 m
• PoE standard: IEEE 802.3af/at (15.4 W/30 W)
• Bandwidth: 1.6 Gbps
• Built-in power supply: DC 52 V, 1.8 A

✅ FUNCTIONALITY

Network devices operating in the PoE 802.3af/at standard, connected to the switch, will be automatically powered after negotiating the PoE protocol. In order to ensure switch protection and power stability, the switch has a built-in protection function that automatically monitors and regulates power consumption by PoE ports. If the available power budget is exceeded, the switch identifies the port with the lowest priority and disconnects it. Thanks to this, it ensures even distribution of power between connected devices and minimizes the risk of power overload, which translates into stable network operation and protection against failures.

✅EXTEND mode

Switching to "L" mode enables logical separation of subnets by isolating ports and increasing the range of data and power transmission over a distance of up to 250 meters using category 5e twisted pair cable. In this configuration, data transfer is reduced to 10 Mbps. Extended mode allows stability and reliability of the connection over longer distances.

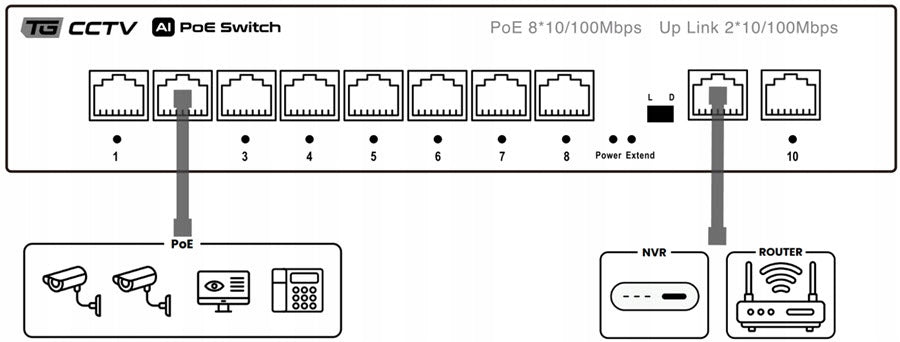

Example application:

Technical parameters:

• Model: TG-SP08F2F-TA
• Switch type: active PoE switch 8+2
• Rated supply voltage: AC 220 - 240 V
• Rated power frequency: 50 - 60 Hz
• Special Features: Extend (signal transmission up to 250 m, 10 Mbps)
• Switch: L2
• Uplink ports: 2x 10/100 Mbps
• PoE ports: 8x 10/100 Mbps
• PoE standard: IEEE 802.3 af/at
• PoE budget: 96 W
• Network wiring: min. UTP cat.5 / cat.5e
• Distance data transmission: max. 100 m (max. 250 m at the on. Extend mode)
• Network standards: IEEE 802.3 af/at, IEEE 802.3/802.3u/802.3x
• MAC address table: 1000 entries
• Switching bandwidth: 1.6 Gbps
• Forwarding method: store and forward
• Transfer frequency: 10 Base-T: 14880 pps/port, 100 Base-T: 14800 pps/port
• 64B packet forwarding speed: 0.148 Mpps
• Package buffer: 768 Kb
• RAM: 256 KB
• FLASH MEMORY: 2 MB
• Port functions: power prioritization, fast & forward, MAC memory, 802.3X Full-duplex, half-duplex backpressure
• LED indicators: PoE status, connection, power supply
• Power supply: built-in, DC 52 V, 1.8 A, 96 W
• Maximum power consumption: ≤3 W
• Standby power consumption: ≤1.5 W
• Cooling: passive
• Failure-free operation "MTBF": ≥50.000 hours
• Degree of protection: IP20
• Dimensions [D x S x W]: 230 x 150 x 45 mm
• Working and storage temperature: min. 0°C; max. +50°C
• Working and storage humidity: ≤80% RH
• Housing colour: black
• Accessories included: power cable
• Net weight: 0.8 kg
• Number of pieces Direct packaging: 1 pc.
• Number of pieces multipack: 30 pcs.
• Dimensions of the package. direct [D x S x W]: 24 x 18.5 x 7.5 cm
• Dimensions of the package. collective [D x S x W]: 55 x 37 x 49 cm
• Gross weight of packaging. direct: 1.0 kg
• Gross weight of packaging. multipack: 30.0 kg
• Volume pack. collective: 0.0995 m³
