Trumpai apie prekę
Prekė: PoE jungiklis su 8 jungtimis IP kameroms, lauko dėžė. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Atte
- Modelis: IP-8-20-L2
Set of up to 8 IP cameras, in external housing ABOX-L2, power supply 96W, PoE switch 10 port (8xPoE 10/100Mbps + 2xGigabit Uplink), electronic fuses, type IP-8-20-L2
Key features and functions:
- Support for 4K Ultra HD cameras
- possibility of powering 8 PoE 802.3at/af or PASSIVE receivers
- electronic fuse independently for each PoE channel (auto return)
- possibility of switching off power on PoE ports
- clear optical indication of power supply and data transmission status
- up to 40W power on PoE ports (LAN_1 to LAN_8)
- easy and quick start-up without the need to configure parameters
- high efficiency of the power supply module (>90%)
- easy and quick installation service thanks to modular design
- easy expansion and scaling of the system by attaching additional xPoE / IP series switches and IPB / IPUPS
- assembly of modules in any open part of the mounting plate (raster system)
- cover and housing connected by a fishing line for ease of service
- possibility of maintaining the supply of cables inside the housing
- cable entry through glands mounted in the housing: 10xM16 and 1xM20
- 4 brackets included for mounting the housing without violating the IP56 degree of protection
- optional ADD-PMAL adapter allows easy installation on poles or lanterns (sold separately)

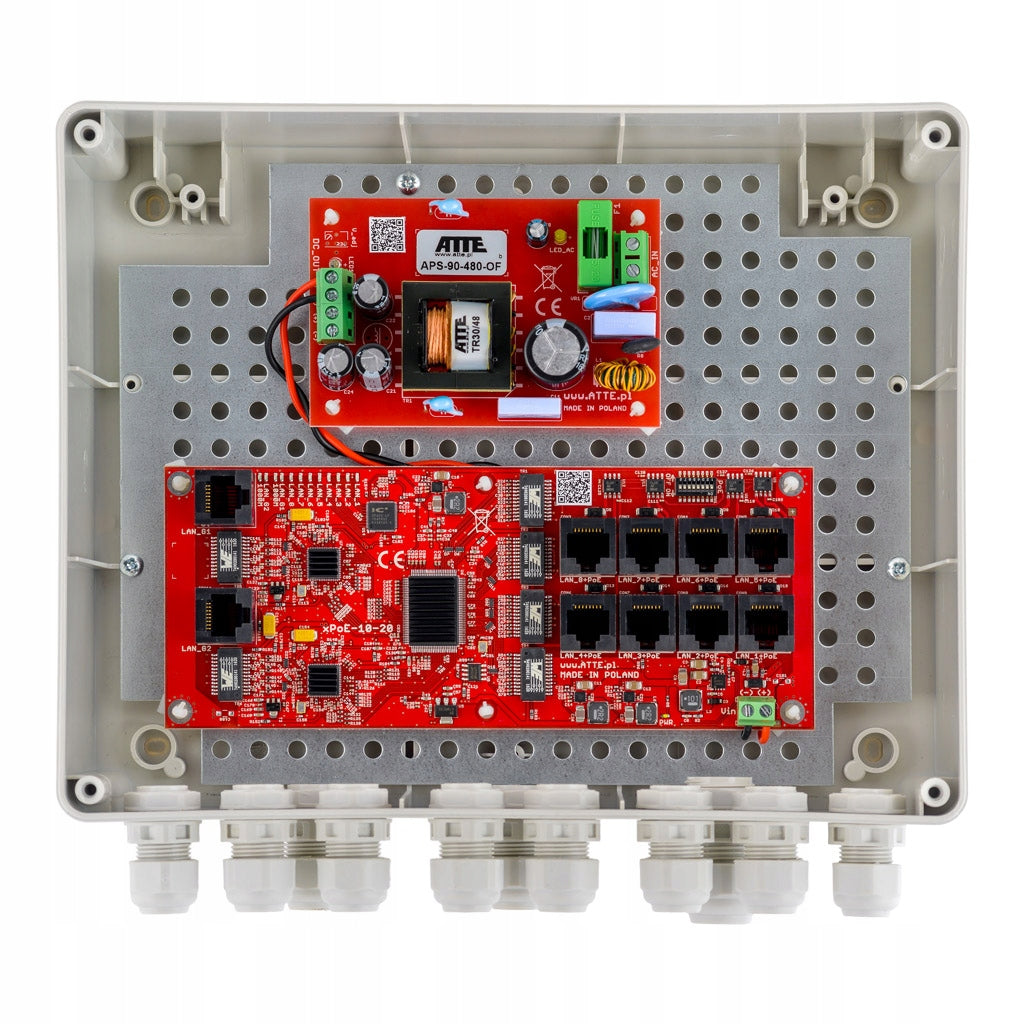

The set includes:

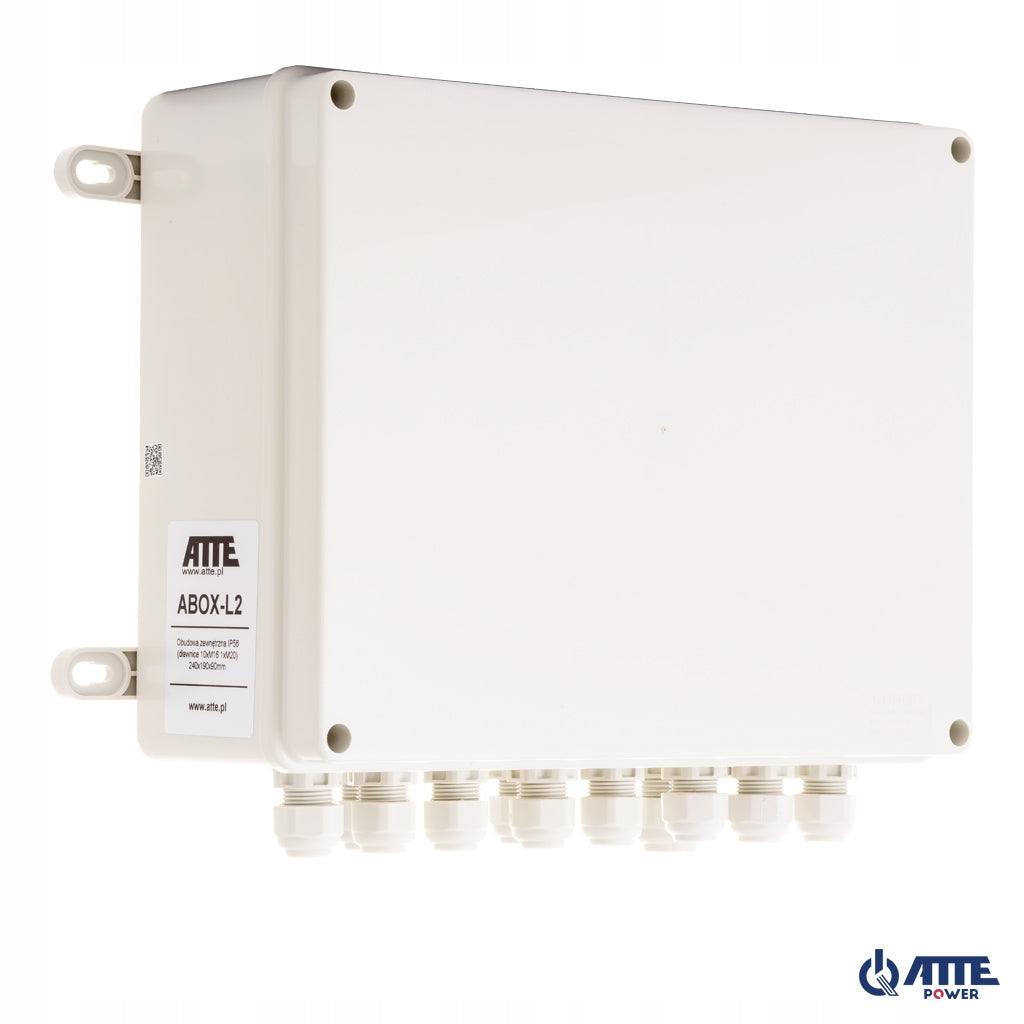

- 1x ABOX-L2 housing
- 1x APS-90-480-OF power supply
- 1x switch xPoE-10-20A-OF
IP-8-20-L2 is a ready-made set, dedicated to power the IP CCTV system consisting of 8 IP cameras. Electronic protection of PoE outputs ensures continuity of operation of the entire system when short-circuiting or overloading individual power branches, and automatic return of voltage after failure. The device is used in systems requiring increased network bandwidth, such as CCTV 4K Ultra HD monitoring.
Example of application.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Atte |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | Number of ports | 8 |
| Parametry | EAN (GTIN) | 5902143690306 |
| Parametry | Manufacturer code | IP-8-20-L2 |
| Parametry | Packaging status | original |
