Trumpai apie prekę
Prekė: PoE jungiklis Commax CIOT-H8L2, 8 prievadai, 2 vnt.. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Commax
- Modelis: CIOT-H8L2
Product Code: CIOT-H8L2

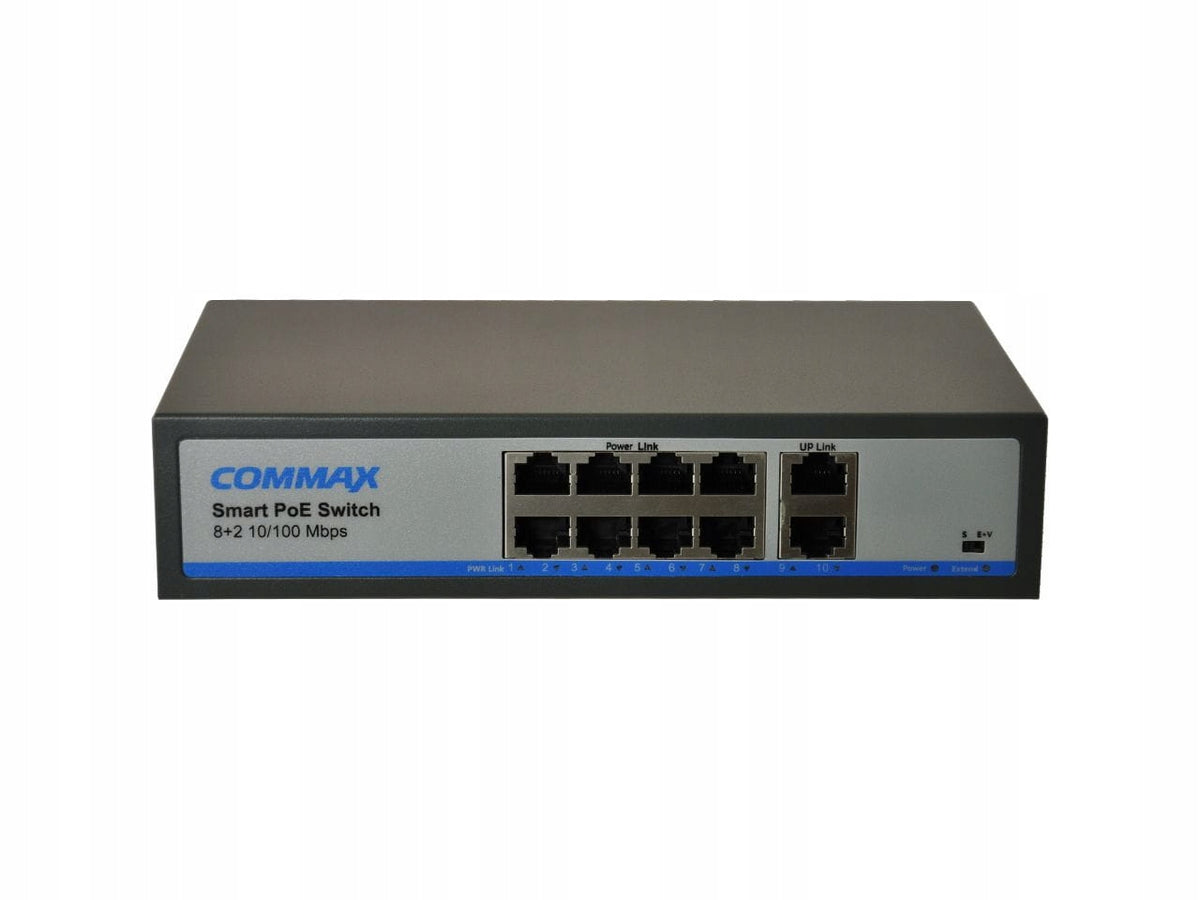

The CIOT-H8L2 switch is a 10-port PoE switch designed to power IP devices, in particular the COMMAX IP video intercom system. Switch on ports 1 to 8 has the function of automatic detection of devices powered in the PoE standard. Ports 9 and 10 marked as UPLINK are used to connect further network devices. Built-in power supply, power signaling, EXT signaling (increase range).
Specification:
- Ports: 10 ports 10/100Mbps (8 x PoE + 2 x UPLINK)
- with automatic connection speed negotiation, Auto MDI/MDIX automatic patching)
- IEEE 802.3af PoE power supply (1÷8), 52VDC / 30W per port *
- Total power of connected devices (power supply efficiency): max. 120W
- Protocols, IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP
- Redirect speed: 10BASE-T: 14880pps/port, 100BASE-TX: 148800pps/port
- 1,6Gbps bandwidth
- Transmission Method: Store-and-Forward
- Optical operating signal: Switch power supply, Link/Act, PoE Status, Ext.
- Power supply 100 ÷ 240VAC 50÷60Hz / 230VA (built-in power supply)
- Operating conditions Temperature -10°C ÷ 55°C,
- Relative humidity 5% - 90%, non-condensing
- MAC (size 2K)
- Dimensions (W x H x D) 200 x 44 x 120 [mm]
- Additional accessories mounting plates to the ground
- Built-in power supply
- Weight: 1,1kg
- Storage temperature -20°C ÷ 60°C
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Commax |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | Number of ports | 10 |
| Parametry | EAN (GTIN) | 5900882899950 |
| Parametry | Manufacturer code | CIOT-H8L2 |
| Parametry | Certificates of conformity | CE |
